 07 Feb 2019, Stefan Ritt, Info, History panels in custom pages
|
 08 Feb 2019, Thomas Lindner, Info, History panels in custom pages
| |
12 Sep 2019, Pintaudi Giorgio, Info, History panels in custom pages
| |
12 Sep 2019, Stefan Ritt, Info, History panels in custom pages
| |
13 Sep 2019, Pintaudi Giorgio, Info, History panels in custom pages
|
|
|
Message ID: 1682
Entry time: 12 Sep 2019
In reply to: 1446
Reply to this: 1683
|
| Author: |
Pintaudi Giorgio |
| Topic: |
Info |
| Subject: |
History panels in custom pages |
|
|
> > A new tag has been implemented to display history panels in custom pages, integrated in the
> > new custom page design from 2017. The full documentation can be found at
> >
>
> As part of consolidating/cleaning the MIDAS Wiki documentation, the "New Custom Pages" was folded into the main "Custom Page". So to see a
> description of Stefan's new functionality please go to
>
> https://midas.triumf.ca/MidasWiki/index.php/Custom_Page#mhistory
Hello!
I am trying to use the new mhistory panels in the WAGASCI slow control custom page, but I cannot get them to work.

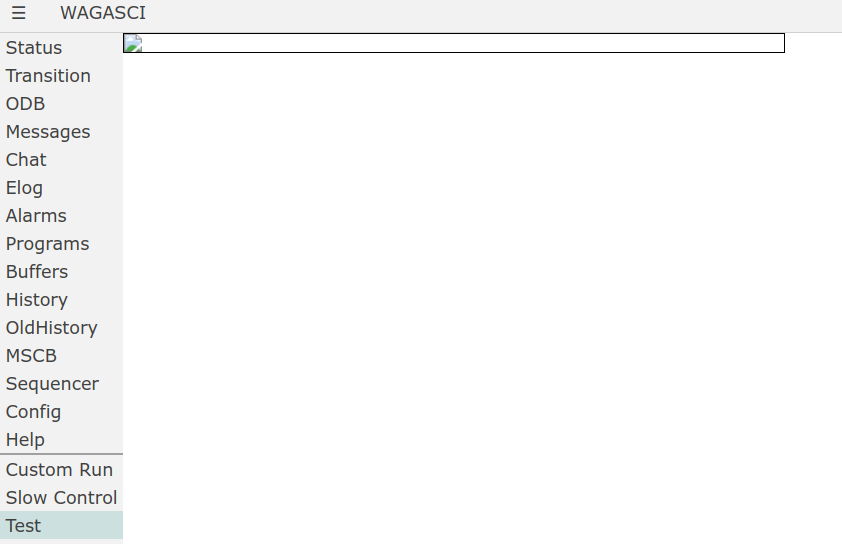

All I get is an empty frame. Anyway, in the History tab I can see the history plots correctly.
Here is a minimal example:<html>
<head>
<title>Test</title>
<link rel="stylesheet" href="midas.css">
<script src="controls.js"></script>
<script src="midas.js"></script>
<script src="mhttpd.js"></script>
</head>
<body class="mcss" onload="mhttpd_init('Test');">
<div id="mheader"></div>
<div id="msidenav"></div>
<div id="mmain">
<div name="mhistory" data-group="Test" data-panel="Test" data-scale="1m" style="width:600px;border:1px solid black;"></div>
</div>
</body>
</html>
Of course, the "Test" group and "Test" panel exist in the ODB and are correctly shown in the History tab. No error is shown in the console of the web browser.
I am using the latest version of MIDAS as of September 12.
Can you confirm that this feature is working in the latest MIDAS? If yes, how can I troubleshoot the problem?
Regards
Giorgio |
