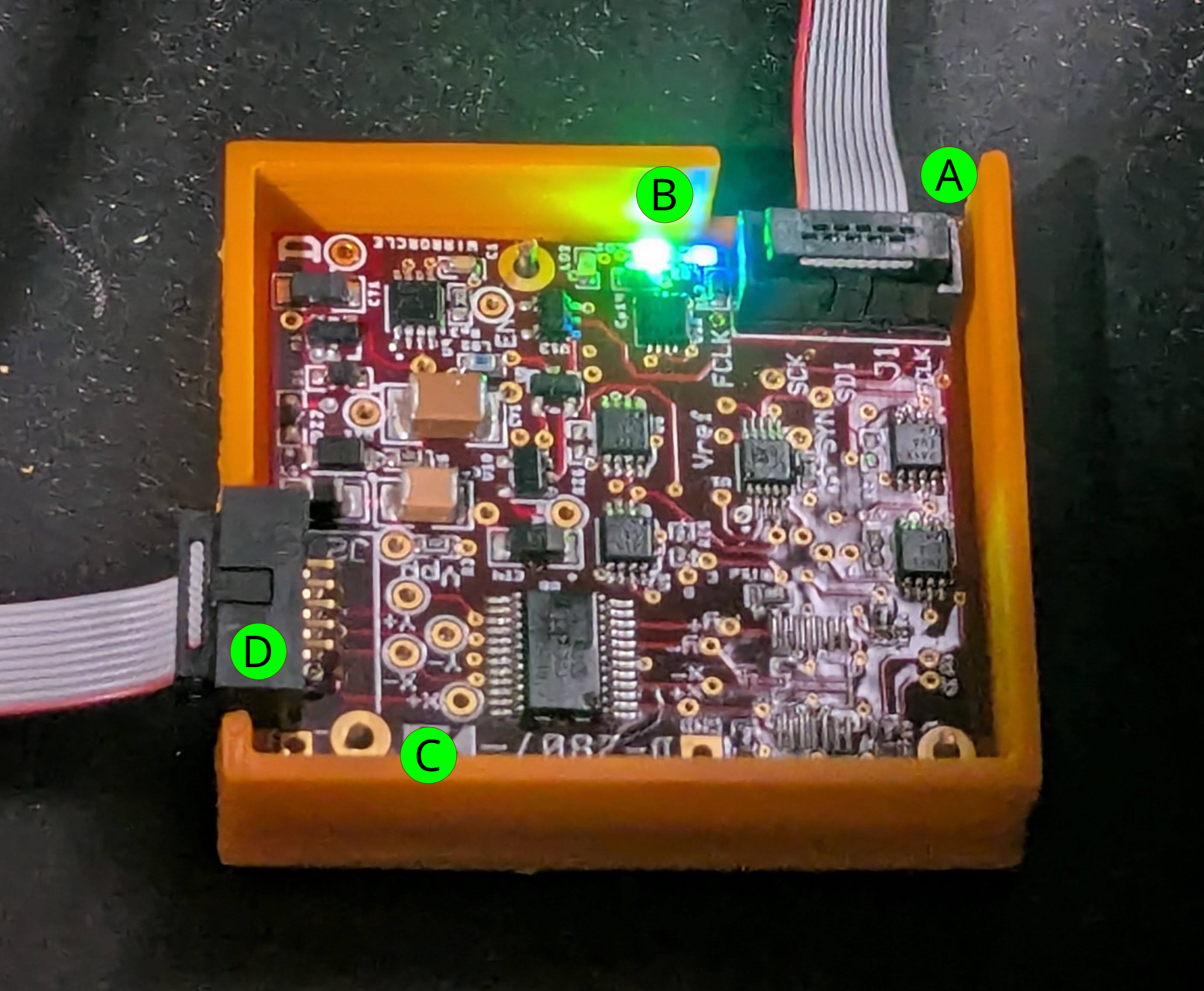

MEMS driver board with controller connector (A, to breakout board, then rPi), status LEDs (B), voltage testpoints (C), HV connector to MEMS (D)
