Can you please update to the latest develop versiokn of midas, and clear your browser cache so that the updated JavaScript midas library is loaded. Should be fixed by now. See attached screen shot where I changed every second value via the ODB editor.

Stefan

> > > Following discussions at the MIDAS workshop, we propose to move MIDAS from c++11 to c++17.
> > We shall move forward with this change.
>
> It is done. Last c++11 MIDAS is midas-2025-11-a (plus the db_delete_key merge).
>
> I notice the cmake does not actually pass "-std=c++17" to the c++ compiler, and on U-20, it is likely
> the default c++14 is used. cmake always does the wrong thing and this will need to be fixed later.
>
> K.O.

We should either use

set(CMAKE_CSS_STANDARD 17)

or

target_compile_features(<target> PUBLIC cxx_std_17)

but not mix both. We have already the second one for the midas library, like

target_compile_features(objlib PUBLIC cxx_std_17)

which correctly causes a

c++ -std=gnu++17 ...

(at leas in my case).

If the compiler flag is missing for a target, we should add the target_compile_feature above for that target.

Stefan

Dear all,

Stefan wants to run an external EPICS driver process as a detached process and somehow "glue" it to midas to control it. Actually a similar requirement led to the development of MIDAS in the '90s. We had too many configuration files lying around, to many process to control and interact together with each other and so on. With the development of MIDAS I wanted to integrate all that. There is one ODB to control an parasitize everything, one central process handling to see if processes are alive, raise an alarm if they die, automatically restart them if necessary and so on. Doing this now externally again is orthogonal to the original design concept of MIDAS and will cause many problems. I therefore strongly recommend to to juggle around with systemctl and syslog, but to make everything a MIDAS process. It's simply a "cm_connect_experiment()" and "cm_disconnect_experiment()" in the end. Then you set

/programs/requited = y

and

/programs/start command = <cmd>

You can set the "alarm class" to raise an alarm if the program crashes, and you will see all messages if you use "cm_msg()" inside the program rather than "printf()". Injecting a separate .log file into the system will show things on the message page, but these messages do not go through the SYSMSG buffer, and cannot received by other programs. Maybe you noticed that mhttpd on the status page always shows the last message it received, which can be very helpful. To see if a program is running, you only need a cm_exist() call, which also exists for custom web pages.

Rather than investing time to re-invent the wheel here, better try to modify your EPICS driver process to become a midas process.

If you have an external process which you absolutely cannot modify, I would rather write a wrapper midas program to start the external process, intercept it's output via a pipe, and put its output properly into the midas message system with cm_msg(). In the main loop of your wrapper function you check the external process via whatever you want, and if it dies trigger an alarm or restart it from your wrapper program. You can then set an alarm on your wrapper program to make sure this one is always running.

Best regards,
StefanR

> (rules for running cppcheck have gone missing, I hope I find them).

found them. I built cppcheck from sources.

  520  ~/git/cppcheck/build/bin/cppcheck src/midas.cxx
  523  ~/git/cppcheck/build/bin/cppcheck manalyzer/manalyzer.cxx manalyzer/mjsroot.cxx
  524  ~/git/cppcheck/build/bin/cppcheck src/tmfe.cxx
  525  ~/git/cppcheck/build/bin/cppcheck midasio/*.cxx
  526  ~/git/cppcheck/build/bin/cppcheck mjson/*.cxx

K.O.

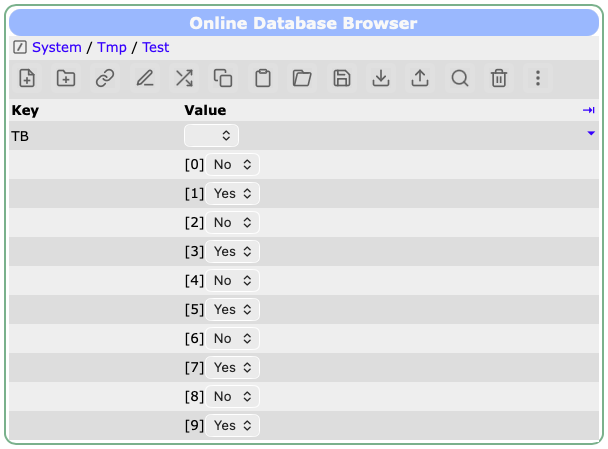

I think I've found a bug in MIDAS ...

Description: If you have an ODB subtree that contains only an array of BOOLs, you cannot edit them from the ODB webpage, although you can change them using odbedit (and probably from code as well). See for example: https://scdms-zeus.triumf.ca/midas/?cmd=ODB&odb_path=%2FScottBugTest

(If you use the dropdown menu to change any value from No to Yes, it just flips back to No immediately.)

But if you create a new key in that directory (doesn't seem to matter what), then you can edit the BOOLs from webpage. Delete that key, and once again you can't edit the BOOLs.

Hi,

unfortunately I don't have a documentation link to the feature, I just know that it works on my machine ;-) The general idea is that you place a custom whatever.log file in Logger/Data Dir (where midas.log is stored). Then, in the Messages page, there will be a "midas" tab and a "whatever" tab - the latter showing the content of whatever.log. One problem here is that timestamping does not work automatically - you have to prepend every line with the same Hours:Minutes:Seconds.Milliseconds Year/Month/Day format that midas.log is using.

So you have a custom Programs page which does systemctl status on your systemd? Does the status then transfer over automatically to the Status page? Is there an example how to write such a custom page?

Best regards
Stefan

> Hi,
>
> > Nick. Regarding the messages: Zaher showed me that it is possible to simply place
> > a custom log file generated by the systemd next to midas.log - then it shows up
> > next to the "midas" tab in "Messages".
>
> Interesting. I'm not familiar with that feature. Do you have link to documentation?
>
> > One follow-up question: Is it possible to use the systemctl status for the
> > "Running on host" column? Or does this even happen automatically?
>
> On the programs page that column is populated by the odb key /System/Clients/<PID>/Host
> so no. However, there is nothing stopping you from writing your own version of
> programs.html to show whatever you want. For example I have a custom programs
> page the includes columns to enable/disable and to reset watchdog alarms.
>
> Cheers,
>
> Nick.

> I notice the cmake does not actually pass "-std=c++17" to the c++ compiler, and on U-20, it is likely
> the default c++14 is used. cmake always does the wrong thing and this will need to be fixed later.

Does adding

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

Get it to do the right thing?

Cheers,

Nick..

Hi,

> Nick. Regarding the messages: Zaher showed me that it is possible to simply place
> a custom log file generated by the systemd next to midas.log - then it shows up
> next to the "midas" tab in "Messages".

Interesting. I'm not familiar with that feature. Do you have link to documentation?

> One follow-up question: Is it possible to use the systemctl status for the
> "Running on host" column? Or does this even happen automatically?

On the programs page that column is populated by the odb key /System/Clients/<PID>/Host
so no. However, there is nothing stopping you from writing your own version of
programs.html to show whatever you want. For example I have a custom programs
page the includes columns to enable/disable and to reset watchdog alarms.

Cheers,

Nick.

> > we should finally bite the bullet and remove ROOT support from MIDAS ...

as discussed, HAVE_ROOT and OBSOLETE were removed from mlogger. rmana and ROOT support in manalyzed remain,
untouched.

last rmlogger is in MIDAS tagged midas-2025-11-a.

K.O.

> > Following discussions at the MIDAS workshop, we propose to move MIDAS from c++11 to c++17.
> We shall move forward with this change.

It is done. Last c++11 MIDAS is midas-2025-11-a (plus the db_delete_key merge).

I notice the cmake does not actually pass "-std=c++17" to the c++ compiler, and on U-20, it is likely
the default c++14 is used. cmake always does the wrong thing and this will need to be fixed later.

K.O.

In the darkside vertical slice midas daq, we observed odb corruption which I
traced to db_delete_key(). cause of corruption is not important. important is to
have a robust odb where small corruption will stay localized and will not
require erasing corrupt odb and reloading it from a backup file.

To help debug such corruption one can try to set ODB "/Experiment/Protect ODB"
to "yes". This will make ODB shared memory read-only and user code scribbling
into the wrong memory address will cause a seg fault and core dump instead of
silent ODB corruption. This feature is not enabled by default because changing
ODB shared memory mapping from "read-only" to "writable" (and back) is not very
fast and it slows down MIDAS noticably.

MIDAS right before this merge was tagged "midas-2025-11-a", if you see this ODB
update cause trouble, please report it here and revert to this tagged version.

Updates:
- harden db_delete_key() against internal corruption, if odb inconsistency is
detected, do a clean crash instead of trying to delete stuff and corrupting odb
to the point where it has to be erased and reloaded from a backup file.
- additional refactoring to separate read-locked and write-locked code.
- merge of missing patch to avoid odb corruption when key area becomes 100% full
(or was it the data area? I forget now, I fixed one of them long time ago, now
both are fixed).
- remove the "follow_links" argument from db_delete_key(), see separate
discussion on this.
- add db_delete() to delete things by ODB path not by hkey (atomic fused
together db_find_link() and db_delete_key()).
- fixes for incorrect use of db_find_key() and db_delete_key(), this
unexpectedly follows symlinks and deletes the wrong ODB entry. (should have been
db_find_link(), now replaced with atomic db_delete()).

K.O.

> > I would handle this actually like symbolic links are handled under linux. If you delete a symbolic link, the link gets
> > detected and NOT the file the link is pointing to.
> >
> > So I conclude that the "follow links" is a misconception and should be removed.
>
> I am finally writing test code for the ODB API, partially to discover what db_delete_key(TRUE) actually does,
> because when I went ahead to remove it, I found that it's use is inconsistent. And indeed
> it does strange and unexpected things, I will proceed with removing it.
>

this is now merged into develop. there will be deprecation warnings from mvodb and from midas_c_compat, I and Ben will clean
them up, just not today.

for more detail, see separate message.

K.O.

Thanks a lot,

Nick. Regarding the messages: Zaher showed me that it is possible to simply place a custom log file generated by the systemd next to midas.log - then it shows up next to the "midas" tab in "Messages".

One follow-up question: Is it possible to use the systemctl status for the "Running on host" column? Or does this even happen automatically?

Best regards
Stefan

> Hi,
>
> what you describe is exactly how I normally run mhttpd, mlogger, mserver and some other
> custom frontend programs. Eg:
>
> [local:T2KGSC:Running]/>ls /programs/Logger/
> Required                        y
> Watchdog timeout                100000
> Check interval                  180000
> Start command                   systemctl --user start mlogger
> Auto start                      n
> Auto stop                       n
> Auto restart                    n
> Alarm class                     AlarmNotify
> First failed                    0
>
> The only exception is your last point about stdout and stderr
> being midas messages. I use journalctl to see these.
>
> Cheers,
>
> Nick.
>
> > I want to control (start / stop / monitor its stdout and stderr) an external process (systemd / EPICS IOC shell script) from within MIDAS.
> >
> > In order to make this as convenient as possible for the user, I want the process to behave just like any other MIDAS client:
> > - I can start it from the ODB as a program
> > - The process gets regularly polled from MIDAS to see whether it is still running
> > - I can stop the process from the ODB like any other program
> > - Optional, but highly appreciated: Its stdout and stderr should be a MIDAS message.
> >
> > Did anyone already solve a similar problem?
> >
> > Best regards
> > Stefan

Hi,

what you describe is exactly how I normally run mhttpd, mlogger, mserver and some other
custom frontend programs. Eg:

[local:T2KGSC:Running]/>ls /programs/Logger/
Required                        y
Watchdog timeout                100000
Check interval                  180000
Start command                   systemctl --user start mlogger
Auto start                      n
Auto stop                       n
Auto restart                    n
Alarm class                     AlarmNotify
First failed                    0

The only exception is your last point about stdout and stderr
being midas messages. I use journalctl to see these.

Cheers,

Nick.

> I want to control (start / stop / monitor its stdout and stderr) an external process (systemd / EPICS IOC shell script) from within MIDAS.
>
> In order to make this as convenient as possible for the user, I want the process to behave just like any other MIDAS client:
> - I can start it from the ODB as a program
> - The process gets regularly polled from MIDAS to see whether it is still running
> - I can stop the process from the ODB like any other program
> - Optional, but highly appreciated: Its stdout and stderr should be a MIDAS message.
>
> Did anyone already solve a similar problem?
>
> Best regards
> Stefan

Dear all,

I want to control (start / stop / monitor its stdout and stderr) an external process (systemd / EPICS IOC shell script) from within MIDAS.

In order to make this as convenient as possible for the user, I want the process to behave just like any other MIDAS client:
- I can start it from the ODB as a program
- The process gets regularly polled from MIDAS to see whether it is still running
- I can stop the process from the ODB like any other program
- Optional, but highly appreciated: Its stdout and stderr should be a MIDAS message.

Did anyone already solve a similar problem?

Best regards
Stefan

I'm constructing a TMFeEquipment with this constructor:

MagnetFe(const char *eqname, const char *eqfilename) // ctor
        : TMFeEquipment(eqname, eqfilename)
    {
        fEqConfEventID = 3;
        fEqConfBuffer = "SYSTEM";
        fEqConfPeriodMilliSec = 1000; // in milliseconds
        fEqConfLogHistory = 1;
        fEqConfReadOn = RO_ALWAYS;
    }


When I start with a fresh ODB, the directories are created correctly, and e.g. the
event ID is set correctly, but "Read on" is set to 1 (i.e. RO_RUNNING) instead of
0xFF.
Now when I set it to 0xFF manually and restart, it gets overwritten to 7
(RO_NONTRANS), which I guess is a relatively recent change and doesn't affect me
negatively.

> Sorry about that. I could not figure out what was the reason for doing this. This was during the time I was working on the file_picker. I removed these lines and see no effect on the file_picker. I'll continue checking it affect anything else.

I confirm reported problem seems to be fixed in commit:
https://bitbucket.org/tmidas/midas/commits/7f2690b478d6dfb16b48fc98955093e6369b04c1

Big thanks to Stefan and Zaher for figuring it out quickly.

K.O.

Sorry about that. I could not figure out what was the reason for doing this. This was during the time I was working on the file_picker. I removed these lines and see no effect on the file_picker. I'll continue checking it affect anything else.

Zaher

> This problem was introduced by ZS in March 2023 with these commits:
>
> https://bitbucket.org/tmidas/midas/commits/25b13f875ff1f7e2f4e987273c81d6356dd2ff53
> https://bitbucket.org/tmidas/midas/commits/2a9e902e07156e12edecb5c2257e4dbd944f8377
>
> by setting
>
>  d.style.position = "fixed";
>
> which prevents the scrolling. I have no idea why this change was made, so it should be fixed by the original
> author.
>
> Stefan

This problem was introduced by ZS in March 2023 with these commits:

https://bitbucket.org/tmidas/midas/commits/25b13f875ff1f7e2f4e987273c81d6356dd2ff53
https://bitbucket.org/tmidas/midas/commits/2a9e902e07156e12edecb5c2257e4dbd944f8377

by setting

 d.style.position = "fixed";

which prevents the scrolling. I have no idea why this change was made, so it should be fixed by the original
author.

Stefan

> > We would like to write an sc_frontend in Python instead of C++. All our drivers
> > work correctly, as well as the creation of the database in the ODB, including the
> > creation of Commons, Statistics, Variables, and Settings.
> > However, we are unable to correctly create the database entries needed to manage
> > History and Display.
> >
> > As we understand it, in C++ this is handled by setting the EQ_SLOW flag, which
> > doesn’t seem to be implemented in the Python libraries.
> > How can we manually create the necessary variables for Display and History?

I don't believe any of this is handled automatically by the EQ_SLOW flag in the C++ code. I think you always have to manually create the history plots, normally using the webpage interface.

There is also a function in the python code called "client.hist_create_plot(group_name, panel_name, variables, labels=[])" that can slightly automate this, though you do have to know what midas is internally calling your variables.

You can find out what the variables are called either through the webpage interface when creating a plot, or via the python script at $MIDASSYS/python/examples/basic_hist_script.py
