#include <TSystem.h>
#include <TApplication.h>
#include <TTimer.h>
#include <TCanvas.h>
#include <TH1.h>
#include <TStyle.h>
#include <TFile.h>
#include <TRootEmbeddedCanvas.h>
#include "Globals.h"

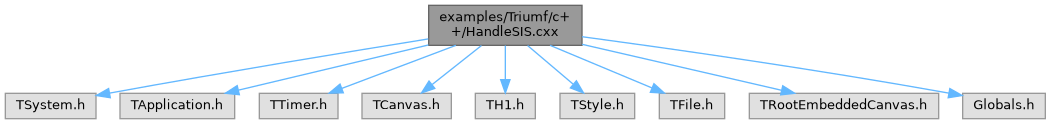

Include dependency graph for HandleSIS.cxx:

Classes
struct	SWITCH

struct	histopanel

Functions
double	clock2time (uint64_t clock)

void	resetClock2time ()

void	ReadSwitches ()

void	CheckDetails (int Channel, double counts, uint64_t clock)

void	CheckTriggers (int Channel, double counts, uint64_t clock)

void	CheckMixingTriggers (int Channel, double counts, uint64_t clock)

void	CheckPbarTriggers (int Channel, double counts, uint64_t clock)

void	StepThroughSISBuffer ()

void	HandleSIS (int numChan, int size, const void *ptr)

void	onlineMonitorStart ()

void	SISperiodic ()

void	SISBeginRun ()

void	SISEndRun ()

Variables
const int	kMaxSwitches = 20

int	numswitches = 0

int	tptr = 0

bool	tinit = false

SWITCH	switches [kMaxSwitches]

const int	kNumPanels = 64

const int	kNumOnlineHistos = 5

histopanel	onlinemonitor [kNumPanels]

histopanel	detailedSISmonitor [kNumPanels]

int	numpanels = 0

int	xpanels = 2

int	ypanels = 8

double	textsize = 0.1

double	xlabelsize = .1

double	ylabelsize = .1

double	ylabeloffset = .01

int	ynoexponent = 1

int	xcanvas = 1200

int	ycanvas = 800

int	dSISnumpanels = 0

int	dSISxpanels = 2

int	dSISypanels = 8

double	dSIStextsize = 0.1

double	dSISxlabelsize = .1

double	dSISylabelsize = .1

double	dSISylabeloffset = .01

int	dSISynoexponent = 1

int	dSISxcanvas = 1200

int	dSISycanvas = 800

TCanvas *	timetestcanvas = NULL

TH1D *	timefromsec = NULL

double	gtfs = 0.

const int	kNumberofDetailChannels = 5

bool	DetailsRecord [kNumberofDetailChannels] = {false,false,false,false,false}

int	DetailsChannels [kNumberofDetailChannels] = {2,4,5,6,7}

char *	DetailsTitles [kNumberofDetailChannels] = {"PMT OR","Pbar TimeStamps","Mixing TimeStamps","Pbar Sequence Start","Mixing Sequence Start"}

TH1D *	DetailsHisto [kNumberofDetailChannels]

const double	DetailsLength = 3.0

const int	ADchannel = 1

double	detailsStartTime = 0.0

double	detailsmin = 0.2

double	detailsmax = 0.4

int	Integral = 0

bool	mixingsequence = false

bool	pbarsequence = false

bool	mixingrecording = false

bool	pbarrecord = false

TH1D *	mixinghisto = NULL

TH1D *	pbarhisto = NULL

int	mixingindex = 0

int	pbarindex = 0

int	dumpnumber = 0

int	recordingstarttime = 0

Function Documentation

◆ CheckDetails()

void CheckDetails	(	int	Channel,
		double	counts,
		uint64_t	clock
	)

Definition at line 343 of file HandleSIS.cxx.

{
   if(counts!=0) {
      if(Channel == ADchannel) {
         if(DetailsRecord[0] == false) {
            detailsStartTime = clock2time(clock);

            char title[80];

            for(int i = 0;i<kNumberofDetailChannels;i++) {
               sprintf(title,"%s, Run %d, Spill %d",DetailsTitles[i],gRunNumber,gbeamSpill);
               DetailsHisto[i] = new TH1D(title,title,200,0,DetailsLength);
               gStyle->SetOptStat(kTRUE);
               //DetailsHisto[i] = new TH1D(title,title,20,detailsmin,detailsmax);

               DetailsRecord[i] = true;
            }
            Integral = 0;
         }
         else {
//          printf("AD trigger while details still recording\n");
         }
      }
      for(int i = 0;i < kNumberofDetailChannels;i++) {
         if (Channel == DetailsChannels[i])
         {
            if(DetailsRecord[i] == true){
               if((clock2time(clock)-detailsStartTime)>=DetailsLength) {
                  for(int j=0;j<kNumberofDetailChannels;j++) {
                     DetailsHisto[j]->Write();
                     if(j==0)
                        printf("Spill: %d, Integral: %d\n",gbeamSpill,Integral);

                     DetailsRecord[j]=false;

                     if(!gSISDetails) {
                        gSISDetails = new TCanvas("SIS Fine Details","SIS Fine Details",600,900);
                        gSISDetails->Divide(1,kNumberofDetailChannels,0.001,0.001);

                        //gStyle->SetOptStat(kFALSE); // Turn off the statistics for the online histograms
                        gStyle->SetTitleFontSize(0.09);
                     }

                     gSISDetails->cd(j+1);

                     if(j==0)
                     {
                        char text[80];
                        sprintf(text,"Integral (%lf-%lf): %d",detailsmin,detailsmax,Integral);
                        TText *txt = new TText(.2,2,text);
                        txt->SetTextSize(0.1);txt->SetTextColor(1);
                        DetailsHisto[j]->GetListOfFunctions()->Add(txt);
                     }
                     DetailsHisto[j]->Draw();
                  }
                  gSISDetails->Modified();
                  gSISDetails->Update();
               }
               else {
                  DetailsHisto[i]->Fill(clock2time(clock)-detailsStartTime,counts);
                  if(((clock2time(clock)-detailsStartTime)>=detailsmin)&&((clock2time(clock)-detailsStartTime)<=detailsmax))
                      Integral++;
               }
            }
            else{
               // Don't record
            }
         }
      }
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckMixingTriggers()

void CheckMixingTriggers	(	int	Channel,
		double	counts,
		uint64_t	clock
	)

Definition at line 515 of file HandleSIS.cxx.

{
   int sequencestartchannel = 7;
   int mixingtimestampchannel = 5;
   int recordingchannel = 2;

   if(counts!=0){

      if(Channel == sequencestartchannel){

         if(mixingsequence == false) { // Startup
            printf("Starting of mixingsequence\n");

            mixingsequence = true;
            mixingindex = 0;
         }
         else if (mixingsequence == true) { // Reset

            printf("Mixing dump start signal called when already in a sequence!\n");

         }
      }
      else if(Channel == mixingtimestampchannel) { // Mixing timestamp to check
         if(mixingsequence == true) {

   //       printf("mtimestamp!\n");

            mixingindex++;

            if((mixingrecording==false)&&(gmdump.singledump[dumpnumber].steps[mixingindex]==1)){
               mixingrecording = true;

               printf("1!  Step: %d\n",mixingindex);
               //start histogram here
               dumpnumber++;

               char title[80];
               sprintf(title,"Dump (mixing) number %d, spill %d, run%d",dumpnumber,gbeamSpill,gRunNumber);

               if(mixinghisto){
                  mixinghisto->Write();
                  delete mixinghisto;
                  mixinghisto = NULL;
               }
               mixinghisto = new TH1D(title,title,15000,0,15000);

               recordingstarttime = clock;
            }
            else if ((mixingrecording==true)&&(gmdump.singledump[dumpnumber].steps[mixingindex]==0)){ // Dump finished, write histogram
               mixingrecording = false;

               //int mixingintegral = mixinghisto->Integral();
               mixinghisto->Write();
            }
         }
         else {
   //       printf("Mixing timestamp when no mixing sequence!\n");
         }

         if(mixingindex == gmdump.singledump[dumpnumber].totalsteps){
   //       printf("Max size (%d)!\n",gmdump.singledump[dumpnumber].totalsteps);
            mixingrecording = false;
            mixingsequence = false;
         }

      }
      else if ((Channel == recordingchannel)&&(mixingrecording)) {
         printf("Record!\n");
         if(mixinghisto){
            mixinghisto->Fill(clock-recordingstarttime,counts);
         }
         else
            printf("No histogram to record to!\n");
      }

   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckPbarTriggers()

void CheckPbarTriggers	(	int	Channel,
		double	counts,
		uint64_t	clock
	)

Definition at line 593 of file HandleSIS.cxx.

{
// int sequencestartchannel = 6;
// int pbartimestampchannel = 4;

}

Here is the caller graph for this function:

◆ CheckTriggers()

void CheckTriggers	(	int	Channel,
		double	counts,
		uint64_t	clock
	)

Definition at line 419 of file HandleSIS.cxx.

{
   for(int i=0;i<numswitches;i++) //loop over all switches
   {
      if(switches[i].keepgoing==true) // used for switch type 1 (when turned off, stays off)
      {
         if((switches[i].startchannel==Channel)&&(switches[i].switchon==false)&&(counts==switches[i].startthr)) // turn on the switch
         {
            if(switches[i].startcounts==switches[i].numstartevents)
            {
               switches[i].switchon=true;
               switches[i].timescalled++;
//             printf("Switch %d - On!\n",i);

               char title[80];
               sprintf(title,"%s, Run %d, Spill Number %d",switches[i].title,gRunNumber,gbeamSpill);

               switches[i].histo = new TH1D(title,switches[i].title,switches[i].numbins,switches[i].xmin,switches[i].xmax);
               switches[i].start = clock2time(clock);

               //printf("i: %d, clock: %ld, start: %lf, gSaveClock: %d, gSaveTime: %d\n", i,(long int)clock,switches[i].start,(int)gSaveClock,(int)gSaveTime);

               switches[i].stopcounts = 0;
               switches[i].eventcounts = 0;
            }
            else switches[i].startcounts++;
         }
         else if ((switches[i].stopchannel==Channel)&&(switches[i].switchon==true)&&(counts==switches[i].stopthr)) // a event in stop channel
         {
            if(switches[i].stopcounts==switches[i].numstopevents) // and if there have been enough endsignals
            {
//             printf("Switch %d - Off!\n", i);
               switches[i].switchon= false;

               switches[i].histo->Write();

               switches[i].stopcounts=0;
               switches[i].startcounts=0;
               switches[i].eventcounts = 0;
               if(switches[i].switchtype==1) // no repeating
                  switches[i].keepgoing = false;
               else if (switches[i].switchtype==2) // reseting
               {
                  switches[i].switchon=true;
                  switches[i].timescalled++;
//                printf("Resetting switch %d!\n",i);

                  delete switches[i].histo;
                  switches[i].histo=NULL;

                  char title[80];
                  sprintf(title,"%s, Run %d, Spill Number %d",switches[i].title,gRunNumber,gbeamSpill);

                  switches[i].histo = new TH1D(title,switches[i].title,switches[i].numbins,switches[i].xmin,switches[i].xmax);
                  switches[i].start = clock2time(clock);
               }
            }
            else switches[i].stopcounts++;
         }
         if((switches[i].switchon == true)&&(switches[i].stopcounts<=switches[i].numstopevents))
         {
            if(switches[i].displaytype==0) // display the results per bin
            {
               if(Channel==switches[i].channeltoread) {
                  switches[i].histo->Fill(switches[i].eventcounts,counts);
                  switches[i].eventcounts++;
               }
            }
            else if(Channel==switches[i].channeltoread)
            {
               if(counts!=0) {
                  double plottime = clock2time(clock)-switches[i].start;
                  switches[i].histo->Fill(plottime,counts);
               }
            }
         }
      }
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clock2time()

double clock2time ( uint64_t clock )

Definition at line 213 of file HandleSIS.cxx.

{
  const double freq = 10000000.0;

  if (gSaveTime == 0)
    {
      gSaveClock = clock;
      gSaveTime  = time(NULL);
    }

  return gSaveTime + (clock - gSaveClock)/freq;
}

Here is the call graph for this function:

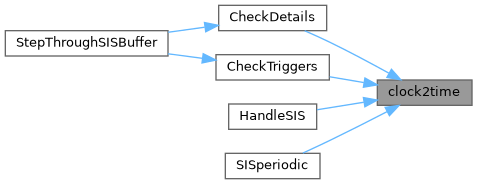

Here is the caller graph for this function:

◆ HandleSIS()

void HandleSIS	(	int	numChan,
		int	size,
		const void *	ptr
	)

Definition at line 662 of file HandleSIS.cxx.

{
  const uint32_t *sis = (uint32_t*)ptr;
//  printf("SIS data size %d, ",size);

  assert(gSisData);

  int i;
  for (i=0; i<size; i+=numChan, sis+=numChan)
    {
         //printf("bucket %d, data: %d %d %d %d\n",i,sis[16],sis[17],sis[18],sis[19]);
         uint64_t clock = sis[0];

   for (int j=0; j<numChan; j++)
   {
       gSisData->sisChannels[j].sisData[gSisData->wptr] = sis[j];
   }

   gSisData->clock += clock;
   gSisData->sisClock[gSisData->wptr] = gSisData->clock;

   gSisData->wptr++;
   if (gSisData->wptr >= kMaxSisBufferSize)
     gSisData->wptr = 0;

   if (gSisData->wptr > gSisData->wmax)
     gSisData->wmax = gSisData->wptr;
    }
  assert(i==size);

  //printf("wptr: %d\n",gSisData->wptr);

  time_t now = time(NULL);

  static time_t gNow = 0;
  if (now > gNow + 10)
    {
      gNow = now;
      double sistime = clock2time(gSisData->clock);
      printf("time drift: %d %f %f\n",(int)now,sistime,sistime-now);
    }
}

Here is the call graph for this function:

◆ onlineMonitorStart()

void onlineMonitorStart ( )

Definition at line 707 of file HandleSIS.cxx.

{
   FILE *fmonitor = NULL;
   fmonitor = fopen(gOLMPath,"r"); // open the switches file

   char inputstring[120];  // buffer for the input data
   bool divideinit = false;

   if(fmonitor != NULL) // try to open the file
   {
      printf("Online Monitor values being read from file: %s\n",gOLMPath);
      while(!feof(fmonitor)) //loop over all lines in the file
      {
         char dummychar[5];
         if(fgets(dummychar,2,fmonitor) == NULL) break; // safety check for end of file
         else fseek(fmonitor,-1,SEEK_CUR); // rewind if not end of file

         //Parse onlinemonitor.txt line by line

         fgets(inputstring,119,fmonitor); // put the line into a buffer string
         if(strchr(inputstring,'#')==NULL) // if there is a #, then it is a comment
         {
            //printf("string: %s\n",inputstring);
            char *parsestring; // buffer to parse

            if(divideinit==false) // grab the first line (window options)
            {
               parsestring = strtok(inputstring, " ");   // Parse the number of columns
               xpanels= atoi(parsestring);

               parsestring = strtok(NULL, " "); // Parse the number of rows
               ypanels= atoi(parsestring);

               parsestring = strtok(NULL, " "); // Parse the size of the text
               textsize= atof(parsestring);

               parsestring = strtok(NULL, " "); // Parse the size of the x labels
               xlabelsize= atof(parsestring);

               parsestring = strtok(NULL, " "); // Parse the size of the y labels
               ylabelsize= atof(parsestring);

               parsestring = strtok(NULL, " "); // Parse the size of the y label offset
               ylabeloffset= atof(parsestring);

               parsestring = strtok(NULL, " "); // Parse if to show exponents on the y axis
               ynoexponent= atoi(parsestring);

               parsestring = strtok(NULL, " "); // Parse if to show exponents on the y axis
               xcanvas= atoi(parsestring);

               parsestring = strtok(NULL, " "); // Parse if to show exponents on the y axis
               ycanvas= atoi(parsestring);

               divideinit=true;
            }
            else  // then grab the rest of the file
            {
               parsestring = strtok(inputstring, " ");   // Parse the panel number
               onlinemonitor[numpanels].panelnumber= atoi(parsestring);

               parsestring = strtok(NULL, " "); // Parse the number of histograms in the panel
               onlinemonitor[numpanels].nhistos= atoi(parsestring);

               if(onlinemonitor[numpanels].nhistos>kNumOnlineHistos)
               {
                  printf("Too many histograms in panel %d!\n",numpanels);
                  break;
               }
               parsestring++;

               // then to parse the title
               int i = 0;
               char title=false;
               while(i<100) // safety check
               {
                  parsestring++;
                  if((!isspace(*parsestring))||(title==true))
                  {
                     title=true;
                     if (*parsestring == 10 || *parsestring == 13 || *parsestring == 0)
                           break;
                     onlinemonitor[numpanels].title[i++] = *parsestring;
                  }
               }

               //printf("Number of histograms: %d, title: %s\n",onlinemonitor[numpanels].nhistos,onlinemonitor[numpanels].title);
               for(int i=0;i<onlinemonitor[numpanels].nhistos;i++)
               {
                  fgets(inputstring,119,fmonitor);
                  if(strchr(inputstring,'#')==NULL) // if there is a #, then it is a comment
                  {
                     parsestring = strtok(inputstring, " ");   // Parse the channel to read
                     onlinemonitor[numpanels].histochannel[i]= atoi(parsestring);
                     parsestring = strtok(NULL, " "); // Parse the number of bins
                     onlinemonitor[numpanels].nbins[i]= atoi(parsestring);
                     parsestring = strtok(NULL, " "); // Parse the minimum bin
                     onlinemonitor[numpanels].xmin[i]= atof(parsestring);
                     parsestring = strtok(NULL, " "); // Parse the max bin
                     onlinemonitor[numpanels].xmax[i]= atof(parsestring);
                     parsestring = strtok(NULL, " "); // Parse the colour
                     onlinemonitor[numpanels].colour[i]= atoi(parsestring);
                     parsestring = strtok(NULL, " "); // Parse the display type
                     onlinemonitor[numpanels].displaytype[i]= atoi(parsestring);
                  }
               }
               numpanels++;
               if(numswitches>kNumPanels)
               {
                  printf("Exceeded maximum number of panels!\n");
                  break;
               }
            }
         }
      }
      fclose(fmonitor);
   }
   else
   {
      printf("Cannot open %s!\n",gOLMPath);
   }

  if(gMainWindow==NULL)
  {
         gMainWindow = new TCanvas("SIS Display","SIS Display",xcanvas,ycanvas);
   gMainWindow->Divide(xpanels,ypanels,0.001,0.001);
  }

  gStyle->SetOptStat(kFALSE); // Turn off the statistics for the online histograms
  gStyle->SetTitleFontSize(textsize);

  if(onlinemonitor[0].onlinehisto[0]!=NULL)
  {
   for(int i=0;i<numpanels;i++)
   {
      for(int j=0;j<onlinemonitor[i].nhistos;j++)
      {
         delete onlinemonitor[i].onlinehisto[j];
      }
   }
  }

  gROOT->cd(); // Move outside gOutputFile so that these histograms
  char title[80]; // aren't affected between runs
  for(int i=0;i<numpanels;i++)
  {
   gMainWindow->cd(onlinemonitor[i].panelnumber);
   for(int j=0;j<onlinemonitor[i].nhistos;j++)
   {
      if(j==(onlinemonitor[i].nhistos-1))
      {
         onlinemonitor[i].onlinehisto[j] = new TH1D(onlinemonitor[i].title,onlinemonitor[i].title,onlinemonitor[i].nbins[j],onlinemonitor[i].xmin[j],onlinemonitor[i].xmax[j]);
      }
      else
      {
         char dummytitle[80];
         sprintf(dummytitle,"%s, Channel %d",onlinemonitor[i].title,onlinemonitor[i].histochannel[j]);
         onlinemonitor[i].onlinehisto[j] = new TH1D(dummytitle,onlinemonitor[i].title,onlinemonitor[i].nbins[j],onlinemonitor[i].xmin[j],onlinemonitor[i].xmax[j]);
      }
      switch(onlinemonitor[i].colour[j])
      {
         case 0:
            onlinemonitor[i].onlinehisto[j]->SetLineColor(kBlack);
            break;
         case 1:
            onlinemonitor[i].onlinehisto[j]->SetLineColor(kRed);
            break;
         case 2:
            onlinemonitor[i].onlinehisto[j]->SetLineColor(kBlue);
            break;
         default:
            onlinemonitor[i].onlinehisto[j]->SetLineColor(kBlack);
      }
      onlinemonitor[i].onlinehisto[j]->GetYaxis()->SetNoExponent(ynoexponent);
      onlinemonitor[i].onlinehisto[j]->SetLabelSize(xlabelsize,"X");
      onlinemonitor[i].onlinehisto[j]->SetLabelSize(ylabelsize,"Y");
      onlinemonitor[i].onlinehisto[j]->SetLabelOffset(ylabeloffset,"Y");
   }
  }
  if(gOutputFile!=NULL)
  {
   sprintf(title,"data/run%d.root:/",gRunNumber);
   gROOT->Cd(title); // Move back into gOutputFile
  }
  else
  {
   printf("Data file improperly initialized\n");
   return;
  }
  gStyle->SetOptStat(kTRUE);  // Turn the statistics back on for the other histograms
  //gStyle->SetTitleFontSize();
}

Here is the call graph for this function:

◆ ReadSwitches()

void ReadSwitches ( )

Definition at line 236 of file HandleSIS.cxx.

{
  FILE *fswitches = NULL;
  fswitches = fopen(gSwitchesPath,"r"); // open the switches file

  char inputstring[200];  // buffer for the input data

  if(fswitches != NULL) // try to open the file
    {
      printf("Switches being read from the file: %s\n",gSwitchesPath);
      while(!feof(fswitches)) //loop over all lines in the file
   {
     char dummychar[5];
     if(fgets(dummychar,2,fswitches) == NULL) break; // safety check for end of file
     else fseek(fswitches,-1,SEEK_CUR); // rewind if not end of file

     //Parse switches.txt line by line

     fgets(inputstring,199,fswitches); // put the line into a buffer string
     if(strchr(inputstring,'#')==NULL) // if there is a #, then it is a comment
       {
      //printf("string: %s\n",inputstring);

      char *parsestring;
      parsestring = strtok(inputstring, " ");   // Parse the type of switch
      switches[numswitches].switchtype= atoi(parsestring);

      parsestring = strtok(NULL, " "); // Parse the channel to switch on
      switches[numswitches].startchannel= atoi(parsestring);

      parsestring = strtok(NULL, " "); // Parse the channel to switch off
      switches[numswitches].stopchannel= atoi(parsestring);

      parsestring = strtok(NULL, " "); // Parse the number of stop channel events before
      switches[numswitches].numstartevents= atoi(parsestring);// switching off

      parsestring = strtok(NULL, " "); // Parse the number of stop channel events before
      switches[numswitches].numstopevents= atoi(parsestring);// switching off

      parsestring = strtok(NULL, " "); // Parse the number of stop channel events in the channel
      switches[numswitches].startthr= atoi(parsestring);// before switching on

      parsestring = strtok(NULL, " "); // Parse the number of stop channel events in the channel
      switches[numswitches].stopthr= atoi(parsestring);// before switching off

      parsestring = strtok(NULL, " "); // Parse the number of histogram bins
      switches[numswitches].numbins= atoi(parsestring);

      parsestring = strtok(NULL, " "); // Parse the minimum histogram bin
      switches[numswitches].xmin= atof(parsestring);

      parsestring = strtok(NULL, " "); // Parse the max histogram bin
      switches[numswitches].xmax= atof(parsestring);

      parsestring = strtok(NULL, " "); // Parse the channel to histogram
      switches[numswitches].channeltoread= atoi(parsestring);

      parsestring = strtok(NULL, " "); // Parse the displaytype
      switches[numswitches].displaytype= atoi(parsestring);

      parsestring++;

      // then to parse the title
      int i = 0;
      char title=false;
      while(i<100) // safety check
        {
          parsestring++;
          if((!isspace(*parsestring))||(title==true))
         {
           title=true;
           if (*parsestring == 10 || *parsestring == 13 || *parsestring == 0)
               break;
           switches[numswitches].title[i++] = *parsestring;
         }
        }
        //printf("%s\n",switches[numswitches].title);
        numswitches++;
     }
   }
   //printf("Number of switches: %d\n",numswitches);
   fclose(fswitches);
   }
  else
     printf("Cannot open %s!\n",gSwitchesPath);

  if(numswitches>kMaxSwitches)
      printf("Exceeded maximum number of switches!\n");
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resetClock2time()

void resetClock2time ( )

Definition at line 228 of file HandleSIS.cxx.

{
  gSaveClock = 0;
  gSaveTime  = 0;
}

Here is the call graph for this function:

◆ SISBeginRun()

void SISBeginRun ( )

Definition at line 1124 of file HandleSIS.cxx.

{
   //reset the SIS buffer
   gSisData->wptr=0;
   gSisData->wmax=0;
   gSisData->clock=0;
   gSisData->cptr=0;

   tptr = 0;
   tinit = false;

   //reset the switches
   for(int i=0;i<kMaxSwitches;i++)
   {
      switches[i].switchon=false;
      switches[i].keepgoing=true;
      switches[i].timescalled=0;
   }

   //reset the number of switches
   numswitches=0;
   ReadSwitches(); //read in the new switches
}

Here is the call graph for this function:

◆ SISEndRun()

void SISEndRun ( )

Definition at line 1149 of file HandleSIS.cxx.

{
   gOutputFile->cd("SIS");
   // Write the switches histograms if stopped in the middle
   for(int i=0;i<kMaxSwitches;i++)
   {
      if(switches[i].histo!=NULL)
         switches[i].histo->Write();
   }

   // Write the pulse timing histograms
   if(timetestcanvas&&gDisplayTimeTest)
   {
      timetestcanvas->Write();
      timetestcanvas->Close();
      timetestcanvas= NULL;
   }
   gOutputFile->cd("../");
}

Here is the call graph for this function:

◆ SISperiodic()

void SISperiodic ( )

Definition at line 903 of file HandleSIS.cxx.

{
  double now = 0;
  double datatime = 0;
  double diff = 0;
  uint32_t data = 0;


  if(gMainWindow!=NULL)
  {
     // Reset and fill all the online histograms
     for(int i=0;i<numpanels;i++)
           {
      gMainWindow->cd(onlinemonitor[i].panelnumber);
      for(int j=0;j<onlinemonitor[i].nhistos;j++)
      {
         onlinemonitor[i].onlinehisto[j]->Reset();

         // Display the data per bin

         if(onlinemonitor[i].displaytype[j]==0)
         {
            if(gSisData->wptr==gSisData->wmax)  // for the first loop through the buffer
            {
               if((gSisData->wptr-(int)onlinemonitor[i].xmax[j])<=0) // when the data doesn't fill the whole histogram
               {
                  for(int k = 0;k<gSisData->wptr;k++)
                     onlinemonitor[i].onlinehisto[j]->Fill(gSisData->wptr-k,gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k]);
               }
               else // fill the whole histogram
               {
                  for(int k = (gSisData->wptr-(int)onlinemonitor[i].xmax[j]);k<gSisData->wptr;k++)
                     onlinemonitor[i].onlinehisto[j]->Fill(gSisData->wptr-k,gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k]);
               }
            }
            else // after the buffer has been looped through
            {
               if((gSisData->wptr-(int)onlinemonitor[i].xmax[j])<=0)
               {
                  for(int k = 0;k<gSisData->wptr;k++) // the data from the front of the buffer
                     onlinemonitor[i].onlinehisto[j]->Fill(gSisData->wptr-k,gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k]);
                     // the data from the end of the buffer
                  for(int k = (gSisData->wmax-(int)onlinemonitor[i].xmax[j]+gSisData->wptr);k<gSisData->wmax;k++)
                     onlinemonitor[i].onlinehisto[j]->Fill(gSisData->wmax+gSisData->wptr-k,gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k]);
               }
               else // data fills the whole histogram
               {
                  for(int k = (gSisData->wptr-(int)onlinemonitor[i].xmax[j]);k<gSisData->wptr;k++)
                     onlinemonitor[i].onlinehisto[j]->Fill(gSisData->wptr-k,gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k]);
               }
            }
         }

         // Display per second

         else if(onlinemonitor[i].displaytype[j]==1) {

            // If the data buffer hasn't looped and gone back the the beginning

            if(gSisData->wptr==gSisData->wmax)
            {
               // While all the data can be fitted onto one histogram

               if((clock2time(gSisData->sisClock[gSisData->wptr-1])-clock2time(gSisData->sisClock[0])-onlinemonitor[i].xmax[j])>=0.)
               {
                  for(int k=0;k<(gSisData->wptr-1);k++)
                  {
                     now = clock2time(gSisData->sisClock[gSisData->wptr-1]);
                     datatime = clock2time(gSisData->sisClock[k]);
                     diff = datatime - now;
                     data = gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k];

                     //printf("i: %d, diff: %lf, data: %lf\n",i,diff,(double)data);

                     onlinemonitor[i].onlinehisto[j]->Fill(diff,data);
                  }
               }

               // Not all the data can fit in one histogram, so we don't have to loop over all the data

               else
               {
                  for(int k=(gSisData->wptr-(int)onlinemonitor[i].xmax[j]*1000);k<gSisData->wptr;k++)
                  {
                     if(k>0)
                     {
                        now = clock2time(gSisData->sisClock[gSisData->wptr-1]);
                        datatime = clock2time(gSisData->sisClock[k]);
                        diff = datatime - now;
                        data = gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k];

                        onlinemonitor[i].onlinehisto[j]->Fill(diff,data);
                     }
                  }
               }
            }

            // We've made a full loop around the data buffer so now there is data we want to look at both at the beginning and end of the buffer

            else
            {
               if((clock2time(gSisData->sisClock[gSisData->wptr-1])-clock2time(gSisData->sisClock[0])-onlinemonitor[i].xmax[j])>=0.)
               {
                  for(int k=0;k<gSisData->wptr;k++)
                     {
                        now = clock2time(gSisData->sisClock[gSisData->wptr-1]);
                        datatime = clock2time(gSisData->sisClock[k]);
                        diff = datatime - now;
                        data = gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k];

                        onlinemonitor[i].onlinehisto[j]->Fill(diff,data);
                     }
                  for(int k=(gSisData->wmax-(int)onlinemonitor[i].xmax[j]*1000+gSisData->wptr);k<(gSisData->wmax+1);k++)
                     {
                        now = clock2time(gSisData->sisClock[gSisData->wptr-1]);
                        datatime = clock2time(gSisData->sisClock[k]);
                        diff = datatime - now;
                        uint32_t data = gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k];

                        onlinemonitor[i].onlinehisto[j]->Fill(diff,data);
                     }
               }
               else
               {
                  for(int k=(gSisData->wptr-(int)onlinemonitor[i].xmax[j]*1000);k<gSisData->wptr;k++)
                  {
                     if(k>0)
                     {
                        now = clock2time(gSisData->sisClock[gSisData->wptr-1]);
                        datatime = clock2time(gSisData->sisClock[k]);
                        diff = now - datatime;
                        uint32_t data = gSisData->sisChannels[onlinemonitor[i].histochannel[j]].sisData[k];

                        onlinemonitor[i].onlinehisto[j]->Fill(diff,data);
                     }
                  }
               }
            }
         }

         // Draw the histograms

         if(j==0)
         {
            onlinemonitor[i].onlinehisto[j]->Draw();
         }
         else
         {  // if the next histogram has larger values, expand the y range of the first
            if(onlinemonitor[i].onlinehisto[j]->GetMaximum()>onlinemonitor[i].onlinehisto[0]->GetMaximum())
               onlinemonitor[i].onlinehisto[0]->SetAxisRange(0,onlinemonitor[i].onlinehisto[j]->GetMaximum(),"Y");
            onlinemonitor[i].onlinehisto[j]->Draw("same");
         }
      }
           }
     printf("cptr: %d, wptr: %d, wmax: %d\n",gSisData->cptr,gSisData->wptr, gSisData->wmax);

     gMainWindow->GetCanvas()->Modified();
     gMainWindow->GetCanvas()->Update();
  }

  // Histogram the time between pulses

  if(gDisplayTimeTest&&gIsRunning&&!gIsPedestalsRun)
  {
   double tfsdiff = 0;

   if(!timefromsec)
   {
      timetestcanvas= new TCanvas("Time Between Signals","Time Between Signals");
      char name[80];
      sprintf(name,"Number of Seconds Between Signals, Channel %d, Run %d",gtestchannel,gRunNumber);
      timefromsec = new TH1D(name,name,20000,0,200);
   }

   if((tptr<gSisData->wptr)&&(tptr<gSisData->wmax)) // when the read pointer is behind both the write pointer and max
   {
      while(tptr<gSisData->wptr) // send all the unchecked events to check against the switches
      {
         if(gSisData->sisChannels[gtestchannel].sisData[tptr]!=0)
         {
            if(tinit==false)
            {
               gtfs = clock2time(gSisData->sisClock[tptr]);
               tinit = true;
            }
            else
            {
               tfsdiff = clock2time(gSisData->sisClock[tptr])-gtfs;
               timefromsec->Fill(tfsdiff);
               gtfs = clock2time(gSisData->sisClock[tptr]);
            }
         }
         tptr++;
      }
   }
   else if ((tptr>gSisData->wptr)&&(tptr<gSisData->wmax)) // when the write pointer has gone back to zero, but the read pointer hasn't yet
   {
      while(tptr<gSisData->wmax)
      {
         if(gSisData->sisChannels[gtestchannel].sisData[tptr]!=0)
         {
               tfsdiff = clock2time(gSisData->sisClock[tptr])-gtfs;
               timefromsec->Fill(tfsdiff);
               gtfs = clock2time(gSisData->sisClock[tptr]);
         }
         tptr++;
      }
   }
   else if((tptr>gSisData->wptr)&&(tptr==gSisData->wmax)) // if the read pointer has readed the maximum (go back to zero)
   {
      tptr = 0;
   }
      timefromsec->Draw();

   timetestcanvas->Modified();
   timetestcanvas->Update();
  }
}

Here is the call graph for this function:

◆ StepThroughSISBuffer()

void StepThroughSISBuffer ( )

Definition at line 604 of file HandleSIS.cxx.

{
   if(gIsRunning==true) // proceed only when running
   {
   gOutputFile->cd("SIS");
      if((gSisData->cptr<gSisData->wptr)&&(gSisData->cptr<gSisData->wmax)) // when the read pointer is behind both the write pointer and max
      {
         while(gSisData->cptr<gSisData->wptr) // send all the unchecked events to check against the switches
         {
            for(int i = 0;i<kMaxSisChannels;i++)
            {
               int channel = i;
               double counts = gSisData->sisChannels[i].sisData[gSisData->cptr];
               uint64_t clock = gSisData->sisClock[gSisData->cptr];

               CheckMixingTriggers(channel,counts,clock);
               CheckPbarTriggers(channel,counts,clock);

               CheckTriggers(channel,counts,clock);

               if(gDisplayDetailedSIS)
                  CheckDetails(channel,counts,clock);
            }
            gSisData->cptr++;
         }
      }
      else if ((gSisData->cptr>gSisData->wptr)&&(gSisData->cptr<gSisData->wmax)) // when the write pointer has gone back to zero, but the read pointer hasn't yet
      {
         while(gSisData->cptr<gSisData->wmax)
         {
            for(int i = 0;i<kMaxSisChannels;i++)
            {
               int channel = i;
               double counts = gSisData->sisChannels[i].sisData[gSisData->cptr];
               uint64_t clock = gSisData->sisClock[gSisData->cptr];

               CheckMixingTriggers(channel,counts,clock);
               CheckPbarTriggers(channel,counts,clock);

               CheckTriggers(channel,counts,clock);

               if(gDisplayDetailedSIS)
                  CheckDetails(channel,counts,clock);
            }
            gSisData->cptr++;
         }
      }
      else if((gSisData->cptr>gSisData->wptr)&&(gSisData->cptr==gSisData->wmax)) // if the read pointer has readed the maximum (go back to zero)
         gSisData->cptr = 0;

      //printf("cptr: %d, wptr: %d, wmax: %d\n",gSisData->cptr,gSisData->wptr, gSisData->wmax);
   gOutputFile->cd("../");
   }
}

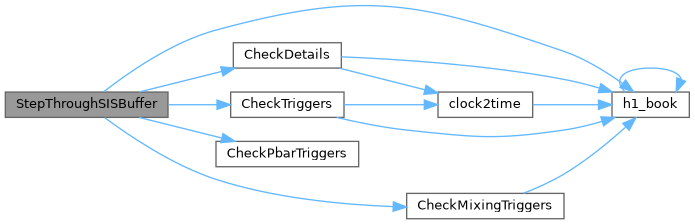

Here is the call graph for this function:

Variable Documentation

◆ ADchannel

const int ADchannel = 1

Definition at line 335 of file HandleSIS.cxx.

◆ detailedSISmonitor

histopanel detailedSISmonitor[kNumPanels]

Definition at line 183 of file HandleSIS.cxx.

◆ DetailsChannels

int DetailsChannels[kNumberofDetailChannels] = {2,4,5,6,7}

Definition at line 329 of file HandleSIS.cxx.

329{2,4,5,6,7};

◆ DetailsHisto

TH1D* DetailsHisto[kNumberofDetailChannels]

Definition at line 331 of file HandleSIS.cxx.

◆ DetailsLength

const double DetailsLength = 3.0

Definition at line 333 of file HandleSIS.cxx.

◆ detailsmax

double detailsmax = 0.4

Definition at line 339 of file HandleSIS.cxx.

◆ detailsmin

double detailsmin = 0.2

Definition at line 338 of file HandleSIS.cxx.

◆ DetailsRecord

bool DetailsRecord[kNumberofDetailChannels] = {false,false,false,false,false}

Definition at line 328 of file HandleSIS.cxx.

328{false,false,false,false,false};

◆ detailsStartTime

double detailsStartTime = 0.0

Definition at line 336 of file HandleSIS.cxx.

◆ DetailsTitles

char* DetailsTitles[kNumberofDetailChannels] = {"PMT OR","Pbar TimeStamps","Mixing TimeStamps","Pbar Sequence Start","Mixing Sequence Start"}

Definition at line 330 of file HandleSIS.cxx.

330{"PMT OR","Pbar TimeStamps","Mixing TimeStamps","Pbar Sequence Start","Mixing Sequence Start"};

◆ dSISnumpanels

int dSISnumpanels = 0

Definition at line 196 of file HandleSIS.cxx.

◆ dSIStextsize

double dSIStextsize = 0.1

Definition at line 199 of file HandleSIS.cxx.

◆ dSISxcanvas

int dSISxcanvas = 1200

Definition at line 204 of file HandleSIS.cxx.

◆ dSISxlabelsize

double dSISxlabelsize = .1

Definition at line 200 of file HandleSIS.cxx.

◆ dSISxpanels

int dSISxpanels = 2

Definition at line 197 of file HandleSIS.cxx.

◆ dSISycanvas

int dSISycanvas = 800

Definition at line 205 of file HandleSIS.cxx.

◆ dSISylabeloffset

double dSISylabeloffset = .01

Definition at line 202 of file HandleSIS.cxx.

◆ dSISylabelsize

double dSISylabelsize = .1

Definition at line 201 of file HandleSIS.cxx.

◆ dSISynoexponent

int dSISynoexponent = 1

Definition at line 203 of file HandleSIS.cxx.

◆ dSISypanels

int dSISypanels = 8

Definition at line 198 of file HandleSIS.cxx.

◆ dumpnumber

int dumpnumber = 0

Definition at line 511 of file HandleSIS.cxx.

◆ gtfs

double gtfs = 0.

Definition at line 209 of file HandleSIS.cxx.

◆ Integral

int Integral = 0

Definition at line 341 of file HandleSIS.cxx.

◆ kMaxSwitches

const int kMaxSwitches = 20

Definition at line 127 of file HandleSIS.cxx.

◆ kNumberofDetailChannels

const int kNumberofDetailChannels = 5

Definition at line 326 of file HandleSIS.cxx.

◆ kNumOnlineHistos

const int kNumOnlineHistos = 5

Definition at line 167 of file HandleSIS.cxx.

◆ kNumPanels

const int kNumPanels = 64

Definition at line 166 of file HandleSIS.cxx.

◆ mixinghisto

TH1D* mixinghisto = NULL

Definition at line 505 of file HandleSIS.cxx.

◆ mixingindex

int mixingindex = 0

Definition at line 508 of file HandleSIS.cxx.

◆ mixingrecording

bool mixingrecording = false

Definition at line 502 of file HandleSIS.cxx.

◆ mixingsequence

bool mixingsequence = false

Definition at line 499 of file HandleSIS.cxx.

◆ numpanels

int numpanels = 0

Definition at line 185 of file HandleSIS.cxx.

◆ numswitches

int numswitches = 0

Definition at line 128 of file HandleSIS.cxx.

◆ onlinemonitor

histopanel onlinemonitor[kNumPanels]

Definition at line 182 of file HandleSIS.cxx.

◆ pbarhisto

TH1D* pbarhisto = NULL

Definition at line 506 of file HandleSIS.cxx.

◆ pbarindex

int pbarindex = 0

Definition at line 509 of file HandleSIS.cxx.

◆ pbarrecord

bool pbarrecord = false

Definition at line 503 of file HandleSIS.cxx.

◆ pbarsequence

bool pbarsequence = false

Definition at line 500 of file HandleSIS.cxx.

◆ recordingstarttime

int recordingstarttime = 0

Definition at line 513 of file HandleSIS.cxx.

◆ switches

SWITCH switches[kMaxSwitches]

Definition at line 161 of file HandleSIS.cxx.

◆ textsize

double textsize = 0.1

Definition at line 188 of file HandleSIS.cxx.

◆ timefromsec

TH1D* timefromsec = NULL

Definition at line 208 of file HandleSIS.cxx.

◆ timetestcanvas

TCanvas* timetestcanvas = NULL

Definition at line 207 of file HandleSIS.cxx.

◆ tinit

bool tinit = false

Definition at line 131 of file HandleSIS.cxx.

◆ tptr

int tptr = 0

Definition at line 130 of file HandleSIS.cxx.

◆ xcanvas

int xcanvas = 1200

Definition at line 193 of file HandleSIS.cxx.

◆ xlabelsize

double xlabelsize = .1

Definition at line 189 of file HandleSIS.cxx.

◆ xpanels

int xpanels = 2

Definition at line 186 of file HandleSIS.cxx.

◆ ycanvas

int ycanvas = 800

Definition at line 194 of file HandleSIS.cxx.

◆ ylabeloffset

double ylabeloffset = .01

Definition at line 191 of file HandleSIS.cxx.

◆ ylabelsize

double ylabelsize = .1

Definition at line 190 of file HandleSIS.cxx.

◆ ynoexponent

int ynoexponent = 1

Definition at line 192 of file HandleSIS.cxx.

◆ ypanels

int ypanels = 8

Definition at line 187 of file HandleSIS.cxx.

Classes

Functions

Variables

Function Documentation

◆ CheckDetails()

◆ CheckMixingTriggers()

◆ CheckPbarTriggers()

◆ CheckTriggers()

◆ clock2time()

◆ HandleSIS()

◆ onlineMonitorStart()

◆ ReadSwitches()

◆ resetClock2time()

◆ SISBeginRun()

◆ SISEndRun()

◆ SISperiodic()

◆ StepThroughSISBuffer()

Variable Documentation

◆ ADchannel

◆ detailedSISmonitor

◆ DetailsChannels

◆ DetailsHisto

◆ DetailsLength

◆ detailsmax

◆ detailsmin

◆ DetailsRecord

◆ detailsStartTime

◆ DetailsTitles

◆ dSISnumpanels

◆ dSIStextsize

◆ dSISxcanvas

◆ dSISxlabelsize

◆ dSISxpanels

◆ dSISycanvas

◆ dSISylabeloffset

◆ dSISylabelsize

◆ dSISynoexponent

◆ dSISypanels

◆ dumpnumber

◆ gtfs

◆ Integral

◆ kMaxSwitches

◆ kNumberofDetailChannels

◆ kNumOnlineHistos

◆ kNumPanels

◆ mixinghisto

◆ mixingindex

◆ mixingrecording

◆ mixingsequence

◆ numpanels

◆ numswitches

◆ onlinemonitor

◆ pbarhisto

◆ pbarindex

◆ pbarrecord

◆ pbarsequence

◆ recordingstarttime

◆ switches

◆ textsize

◆ timefromsec

◆ timetestcanvas

◆ tinit

◆ tptr

◆ xcanvas

◆ xlabelsize

◆ xpanels

◆ ycanvas

◆ ylabeloffset

◆ ylabelsize

◆ ynoexponent

◆ ypanels
