HsSchema Class Reference

Inheritance diagram for HsSchema:

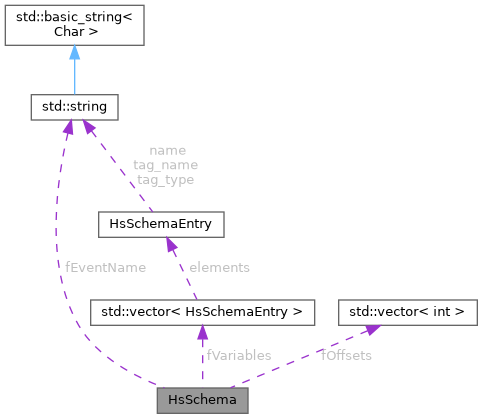

Collaboration diagram for HsSchema:

Public Member Functions
	HsSchema ()
virtual void	remove_inactive_columns ()=0
virtual void	print (bool print_tags=true) const
virtual	~HsSchema ()
virtual int	flush_buffers ()=0
virtual int	close ()=0
virtual int	write_event (const time_t t, const char *data, const size_t data_size)=0
virtual int	match_event_var (const char *event_name, const char *var_name, const int var_index)
virtual int	read_last_written (const time_t timestamp, const int debug, time_t *last_written)=0
virtual int	read_data (const time_t start_time, const time_t end_time, const int num_var, const std::vector< int > &var_schema_index, const int var_index[], const int debug, std::vector< time_t > &last_time, MidasHistoryBufferInterface *buffer[])=0

Public Attributes
std::string	fEventName
time_t	fTimeFrom = 0
time_t	fTimeTo = 0
std::vector< HsSchemaEntry >	fVariables
std::vector< int >	fOffsets
size_t	fNumBytes = 0
int	fCountWriteUndersize = 0
int	fCountWriteOversize = 0
size_t	fWriteMaxSize = 0
size_t	fWriteMinSize = 0
bool	fDisabled = true

Detailed Description

Definition at line 402 of file history_schema.cxx.

Constructor & Destructor Documentation

HsSchema()

HsSchema::HsSchema ( )

inline

Definition at line 425 of file history_schema.cxx.

   {
      // empty
   }

~HsSchema()

HsSchema::~HsSchema ( )

virtual

Definition at line 489 of file history_schema.cxx.

{
   //printf("HsSchema::dtor %p!\n", this);
   // only report if undersize/oversize happens more than once -
   // the first occurence is already reported by hs_write_event()
   if (fCountWriteUndersize > 1) {
      cm_msg(MERROR, "hs_write_event", "Event \'%s\' data size mismatch count: %d, expected %zu bytes, hs_write_event() called with as few as %zu bytes", fEventName.c_str(), fCountWriteUndersize, fNumBytes, fWriteMinSize);
   }

   if (fCountWriteOversize > 1) {
      cm_msg(MERROR, "hs_write_event", "Event \'%s\' data size mismatch count: %d, expected %zu bytes, hs_write_event() called with as many as %zu bytes", fEventName.c_str(), fCountWriteOversize, fNumBytes, fWriteMaxSize);
   }
};

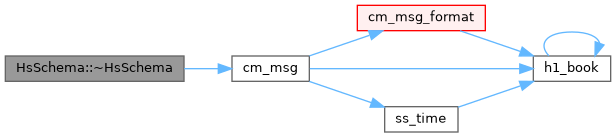

Here is the call graph for this function:

Member Function Documentation

close()

virtual int HsSchema::close ( )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

flush_buffers()

virtual int HsSchema::flush_buffers ( )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

match_event_var()

int HsSchema::match_event_var ( const char *  event_name, const char *  var_name, const int  var_index  )

virtual

Reimplemented in HsSqlSchema.

Definition at line 4126 of file history_schema.cxx.

{
   if (!MatchEventName(this->fEventName.c_str(), event_name))
      return -1;

   for (size_t j=0; j<this->fVariables.size(); j++) {
      if (MatchTagName(this->fVariables[j].name.c_str(), this->fVariables[j].n_data, var_name, var_index)) {
         // Second clause in if() is case where MatchTagName used the "alternate tag name".
         // E.g. our variable name is "IM05[3]" (n_data=1), but we're looking for var_name="IM05" and var_index=3.
         if (var_index < this->fVariables[j].n_data || (this->fVariables[j].n_data == 1 && this->fVariables[j].name.find("[") != std::string::npos)) {
            return j;
         }
      }
   }

   return -1;
}

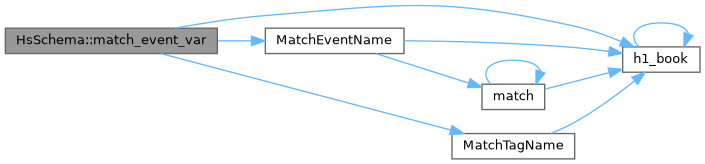

Here is the call graph for this function:

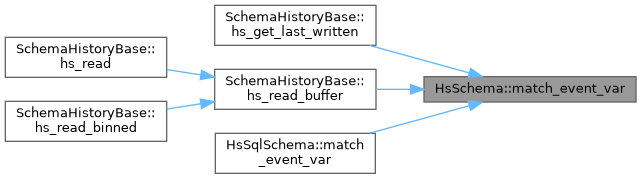

Here is the caller graph for this function:

print()

void HsSchema::print ( bool  print_tags = true ) const

virtual

Reimplemented in HsSqlSchema, and HsFileSchema.

Definition at line 792 of file history_schema.cxx.

{
   size_t nv = this->fVariables.size();
   printf("event [%s], time %s..%s, %zu variables, %zu bytes\n", this->fEventName.c_str(), TimeToString(this->fTimeFrom).c_str(), TimeToString(this->fTimeTo).c_str(), nv, fNumBytes);
   if (print_tags)
      for (size_t j=0; j<nv; j++)
         printf("  %zu: name [%s], type [%s] tid %d, n_data %d, n_bytes %d, offset %d\n", j, this->fVariables[j].name.c_str(), rpc_tid_name(this->fVariables[j].type), this->fVariables[j].type, this->fVariables[j].n_data, this->fVariables[j].n_bytes, this->fOffsets[j]);
};

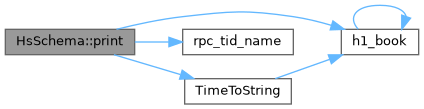

Here is the call graph for this function:

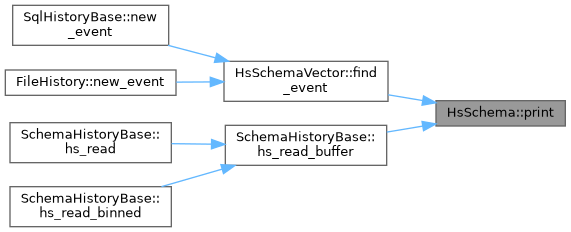

Here is the caller graph for this function:

read_data()

virtual int HsSchema::read_data ( const time_t  start_time, const time_t  end_time, const int  num_var, const std::vector< int > &  var_schema_index, const int  var_index[], const int  debug, std::vector< time_t > &  last_time, MidasHistoryBufferInterface *  buffer[]  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

read_last_written()

virtual int HsSchema::read_last_written ( const time_t  timestamp, const int  debug, time_t *  last_written  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

remove_inactive_columns()

virtual void HsSchema::remove_inactive_columns ( )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

write_event()

virtual int HsSchema::write_event ( const time_t  t, const char *  data, const size_t  data_size  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

Member Data Documentation

fCountWriteOversize

int HsSchema::fCountWriteOversize = 0

Definition at line 416 of file history_schema.cxx.

fCountWriteUndersize

int HsSchema::fCountWriteUndersize = 0

Definition at line 415 of file history_schema.cxx.

fDisabled

bool HsSchema::fDisabled = true

Definition at line 421 of file history_schema.cxx.

fEventName

std::string HsSchema::fEventName

Definition at line 407 of file history_schema.cxx.

fNumBytes

size_t HsSchema::fNumBytes = 0

Definition at line 412 of file history_schema.cxx.

fOffsets

std::vector<int> HsSchema::fOffsets

Definition at line 411 of file history_schema.cxx.

fTimeFrom

time_t HsSchema::fTimeFrom = 0

Definition at line 408 of file history_schema.cxx.

fTimeTo

time_t HsSchema::fTimeTo = 0

Definition at line 409 of file history_schema.cxx.

fVariables

std::vector<HsSchemaEntry> HsSchema::fVariables

Definition at line 410 of file history_schema.cxx.

fWriteMaxSize

size_t HsSchema::fWriteMaxSize = 0

Definition at line 417 of file history_schema.cxx.

fWriteMinSize

size_t HsSchema::fWriteMinSize = 0

Definition at line 418 of file history_schema.cxx.

---

The documentation for this class was generated from the following file:

• src/history_schema.cxx
