midas::u_odb Class Reference

#include <odbxx.h>

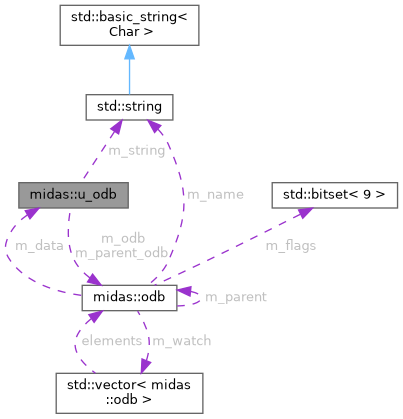

Collaboration diagram for midas::u_odb:
Collaboration graph
[legend]

Public Member Functions

 u_odb ()

 u_odb (uint8_t v)

 u_odb (int8_t v)

 u_odb (uint16_t v)

 u_odb (int16_t v)

 u_odb (uint32_t v)

 u_odb (int32_t v)

 u_odb (uint64_t v)

 u_odb (int64_t v)

 u_odb (bool v)

 u_odb (float v)

 u_odb (double v)

 u_odb (std::string *v)

 ~u_odb ()

void set_parent (odb *o)

odb * get_parent ()

void set_tid (int tid)

int get_tid ()

uint8_t operator= (uint8_t v)

int8_t operator= (int8_t v)

uint16_t operator= (uint16_t v)

int16_t operator= (int16_t v)

uint32_t operator= (uint32_t v)

int32_t operator= (int32_t v)

uint64_t operator= (uint64_t v)

int64_t operator= (int64_t v)

bool operator= (bool v)

float operator= (float v)

double operator= (double v)

const char * operator= (const char *v)

std::string * operator= (std::string *v)

std::string operator= (std::string v)

 operator uint8_t ()

 operator int8_t ()

 operator uint16_t ()

 operator int16_t ()

 operator uint32_t ()

 operator int32_t ()

 operator uint64_t ()

 operator int64_t ()

 operator bool ()

 operator float ()

 operator double ()

 operator std::string ()

 operator const char * ()

 operator midas::odb & ()

template<typename T >
void set (T v)

void set_string (std::string s)

void set_string_size (std::string s, int size)

void set_string_ptr (std::string *s)

void set (odb *v)

void set_odb (odb *v)

void set (std::string v)

void set (const char *v)

void set (char *v)

void add (double inc, bool push=true)

void mult (double f, bool push=true)

u_odb & operator++ (int)

u_odb & operator++ ()

u_odb & operator-- (int)

u_odb & operator-- ()

u_odb & operator+= (double d)

u_odb & operator-= (double d)

u_odb & operator*= (double d)

u_odb & operator/= (double d)

template<typename T >
u_odb & operator+ (T v)

template<typename T >
u_odb & operator- (T v)

template<typename T >
u_odb & operator* (T v)

template<typename T >
u_odb & operator/ (T v)

template<typename T >
T get ()

std::string get ()

std::string get_value ()

std::string s ()

void get (std::string &s)

odb * get_podb ()

odb & get_odb ()


Private Attributes

union {

   uint8_t   m_uint8

   int8_t   m_int8

   uint16_t   m_uint16

   int16_t   m_int16

   uint32_t   m_uint32

   int32_t   m_int32

   uint64_t   m_uint64

   int64_t   m_int64

   bool   m_bool

   float   m_float

   double   m_double

   std::string *   m_string

   odb *   m_odb

};

int m_tid

odb * m_parent_odb


Friends

std::ostream & operator<< (std::ostream &output, u_odb &o)


Detailed Description

Definition at line 48 of file odbxx.h.

Constructor & Destructor Documentation

◆ u_odb() [1/13]

midas::u_odb::u_odb ( )
inline

Definition at line 71 of file odbxx.h.

71: m_string{}, m_tid{}, m_parent_odb{nullptr} {};
midas::u_odb::m_parent_odb
odb * m_parent_odb
Definition odbxx.h:68
midas::u_odb::m_tid
int m_tid
Definition odbxx.h:67
midas::u_odb::m_string
std::string * m_string
Definition odbxx.h:63

◆ u_odb() [2/13]

midas::u_odb::u_odb ( uint8_t  v)
inline

Definition at line 74 of file odbxx.h.

74: m_tid{TID_UINT8}, m_parent_odb{nullptr} {m_string = nullptr; m_uint8 = v;};
midas::u_odb::m_uint8
uint8_t m_uint8
Definition odbxx.h:52
TID_UINT8
#define TID_UINT8
Definition midas.h:328

◆ u_odb() [3/13]

midas::u_odb::u_odb ( int8_t  v)
inline

Definition at line 76 of file odbxx.h.

76: m_tid{TID_INT8}, m_parent_odb{nullptr} {m_string = nullptr; m_int8 = v;};
midas::u_odb::m_int8
int8_t m_int8
Definition odbxx.h:53
TID_INT8
#define TID_INT8
Definition midas.h:330

◆ u_odb() [4/13]

midas::u_odb::u_odb ( uint16_t  v)
inline

Definition at line 78 of file odbxx.h.

78: m_tid{TID_UINT16}, m_parent_odb{nullptr} {m_string = nullptr; m_uint16 = v;};
midas::u_odb::m_uint16
uint16_t m_uint16
Definition odbxx.h:54
TID_UINT16
#define TID_UINT16
Definition midas.h:333

◆ u_odb() [5/13]

midas::u_odb::u_odb ( int16_t  v)
inline

Definition at line 80 of file odbxx.h.

80: m_tid{TID_INT16}, m_parent_odb{nullptr} {m_string = nullptr; m_int16 = v;};
midas::u_odb::m_int16
int16_t m_int16
Definition odbxx.h:55
TID_INT16
#define TID_INT16
Definition midas.h:335

◆ u_odb() [6/13]

midas::u_odb::u_odb ( uint32_t  v)
inline

Definition at line 82 of file odbxx.h.

82: m_tid{TID_UINT32}, m_parent_odb{nullptr} {m_string = nullptr; m_uint32 = v;};
midas::u_odb::m_uint32
uint32_t m_uint32
Definition odbxx.h:56
TID_UINT32
#define TID_UINT32
Definition midas.h:337

◆ u_odb() [7/13]

midas::u_odb::u_odb ( int32_t  v)
inline

Definition at line 84 of file odbxx.h.

84: m_tid{TID_INT32}, m_parent_odb{nullptr} {m_string = nullptr; m_int32 = v;};
midas::u_odb::m_int32
int32_t m_int32
Definition odbxx.h:57
TID_INT32
#define TID_INT32
Definition midas.h:339

◆ u_odb() [8/13]

midas::u_odb::u_odb ( uint64_t  v)
inline

Definition at line 86 of file odbxx.h.

86: m_tid{TID_UINT64}, m_parent_odb{nullptr} {m_string = nullptr; m_uint64 = v;};
midas::u_odb::m_uint64
uint64_t m_uint64
Definition odbxx.h:58
TID_UINT64
#define TID_UINT64
Definition midas.h:352

◆ u_odb() [9/13]

midas::u_odb::u_odb ( int64_t  v)
inline

Definition at line 88 of file odbxx.h.

88: m_tid{TID_INT64}, m_parent_odb{nullptr} {m_string = nullptr; m_int64 = v;};
midas::u_odb::m_int64
int64_t m_int64
Definition odbxx.h:59
TID_INT64
#define TID_INT64
Definition midas.h:351

◆ u_odb() [10/13]

midas::u_odb::u_odb ( bool  v)
inline

Definition at line 90 of file odbxx.h.

90: m_tid{TID_BOOL}, m_parent_odb{nullptr} {m_string = nullptr; m_bool = v;};
midas::u_odb::m_bool
bool m_bool
Definition odbxx.h:60
TID_BOOL
#define TID_BOOL
Definition midas.h:340

◆ u_odb() [11/13]

midas::u_odb::u_odb ( float  v)
inline

Definition at line 92 of file odbxx.h.

92: m_float{v}, m_tid{TID_FLOAT}, m_parent_odb{nullptr} {m_string = nullptr; m_float = v;};
midas::u_odb::m_float
float m_float
Definition odbxx.h:61
TID_FLOAT
#define TID_FLOAT
Definition midas.h:341

◆ u_odb() [12/13]

midas::u_odb::u_odb ( double  v)
inline

Definition at line 94 of file odbxx.h.

94: m_double{v}, m_tid{TID_DOUBLE}, m_parent_odb{nullptr} {m_string = nullptr; m_double = v;};
midas::u_odb::m_double
double m_double
Definition odbxx.h:62
TID_DOUBLE
#define TID_DOUBLE
Definition midas.h:343

◆ u_odb() [13/13]

midas::u_odb::u_odb ( std::string *  v)
inline

Definition at line 96 of file odbxx.h.

96: m_string{v}, m_tid{TID_STRING}, m_parent_odb{nullptr} {};
TID_STRING
#define TID_STRING
Definition midas.h:346

◆ ~u_odb()

midas::u_odb::~u_odb ( )

Definition at line 1694 of file odbxx.cxx.

1694 {
1695 if (m_tid == TID_STRING || m_tid == TID_LINK)
1696 delete m_string;
1697 else if (m_tid == TID_KEY)
1698 delete m_odb;
1699 }
midas::u_odb::m_odb
odb * m_odb
Definition odbxx.h:64
TID_KEY
#define TID_KEY
Definition midas.h:349
TID_LINK
#define TID_LINK
Definition midas.h:350

Member Function Documentation

◆ add()

void midas::u_odb::add ( double  inc,
bool  push = true
)

Definition at line 1941 of file odbxx.cxx.

1941 {
1942 if (m_tid == TID_UINT8)
1943 m_uint8 += inc;
1944 else if (m_tid == TID_INT8)
1945 m_int8 += inc;
1946 else if (m_tid == TID_UINT16)
1947 m_uint16 += inc;
1948 else if (m_tid == TID_INT16)
1949 m_int16 += inc;
1950 else if (m_tid == TID_UINT32)
1951 m_uint32 += inc;
1952 else if (m_tid == TID_INT32)
1953 m_int32 += inc;
1954 else if (m_tid == TID_FLOAT)
1955 m_float += static_cast<float>(inc);
1956 else if (m_tid == TID_DOUBLE)
1957 m_double += inc;
1958 else
1959 mthrow("Invalid arithmetic operation for ODB key \"" +
1960 m_parent_odb->get_full_path() + "\"");
1961 if (write && m_parent_odb->is_auto_refresh_write())
1962 m_parent_odb->write();
1963 }
midas::odb::get_full_path
std::string get_full_path()
Definition odbxx.cxx:419
midas::odb::write
void write(int str_size=0)
Definition odbxx.cxx:1166
midas::odb::is_auto_refresh_write
bool is_auto_refresh_write() const
Definition odbxx.h:1352
mthrow
#define mthrow(arg)
Definition mexcept.h:24
write
#define write(n, a, f, d)
Definition midas_macro.h:245
h1_book
TH1X EXPRT * h1_book(const char *name, const char *title, int bins, double min, double max)
Definition rmidas.h:24

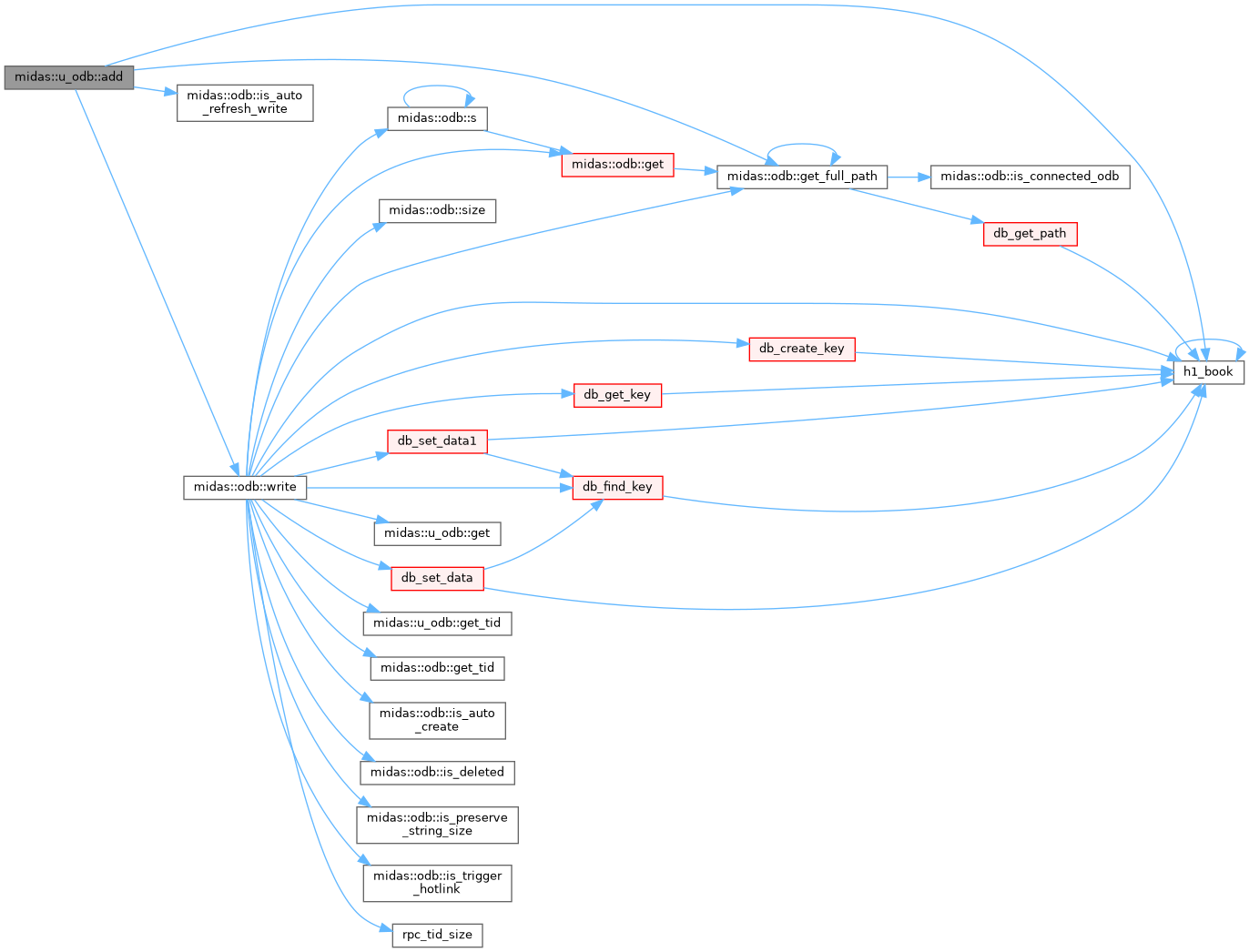

Here is the call graph for this function:

◆ get() [1/3]

template<typename T >
T midas::u_odb::get ( )
inline

Definition at line 318 of file odbxx.h.

318 {
319 if (m_tid == TID_UINT8)
320 return (T) m_uint8;
321 else if (m_tid == TID_INT8)
322 return (T) m_int8;
323 else if (m_tid == TID_UINT16)
324 return (T) m_uint16;
325 else if (m_tid == TID_INT16)
326 return (T) m_int16;
327 else if (m_tid == TID_UINT32)
328 return (T) m_uint32;
329 else if (m_tid == TID_INT32)
330 return (T) m_int32;
331 else if (m_tid == TID_UINT64)
332 return (T) m_uint64;
333 else if (m_tid == TID_INT64)
334 return (T) m_int64;
335 else if (m_tid == TID_BOOL)
336 return (T) m_bool;
337 else if (m_tid == TID_FLOAT)
338 return (T) m_float;
339 else if (m_tid == TID_DOUBLE)
340 return (T) m_double;
341 else if (m_tid == 0)
342 mthrow("Subkey not found");
343 else
344 mthrow("Invalid type ID %s" + std::to_string(m_tid));
345 }

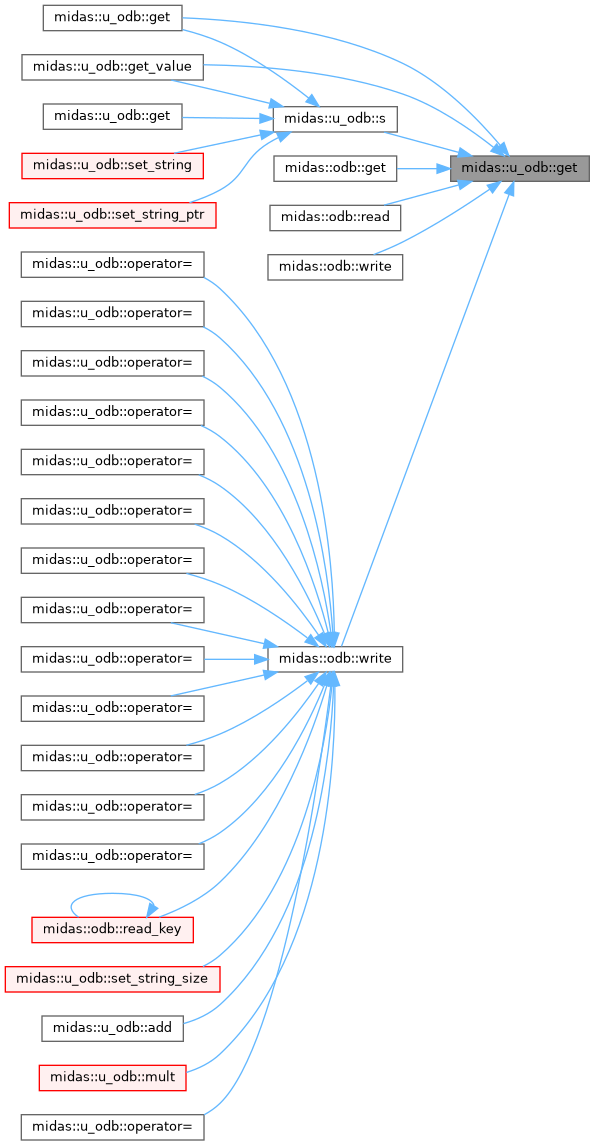

Here is the caller graph for this function:

◆ get() [2/3]

std::string midas::u_odb::get ( )
inline

Definition at line 348 of file odbxx.h.

348 {
349 std::string s;
350 get(s);
351 return s;
352 }
midas::u_odb::get
T get()
Definition odbxx.h:318
midas::u_odb::s
std::string s()
Definition odbxx.h:361

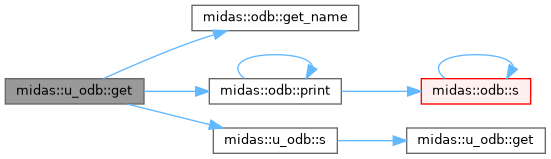

Here is the call graph for this function:

◆ get() [3/3]

void midas::u_odb::get ( std::string &  s)

Definition at line 1702 of file odbxx.cxx.

1702 {
1703 if (m_tid == TID_UINT8)
1704 s = std::to_string(m_uint8);
1705 else if (m_tid == TID_INT8)
1706 s = std::to_string(m_int8);
1707 else if (m_tid == TID_UINT16)
1708 s = std::to_string(m_uint16);
1709 else if (m_tid == TID_INT16)
1710 s = std::to_string(m_int16);
1711 else if (m_tid == TID_UINT32)
1712 s = std::to_string(m_uint32);
1713 else if (m_tid == TID_INT32)
1714 s = std::to_string(m_int32);
1715 else if (m_tid == TID_UINT64)
1716 s = std::to_string(m_uint64);
1717 else if (m_tid == TID_INT64)
1718 s = std::to_string(m_int64);
1719 else if (m_tid == TID_BOOL)
1720 s = std::string(m_bool ? "true" : "false");
1721 else if (m_tid == TID_FLOAT)
1722 s = std::to_string(m_float);
1723 else if (m_tid == TID_DOUBLE)
1724 s = std::to_string(m_double);
1725 else if (m_tid == TID_STRING)
1726 s = *m_string;
1727 else if (m_tid == TID_LINK)
1728 s = *m_string;
1729 else if (m_tid == TID_KEY)
1730 m_odb->print(s, 0);
1731 else if (m_tid == 0)
1732 mthrow("Subkey \"" + m_parent_odb->get_name() + "\" not found");
1733 else
1734 mthrow("Invalid type ID " + std::to_string(m_tid));
1735 }
midas::odb::get_name
std::string get_name()
Definition odbxx.h:1455
midas::odb::print
std::string print()
Definition odbxx.cxx:476
Here is the call graph for this function:

◆ get_odb()

odb & midas::u_odb::get_odb ( )
inline

Definition at line 375 of file odbxx.h.

375 {
376 if (m_tid != TID_KEY)
377 mthrow("odb_get() called for non-key object");
378 return *m_odb;
379 }

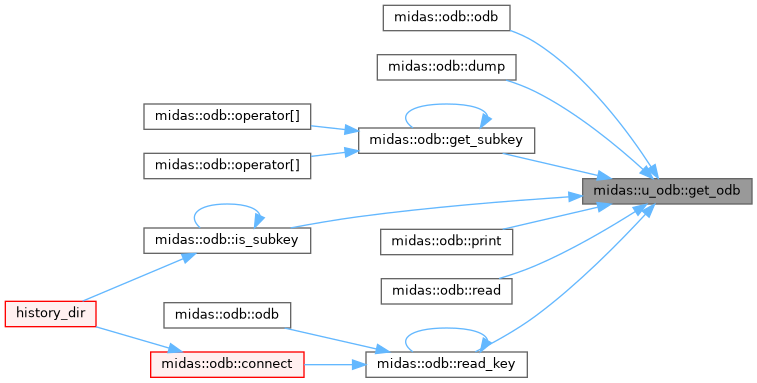

Here is the caller graph for this function:

◆ get_parent()

odb * midas::u_odb::get_parent ( )
inline

Definition at line 103 of file odbxx.h.

103{ return m_parent_odb; }

◆ get_podb()

odb * midas::u_odb::get_podb ( )
inline

Definition at line 369 of file odbxx.h.

369 {
370 if (m_tid != TID_KEY)
371 mthrow("odb_get() called for non-key object");
372 return m_odb;
373 }

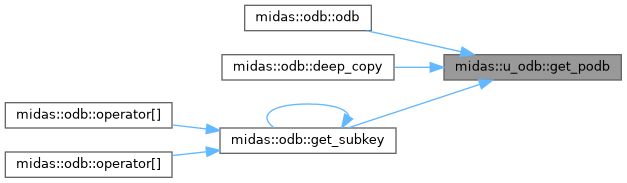

Here is the caller graph for this function:

◆ get_tid()

int midas::u_odb::get_tid ( )
inline

Definition at line 107 of file odbxx.h.

107{ return m_tid; }
Here is the caller graph for this function:

◆ get_value()

std::string midas::u_odb::get_value ( )
inline

Definition at line 354 of file odbxx.h.

354 {
355 std::string s;
356 get(s);
357 return s;
358 }
Here is the call graph for this function:

◆ mult()

void midas::u_odb::mult ( double  f,
bool  push = true
)

Definition at line 1965 of file odbxx.cxx.

1965 {
1966 int tid = m_parent_odb->get_tid();
1967 if (tid == TID_UINT8)
1968 m_uint8 *= f;
1969 else if (tid == TID_INT8)
1970 m_int8 *= f;
1971 else if (tid == TID_UINT16)
1972 m_uint16 *= f;
1973 else if (tid == TID_INT16)
1974 m_int16 *= f;
1975 else if (tid == TID_UINT32)
1976 m_uint32 *= f;
1977 else if (tid == TID_INT32)
1978 m_int32 *= f;
1979 else if (tid == TID_FLOAT)
1980 m_float *= f;
1981 else if (tid == TID_DOUBLE)
1982 m_double *= f;
1983 else
1984 mthrow("Invalid operation for ODB key \"" +
1985 m_parent_odb->get_full_path() + "\"");
1986 if (write && m_parent_odb->is_auto_refresh_write())
1987 m_parent_odb->write();
1988 }
midas::odb::get_tid
int get_tid()
Definition odbxx.h:1453

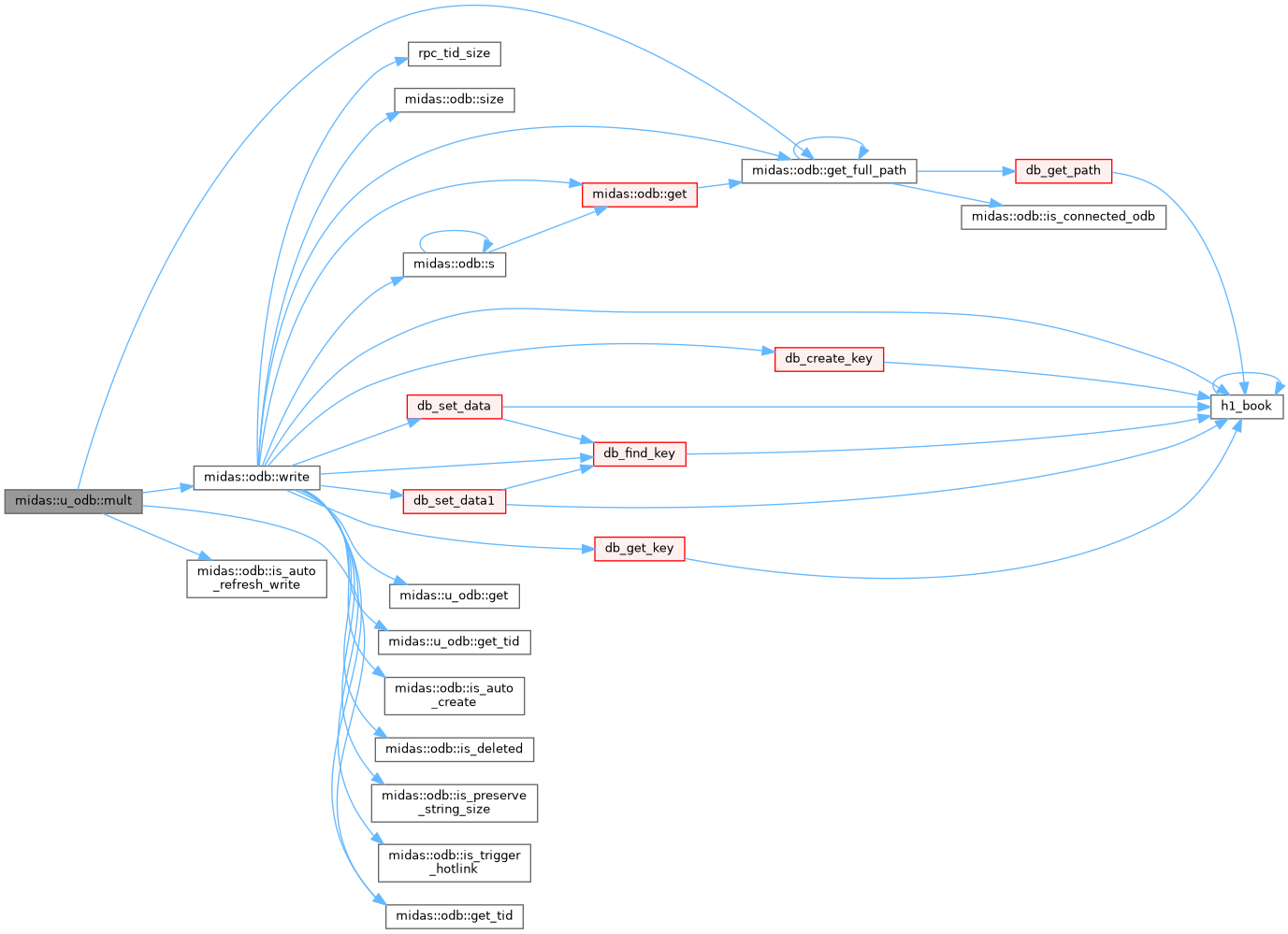

Here is the call graph for this function:
Here is the caller graph for this function:

◆ operator bool()

midas::u_odb::operator bool ( )

Definition at line 1903 of file odbxx.cxx.

1903 {
1904 if (m_parent_odb)
1905 m_parent_odb->set_last_index(-1);
1906 return get<bool>();
1907 }
midas::odb::set_last_index
void set_last_index(int i)
Definition odbxx.h:1000
Here is the call graph for this function:

◆ operator const char *()

midas::u_odb::operator const char * ( )

Definition at line 1925 of file odbxx.cxx.

1925 {
1926 if (m_parent_odb)
1927 m_parent_odb->set_last_index(-1);
1928 if (m_tid != TID_STRING && m_tid != TID_LINK)
1929 mthrow("Only ODB string keys can be converted to \"const char *\"");
1930 return m_string->c_str();
1931 }

◆ operator double()

midas::u_odb::operator double ( )

Definition at line 1913 of file odbxx.cxx.

1913 {
1914 if (m_parent_odb)
1915 m_parent_odb->set_last_index(-1);
1916 return get<double>();
1917 }
Here is the call graph for this function:

◆ operator float()

midas::u_odb::operator float ( )

Definition at line 1908 of file odbxx.cxx.

1908 {
1909 if (m_parent_odb)
1910 m_parent_odb->set_last_index(-1);
1911 return get<float>();
1912 }
Here is the call graph for this function:

◆ operator int16_t()

midas::u_odb::operator int16_t ( )

Definition at line 1878 of file odbxx.cxx.

1878 {
1879 if (m_parent_odb)
1880 m_parent_odb->set_last_index(-1);
1881 return get<int16_t>();
1882 }
Here is the call graph for this function:

◆ operator int32_t()

midas::u_odb::operator int32_t ( )

Definition at line 1888 of file odbxx.cxx.

1888 {
1889 if (m_parent_odb)
1890 m_parent_odb->set_last_index(-1);
1891 return get<int32_t>();
1892 }
Here is the call graph for this function:

◆ operator int64_t()

midas::u_odb::operator int64_t ( )

Definition at line 1898 of file odbxx.cxx.

1898 {
1899 if (m_parent_odb)
1900 m_parent_odb->set_last_index(-1);
1901 return get<int64_t>();
1902 }
Here is the call graph for this function:

◆ operator int8_t()

midas::u_odb::operator int8_t ( )

Definition at line 1868 of file odbxx.cxx.

1868 {
1869 if (m_parent_odb)
1870 m_parent_odb->set_last_index(-1);
1871 return get<int8_t>();
1872 }
Here is the call graph for this function:

◆ operator midas::odb &()

midas::u_odb::operator midas::odb & ( )

Definition at line 1932 of file odbxx.cxx.

1932 {
1933 if (m_parent_odb)
1934 m_parent_odb->set_last_index(-1);
1935 if (m_tid != TID_KEY)
1936 mthrow("Only ODB directories can be converted to \"midas::odb &\"");
1937 return *m_odb;
1938 }
Here is the call graph for this function:

◆ operator std::string()

midas::u_odb::operator std::string ( )

Definition at line 1918 of file odbxx.cxx.

1918 {
1919 if (m_parent_odb)
1920 m_parent_odb->set_last_index(-1);
1921 std::string s;
1922 get(s);
1923 return s;
1924 }

◆ operator uint16_t()

midas::u_odb::operator uint16_t ( )

Definition at line 1873 of file odbxx.cxx.

1873 {
1874 if (m_parent_odb)
1875 m_parent_odb->set_last_index(-1);
1876 return get<uint16_t>();
1877 }
Here is the call graph for this function:

◆ operator uint32_t()

midas::u_odb::operator uint32_t ( )

Definition at line 1883 of file odbxx.cxx.

1883 {
1884 if (m_parent_odb)
1885 m_parent_odb->set_last_index(-1);
1886 return get<uint32_t>();
1887 }
Here is the call graph for this function:

◆ operator uint64_t()

midas::u_odb::operator uint64_t ( )

Definition at line 1893 of file odbxx.cxx.

1893 {
1894 if (m_parent_odb)
1895 m_parent_odb->set_last_index(-1);
1896 return get<uint64_t>();
1897 }
Here is the call graph for this function:

◆ operator uint8_t()

midas::u_odb::operator uint8_t ( )

Definition at line 1863 of file odbxx.cxx.

1863 {
1864 if (m_parent_odb)
1865 m_parent_odb->set_last_index(-1);
1866 return get<uint8_t>();
1867 }
Here is the call graph for this function:

◆ operator*()

template<typename T >
u_odb & midas::u_odb::operator* ( T  v)
inline

Definition at line 301 of file odbxx.h.

301 {
302 double d = *this;
303 d *= v;
304 set(v);
305 return *this;
306 }
set
#define set(var, value)
Definition midas_macro.h:278
d
double d
Definition system.cxx:1313

◆ operator*=()

u_odb & midas::u_odb::operator*= ( double  d)
inline

Definition at line 272 of file odbxx.h.

272 {
273 mult(d);
274 return *this;
275 }
midas::u_odb::mult
void mult(double f, bool push=true)
Definition odbxx.cxx:1965

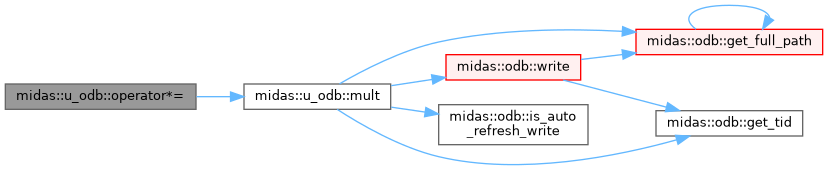

Here is the call graph for this function:

◆ operator+()

template<typename T >
u_odb & midas::u_odb::operator+ ( T  v)
inline

Definition at line 285 of file odbxx.h.

285 {
286 double d = *this;
287 d += v;
288 set(v);
289 return *this;
290 }

◆ operator++() [1/2]

u_odb & midas::u_odb::operator++ ( )
inline

Definition at line 247 of file odbxx.h.

247 {
248 add(1);
249 return *this;
250 }
add
INT add
Definition odbhist.cxx:40

◆ operator++() [2/2]

u_odb & midas::u_odb::operator++ ( int  )
inline

Definition at line 242 of file odbxx.h.

242 {
243 add(1);
244 return *this;
245 }

◆ operator+=()

u_odb & midas::u_odb::operator+= ( double  d)
inline

Definition at line 262 of file odbxx.h.

262 {
263 add(d);
264 return *this;
265 }

◆ operator-()

template<typename T >
u_odb & midas::u_odb::operator- ( T  v)
inline

Definition at line 293 of file odbxx.h.

293 {
294 double d = *this;
295 d -= v;
296 set(v);
297 return *this;
298 }

◆ operator--() [1/2]

u_odb & midas::u_odb::operator-- ( )
inline

Definition at line 257 of file odbxx.h.

257 {
258 add(-1);
259 return *this;
260 }

◆ operator--() [2/2]

u_odb & midas::u_odb::operator-- ( int  )
inline

Definition at line 252 of file odbxx.h.

252 {
253 add(-1);
254 return *this;
255 }

◆ operator-=()

u_odb & midas::u_odb::operator-= ( double  d)
inline

Definition at line 267 of file odbxx.h.

267 {
268 add(-d);
269 return *this;
270 }

◆ operator/()

template<typename T >
u_odb & midas::u_odb::operator/ ( T  v)
inline

Definition at line 309 of file odbxx.h.

309 {
310 double d = *this;
311 d /= v;
312 set(v);
313 return *this;
314 }

◆ operator/=()

u_odb & midas::u_odb::operator/= ( double  d)
inline

Definition at line 277 of file odbxx.h.

277 {
278 if (d == 0)
279 mthrow("Division by zero");
280 mult(1 / d);
281 return *this;
282 }
Here is the call graph for this function:

◆ operator=() [1/14]

bool midas::u_odb::operator= ( bool  v)

Definition at line 1804 of file odbxx.cxx.

1804 {
1805 if (m_tid == 0)
1806 m_tid = TID_BOOL;
1807 set(v);
1808 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1809 m_parent_odb->write();
1810 return v;
1811 }

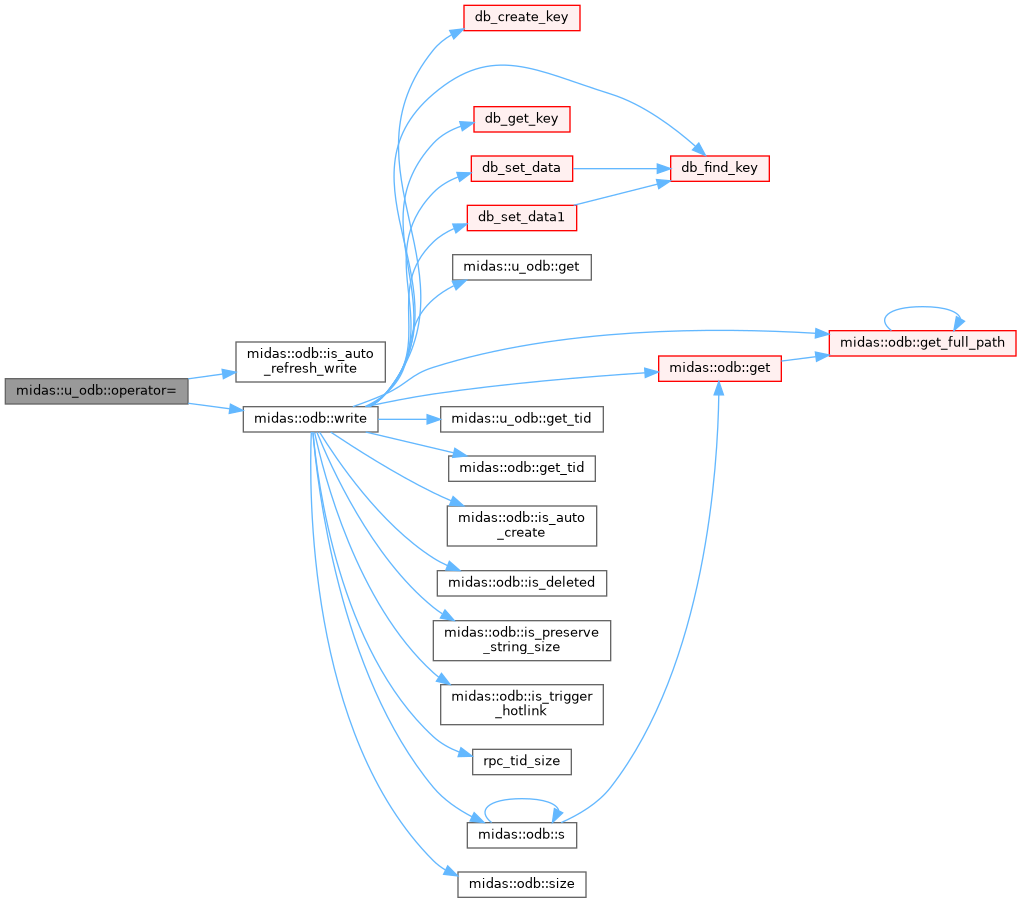

Here is the call graph for this function:

◆ operator=() [2/14]

const char * midas::u_odb::operator= ( const char *  v)

Definition at line 1828 of file odbxx.cxx.

1828 {
1829 if (m_tid == 0)
1830 m_tid = TID_STRING;
1831 set(v);
1832 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1833 m_parent_odb->write();
1834 return v;
1835 }
Here is the call graph for this function:

◆ operator=() [3/14]

double midas::u_odb::operator= ( double  v)

Definition at line 1820 of file odbxx.cxx.

1820 {
1821 if (m_tid == 0)
1822 m_tid = TID_DOUBLE;
1823 set(v);
1824 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1825 m_parent_odb->write();
1826 return v;
1827 }
Here is the call graph for this function:

◆ operator=() [4/14]

float midas::u_odb::operator= ( float  v)

Definition at line 1812 of file odbxx.cxx.

1812 {
1813 if (m_tid == 0)
1814 m_tid = TID_FLOAT;
1815 set(v);
1816 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1817 m_parent_odb->write();
1818 return v;
1819 }
Here is the call graph for this function:

◆ operator=() [5/14]

int16_t midas::u_odb::operator= ( int16_t  v)

Definition at line 1764 of file odbxx.cxx.

1764 {
1765 if (m_tid == 0)
1766 m_tid = TID_INT16;
1767 set(v);
1768 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1769 m_parent_odb->write();
1770 return v;
1771 }
Here is the call graph for this function:

◆ operator=() [6/14]

int32_t midas::u_odb::operator= ( int32_t  v)

Definition at line 1780 of file odbxx.cxx.

1780 {
1781 if (m_tid == 0)
1782 m_tid = TID_INT32;
1783 set(v);
1784 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1785 m_parent_odb->write();
1786 return v;
1787 }
Here is the call graph for this function:

◆ operator=() [7/14]

int64_t midas::u_odb::operator= ( int64_t  v)

Definition at line 1796 of file odbxx.cxx.

1796 {
1797 if (m_tid == 0)
1798 m_tid = TID_INT64;
1799 set(v);
1800 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1801 m_parent_odb->write();
1802 return v;
1803 }
Here is the call graph for this function:

◆ operator=() [8/14]

int8_t midas::u_odb::operator= ( int8_t  v)

Definition at line 1748 of file odbxx.cxx.

1748 {
1749 if (m_tid == 0)
1750 m_tid = TID_INT8;
1751 set(v);
1752 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1753 m_parent_odb->write();
1754 return v;
1755 }
Here is the call graph for this function:

◆ operator=() [9/14]

std::string * midas::u_odb::operator= ( std::string *  v)

Definition at line 1837 of file odbxx.cxx.

1837 {
1838 if (m_tid == 0)
1839 m_tid = TID_STRING;
1840 set(*v);
1841 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1842 m_parent_odb->write();
1843 return v;
1844 }

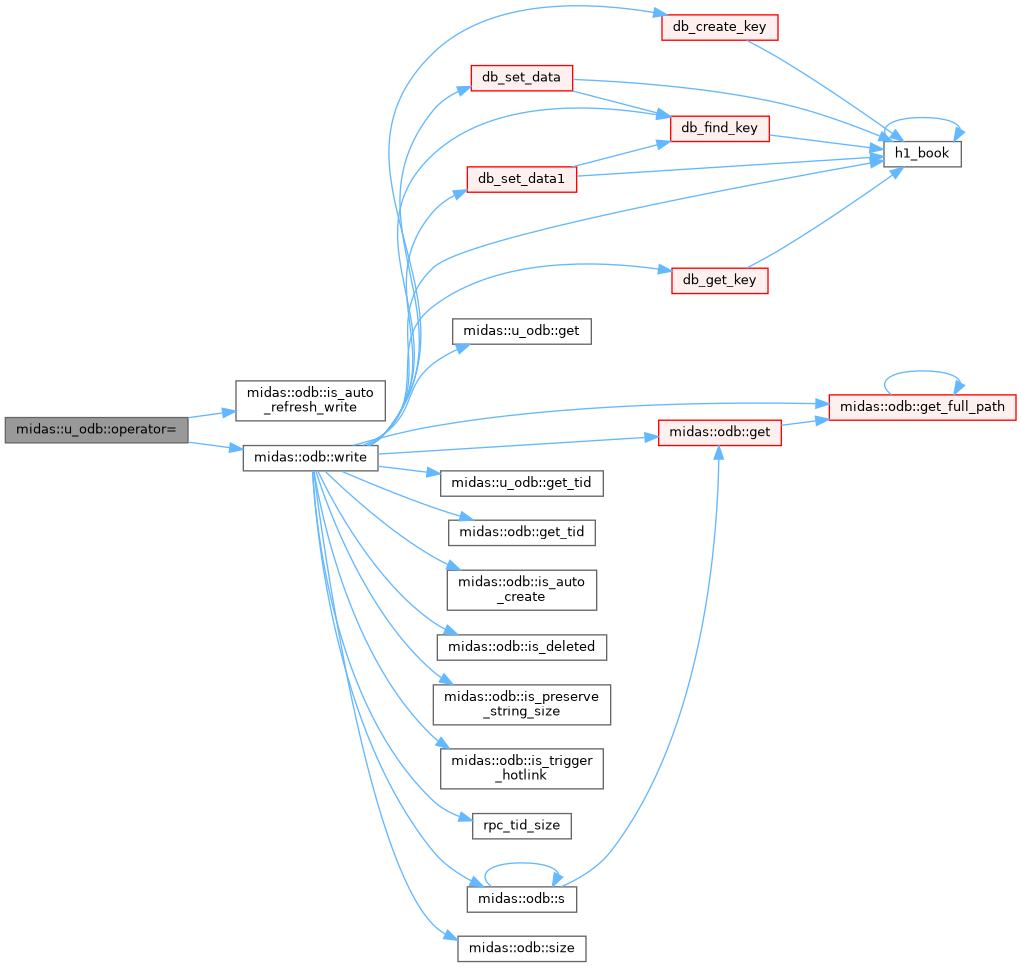

Here is the call graph for this function:

◆ operator=() [10/14]

std::string midas::u_odb::operator= ( std::string  v)

Definition at line 1846 of file odbxx.cxx.

1846 {
1847 if (m_tid == 0)
1848 m_tid = TID_STRING;
1849 set(v);
1850 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1851 m_parent_odb->write();
1852 return v;
1853 }
Here is the call graph for this function:

◆ operator=() [11/14]

uint16_t midas::u_odb::operator= ( uint16_t  v)

Definition at line 1756 of file odbxx.cxx.

1756 {
1757 if (m_tid == 0)
1758 m_tid = TID_UINT16;
1759 set(v);
1760 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1761 m_parent_odb->write();
1762 return v;
1763 }
Here is the call graph for this function:

◆ operator=() [12/14]

uint32_t midas::u_odb::operator= ( uint32_t  v)

Definition at line 1772 of file odbxx.cxx.

1772 {
1773 if (m_tid == 0)
1774 m_tid = TID_UINT32;
1775 set(v);
1776 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1777 m_parent_odb->write();
1778 return v;
1779 }
Here is the call graph for this function:

◆ operator=() [13/14]

uint64_t midas::u_odb::operator= ( uint64_t  v)

Definition at line 1788 of file odbxx.cxx.

1788 {
1789 if (m_tid == 0)
1790 m_tid = TID_UINT64;
1791 set(v);
1792 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1793 m_parent_odb->write();
1794 return v;
1795 }
Here is the call graph for this function:

◆ operator=() [14/14]

uint8_t midas::u_odb::operator= ( uint8_t  v)

Definition at line 1740 of file odbxx.cxx.

1740 {
1741 if (m_tid == 0)
1742 m_tid = TID_UINT8;
1743 set(v);
1744 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1745 m_parent_odb->write();
1746 return v;
1747 }
Here is the call graph for this function:

◆ s()

std::string midas::u_odb::s ( )
inline

Definition at line 361 of file odbxx.h.

361 {
362 return get();
363 }
Here is the call graph for this function:

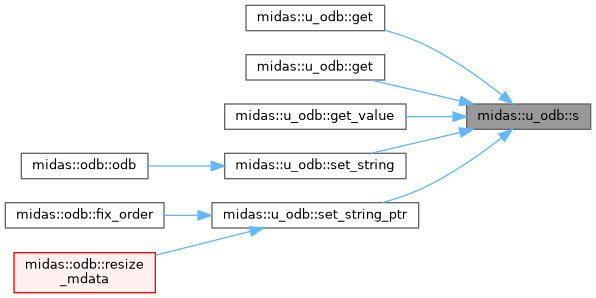

Here is the caller graph for this function:

◆ set() [1/5]

void midas::u_odb::set ( char *  v)
inline

Definition at line 232 of file odbxx.h.

232 {
233 set(std::string(v));
234 }

◆ set() [2/5]

void midas::u_odb::set ( const char *  v)
inline

Definition at line 228 of file odbxx.h.

228 {
229 set(std::string(v));
230 }

◆ set() [3/5]

void midas::u_odb::set ( odb *  v)
inline

Definition at line 183 of file odbxx.h.

183 {
184 if (m_tid != TID_KEY)
185 mthrow("Subkey can only be assigned to ODB key");
186 m_odb = v;
187 }

◆ set() [4/5]

void midas::u_odb::set ( std::string  v)
inline

Definition at line 195 of file odbxx.h.

195 {
196 if (m_tid == TID_UINT8)
197 m_uint8 = std::stoi(v, nullptr, 0); // stoi convertx 0x automatically
198 else if (m_tid == TID_INT8)
199 m_int8 = std::stoi(v, nullptr, 0);
200 else if (m_tid == TID_UINT16)
201 m_uint16 = std::stoi(v, nullptr, 0);
202 else if (m_tid == TID_INT16)
203 m_int16 = std::stoi(v, nullptr, 0);
204 else if (m_tid == TID_UINT32)
205 m_uint32 = std::stoul(v, nullptr, 0);
206 else if (m_tid == TID_INT32)
207 m_int32 = std::stoul(v, nullptr, 0);
208 else if (m_tid == TID_UINT64)
209 m_uint64 = std::stoul(v, nullptr, 0);
210 else if (m_tid == TID_INT64)
211 m_int64 = std::stoul(v, nullptr, 0);
212 else if (m_tid == TID_BOOL)
213 m_bool = std::stoi(v, nullptr, 0);
214 else if (m_tid == TID_FLOAT)
215 m_float = std::stod(v);
216 else if (m_tid == TID_DOUBLE)
217 m_double = std::stod(v);
218 else if (m_tid == TID_STRING) {
219 delete m_string;
220 m_string = new std::string(v);
221 } else if (m_tid == TID_LINK) {
222 delete m_string;
223 m_string = new std::string(v);
224 } else
225 mthrow("Invalid type ID " + std::to_string(m_tid));
226 }

◆ set() [5/5]

template<typename T >
void midas::u_odb::set ( T  v)
inline

Definition at line 142 of file odbxx.h.

142 {
143 if (m_tid == TID_UINT8)
144 m_uint8 = v;
145 else if (m_tid == TID_INT8)
146 m_int8 = v;
147 else if (m_tid == TID_UINT16)
148 m_uint16 = v;
149 else if (m_tid == TID_INT16)
150 m_int16 = v;
151 else if (m_tid == TID_UINT32)
152 m_uint32 = v;
153 else if (m_tid == TID_INT32)
154 m_int32 = v;
155 else if (m_tid == TID_UINT64)
156 m_uint64 = v;
157 else if (m_tid == TID_INT64)
158 m_int64 = v;
159 else if (m_tid == TID_BOOL)
160 m_bool = v;
161 else if (m_tid == TID_FLOAT)
162 m_float = v;
163 else if (m_tid == TID_DOUBLE)
164 m_double = v;
165 else if (m_tid == TID_STRING) {
166 delete m_string;
167 m_string = new std::string(std::to_string(v));
168 } else
169 mthrow("Invalid type ID " + std::to_string(m_tid));
170 }

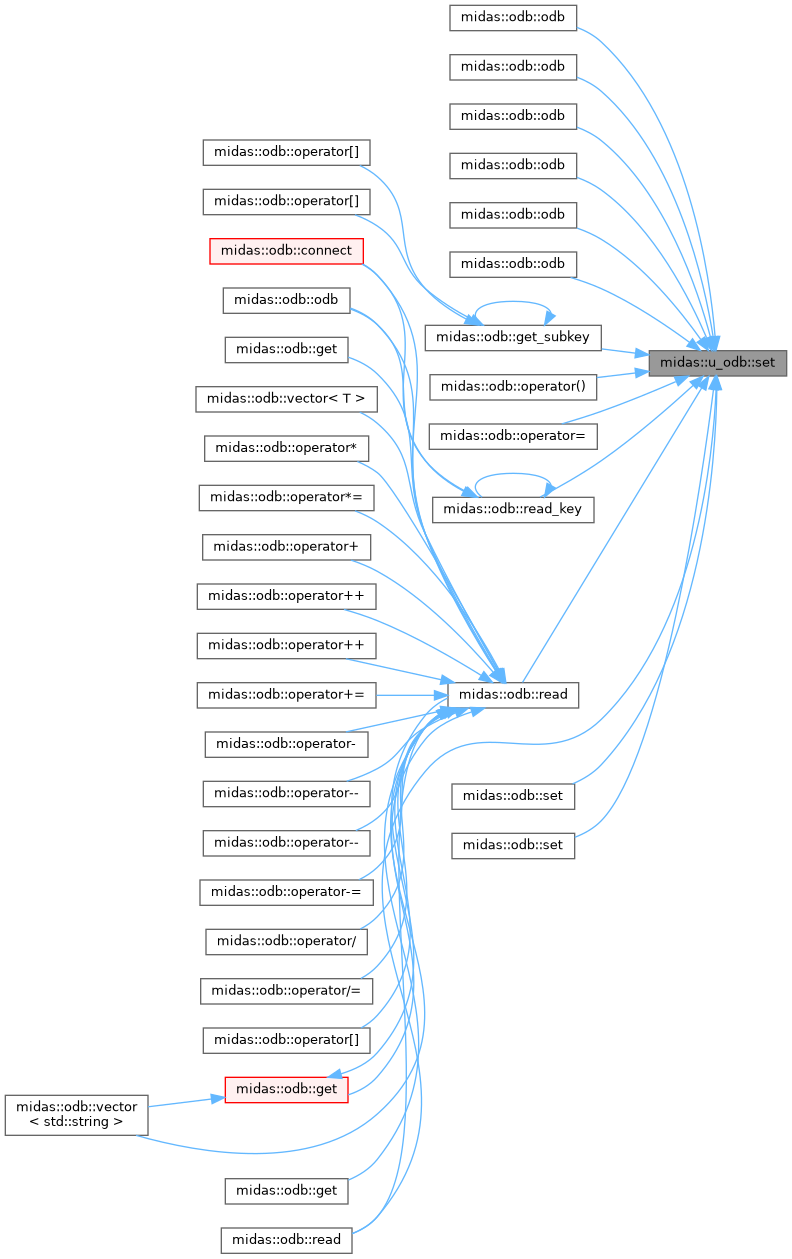

Here is the caller graph for this function:

◆ set_odb()

void midas::u_odb::set_odb ( odb *  v)
inline

Definition at line 189 of file odbxx.h.

189 {
190 if (m_tid != TID_KEY)
191 mthrow("Subkey can only be assigned to ODB key");
192 m_odb = v;
193 }

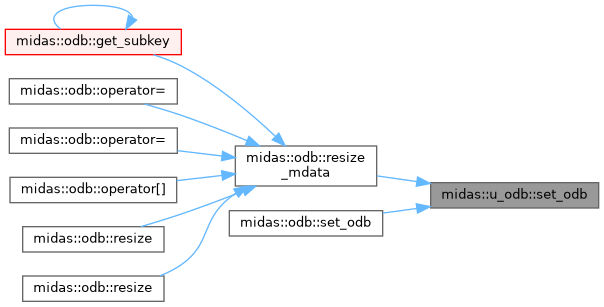

Here is the caller graph for this function:

◆ set_parent()

void midas::u_odb::set_parent ( odb *  o)
inline

Definition at line 102 of file odbxx.h.

102{ m_parent_odb = o; }
Here is the call graph for this function:

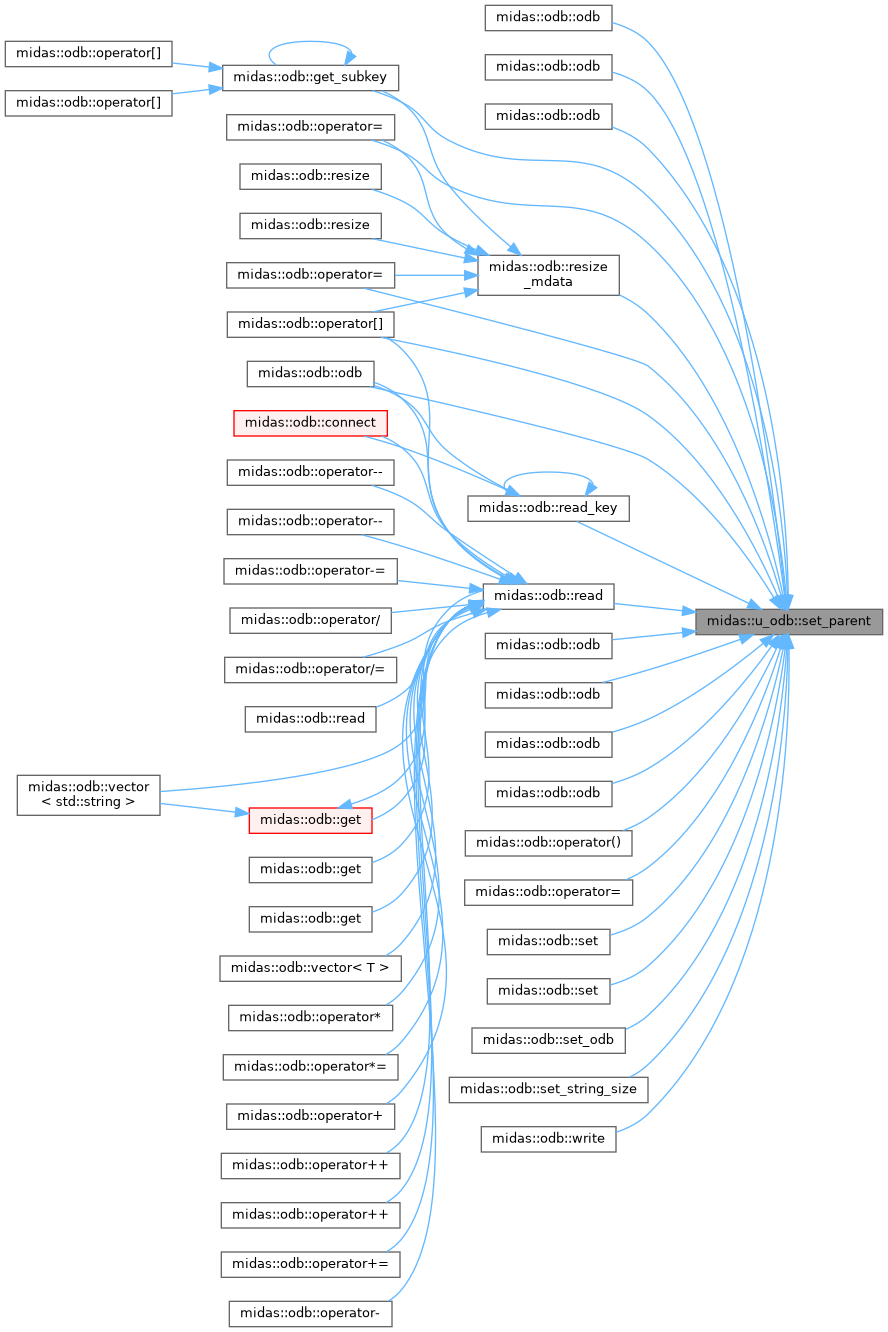

Here is the caller graph for this function:

◆ set_string()

void midas::u_odb::set_string ( std::string  s)
inline

Definition at line 172 of file odbxx.h.

172 {
173 delete m_string;
174 m_string = new std::string(s);
175 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ set_string_ptr()

void midas::u_odb::set_string_ptr ( std::string *  s)
inline

Definition at line 179 of file odbxx.h.

179 {
180 m_string = s;
181 }
Here is the call graph for this function:

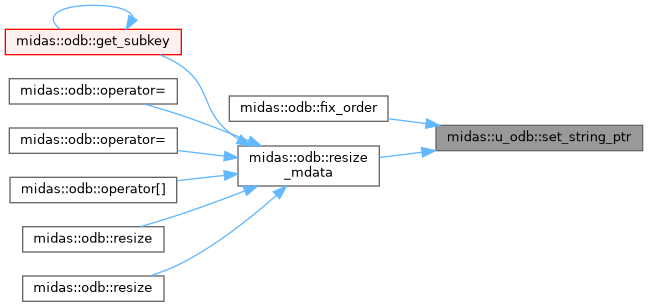

Here is the caller graph for this function:

◆ set_string_size()

void midas::u_odb::set_string_size ( std::string  s,
int  size
)

Definition at line 1855 of file odbxx.cxx.

1855 {
1856 m_tid = TID_STRING;
1857 set(v);
1858 if (m_parent_odb && m_parent_odb->is_auto_refresh_write())
1859 m_parent_odb->write(size);
1860 }

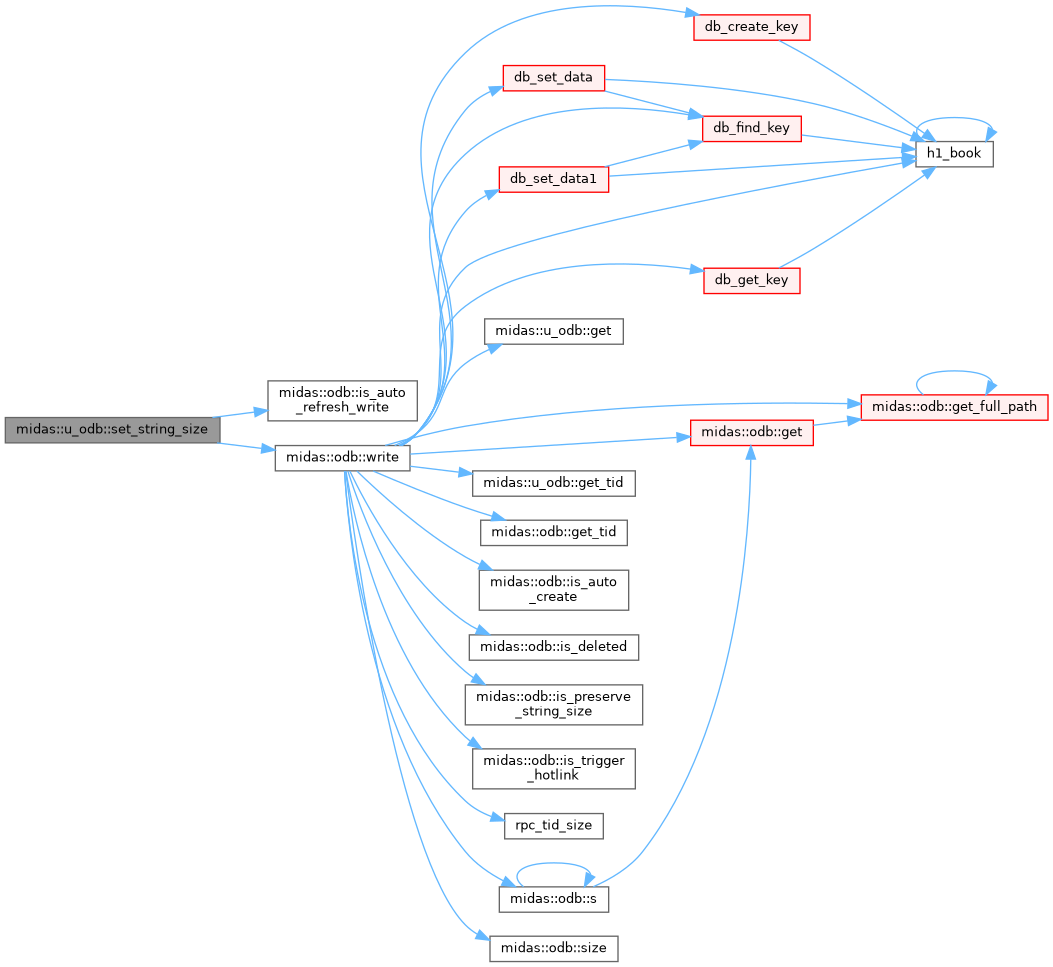

Here is the call graph for this function:
Here is the caller graph for this function:

◆ set_tid()

void midas::u_odb::set_tid ( int  tid)
inline

Definition at line 105 of file odbxx.h.

105{ m_tid = tid; }

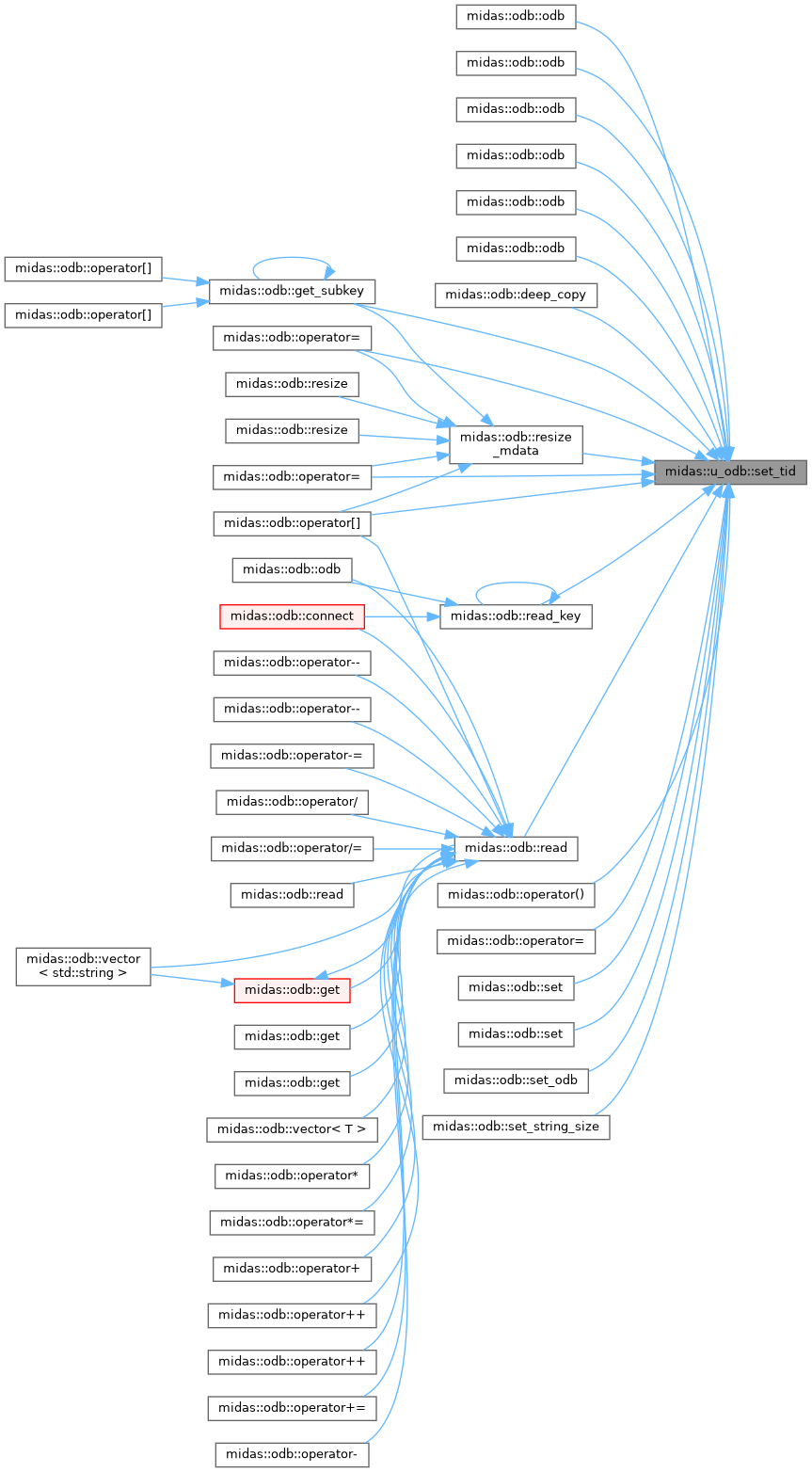

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<< ( std::ostream &  output,
u_odb &  o
)
friend

Definition at line 382 of file odbxx.h.

382 {
383 std::string s = o;
384 output << s;
385 return output;
386 };
output
static void output(code_int code)
Definition mgd.cxx:1647

Member Data Documentation

◆ [union]

union { ... } midas::u_odb

◆ m_bool

bool midas::u_odb::m_bool

Definition at line 60 of file odbxx.h.

◆ m_double

double midas::u_odb::m_double

Definition at line 62 of file odbxx.h.

◆ m_float

float midas::u_odb::m_float

Definition at line 61 of file odbxx.h.

◆ m_int16

int16_t midas::u_odb::m_int16

Definition at line 55 of file odbxx.h.

◆ m_int32

int32_t midas::u_odb::m_int32

Definition at line 57 of file odbxx.h.

◆ m_int64

int64_t midas::u_odb::m_int64

Definition at line 59 of file odbxx.h.

◆ m_int8

int8_t midas::u_odb::m_int8

Definition at line 53 of file odbxx.h.

◆ m_odb

odb* midas::u_odb::m_odb

Definition at line 64 of file odbxx.h.

◆ m_parent_odb

odb* midas::u_odb::m_parent_odb
private

Definition at line 68 of file odbxx.h.

◆ m_string

std::string* midas::u_odb::m_string

Definition at line 63 of file odbxx.h.

◆ m_tid

int midas::u_odb::m_tid
private

Definition at line 67 of file odbxx.h.

◆ m_uint16

uint16_t midas::u_odb::m_uint16

Definition at line 54 of file odbxx.h.

◆ m_uint32

uint32_t midas::u_odb::m_uint32

Definition at line 56 of file odbxx.h.

◆ m_uint64

uint64_t midas::u_odb::m_uint64

Definition at line 58 of file odbxx.h.

◆ m_uint8

uint8_t midas::u_odb::m_uint8

Definition at line 52 of file odbxx.h.

The documentation for this class was generated from the following files:
