Collaboration diagram for Camac Functions (camxxx):

Functions
EXTERNAL void EXPRT	cam16i (const int c, const int n, const int a, const int f, WORD *d)

EXTERNAL void EXPRT	cam24i (const int c, const int n, const int a, const int f, DWORD *d)

EXTERNAL void EXPRT	cam8i_q (const int c, const int n, const int a, const int f, BYTE d, int x, int *q)

EXTERNAL void EXPRT	cam16i_q (const int c, const int n, const int a, const int f, WORD d, int x, int *q)

EXTERNAL void EXPRT	cam24i_q (const int c, const int n, const int a, const int f, DWORD d, int x, int *q)

EXTERNAL void EXPRT	cam16i_r (const int c, const int n, const int a, const int f, WORD **d, const int r)

EXTERNAL void EXPRT	cam24i_r (const int c, const int n, const int a, const int f, DWORD **d, const int r)

EXTERNAL void EXPRT	cam8i_rq (const int c, const int n, const int a, const int f, BYTE **d, const int r)

EXTERNAL void EXPRT	cam16i_rq (const int c, const int n, const int a, const int f, WORD **d, const int r)

EXTERNAL void EXPRT	cam24i_rq (const int c, const int n, const int a, const int f, DWORD **d, const int r)

EXTERNAL void EXPRT	cam8i_sa (const int c, const int n, const int a, const int f, BYTE **d, const int r)

EXTERNAL void EXPRT	cam16i_sa (const int c, const int n, const int a, const int f, WORD **d, const int r)

EXTERNAL void EXPRT	cam24i_sa (const int c, const int n, const int a, const int f, DWORD **d, const int r)

EXTERNAL void EXPRT	cam8i_sn (const int c, const int n, const int a, const int f, BYTE **d, const int r)

EXTERNAL void EXPRT	cam16i_sn (const int c, const int n, const int a, const int f, WORD **d, const int r)

EXTERNAL void EXPRT	cam24i_sn (const int c, const int n, const int a, const int f, DWORD **d, const int r)

EXTERNAL void EXPRT	cami (const int c, const int n, const int a, const int f, WORD *d)

EXTERNAL void EXPRT	cam8o (const int c, const int n, const int a, const int f, BYTE d)

EXTERNAL void EXPRT	cam16o (const int c, const int n, const int a, const int f, WORD d)

EXTERNAL void EXPRT	cam24o (const int c, const int n, const int a, const int f, DWORD d)

EXTERNAL void EXPRT	cam8o_q (const int c, const int n, const int a, const int f, BYTE d, int x, int q)

EXTERNAL void EXPRT	cam16o_q (const int c, const int n, const int a, const int f, WORD d, int x, int q)

EXTERNAL void EXPRT	cam24o_q (const int c, const int n, const int a, const int f, DWORD d, int x, int q)

EXTERNAL void EXPRT	cam8o_r (const int c, const int n, const int a, const int f, BYTE *d, const int r)

EXTERNAL void EXPRT	cam16o_r (const int c, const int n, const int a, const int f, WORD *d, const int r)

EXTERNAL void EXPRT	cam24o_r (const int c, const int n, const int a, const int f, DWORD *d, const int r)

EXTERNAL void EXPRT	camo (const int c, const int n, const int a, const int f, WORD d)

EXTERNAL int EXPRT	camc_chk (const int c)

EXTERNAL void EXPRT	camc (const int c, const int n, const int a, const int f)

EXTERNAL void EXPRT	camc_q (const int c, const int n, const int a, const int f, int *q)

EXTERNAL void EXPRT	camc_sa (const int c, const int n, const int a, const int f, const int r)

EXTERNAL void EXPRT	camc_sn (const int c, const int n, const int a, const int f, const int r)

EXTERNAL int EXPRT	cam_init (void)

EXTERNAL int EXPRT	cam_init_rpc (const char host_name, const char exp_name, const char fe_name, const char client_name, const char *rpc_server)

EXTERNAL void EXPRT	cam_exit (void)

EXTERNAL void EXPRT	cam_inhibit_set (const int c)

EXTERNAL void EXPRT	cam_inhibit_clear (const int c)

EXTERNAL int EXPRT	cam_inhibit_test (const int c)

EXTERNAL void EXPRT	cam_crate_clear (const int c)

EXTERNAL void EXPRT	cam_crate_zinit (const int c)

EXTERNAL void EXPRT	cam_lam_enable (const int c, const int n)

EXTERNAL void EXPRT	cam_lam_disable (const int c, const int n)

EXTERNAL void	cam_lam_read (const int c, DWORD *lam)

EXTERNAL void EXPRT	cam_lam_clear (const int c, const int n)

EXTERNAL int EXPRT	cam_lam_wait (int c, DWORD n, const int millisec)

EXTERNAL void EXPRT	cam_interrupt_enable (const int c)

EXTERNAL void EXPRT	cam_interrupt_disable (const int c)

EXTERNAL int EXPRT	cam_interrupt_test (const int c)

EXTERNAL void EXPRT	cam_interrupt_attach (const int c, const int n, void(*isr)(void))

EXTERNAL void EXPRT	cam_interrupt_detach (const int c, const int n)

EXTERNAL void EXPRT	cam_op ()

Detailed Description

dox dox

Function Documentation

◆ cam16i()

EXTERNAL void EXPRT cam16i	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD *	d
	)

16 bits input.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data

Returns: void

Here is the caller graph for this function:

◆ cam16i_q()

EXTERNAL void EXPRT cam16i_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD *	d,
		int *	x,
		int *	q
	)

16 bits input with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data
x	X response (0:failed,1:success)
q	Q resonpse (0:no Q, 1: Q)

Returns: void

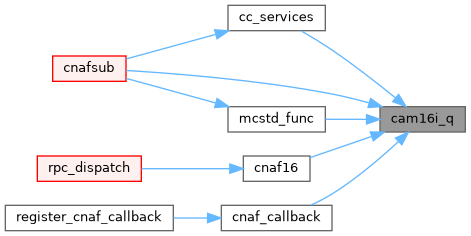

Here is the caller graph for this function:

◆ cam16i_r()

EXTERNAL void EXPRT cam16i_r	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD **	d,
		const int	r
	)

Repeat 16 bits input.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data
r	repeat time

Returns: void

Here is the caller graph for this function:

◆ cam16i_rq()

EXTERNAL void EXPRT cam16i_rq	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD **	d,
		const int	r
	)

Repeat 16 bits input with Q stop.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	repeat time

Returns: void

Here is the caller graph for this function:

◆ cam16i_sa()

EXTERNAL void EXPRT cam16i_sa	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD **	d,
		const int	r
	)

Read the given CAMAC address and increment the sub-address by one. Repeat r times.

WORD pbkdat[4];

cam16i_sa(crate, 5, 0, 2, &pbkdat, 4);

cam16i_sa

EXTERNAL void EXPRT cam16i_sa(const int c, const int n, const int a, const int f, WORD **d, const int r)

WORD

unsigned short int WORD

Definition mcstd.h:49

h1_book

TH1X EXPRT * h1_book(const char *name, const char *title, int bins, double min, double max)

Definition rmidas.h:24

equivalent to :

cam16i(crate, 5, 0, 2, &pbkdat[0]);
cam16i(crate, 5, 1, 2, &pbkdat[1]);
cam16i(crate, 5, 2, 2, &pbkdat[2]);
cam16i(crate, 5, 3, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive sub-address to read

Returns: void

Here is the caller graph for this function:

◆ cam16i_sn()

EXTERNAL void EXPRT cam16i_sn	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD **	d,
		const int	r
	)

Read the given CAMAC address and increment the station number by one. Repeat r times.

WORD pbkdat[4];

cam16i_sa(crate, 5, 0, 2, &pbkdat, 4);

equivalent to :

cam16i(crate, 5, 0, 2, &pbkdat[0]);
cam16i(crate, 6, 0, 2, &pbkdat[1]);
cam16i(crate, 7, 0, 2, &pbkdat[2]);
cam16i(crate, 8, 0, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive station to read

Returns: void

◆ cam16o()

EXTERNAL void EXPRT cam16o	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD	d
	)

Write data to given CAMAC address.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC

Returns: void

Here is the caller graph for this function:

◆ cam16o_q()

EXTERNAL void EXPRT cam16o_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD	d,
		int *	x,
		int *	q
	)

Write data to given CAMAC address with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
x	X response (0:failed,1:success)
q	Q resonpse (0:no Q, 1: Q)

Returns: void

Here is the caller graph for this function:

◆ cam16o_r()

EXTERNAL void EXPRT cam16o_r	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD *	d,
		const int	r
	)

Repeat write data to given CAMAC address r times.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
r	number of repeatition

Returns: void

Here is the caller graph for this function:

◆ cam24i()

EXTERNAL void EXPRT cam24i	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD *	d
	)

24 bits input.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data

Returns: void

Here is the caller graph for this function:

◆ cam24i_q()

EXTERNAL void EXPRT cam24i_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD *	d,
		int *	x,
		int *	q
	)

24 bits input with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data
x	X response (0:failed,1:success)
q	Q resonpse (0:no Q, 1: Q)

Returns: void

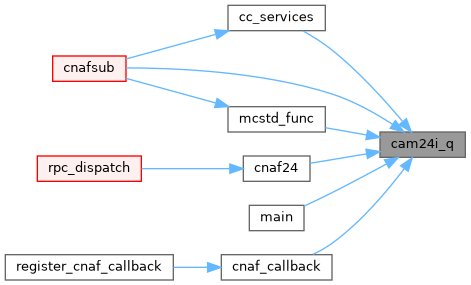

Here is the caller graph for this function:

◆ cam24i_r()

EXTERNAL void EXPRT cam24i_r	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD **	d,
		const int	r
	)

Repeat 24 bits input.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out
r	repeat time

Returns: void

Here is the caller graph for this function:

◆ cam24i_rq()

EXTERNAL void EXPRT cam24i_rq	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD **	d,
		const int	r
	)

Repeat 24 bits input with Q stop.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	repeat time

Returns: void

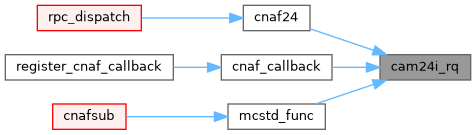

Here is the caller graph for this function:

◆ cam24i_sa()

EXTERNAL void EXPRT cam24i_sa	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD **	d,
		const int	r
	)

Read the given CAMAC address and increment the sub-address by one. Repeat r times.

DWORD pbkdat[8];

cam24i_sa(crate, 5, 0, 2, &pbkdat, 8);

cam24i_sa

EXTERNAL void EXPRT cam24i_sa(const int c, const int n, const int a, const int f, DWORD **d, const int r)

DWORD

unsigned int DWORD

Definition mcstd.h:51

equivalent to

cam24i(crate, 5, 0, 2, &pbkdat[0]);
cam24i(crate, 6, 0, 2, &pbkdat[1]);
cam24i(crate, 7, 0, 2, &pbkdat[2]);
cam24i(crate, 8, 0, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive sub-address to read

Returns: void

Here is the caller graph for this function:

◆ cam24i_sn()

EXTERNAL void EXPRT cam24i_sn	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD **	d,
		const int	r
	)

Read the given CAMAC address and increment the station number by one. Repeat r times.

DWORD pbkdat[4];

cam24i_sa(crate, 5, 0, 2, &pbkdat, 4);

equivalent to :

cam24i(crate, 5, 0, 2, &pbkdat[0]);
cam24i(crate, 6, 0, 2, &pbkdat[1]);
cam24i(crate, 7, 0, 2, &pbkdat[2]);
cam24i(crate, 8, 0, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive station to read

Returns: void

Here is the caller graph for this function:

◆ cam24o()

EXTERNAL void EXPRT cam24o	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD	d
	)

Write data to given CAMAC address.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC

Returns: void

Here is the caller graph for this function:

◆ cam24o_q()

EXTERNAL void EXPRT cam24o_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD	d,
		int *	x,
		int *	q
	)

Write data to given CAMAC address with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
x	X response (0:failed,1:success)
q	Q response (0:no Q, 1: Q)

Returns: void

Here is the caller graph for this function:

◆ cam24o_r()

EXTERNAL void EXPRT cam24o_r	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		DWORD *	d,
		const int	r
	)

Repeat write data to given CAMAC address r times.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
r	number of repeatition

Returns: void

Here is the caller graph for this function:

◆ cam8i_q()

EXTERNAL void EXPRT cam8i_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE *	d,
		int *	x,
		int *	q
	)

8 bits input with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	data read out data
x	X response (0:failed,1:success)
q	Q resonpse (0:no Q, 1: Q)

Returns: void

◆ cam8i_rq()

EXTERNAL void EXPRT cam8i_rq	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE **	d,
		const int	r
	)

Repeat 8 bits input with Q stop.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	repeat time

Returns: void

◆ cam8i_sa()

EXTERNAL void EXPRT cam8i_sa	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE **	d,
		const int	r
	)

Read the given CAMAC address and increment the sub-address by one. Repeat r times.

BYTE pbkdat[4];

cam8i_sa(crate, 5, 0, 2, &pbkdat, 4);

cam8i_sa

EXTERNAL void EXPRT cam8i_sa(const int c, const int n, const int a, const int f, BYTE **d, const int r)

BYTE

unsigned char BYTE

Definition mcstd.h:48

equivalent to :

cam8i(crate, 5, 0, 2, &pbkdat[0]);
cam8i(crate, 5, 1, 2, &pbkdat[1]);
cam8i(crate, 5, 2, 2, &pbkdat[2]);
cam8i(crate, 5, 3, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive sub-address to read

Returns: void

◆ cam8i_sn()

EXTERNAL void EXPRT cam8i_sn	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE **	d,
		const int	r
	)

Read the given CAMAC address and increment the station number by one. Repeat r times.

BYTE pbkdat[4];

cam8i_sa(crate, 5, 0, 2, &pbkdat, 4);

equivalent to :

cam8i(crate, 5, 0, 2, &pbkdat[0]);
cam8i(crate, 6, 0, 2, &pbkdat[1]);
cam8i(crate, 7, 0, 2, &pbkdat[2]);
cam8i(crate, 8, 0, 2, &pbkdat[3]);

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (0..7)
d	pointer to data read out
r	number of consecutive station to read

Returns: void

◆ cam8o()

EXTERNAL void EXPRT cam8o	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE	d
	)

Write data to given CAMAC address.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC

Returns: void

◆ cam8o_q()

EXTERNAL void EXPRT cam8o_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE	d,
		int *	x,
		int *	q
	)

Write data to given CAMAC address with Q response.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
x	X response (0:failed,1:success)
q	Q resonpse (0:no Q, 1: Q)

Returns: void

◆ cam8o_r()

EXTERNAL void EXPRT cam8o_r	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		BYTE *	d,
		const int	r
	)

Repeat write data to given CAMAC address r times.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (16..31)
d	data to be written to CAMAC
r	number of repeatition

Returns: void

◆ cam_crate_clear()

EXTERNAL void EXPRT cam_crate_clear ( const int c )

Issue CLEAR to crate.

Parameters

c	crate number (0..)

Returns: void

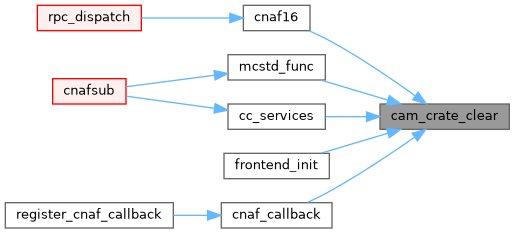

Here is the caller graph for this function:

◆ cam_crate_zinit()

EXTERNAL void EXPRT cam_crate_zinit ( const int c )

Issue Z to crate.

Parameters

c	crate number (0..)

Returns: void

Here is the caller graph for this function:

◆ cam_exit()

EXTERNAL void EXPRT cam_exit ( void )

Close CAMAC accesss.

Here is the caller graph for this function:

◆ cam_inhibit_clear()

EXTERNAL void EXPRT cam_inhibit_clear ( const int c )

Clear Crate inhibit.

Parameters

c	crate number (0..)

Returns: void

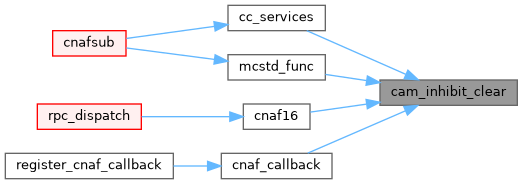

Here is the caller graph for this function:

◆ cam_inhibit_set()

EXTERNAL void EXPRT cam_inhibit_set ( const int c )

Set Crate inhibit.

Parameters

c	crate number (0..)

Returns: void

Here is the caller graph for this function:

◆ cam_inhibit_test()

EXTERNAL int EXPRT cam_inhibit_test ( const int c )

Test Crate Inhibit.

Parameters

c	crate number (0..)

Returns: 1 for set, 0 for cleared

◆ cam_init()

EXTERNAL int EXPRT cam_init ( void )

Initialize CAMAC access.

Returns: 1: success

Here is the caller graph for this function:

◆ cam_init_rpc()

EXTERNAL int EXPRT cam_init_rpc	(	const char *	host_name,
		const char *	exp_name,
		const char *	fe_name,
		const char *	client_name,
		const char *	rpc_server
	)

Initialize CAMAC access for rpc calls

Parameters

host_name	Midas host to contact
exp_name	Midas experiment to contact
fe_name	frontend application name to contact
client_name	RPC host name
rpc_server	RPC server name

Returns: 1: success

Here is the caller graph for this function:

◆ cam_interrupt_attach()

EXTERNAL void EXPRT cam_interrupt_attach	(	const int	c,
		const int	n,
		void(*)(void)	isr
	)

Attach service routine to LAM of specific crate and station.

Parameters

c	crate number (0..)
n	station number
(*isr)	Function pointer to attach to the LAM

Returns: void

Here is the caller graph for this function:

◆ cam_interrupt_detach()

EXTERNAL void EXPRT cam_interrupt_detach	(	const int	c,
		const int	n
	)

Detach service routine from LAM.

Parameters

c	crate number (0..)
n	station number

Returns: void

Here is the caller graph for this function:

◆ cam_interrupt_disable()

EXTERNAL void EXPRT cam_interrupt_disable ( const int c )

Disables interrupts in specific crate

Parameters

c	crate number (0..)

Returns: void

Here is the caller graph for this function:

◆ cam_interrupt_enable()

EXTERNAL void EXPRT cam_interrupt_enable ( const int c )

Enable interrupts in specific crate

Parameters

c	crate number (0..)

Returns: void

Here is the caller graph for this function:

◆ cam_interrupt_test()

EXTERNAL int EXPRT cam_interrupt_test ( const int c )

Test Crate Interrupt.

Parameters

c	crate number (0..)

Returns: 1 for set, 0 for cleared

◆ cam_lam_clear()

EXTERNAL void EXPRT cam_lam_clear	(	const int	c,
		const int	n
	)

Clear the LAM register of the crate controller. It doesn't clear the LAM of the particular station.

Parameters

c	crate number (0..)
n	LAM station

Returns: void

Here is the caller graph for this function:

◆ cam_lam_disable()

EXTERNAL void EXPRT cam_lam_disable	(	const int	c,
		const int	n
	)

Disable LAM generation for given station to the Crate controller. It doesn't disable the LAM of the actual station itself.

Parameters

c	crate number (0..)
n	LAM station

Returns: void

Here is the caller graph for this function:

◆ cam_lam_enable()

EXTERNAL void EXPRT cam_lam_enable	(	const int	c,
		const int	n
	)

Enable LAM generation for given station to the Crate controller. It doesn't enable the LAM of the actual station itself.

Parameters

c	crate number (0..)
n	LAM station

Returns: void

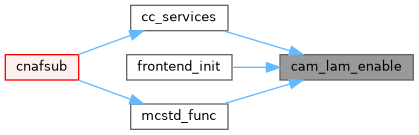

Here is the caller graph for this function:

◆ cam_lam_read()

EXTERNAL void cam_lam_read	(	const int	c,
		DWORD *	lam
	)

Reads in lam the lam pattern of the entire crate.

Parameters

c	crate number (0..)
lam	LAM pattern of the crate

Returns: void

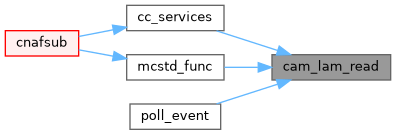

Here is the caller graph for this function:

◆ cam_lam_wait()

EXTERNAL int EXPRT cam_lam_wait	(	int *	c,
		DWORD *	n,
		const int	millisec
	)

Wait for a LAM to occur with a certain timeout. Return crate and station if LAM occurs.

Parameters

c	crate number (0..)
n	LAM station
millisec	If there is no LAM after this timeout, the routine returns

Returns: 1 if LAM occured, 0 else

◆ cam_op()

EXTERNAL void EXPRT cam_op ( )

Here is the caller graph for this function:

◆ camc()

EXTERNAL void EXPRT camc	(	const int	c,
		const int	n,
		const int	a,
		const int	f
	)

CAMAC command (no data).

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (8..15, 24..31)

Returns: void

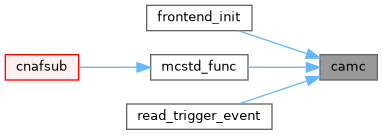

Here is the caller graph for this function:

◆ camc_chk()

EXTERNAL int EXPRT camc_chk ( const int c )

Crate presence check.

Parameters

c	crate number (0..)

Returns: 0:Success, -1:No CAMAC response

◆ camc_q()

EXTERNAL void EXPRT camc_q	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		int *	q
	)

CAMAC command with Q response (no data).

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (8..15, 24..31)
q	Q response (0:no Q, 1:Q)

Returns: void

Here is the caller graph for this function:

◆ camc_sa()

EXTERNAL void EXPRT camc_sa	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		const int	r
	)

Scan CAMAC command on sub-address.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (8..15, 24..31)
r	number of consecutive sub-address to read

Returns: void

◆ camc_sn()

EXTERNAL void EXPRT camc_sn	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		const int	r
	)

Scan CAMAC command on station.

Parameters

c	crate number (0..)
n	station number (0..30)
a	sub-address (0..15)
f	function (8..15, 24..31)
r	number of consecutive station to read

Returns: void

◆ cami()

EXTERNAL void EXPRT cami	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD *	d
	)

Same as cam16i()

◆ camo()

EXTERNAL void EXPRT camo	(	const int	c,
		const int	n,
		const int	a,
		const int	f,
		WORD	d
	)

Same as cam16o()

Here is the caller graph for this function:
