HsSchema Struct Reference

Inheritance diagram for HsSchema:

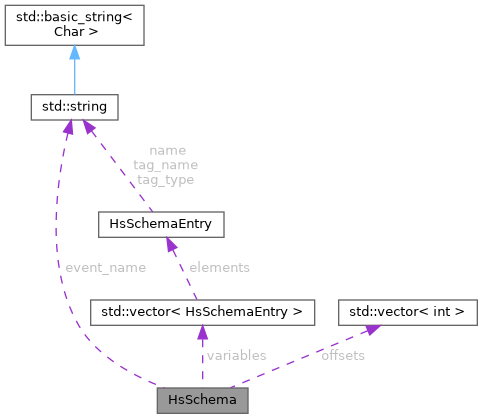

Collaboration diagram for HsSchema:

Public Member Functions
	HsSchema ()
virtual void	print (bool print_tags=true) const
virtual	~HsSchema ()
virtual int	flush_buffers ()=0
virtual int	close ()=0
virtual int	write_event (const time_t t, const char *data, const int data_size)=0
virtual int	match_event_var (const char *event_name, const char *var_name, const int var_index)
virtual int	read_last_written (const time_t timestamp, const int debug, time_t *last_written)=0
virtual int	read_data (const time_t start_time, const time_t end_time, const int num_var, const std::vector< int > &var_schema_index, const int var_index[], const int debug, std::vector< time_t > &last_time, MidasHistoryBufferInterface *buffer[])=0

Public Attributes
std::string	event_name
time_t	time_from = 0
time_t	time_to = 0
std::vector< HsSchemaEntry >	variables
std::vector< int >	offsets
int	n_bytes = 0
int	count_write_undersize = 0
int	count_write_oversize = 0
int	write_max_size = 0
int	write_min_size = 0
bool	disabled = true

Detailed Description

Definition at line 410 of file history_schema.cxx.

Constructor & Destructor Documentation

HsSchema()

HsSchema::HsSchema ( )

inline

Definition at line 429 of file history_schema.cxx.

   {
      time_from = 0;
      time_to = 0;
      n_bytes = 0;

      count_write_undersize = 0;
      count_write_oversize = 0;
      write_max_size = 0;
      write_min_size = 0;
   }

~HsSchema()

HsSchema::~HsSchema ( )

virtual

Definition at line 499 of file history_schema.cxx.

{
   // only report if undersize/oversize happens more than once -
   // the first occurence is already reported by hs_write_event()
   if (count_write_undersize > 1) {
      cm_msg(MERROR, "hs_write_event", "Event \'%s\' data size mismatch count: %d, expected %d bytes, hs_write_event() called with as few as %d bytes", event_name.c_str(), count_write_undersize, n_bytes, write_min_size);
   }

   if (count_write_oversize > 1) {
      cm_msg(MERROR, "hs_write_event", "Event \'%s\' data size mismatch count: %d, expected %d bytes, hs_write_event() called with as much as %d bytes", event_name.c_str(), count_write_oversize, n_bytes, write_max_size);
   }
};

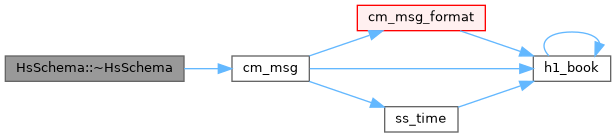

Here is the call graph for this function:

Member Function Documentation

close()

virtual int HsSchema::close ( )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

flush_buffers()

virtual int HsSchema::flush_buffers ( )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

match_event_var()

int HsSchema::match_event_var ( const char *  event_name, const char *  var_name, const int  var_index  )

virtual

Reimplemented in HsSqlSchema.

Definition at line 4041 of file history_schema.cxx.

{
   if (!MatchEventName(this->event_name.c_str(), event_name))
      return -1;

   for (unsigned j=0; j<this->variables.size(); j++) {
      if (MatchTagName(this->variables[j].name.c_str(), this->variables[j].n_data, var_name, var_index)) {
         // Second clause in if() is case where MatchTagName used the "alternate tag name".
         // E.g. our variable name is "IM05[3]" (n_data=1), but we're looking for var_name="IM05" and var_index=3.
         if (var_index < this->variables[j].n_data || (this->variables[j].n_data == 1 && this->variables[j].name.find("[") != std::string::npos)) {
            return j;
         }
      }
   }

   return -1;
}

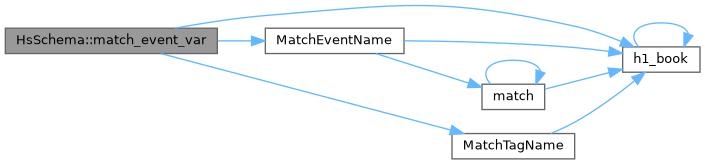

Here is the call graph for this function:

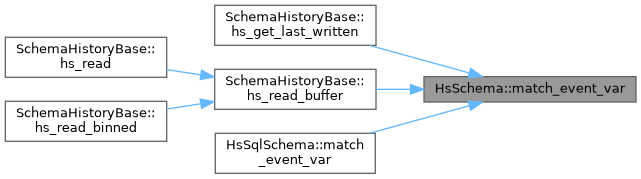

Here is the caller graph for this function:

print()

void HsSchema::print ( bool  print_tags = true ) const

virtual

Reimplemented in HsSqlSchema, and HsFileSchema.

Definition at line 788 of file history_schema.cxx.

{
   unsigned nv = this->variables.size();
   printf("event [%s], time %s..%s, %d variables, %d bytes\n", this->event_name.c_str(), TimeToString(this->time_from).c_str(), TimeToString(this->time_to).c_str(), nv, n_bytes);
   if (print_tags)
      for (unsigned j=0; j<nv; j++)
         printf("  %d: name [%s], type [%s] tid %d, n_data %d, n_bytes %d, offset %d\n", j, this->variables[j].name.c_str(), rpc_tid_name(this->variables[j].type), this->variables[j].type, this->variables[j].n_data, this->variables[j].n_bytes, this->offsets[j]);
};

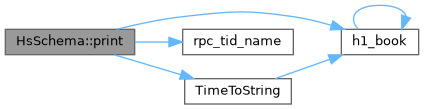

Here is the call graph for this function:

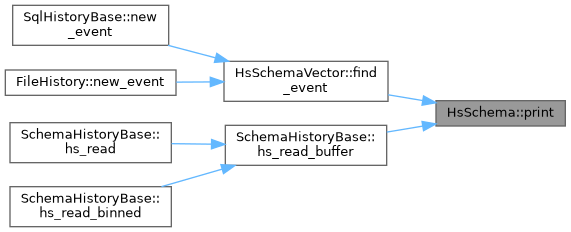

Here is the caller graph for this function:

read_data()

virtual int HsSchema::read_data ( const time_t  start_time, const time_t  end_time, const int  num_var, const std::vector< int > &  var_schema_index, const int  var_index[], const int  debug, std::vector< time_t > &  last_time, MidasHistoryBufferInterface *  buffer[]  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

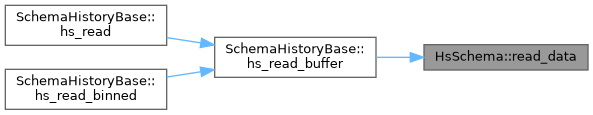

Here is the caller graph for this function:

read_last_written()

virtual int HsSchema::read_last_written ( const time_t  timestamp, const int  debug, time_t *  last_written  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

write_event()

virtual int HsSchema::write_event ( const time_t  t, const char *  data, const int  data_size  )

pure virtual

Implemented in HsSqlSchema, and HsFileSchema.

Here is the caller graph for this function:

Member Data Documentation

count_write_oversize

int HsSchema::count_write_oversize = 0

Definition at line 422 of file history_schema.cxx.

count_write_undersize

int HsSchema::count_write_undersize = 0

Definition at line 421 of file history_schema.cxx.

disabled

bool HsSchema::disabled = true

Definition at line 427 of file history_schema.cxx.

event_name

std::string HsSchema::event_name

Definition at line 413 of file history_schema.cxx.

n_bytes

int HsSchema::n_bytes = 0

Definition at line 418 of file history_schema.cxx.

offsets

std::vector<int> HsSchema::offsets

Definition at line 417 of file history_schema.cxx.

time_from

time_t HsSchema::time_from = 0

Definition at line 414 of file history_schema.cxx.

time_to

time_t HsSchema::time_to = 0

Definition at line 415 of file history_schema.cxx.

variables

std::vector<HsSchemaEntry> HsSchema::variables

Definition at line 416 of file history_schema.cxx.

write_max_size

int HsSchema::write_max_size = 0

Definition at line 423 of file history_schema.cxx.

write_min_size

int HsSchema::write_min_size = 0

Definition at line 424 of file history_schema.cxx.

---

The documentation for this struct was generated from the following file:

• src/history_schema.cxx
