#include <stdint.h>
#include <string>
#include <vector>
#include <mutex>
#include <thread>
#include <atomic>
#include "mvodb.h"

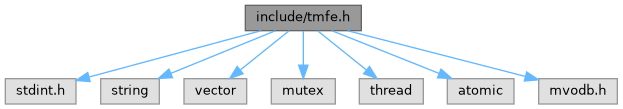

Include dependency graph for tmfe.h:

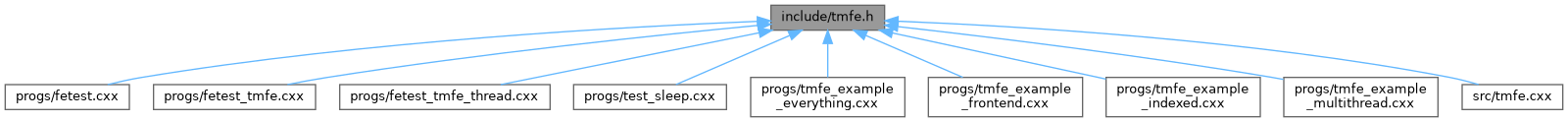

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	TMFeResult

class	TMEventBuffer

class	TMFeRpcHandlerInterface

class	TMFeEquipment

class	TMFrontend

class	TMFE

Macros
#define	TID_BYTE 1

#define	TID_UINT8 1

#define	TID_SBYTE 2

#define	TID_INT8 2

#define	TID_CHAR 3

#define	TID_WORD 4

#define	TID_UINT16 4

#define	TID_SHORT 5

#define	TID_INT16 5

#define	TID_DWORD 6

#define	TID_UINT32 6

#define	TID_INT 7

#define	TID_INT32 7

#define	TID_BOOL 8

#define	TID_FLOAT 9

#define	TID_FLOAT32 9

#define	TID_DOUBLE 10

#define	TID_FLOAT64 10

#define	TID_BITFIELD 11

#define	TID_STRING 12

#define	TID_ARRAY 13

#define	TID_STRUCT 14

#define	TID_KEY 15

#define	TID_LINK 16

#define	TID_INT64 17

#define	TID_UINT64 18

#define	TID_QWORD 18

#define	TID_LAST 19

#define	MT_ERROR (1<<0)

#define	MT_INFO (1<<1)

#define	MT_DEBUG (1<<2)

#define	MT_USER (1<<3)

#define	MT_LOG (1<<4)

#define	MT_TALK (1<<5)

#define	MT_CALL (1<<6)

#define	MT_ALL 0xFF

#define	MT_ERROR_STR "ERROR"

#define	MT_INFO_STR "INFO"

#define	MT_DEBUG_STR "DEBUG"

#define	MT_USER_STR "USER"

#define	MT_LOG_STR "LOG"

#define	MT_TALK_STR "TALK"

#define	MT_CALL_STR "CALL"

#define	MERROR MT_ERROR, __FILE__, __LINE__

#define	MINFO MT_INFO, __FILE__, __LINE__

#define	MDEBUG MT_DEBUG, __FILE__, __LINE__

#define	MUSER MT_USER, __FILE__, __LINE__

#define	MLOG MT_LOG, __FILE__, __LINE__

#define	MTALK MT_TALK, __FILE__, __LINE__

#define	MCALL MT_CALL, __FILE__, __LINE__

#define	MATTRPRINTF(a, b)

Functions
TMFeResult	TMFeOk ()

TMFeResult	TMFeErrorMessage (const std::string &message)

TMFeResult	TMFeMidasError (const std::string &message, const char *midas_function_name, int midas_status)

Macro Definition Documentation

◆ MATTRPRINTF

#define MATTRPRINTF	(	a,
		b
	)

Definition at line 83 of file tmfe.h.

◆ MCALL

#define MCALL MT_CALL, __FILE__, __LINE__

info message for telephone call

Definition at line 78 of file tmfe.h.

◆ MDEBUG

#define MDEBUG MT_DEBUG, __FILE__, __LINE__

Definition at line 74 of file tmfe.h.

◆ MERROR

#define MERROR MT_ERROR, __FILE__, __LINE__

Definition at line 72 of file tmfe.h.

◆ MINFO

#define MINFO MT_INFO, __FILE__, __LINE__

Definition at line 73 of file tmfe.h.

◆ MLOG

#define MLOG MT_LOG, __FILE__, __LINE__

info message which is only logged

Definition at line 76 of file tmfe.h.

◆ MT_ALL

#define MT_ALL 0xFF

Definition at line 62 of file tmfe.h.

◆ MT_CALL

#define MT_CALL (1<<6)

Definition at line 61 of file tmfe.h.

◆ MT_CALL_STR

#define MT_CALL_STR "CALL"

Definition at line 70 of file tmfe.h.

◆ MT_DEBUG

#define MT_DEBUG (1<<2)

Definition at line 57 of file tmfe.h.

◆ MT_DEBUG_STR

#define MT_DEBUG_STR "DEBUG"

Definition at line 66 of file tmfe.h.

◆ MT_ERROR

#define MT_ERROR (1<<0)

System message types

Definition at line 55 of file tmfe.h.

◆ MT_ERROR_STR

#define MT_ERROR_STR "ERROR"

Definition at line 64 of file tmfe.h.

◆ MT_INFO

#define MT_INFO (1<<1)

Definition at line 56 of file tmfe.h.

◆ MT_INFO_STR

#define MT_INFO_STR "INFO"

Definition at line 65 of file tmfe.h.

◆ MT_LOG

#define MT_LOG (1<<4)

Definition at line 59 of file tmfe.h.

◆ MT_LOG_STR

#define MT_LOG_STR "LOG"

Definition at line 68 of file tmfe.h.

◆ MT_TALK

#define MT_TALK (1<<5)

Definition at line 60 of file tmfe.h.

◆ MT_TALK_STR

#define MT_TALK_STR "TALK"

Definition at line 69 of file tmfe.h.

◆ MT_USER

#define MT_USER (1<<3)

Definition at line 58 of file tmfe.h.

◆ MT_USER_STR

#define MT_USER_STR "USER"

Definition at line 67 of file tmfe.h.

◆ MTALK

#define MTALK MT_TALK, __FILE__, __LINE__

info message for speech system

Definition at line 77 of file tmfe.h.

◆ MUSER

#define MUSER MT_USER, __FILE__, __LINE__

produced by interactive user

Definition at line 75 of file tmfe.h.

◆ TID_ARRAY

#define TID_ARRAY 13

array with unknown contents

Definition at line 44 of file tmfe.h.

◆ TID_BITFIELD

#define TID_BITFIELD 11

32 Bits Bitfield 0 111... (32)

Definition at line 42 of file tmfe.h.

◆ TID_BOOL

#define TID_BOOL 8

four bytes bool 0 1

Definition at line 37 of file tmfe.h.

◆ TID_BYTE

#define TID_BYTE 1

DEPRECATED, use TID_UINT8 instead

Definition at line 24 of file tmfe.h.

◆ TID_CHAR

#define TID_CHAR 3

single character 0 255

Definition at line 28 of file tmfe.h.

◆ TID_DOUBLE

#define TID_DOUBLE 10

8 Byte float format

Definition at line 40 of file tmfe.h.

◆ TID_DWORD

#define TID_DWORD 6

DEPRECATED, use TID_UINT32 instead

Definition at line 33 of file tmfe.h.

◆ TID_FLOAT

#define TID_FLOAT 9

4 Byte float format

Definition at line 38 of file tmfe.h.

◆ TID_FLOAT32

#define TID_FLOAT32 9

4 Byte float format

Definition at line 39 of file tmfe.h.

◆ TID_FLOAT64

#define TID_FLOAT64 10

8 Byte float format

Definition at line 41 of file tmfe.h.

◆ TID_INT

#define TID_INT 7

DEPRECATED, use TID_INT32 instead

Definition at line 35 of file tmfe.h.

◆ TID_INT16

#define TID_INT16 5

signed word -32768 32767

Definition at line 32 of file tmfe.h.

◆ TID_INT32

#define TID_INT32 7

signed dword -2^31 2^31-1

Definition at line 36 of file tmfe.h.

◆ TID_INT64

#define TID_INT64 17

8 bytes int -2^63 2^63-1

Definition at line 48 of file tmfe.h.

◆ TID_INT8

#define TID_INT8 2

signed byte -128 127

Definition at line 27 of file tmfe.h.

◆ TID_KEY

#define TID_KEY 15

key in online database

Definition at line 46 of file tmfe.h.

◆ TID_LAST

#define TID_LAST 19

end of TID list indicator

Definition at line 51 of file tmfe.h.

◆ TID_LINK

#define TID_LINK 16

link in online database

Definition at line 47 of file tmfe.h.

◆ TID_QWORD

#define TID_QWORD 18

8 bytes unsigned int 0 2^64-1

Definition at line 50 of file tmfe.h.

◆ TID_SBYTE

#define TID_SBYTE 2

DEPRECATED, use TID_INT8 instead

Definition at line 26 of file tmfe.h.

◆ TID_SHORT

#define TID_SHORT 5

DEPRECATED, use TID_INT16 instead

Definition at line 31 of file tmfe.h.

◆ TID_STRING

#define TID_STRING 12

zero terminated string

Definition at line 43 of file tmfe.h.

◆ TID_STRUCT

#define TID_STRUCT 14

structure with fixed length

Definition at line 45 of file tmfe.h.

◆ TID_UINT16

#define TID_UINT16 4

two bytes 0 65535

Definition at line 30 of file tmfe.h.

◆ TID_UINT32

#define TID_UINT32 6

four bytes 0 2^32-1

Definition at line 34 of file tmfe.h.

◆ TID_UINT64

#define TID_UINT64 18

8 bytes unsigned int 0 2^64-1

Definition at line 49 of file tmfe.h.

◆ TID_UINT8

#define TID_UINT8 1

unsigned byte 0 255

Definition at line 25 of file tmfe.h.

◆ TID_WORD

#define TID_WORD 4

DEPRECATED, use TID_UINT16 instead

Definition at line 29 of file tmfe.h.

Function Documentation

◆ TMFeErrorMessage()

TMFeResult TMFeErrorMessage ( const std::string & message )

Definition at line 29 of file tmfe.cxx.

{
   return TMFeResult(0, message);
}

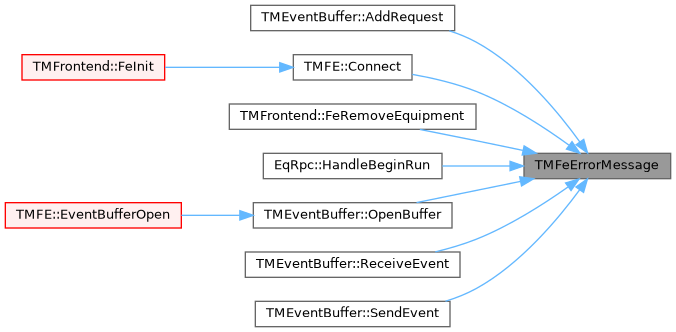

Here is the caller graph for this function:

◆ TMFeMidasError()

TMFeResult TMFeMidasError	(	const std::string &	message,
		const char *	midas_function_name,
		int	midas_status
	)

Definition at line 34 of file tmfe.cxx.

{
   return TMFeResult(midas_status, message + msprintf(", %s() status %d", midas_function_name, midas_status));
}

Here is the call graph for this function:
