Access to ODB saved in JSON format inside midas .mid files. More...

Inheritance diagram for JsonOdb:

Collaboration diagram for JsonOdb:

[legend]

Public Member Functions
	JsonOdb (MJsonNode root, MJsonNode dir, MVOdbError *error)

	~JsonOdb ()

void	SetPrintError (bool v)

bool	GetPrintError () const

void	SetNotFound (MVOdbError error, const char varname)

void	SetVarError (MVOdbError error, const char varname, std::string msg)

void	SetWrongType (MVOdbError error, const char varname, const MJsonNode node, const char wanted_type)

bool	IsReadOnly () const

template<typename T >
bool	GetJsonValue (const char varname, const MJsonNode node, T value, MVOdbError error)

MVOdb *	Chdir (const char subdir, bool create, MVOdbError error)

void	ReadKey (const char varname, int tid, int num_values, int total_size, int item_size, MVOdbError error)

void	ReadKeyLastWritten (const char varname, int last_written, MVOdbError *error)

void	ReadDir (std::vector< std::string > varname, std::vector< int > tid, std::vector< int > num_values, std::vector< int > total_size, std::vector< int > item_size, MVOdbError error)

void	RB (const char varname, bool value, bool create, MVOdbError *error)

void	RI (const char varname, int value, bool create, MVOdbError *error)

void	RD (const char varname, double value, bool create, MVOdbError *error)

void	RF (const char varname, float value, bool create, MVOdbError *error)

void	RS (const char varname, std::string value, bool create, int create_string_length, MVOdbError *error)

void	RU16 (const char varname, uint16_t value, bool create, MVOdbError *error)

void	RU32 (const char varname, uint32_t value, bool create, MVOdbError *error)

template<typename T >
void	RXA (const char varname, std::vector< T > value, MVOdbError *error)

void	RBA (const char varname, std::vector< bool > value, bool create, int create_size, MVOdbError *error)

void	RIA (const char varname, std::vector< int > value, bool create, int create_size, MVOdbError *error)

void	RDA (const char varname, std::vector< double > value, bool create, int create_size, MVOdbError *error)

void	RFA (const char varname, std::vector< float > value, bool create, int create_size, MVOdbError *error)

void	RSA (const char varname, std::vector< std::string > value, bool create, int create_size, int create_string_length, MVOdbError *error)

void	RU16A (const char varname, std::vector< uint16_t > value, bool create, int create_size, MVOdbError *error)

void	RU32A (const char varname, std::vector< uint32_t > value, bool create, int create_size, MVOdbError *error)

template<typename T >
void	RXAI (const char varname, int index, T value, MVOdbError *error)

void	RBAI (const char varname, int index, bool value, MVOdbError *error)

void	RIAI (const char varname, int index, int value, MVOdbError *error)

void	RDAI (const char varname, int index, double value, MVOdbError *error)

void	RFAI (const char varname, int index, float value, MVOdbError *error)

void	RSAI (const char varname, int index, std::string value, MVOdbError *error)

void	RU16AI (const char varname, int index, uint16_t value, MVOdbError *error)

void	RU32AI (const char varname, int index, uint32_t value, MVOdbError *error)

void	WB (const char varname, bool v, MVOdbError error)

void	WI (const char varname, int v, MVOdbError error)

void	WD (const char varname, double v, MVOdbError error)

void	WF (const char varname, float v, MVOdbError error)

void	WS (const char varname, const char v, int string_length, MVOdbError *error)

void	WU16 (const char varname, uint16_t v, MVOdbError error)

void	WU32 (const char varname, uint32_t v, MVOdbError error)

void	WBA (const char varname, const std::vector< bool > &v, MVOdbError error)

void	WIA (const char varname, const std::vector< int > &v, MVOdbError error)

void	WDA (const char varname, const std::vector< double > &v, MVOdbError error)

void	WFA (const char varname, const std::vector< float > &v, MVOdbError error)

void	WSA (const char varname, const std::vector< std::string > &data, int odb_string_length, MVOdbError error)

void	WU16A (const char varname, const std::vector< uint16_t > &v, MVOdbError error)

void	WU32A (const char varname, const std::vector< uint32_t > &v, MVOdbError error)

void	WBAI (const char varname, int index, bool v, MVOdbError error)

void	WIAI (const char varname, int index, int v, MVOdbError error)

void	WDAI (const char varname, int index, double v, MVOdbError error)

void	WFAI (const char varname, int index, float v, MVOdbError error)

void	WSAI (const char varname, int index, const char v, MVOdbError *error)

void	WU16AI (const char varname, int index, uint16_t v, MVOdbError error)

void	WU32AI (const char varname, int index, uint32_t v, MVOdbError error)

void	Delete (const char odbname, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, int value, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, double value, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, float value, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, bool value, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, uint16_t value, MVOdbError error)

template<>
bool	GetJsonValue (const char varname, const MJsonNode node, uint32_t value, MVOdbError error)

Public Member Functions inherited from MVOdb
virtual	~MVOdb ()=0

virtual	~MVOdb ()=0

Static Public Member Functions
static MJsonNode *	FindPath (MJsonNode dir, const char path)
	Follow the ODB path through the JSON tree.

Data Fields
MJsonNode *	fRoot

MJsonNode *	fDir

std::string	fPath

bool	fPrintError

Detailed Description

Access to ODB saved in JSON format inside midas .mid files.

Definition at line 28 of file mjsonodb.cxx.

Constructor & Destructor Documentation

◆ JsonOdb()

JsonOdb::JsonOdb	(	MJsonNode *	root,
		MJsonNode *	dir,
		MVOdbError *	error
	)

inline

Definition at line 37 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ ~JsonOdb()

JsonOdb::~JsonOdb ( )

inline

Definition at line 46 of file mjsonodb.cxx.

Member Function Documentation

◆ Chdir()

MVOdb * JsonOdb::Chdir	(	const char *	subdir,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 158 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ Delete()

void JsonOdb::Delete	(	const char *	odbname,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 464 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ FindPath()

static MJsonNode * JsonOdb::FindPath	(	MJsonNode *	dir,
		const char *	path
	)

inlinestatic

Follow the ODB path through the JSON tree.

Definition at line 110 of file mjsonodb.cxx.

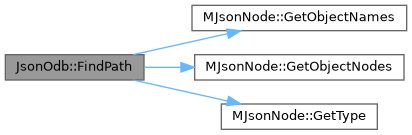

Here is the call graph for this function:

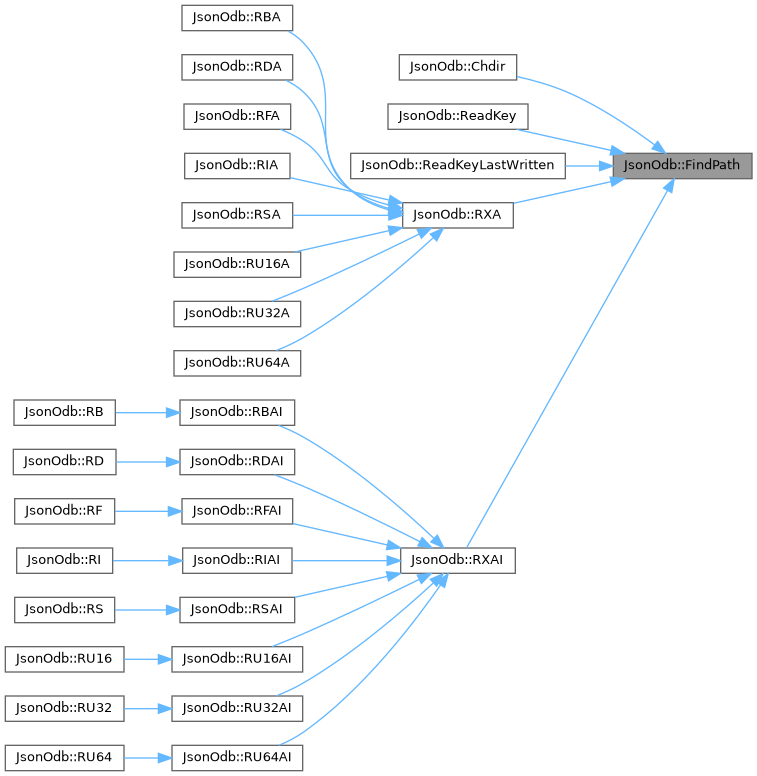

Here is the caller graph for this function:

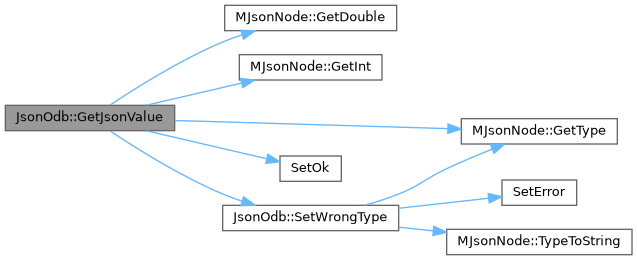

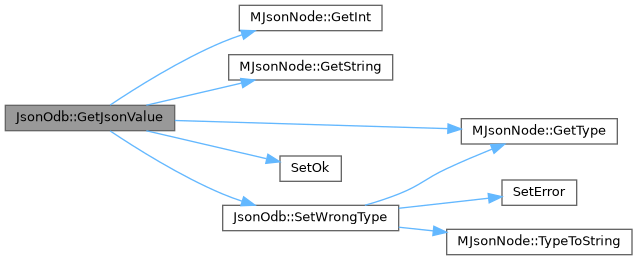

◆ GetJsonValue() [1/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		bool *	value,
		MVOdbError *	error
	)

Definition at line 497 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetJsonValue() [2/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		double *	value,
		MVOdbError *	error
	)

Definition at line 477 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetJsonValue() [3/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		float *	value,
		MVOdbError *	error
	)

Definition at line 487 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetJsonValue() [4/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		int *	value,
		MVOdbError *	error
	)

Definition at line 468 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetJsonValue() [5/7]

template<typename T >

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		T *	value,
		MVOdbError *	error
	)

◆ GetJsonValue() [6/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		uint16_t *	value,
		MVOdbError *	error
	)

Definition at line 508 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetJsonValue() [7/7]

template<>

bool JsonOdb::GetJsonValue	(	const char *	varname,
		const MJsonNode *	node,
		uint32_t *	value,
		MVOdbError *	error
	)

Definition at line 518 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ GetPrintError()

bool JsonOdb::GetPrintError ( ) const

inlinevirtual

Implements MVOdb.

Definition at line 61 of file mjsonodb.cxx.

◆ IsReadOnly()

bool JsonOdb::IsReadOnly ( ) const

inlinevirtual

Implements MVOdb.

Definition at line 101 of file mjsonodb.cxx.

◆ RB()

void JsonOdb::RB	(	const char *	varname,
		bool *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 220 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RBA()

void JsonOdb::RBA	(	const char *	varname,
		std::vector< bool > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 300 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RBAI()

void JsonOdb::RBAI	(	const char *	varname,
		int	index,
		bool *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 401 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

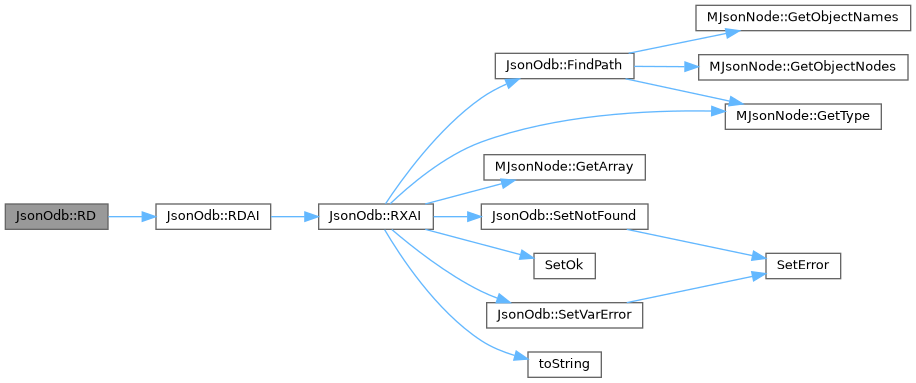

◆ RD()

void JsonOdb::RD	(	const char *	varname,
		double *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 230 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RDA()

void JsonOdb::RDA	(	const char *	varname,
		std::vector< double > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 310 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RDAI()

void JsonOdb::RDAI	(	const char *	varname,
		int	index,
		double *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 411 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadDir()

void JsonOdb::ReadDir	(	std::vector< std::string > *	varname,
		std::vector< int > *	tid,
		std::vector< int > *	num_values,
		std::vector< int > *	total_size,
		std::vector< int > *	item_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 214 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ ReadKey()

void JsonOdb::ReadKey	(	const char *	varname,
		int *	tid,
		int *	num_values,
		int *	total_size,
		int *	item_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 197 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ ReadKeyLastWritten()

void JsonOdb::ReadKeyLastWritten	(	const char *	varname,
		int *	last_written,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 207 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RF()

void JsonOdb::RF	(	const char *	varname,
		float *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 235 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RFA()

void JsonOdb::RFA	(	const char *	varname,
		std::vector< float > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 315 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RFAI()

void JsonOdb::RFAI	(	const char *	varname,
		int	index,
		float *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 416 of file mjsonodb.cxx.

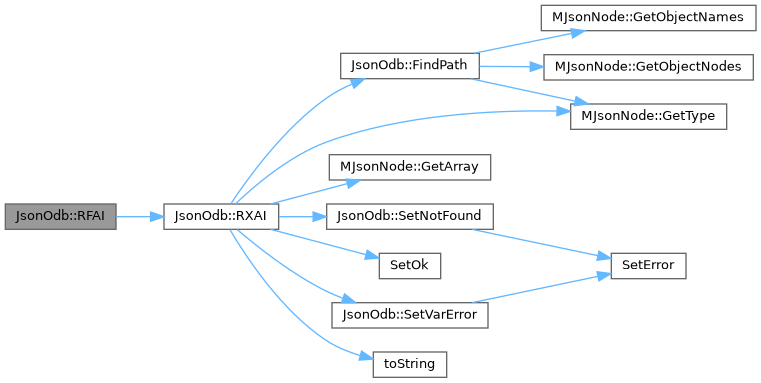

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RI()

void JsonOdb::RI	(	const char *	varname,
		int *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 225 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RIA()

void JsonOdb::RIA	(	const char *	varname,
		std::vector< int > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 305 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RIAI()

void JsonOdb::RIAI	(	const char *	varname,
		int	index,
		int *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 406 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RS()

void JsonOdb::RS	(	const char *	varname,
		std::string *	value,
		bool	create,
		int	create_string_length,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 240 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RSA()

void JsonOdb::RSA	(	const char *	varname,
		std::vector< std::string > *	value,
		bool	create,
		int	create_size,
		int	create_string_length,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 320 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RSAI()

void JsonOdb::RSAI	(	const char *	varname,
		int	index,
		std::string *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 421 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RU16()

void JsonOdb::RU16	(	const char *	varname,
		uint16_t *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 245 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RU16A()

void JsonOdb::RU16A	(	const char *	varname,
		std::vector< uint16_t > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 325 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RU16AI()

void JsonOdb::RU16AI	(	const char *	varname,
		int	index,
		uint16_t *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 426 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RU32()

void JsonOdb::RU32	(	const char *	varname,
		uint32_t *	value,
		bool	create,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 250 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RU32A()

void JsonOdb::RU32A	(	const char *	varname,
		std::vector< uint32_t > *	value,
		bool	create,
		int	create_size,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 330 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ RU32AI()

void JsonOdb::RU32AI	(	const char *	varname,
		int	index,
		uint32_t *	value,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 431 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RXA()

template<typename T >

void JsonOdb::RXA	(	const char *	varname,
		std::vector< T > *	value,
		MVOdbError *	error
	)

inline

Definition at line 256 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RXAI()

template<typename T >

void JsonOdb::RXAI	(	const char *	varname,
		int	index,
		T *	value,
		MVOdbError *	error
	)

inline

Definition at line 336 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetNotFound()

void JsonOdb::SetNotFound	(	MVOdbError *	error,
		const char *	varname
	)

inline

Definition at line 66 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPrintError()

void JsonOdb::SetPrintError ( bool v )

inlinevirtual

Implements MVOdb.

Definition at line 56 of file mjsonodb.cxx.

◆ SetVarError()

void JsonOdb::SetVarError	(	MVOdbError *	error,
		const char *	varname,
		std::string	msg
	)

inline

Definition at line 76 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWrongType()

void JsonOdb::SetWrongType	(	MVOdbError *	error,
		const char *	varname,
		const MJsonNode *	node,
		const char *	wanted_type
	)

inline

Definition at line 85 of file mjsonodb.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WB()

void JsonOdb::WB	(	const char *	varname,
		bool	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 438 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WBA()

void JsonOdb::WBA	(	const char *	varname,
		const std::vector< bool > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 446 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WBAI()

void JsonOdb::WBAI	(	const char *	varname,
		int	index,
		bool	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 454 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WD()

void JsonOdb::WD	(	const char *	varname,
		double	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 440 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WDA()

void JsonOdb::WDA	(	const char *	varname,
		const std::vector< double > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 448 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WDAI()

void JsonOdb::WDAI	(	const char *	varname,
		int	index,
		double	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 456 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WF()

void JsonOdb::WF	(	const char *	varname,
		float	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 441 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WFA()

void JsonOdb::WFA	(	const char *	varname,
		const std::vector< float > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 449 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WFAI()

void JsonOdb::WFAI	(	const char *	varname,
		int	index,
		float	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 457 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WI()

void JsonOdb::WI	(	const char *	varname,
		int	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 439 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WIA()

void JsonOdb::WIA	(	const char *	varname,
		const std::vector< int > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 447 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WIAI()

void JsonOdb::WIAI	(	const char *	varname,
		int	index,
		int	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 455 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WS()

void JsonOdb::WS	(	const char *	varname,
		const char *	v,
		int	string_length,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 442 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WSA()

void JsonOdb::WSA	(	const char *	varname,
		const std::vector< std::string > &	data,
		int	odb_string_length,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 450 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WSAI()

void JsonOdb::WSAI	(	const char *	varname,
		int	index,
		const char *	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 458 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU16()

void JsonOdb::WU16	(	const char *	varname,
		uint16_t	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 443 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU16A()

void JsonOdb::WU16A	(	const char *	varname,
		const std::vector< uint16_t > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 451 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU16AI()

void JsonOdb::WU16AI	(	const char *	varname,
		int	index,
		uint16_t	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 459 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU32()

void JsonOdb::WU32	(	const char *	varname,
		uint32_t	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 444 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU32A()

void JsonOdb::WU32A	(	const char *	varname,
		const std::vector< uint32_t > &	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 452 of file mjsonodb.cxx.

Here is the call graph for this function:

◆ WU32AI()

void JsonOdb::WU32AI	(	const char *	varname,
		int	index,
		uint32_t	v,
		MVOdbError *	error
	)

inlinevirtual

Implements MVOdb.

Definition at line 460 of file mjsonodb.cxx.

Here is the call graph for this function:

Field Documentation

◆ fDir

MJsonNode* JsonOdb::fDir

Definition at line 32 of file mjsonodb.cxx.

◆ fPath

std::string JsonOdb::fPath

Definition at line 33 of file mjsonodb.cxx.

◆ fPrintError

bool JsonOdb::fPrintError

Definition at line 34 of file mjsonodb.cxx.

◆ fRoot

MJsonNode* JsonOdb::fRoot

Definition at line 31 of file mjsonodb.cxx.

The documentation for this class was generated from the following file:

mvodb/mjsonodb.cxx

Public Member Functions

Static Public Member Functions

Data Fields

Detailed Description

Constructor & Destructor Documentation

◆ JsonOdb()

◆ ~JsonOdb()

Member Function Documentation

◆ Chdir()

◆ Delete()

◆ FindPath()

◆ GetJsonValue() [1/7]

◆ GetJsonValue() [2/7]

◆ GetJsonValue() [3/7]

◆ GetJsonValue() [4/7]

◆ GetJsonValue() [5/7]

◆ GetJsonValue() [6/7]

◆ GetJsonValue() [7/7]

◆ GetPrintError()

◆ IsReadOnly()

◆ RB()

◆ RBA()

◆ RBAI()

◆ RD()

◆ RDA()

◆ RDAI()

◆ ReadDir()

◆ ReadKey()

◆ ReadKeyLastWritten()

◆ RF()

◆ RFA()

◆ RFAI()

◆ RI()

◆ RIA()

◆ RIAI()

◆ RS()

◆ RSA()

◆ RSAI()

◆ RU16()

◆ RU16A()

◆ RU16AI()

◆ RU32()

◆ RU32A()

◆ RU32AI()

◆ RXA()

◆ RXAI()

◆ SetNotFound()

◆ SetPrintError()

◆ SetVarError()

◆ SetWrongType()

◆ WB()

◆ WBA()

◆ WBAI()

◆ WD()

◆ WDA()

◆ WDAI()

◆ WF()

◆ WFA()

◆ WFAI()

◆ WI()

◆ WIA()

◆ WIAI()

◆ WS()

◆ WSA()

◆ WSAI()

◆ WU16()

◆ WU16A()

◆ WU16AI()

◆ WU32()

◆ WU32A()

◆ WU32AI()

Field Documentation

◆ fDir

◆ fPath

◆ fPrintError

◆ fRoot
