#include "driver_SFM3019.h"

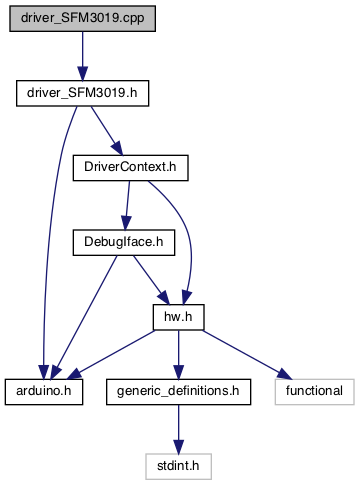

Include dependency graph for driver_SFM3019.cpp:

Macros
#define	SENSIRION_BIG_ENDIAN 0

#define	SFM3019_I2C_ADDRESS 0x2E

#define	SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_O2 SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS0

#define	SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS1

#define	SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR_O2_MIX SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS_MIX_0

#define	SFM3019_SOFT_RESET_TIME_US 2000

#define	SENSIRION_I2C_CLOCK_PERIOD_USEC 10

#define	STATUS_OK 0

#define	STATUS_FAIL (-1)

#define	be16_to_cpu(s) (((uint16_t)(s) << 8) \| (0xff & ((uint16_t)(s)) >> 8))

#define	be32_to_cpu(s) (((uint32_t)be16_to_cpu(s) << 16) \| (0xffff & (be16_to_cpu((s) >> 16))))

#define	be64_to_cpu(s)

#define	SENSIRION_WORDS_TO_BYTES(a, w)

#define	ARRAY_SIZE(x) (sizeof(x) / sizeof(*(x)))

#define	CRC8_POLYNOMIAL 0x31

#define	CRC8_INIT 0xFF

#define	CRC8_LEN 1

#define	SENSIRION_COMMAND_SIZE 2

#define	SENSIRION_WORD_SIZE 2

#define	SENSIRION_NUM_WORDS(x) (sizeof(x) / SENSIRION_WORD_SIZE)

#define	SENSIRION_MAX_BUFFER_WORDS 32

#define	SFM_CMD_READ_PRODUCT_IDENTIFIER 0xE102

#define	SFM_CMD_READ_SCALE_FACTOR_OFFSET_AND_FLOW_UNIT 0x3661

#define	SFM_CMD_STOP_CONTINUOUS_MEASUREMENT 0x3FF9

Variables
const char *	SFM_DRV_VERSION_STR = "0.1.0"

Macro Definition Documentation

◆ ARRAY_SIZE

#define ARRAY_SIZE ( x ) (sizeof(x) / sizeof(*(x)))

Definition at line 56 of file driver_SFM3019.cpp.

◆ be16_to_cpu

#define be16_to_cpu ( s ) (((uint16_t)(s) << 8) | (0xff & ((uint16_t)(s)) >> 8))

Definition at line 36 of file driver_SFM3019.cpp.

◆ be32_to_cpu

#define be32_to_cpu ( s ) (((uint32_t)be16_to_cpu(s) << 16) | (0xffff & (be16_to_cpu((s) >> 16))))

Definition at line 37 of file driver_SFM3019.cpp.

◆ be64_to_cpu

#define be64_to_cpu ( s )

Value:

(((uint64_t)be32_to_cpu(s) << 32) | \

(0xffffffff & ((uint64_t)be32_to_cpu((s) >> 32))))

Definition at line 39 of file driver_SFM3019.cpp.

◆ CRC8_INIT

#define CRC8_INIT 0xFF

Definition at line 60 of file driver_SFM3019.cpp.

◆ CRC8_LEN

#define CRC8_LEN 1

Definition at line 61 of file driver_SFM3019.cpp.

◆ CRC8_POLYNOMIAL

#define CRC8_POLYNOMIAL 0x31

Definition at line 59 of file driver_SFM3019.cpp.

◆ SENSIRION_BIG_ENDIAN

#define SENSIRION_BIG_ENDIAN 0

Definition at line 11 of file driver_SFM3019.cpp.

◆ SENSIRION_COMMAND_SIZE

#define SENSIRION_COMMAND_SIZE 2

Definition at line 63 of file driver_SFM3019.cpp.

◆ SENSIRION_I2C_CLOCK_PERIOD_USEC

#define SENSIRION_I2C_CLOCK_PERIOD_USEC 10

Definition at line 22 of file driver_SFM3019.cpp.

◆ SENSIRION_MAX_BUFFER_WORDS

#define SENSIRION_MAX_BUFFER_WORDS 32

Definition at line 66 of file driver_SFM3019.cpp.

◆ SENSIRION_NUM_WORDS

#define SENSIRION_NUM_WORDS ( x ) (sizeof(x) / SENSIRION_WORD_SIZE)

Definition at line 65 of file driver_SFM3019.cpp.

◆ SENSIRION_WORD_SIZE

#define SENSIRION_WORD_SIZE 2

Definition at line 64 of file driver_SFM3019.cpp.

◆ SENSIRION_WORDS_TO_BYTES

#define SENSIRION_WORDS_TO_BYTES	(	a,
		w
	)

Value:

    for (uint16_t *__a = (uint16_t *)(a), __e = (w), __w = 0; __w < __e;       \
         ++__w) {                                                              \
        __a[__w] = be16_to_cpu(__a[__w]);                                      \
    }

Convert a word-array to a bytes-array, effectively reverting the host-endianness to big-endian : word array to change (must be (uint16_t *) castable) @w: number of word-sized elements in the array (SENSIRION_NUM_WORDS(a)).

Definition at line 48 of file driver_SFM3019.cpp.

◆ SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR

#define SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS1

Definition at line 16 of file driver_SFM3019.cpp.

◆ SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR_O2_MIX

#define SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_AIR_O2_MIX SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS_MIX_0

Definition at line 18 of file driver_SFM3019.cpp.

◆ SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_O2

#define SFM3019_CMD_START_CONTINUOUS_MEASUREMENT_O2 SFM_CMD_START_CONTINUOUS_MEASUREMENT_GAS0

Definition at line 14 of file driver_SFM3019.cpp.

◆ SFM3019_I2C_ADDRESS

#define SFM3019_I2C_ADDRESS 0x2E

Definition at line 12 of file driver_SFM3019.cpp.

◆ SFM3019_SOFT_RESET_TIME_US

#define SFM3019_SOFT_RESET_TIME_US 2000

Definition at line 21 of file driver_SFM3019.cpp.

◆ SFM_CMD_READ_PRODUCT_IDENTIFIER

#define SFM_CMD_READ_PRODUCT_IDENTIFIER 0xE102

Definition at line 69 of file driver_SFM3019.cpp.

◆ SFM_CMD_READ_SCALE_FACTOR_OFFSET_AND_FLOW_UNIT

#define SFM_CMD_READ_SCALE_FACTOR_OFFSET_AND_FLOW_UNIT 0x3661

Definition at line 71 of file driver_SFM3019.cpp.

◆ SFM_CMD_STOP_CONTINUOUS_MEASUREMENT

#define SFM_CMD_STOP_CONTINUOUS_MEASUREMENT 0x3FF9

Definition at line 73 of file driver_SFM3019.cpp.

◆ STATUS_FAIL

#define STATUS_FAIL (-1)

Definition at line 26 of file driver_SFM3019.cpp.

◆ STATUS_OK

#define STATUS_OK 0

Definition at line 25 of file driver_SFM3019.cpp.

Variable Documentation

◆ SFM_DRV_VERSION_STR

const char* SFM_DRV_VERSION_STR = "0.1.0"

Definition at line 76 of file driver_SFM3019.cpp.
