#include <stdio.h>
#include <time.h>
#include "midas.h"
#include "rmidas.h"
#include "experim.h"
#include "analyzer.h"
#include <TH1D.h>
#include <TTree.h>

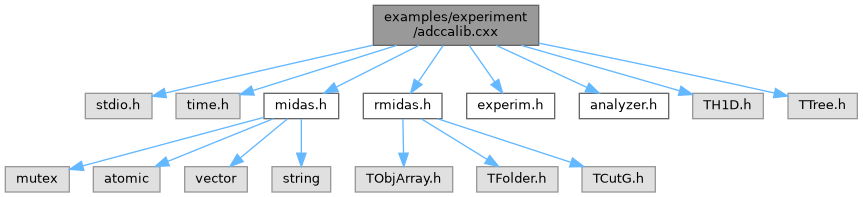

Include dependency graph for adccalib.cxx:

Macros
#define	ADC_N_BINS 500

#define	ADC_X_LOW 0

#define	ADC_X_HIGH 4000

Functions
INT	adc_calib (EVENT_HEADER , void )

INT	adc_calib_init (void)

INT	adc_calib_bor (INT run_number)

INT	adc_calib_eor (INT run_number)

	ADC_CALIBRATION_PARAM_STR (adc_calibration_param_str)

Variables
ADC_CALIBRATION_PARAM	adccalib_param

EXP_PARAM	exp_param

RUNINFO	runinfo

ANA_MODULE	adc_calib_module

static TH1D *	hAdcHists [N_ADC]

Macro Definition Documentation

◆ ADC_N_BINS

#define ADC_N_BINS 500

Definition at line 68 of file adccalib.cxx.

◆ ADC_X_HIGH

#define ADC_X_HIGH 4000

Definition at line 70 of file adccalib.cxx.

◆ ADC_X_LOW

#define ADC_X_LOW 0

Definition at line 69 of file adccalib.cxx.

Function Documentation

◆ adc_calib()

INT adc_calib	(	EVENT_HEADER *	pheader,
		void *	pevent
	)

Definition at line 107 of file adccalib.cxx.

{
   INT i;
   WORD *pdata;
   float *cadc;

   /* look for ADC0 bank, return if not present */
   if (!bk_locate(pevent, "ADC0", &pdata))
      return 1;

   /* create calibrated ADC bank */
   bk_create(pevent, "CADC", TID_FLOAT, (void**)&cadc);

   /* zero cadc bank */
   for (i = 0; i < N_ADC; i++)
      cadc[i] = 0.f;

   /* subtract pedestal */
   for (i = 0; i < N_ADC; i++)
      cadc[i] = (float) ((double) pdata[i] - adccalib_param.pedestal[i] + 0.5);

   /* apply software gain calibration */
   for (i = 0; i < N_ADC; i++)
      cadc[i] *= adccalib_param.software_gain[i];

   /* fill ADC histos if above threshold */
   for (i = 0; i < N_ADC; i++)
      if (cadc[i] > (float) adccalib_param.histo_threshold)
         hAdcHists[i]->Fill(cadc[i], 1);

   /* close calculated bank */
   bk_close(pevent, cadc + N_ADC);

   return SUCCESS;
}

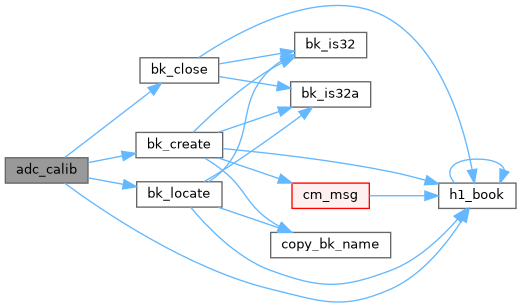

Here is the call graph for this function:

◆ adc_calib_bor()

INT adc_calib_bor ( INT run_number )

Definition at line 93 of file adccalib.cxx.

{
   return SUCCESS;
}

◆ adc_calib_eor()

INT adc_calib_eor ( INT run_number )

Definition at line 100 of file adccalib.cxx.

{
   return SUCCESS;
}

◆ adc_calib_init()

INT adc_calib_init ( void )

Definition at line 72 of file adccalib.cxx.

{
   char name[256];
   int i;

   /* book CADC histos */

   for (i = 0; i < N_ADC; i++) {
      char title[256];

      sprintf(name, "CADC%02d", i);
      sprintf(title, "ADC %d", i);

      hAdcHists[i] = h1_book<TH1D>(name, title, ADC_N_BINS, ADC_X_LOW, ADC_X_HIGH);
   }

   return SUCCESS;
}

Here is the call graph for this function:

◆ ADC_CALIBRATION_PARAM_STR()

ADC_CALIBRATION_PARAM_STR ( adc_calibration_param_str )

Variable Documentation

◆ adc_calib_module

ANA_MODULE adc_calib_module

Initial value:

= {
   "ADC calibration",
   "Stefan Ritt",
   adc_calib,
   adc_calib_bor,
   adc_calib_eor,
   adc_calib_init,
   NULL,
   &adccalib_param,
   sizeof(adccalib_param),
   adc_calibration_param_str,
}

Definition at line 49 of file adccalib.cxx.

                              {
   "ADC calibration",           /* module name           */
   "Stefan Ritt",               /* author                */
   adc_calib,                   /* event routine         */
   adc_calib_bor,               /* BOR routine           */
   adc_calib_eor,               /* EOR routine           */
   adc_calib_init,              /* init routine          */
   NULL,                        /* exit routine          */
   &adccalib_param,             /* parameter structure   */
   sizeof(adccalib_param),      /* structure size        */
   adc_calibration_param_str,   /* initial parameters    */
};

◆ adccalib_param

ADC_CALIBRATION_PARAM adccalib_param

Definition at line 36 of file adccalib.cxx.

◆ exp_param

EXP_PARAM exp_param

extern

Definition at line 51 of file analyzer.cxx.

◆ hAdcHists

TH1D* hAdcHists[N_ADC]

static

Definition at line 64 of file adccalib.cxx.

◆ runinfo

RUNINFO runinfo
