#include <mutex>
#include <atomic>
#include <vector>
#include <string>

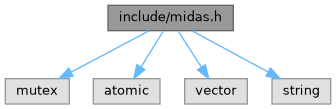

Include dependency graph for midas.h:

Classes
struct	EVENT_HEADER

struct	EVENT_REQUEST

struct	BUFFER_CLIENT

struct	BUFFER_HEADER

struct	BUFFER

struct	KEY

struct	KEYLIST

struct	BUS_DRIVER

struct	DD_MT_CHANNEL

struct	DD_MT_BUFFER

struct	EQUIPMENT_INFO

struct	EQUIPMENT_STATS

struct	DEVICE_DRIVER

struct	eqpmnt

struct	BANK_HEADER

struct	BANK

struct	BANK32

struct	BANK32A

struct	TAG

struct	BANK_LIST

struct	ANA_MODULE

struct	AR_INFO

struct	AR_STATS

struct	ANALYZE_REQUEST

struct	ANA_OUTPUT_INFO

struct	ANA_TEST

struct	HIST_RECORD

struct	DEF_RECORD

struct	INDEX_RECORD

struct	history_struct

struct	RUNINFO

struct	PROGRAM_INFO

struct	ALARM_CLASS

struct	ALARM

struct	RPC_PARAM

struct	RPC_LIST

Macros
#define	DATABASE_VERSION 3

#define	MIDAS_VERSION "2.1"

#define	MIDAS_TYPE_DEFINED

#define	POINTER_T int

#define	PTYPE POINTER_T

#define	TRUE 1

#define	FALSE 0

#define	DIR_SEPARATOR '/'

#define	DIR_SEPARATOR_STR "/"

#define	INLINE

#define	O_LARGEFILE 0

#define	MATTRPRINTF(a, b)

#define	MUTEX_T_DEFINED

#define	DEFAULT_MAX_EVENT_SIZE (410241024)

#define	DEFAULT_BUFFER_SIZE (3210241024)

#define	MIN_WRITE_CACHE_SIZE (10000000)

#define	MAX_WRITE_CACHE_SIZE_DIV (3)

#define	MAX_WRITE_CACHE_EVENT_SIZE_DIV (10)

#define	TAPE_BUFFER_SIZE 0x8000

#define	NET_TCP_SIZE 0xFFFF

#define	OPT_TCP_SIZE 8192

#define	EVENT_BUFFER_NAME "SYSTEM"

#define	DEFAULT_ODB_SIZE 0x100000

#define	NAME_LENGTH 32

#define	HOST_NAME_LENGTH 256

#define	MAX_CLIENTS 64

#define	MAX_EVENT_REQUESTS 10

#define	MAX_OPEN_RECORDS 256

#define	MAX_ODB_PATH 256

#define	BANKLIST_MAX 4096

#define	STRING_BANKLIST_MAX BANKLIST_MAX * 4

#define	TRANSITION_ERROR_STRING_LENGTH 256

#define	MIDAS_TCP_PORT 1175 /* port under which server is listening */

#define	DEFAULT_RPC_TIMEOUT 10000

#define	WATCHDOG_INTERVAL 1000

#define	DEFAULT_WATCHDOG_TIMEOUT 10000

#define	USE_HIDDEN_EQ

#define	STATE_STOPPED 1

#define	STATE_PAUSED 2

#define	STATE_RUNNING 3

#define	FORMAT_MIDAS 1

#define	FORMAT_FIXED 4

#define	FORMAT_ROOT 7

#define	GET_ALL (1<<0)

#define	GET_NONBLOCKING (1<<1

#define	GET_RECENT (1<<2)

#define	TID_BYTE 1

#define	TID_UINT8 1

#define	TID_SBYTE 2

#define	TID_INT8 2

#define	TID_CHAR 3

#define	TID_WORD 4

#define	TID_UINT16 4

#define	TID_SHORT 5

#define	TID_INT16 5

#define	TID_DWORD 6

#define	TID_UINT32 6

#define	TID_INT 7

#define	TID_INT32 7

#define	TID_BOOL 8

#define	TID_FLOAT 9

#define	TID_FLOAT32 9

#define	TID_DOUBLE 10

#define	TID_FLOAT64 10

#define	TID_BITFIELD 11

#define	TID_STRING 12

#define	TID_ARRAY 13

#define	TID_STRUCT 14

#define	TID_KEY 15

#define	TID_LINK 16

#define	TID_INT64 17

#define	TID_UINT64 18

#define	TID_QWORD 18

#define	TID_LAST 19

#define	TR_SYNC 1

#define	TR_ASYNC 2

#define	TR_DETACH 4

#define	TR_MTHREAD 8

#define	BM_WAIT 0

#define	BM_NO_WAIT 1

#define	MODE_READ (1<<0)

#define	MODE_WRITE (1<<1)

#define	MODE_DELETE (1<<2)

#define	MODE_EXCLUSIVE (1<<3)

#define	MODE_ALLOC (1<<6)

#define	MODE_WATCH (1<<7)

#define	RPC_HNDLE_MSERVER -1

#define	RPC_HNDLE_CONNECT -2

#define	RPC_NO_REPLY 0x80000000l

#define	WF_WATCH_ME (1<<0) /* see cm_set_watchdog_flags */

#define	WF_CALL_WD (1<<1)

#define	TR_START (1<<0)

#define	TR_STOP (1<<1)

#define	TR_PAUSE (1<<2)

#define	TR_RESUME (1<<3)

#define	TR_STARTABORT (1<<4)

#define	TR_DEFERRED (1<<12)

#define	EQ_PERIODIC (1<<0)

#define	EQ_POLLED (1<<1)

#define	EQ_INTERRUPT (1<<2)

#define	EQ_MULTITHREAD (1<<3)

#define	EQ_SLOW (1<<4)

#define	EQ_MANUAL_TRIG (1<<5)

#define	EQ_FRAGMENTED (1<<6)

#define	EQ_EB (1<<7)

#define	EQ_USER (1<<8)

#define	RO_RUNNING (1<<0)

#define	RO_STOPPED (1<<1)

#define	RO_PAUSED (1<<2)

#define	RO_BOR (1<<3)

#define	RO_EOR (1<<4)

#define	RO_PAUSE (1<<5)

#define	RO_RESUME (1<<6)

#define	RO_TRANSITIONS (RO_BOR\|RO_EOR\|RO_PAUSE\|RO_RESUME)

#define	RO_NONTRANS (RO_RUNNING\|RO_STOPPED\|RO_PAUSED)

#define	RO_ALWAYS (0xFF)

#define	RO_ODB (1<<8)

#define	CH_BS 8

#define	CH_TAB 9

#define	CH_LF 10

#define	CH_CR 13

#define	CH_EXT 0x100

#define	CH_HOME (CH_EXT+0)

#define	CH_INSERT (CH_EXT+1)

#define	CH_DELETE (CH_EXT+2)

#define	CH_END (CH_EXT+3)

#define	CH_PUP (CH_EXT+4)

#define	CH_PDOWN (CH_EXT+5)

#define	CH_UP (CH_EXT+6)

#define	CH_DOWN (CH_EXT+7)

#define	CH_RIGHT (CH_EXT+8)

#define	CH_LEFT (CH_EXT+9)

#define	LAM_SOURCE(c, s) (c<<24 \| ((s) & 0xFFFFFF))

#define	LAM_STATION(s) (1<<(s-1))

#define	LAM_SOURCE_CRATE(c) (c>>24)

#define	LAM_SOURCE_STATION(s) ((s) & 0xFFFFFF)

#define	CNAF 0x1 /* normal read/write */

#define	CNAF_nQ 0x2 /* Repeat read until noQ */

#define	CNAF_INHIBIT_SET 0x100

#define	CNAF_INHIBIT_CLEAR 0x101

#define	CNAF_CRATE_CLEAR 0x102

#define	CNAF_CRATE_ZINIT 0x103

#define	CNAF_TEST 0x110

#define	MAX(a, b) (((a)>(b))?(a):(b))

#define	MIN(a, b) (((a)<(b))?(a):(b))

#define	ALIGN8(x) (((x)+7) & ~7)

#define	VALIGN(adr, align) (((POINTER_T) (adr)+(align)-1) & ~((align)-1))

#define	EVENTID_ALL -1 /* any event id */

#define	TRIGGER_ALL -1 /* any type of trigger */

#define	MT_ERROR (1<<0)

#define	MT_INFO (1<<1)

#define	MT_DEBUG (1<<2)

#define	MT_USER (1<<3)

#define	MT_LOG (1<<4)

#define	MT_TALK (1<<5)

#define	MT_CALL (1<<6)

#define	MT_ALL 0xFF

#define	MT_ERROR_STR "ERROR"

#define	MT_INFO_STR "INFO"

#define	MT_DEBUG_STR "DEBUG"

#define	MT_USER_STR "USER"

#define	MT_LOG_STR "LOG"

#define	MT_TALK_STR "TALK"

#define	MT_CALL_STR "CALL"

#define	MERROR MT_ERROR, __FILE__, __LINE__

#define	MINFO MT_INFO, __FILE__, __LINE__

#define	MDEBUG MT_DEBUG, __FILE__, __LINE__

#define	MUSER MT_USER, __FILE__, __LINE__

#define	MLOG MT_LOG, __FILE__, __LINE__

#define	MTALK MT_TALK, __FILE__, __LINE__

#define	MCALL MT_CALL, __FILE__, __LINE__

#define	SUCCESS 1

#define	CM_SUCCESS 1

#define	CM_SET_ERROR 102

#define	CM_NO_CLIENT 103

#define	CM_DB_ERROR 104

#define	CM_UNDEF_EXP 105

#define	CM_VERSION_MISMATCH 106

#define	CM_SHUTDOWN 107

#define	CM_WRONG_PASSWORD 108

#define	CM_UNDEF_ENVIRON 109

#define	CM_DEFERRED_TRANSITION 110

#define	CM_TRANSITION_IN_PROGRESS 111

#define	CM_TIMEOUT 112

#define	CM_INVALID_TRANSITION 113

#define	CM_TOO_MANY_REQUESTS 114

#define	CM_TRUNCATED 115

#define	CM_TRANSITION_CANCELED 116

#define	BM_SUCCESS 1

#define	BM_CREATED 202

#define	BM_NO_MEMORY 203

#define	BM_INVALID_NAME 204

#define	BM_INVALID_HANDLE 205

#define	BM_NO_SLOT 206

#define	BM_NO_SEMAPHORE 207

#define	BM_NOT_FOUND 208

#define	BM_ASYNC_RETURN 209

#define	BM_TRUNCATED 210

#define	BM_MULTIPLE_HOSTS 211

#define	BM_MEMSIZE_MISMATCH 212

#define	BM_CONFLICT 213

#define	BM_EXIT 214

#define	BM_INVALID_PARAM 215

#define	BM_MORE_EVENTS 216

#define	BM_INVALID_MIXING 217

#define	BM_NO_SHM 218

#define	BM_CORRUPTED 219

#define	BM_INVALID_SIZE 220

#define	DB_SUCCESS 1

#define	DB_CREATED 302

#define	DB_NO_MEMORY 303

#define	DB_INVALID_NAME 304

#define	DB_INVALID_HANDLE 305

#define	DB_NO_SLOT 306

#define	DB_NO_SEMAPHORE 307

#define	DB_MEMSIZE_MISMATCH 308

#define	DB_INVALID_PARAM 309

#define	DB_FULL 310

#define	DB_KEY_EXIST 311

#define	DB_NO_KEY 312

#define	DB_KEY_CREATED 313

#define	DB_TRUNCATED 314

#define	DB_TYPE_MISMATCH 315

#define	DB_NO_MORE_SUBKEYS 316

#define	DB_FILE_ERROR 317

#define	DB_NO_ACCESS 318

#define	DB_STRUCT_SIZE_MISMATCH 319

#define	DB_OPEN_RECORD 320

#define	DB_OUT_OF_RANGE 321

#define	DB_INVALID_LINK 322

#define	DB_CORRUPTED 323

#define	DB_STRUCT_MISMATCH 324

#define	DB_TIMEOUT 325

#define	DB_VERSION_MISMATCH 326

#define	SS_SUCCESS 1

#define	SS_CREATED 402

#define	SS_NO_MEMORY 403

#define	SS_INVALID_NAME 404

#define	SS_INVALID_HANDLE 405

#define	SS_INVALID_ADDRESS 406

#define	SS_FILE_ERROR 407

#define	SS_NO_SEMAPHORE 408

#define	SS_NO_PROCESS 409

#define	SS_NO_THREAD 410

#define	SS_SOCKET_ERROR 411

#define	SS_TIMEOUT 412

#define	SS_SERVER_RECV 413

#define	SS_CLIENT_RECV 414

#define	SS_ABORT 415

#define	SS_EXIT 416

#define	SS_NO_TAPE 417

#define	SS_DEV_BUSY 418

#define	SS_IO_ERROR 419

#define	SS_TAPE_ERROR 420

#define	SS_NO_DRIVER 421

#define	SS_END_OF_TAPE 422

#define	SS_END_OF_FILE 423

#define	SS_FILE_EXISTS 424

#define	SS_NO_SPACE 425

#define	SS_INVALID_FORMAT 426

#define	SS_NO_ROOT 427

#define	SS_SIZE_MISMATCH 428

#define	SS_NO_MUTEX 429

#define	RPC_SUCCESS 1

#define	RPC_ABORT SS_ABORT

#define	RPC_NO_CONNECTION 502

#define	RPC_NET_ERROR 503

#define	RPC_TIMEOUT 504

#define	RPC_EXCEED_BUFFER 505

#define	RPC_NOT_REGISTERED 506

#define	RPC_CONNCLOSED 507

#define	RPC_INVALID_ID 508

#define	RPC_SHUTDOWN 509

#define	RPC_NO_MEMORY 510

#define	RPC_DOUBLE_DEFINED 511

#define	RPC_MUTEX_TIMEOUT 512

#define	FE_SUCCESS 1

#define	FE_ERR_ODB 602

#define	FE_ERR_HW 603

#define	FE_ERR_DISABLED 604

#define	FE_ERR_DRIVER 605

#define	FE_PARTIALLY_DISABLED 606

#define	FE_NOT_YET_READ 607

#define	HS_SUCCESS 1

#define	HS_FILE_ERROR 702

#define	HS_NO_MEMORY 703

#define	HS_TRUNCATED 704

#define	HS_WRONG_INDEX 705

#define	HS_UNDEFINED_EVENT 706

#define	HS_UNDEFINED_VAR 707

#define	FTP_SUCCESS 1

#define	FTP_NET_ERROR 802

#define	FTP_FILE_ERROR 803

#define	FTP_RESPONSE_ERROR 804

#define	FTP_INVALID_ARG 805

#define	EL_SUCCESS 1

#define	EL_FILE_ERROR 902

#define	EL_NO_MESSAGE 903

#define	EL_TRUNCATED 904

#define	EL_FIRST_MSG 905

#define	EL_LAST_MSG 906

#define	AL_SUCCESS 1

#define	AL_INVALID_NAME 1002

#define	AL_ERROR_ODB 1003

#define	AL_RESET 1004

#define	AL_TRIGGERED 1005

#define	CMD_INIT 1 /* misc. commands must be below 20 !! */

#define	CMD_EXIT 2

#define	CMD_START 3

#define	CMD_STOP 4

#define	CMD_IDLE 5

#define	CMD_GET_THRESHOLD 6

#define	CMD_GET_THRESHOLD_CURRENT 7

#define	CMD_GET_THRESHOLD_ZERO 8

#define	CMD_SET_LABEL 9

#define	CMD_GET_LABEL 10

#define	CMD_OPEN 11

#define	CMD_CLOSE 12

#define	CMD_MISC_LAST 12 /* update this if you add new commands */

#define	CMD_SET_FIRST CMD_MISC_LAST+1 /* set commands */

#define	CMD_SET CMD_SET_FIRST

#define	CMD_SET_VOLTAGE_LIMIT CMD_SET_FIRST+1

#define	CMD_SET_CURRENT_LIMIT CMD_SET_FIRST+2

#define	CMD_SET_RAMPUP CMD_SET_FIRST+3

#define	CMD_SET_RAMPDOWN CMD_SET_FIRST+4

#define	CMD_SET_TRIP_TIME CMD_SET_FIRST+5

#define	CMD_SET_CHSTATE CMD_SET_FIRST+6

#define	CMD_SET_LAST CMD_SET_FIRST+6 /* update this if you add new commands */

#define	CMD_GET_FIRST CMD_SET_LAST+1 /* multithreaded get commands */

#define	CMD_GET CMD_GET_FIRST

#define	CMD_GET_CURRENT CMD_GET_FIRST+1

#define	CMD_GET_TRIP CMD_GET_FIRST+2

#define	CMD_GET_STATUS CMD_GET_FIRST+3

#define	CMD_GET_TEMPERATURE CMD_GET_FIRST+4

#define	CMD_GET_DEMAND CMD_GET_FIRST+5

#define	CMD_GET_LAST CMD_GET_FIRST+5 /* update this if you add new commands ! */

#define	CMD_GET_DIRECT CMD_GET_LAST+1 /* direct get commands */

#define	CMD_GET_VOLTAGE_LIMIT CMD_GET_DIRECT

#define	CMD_GET_CURRENT_LIMIT CMD_GET_DIRECT+2

#define	CMD_GET_RAMPUP CMD_GET_DIRECT+3

#define	CMD_GET_RAMPDOWN CMD_GET_DIRECT+4

#define	CMD_GET_TRIP_TIME CMD_GET_DIRECT+5

#define	CMD_GET_CHSTATE CMD_GET_DIRECT+6

#define	CMD_GET_CRATEMAP CMD_GET_DIRECT+7

#define	CMD_GET_DEMAND_DIRECT CMD_GET_DIRECT+8

#define	CMD_GET_DIRECT_LAST CMD_GET_DIRECT+8 /* update this if you add new commands ! */

#define	CMD_ENABLE_COMMAND (1<<14) /* these two commands can be used to enable/disable */

#define	CMD_DISABLE_COMMAND (1<<15) /* one of the other commands */

#define	CMD_WRITE 100

#define	CMD_READ 101

#define	CMD_PUTS 102

#define	CMD_GETS 103

#define	CMD_DEBUG 104

#define	CMD_NAME 105

#define	CMD_INTERRUPT_ENABLE 100

#define	CMD_INTERRUPT_DISABLE 101

#define	CMD_INTERRUPT_ATTACH 102

#define	CMD_INTERRUPT_DETACH 103

#define	BD_GETS(s, z, p, t) info->bd(CMD_GETS, info->bd_info, s, z, p, t)

#define	BD_READS(s, z, t) info->bd(CMD_READ, info->bd_info, s, z, t)

#define	BD_PUTS(s) info->bd(CMD_PUTS, info->bd_info, s)

#define	BD_WRITES(s) info->bd(CMD_WRITE, info->bd_info, s)

#define	ANA_CONTINUE 1

#define	ANA_SKIP 0

#define	TRIGGER_MASK(e) ((((EVENT_HEADER *) e)-1)->trigger_mask)

#define	EVENT_ID(e) ((((EVENT_HEADER *) e)-1)->event_id)

#define	SERIAL_NUMBER(e) ((((EVENT_HEADER *) e)-1)->serial_number)

#define	TIME_STAMP(e) ((((EVENT_HEADER *) e)-1)->time_stamp)

#define	DATA_SIZE(e) ((((EVENT_HEADER *) e)-1)->data_size)

#define	EVENT_SOURCE(e, o) (* (INT*) (e+o))

#define	EVENTID_BOR ((short int) 0x8000)

#define	EVENTID_EOR ((short int) 0x8001)

#define	EVENTID_MESSAGE ((short int) 0x8002)

#define	EVENTID_FRAG1 ((short int) 0xC000) /* first fragment */

#define	EVENTID_FRAG ((short int) 0xD000) /* added to real event-id */

#define	MIDAS_MAGIC 0x494d

#define	DF_INPUT (1<<0)

#define	DF_OUTPUT (1<<1)

#define	DF_PRIO_DEVICE (1<<2)

#define	DF_READ_ONLY (1<<3)

#define	DF_MULTITHREAD (1<<4)

#define	DF_HW_RAMP (1<<5)

#define	DF_LABELS_FROM_DEVICE (1<<6)

#define	DF_REPORT_TEMP (1<<7)

#define	DF_REPORT_STATUS (1<<8)

#define	DF_REPORT_CHSTATE (1<<9)

#define	DF_REPORT_CRATEMAP (1<<10)

#define	DF_QUICKSTART (1<<11)

#define	DF_POLL_DEMAND (1<<12)

#define	DF_PRIORITY_READ (1<<13)

#define	EQUIPMENT_COMMON_STR "\Event ID = WORD : 0\n\Trigger mask = WORD : 0\n\Buffer = STRING : [32] SYSTEM\n\Type = INT : 0\n\Source = INT : 0\n\Format = STRING : [8] FIXED\n\Enabled = BOOL : 0\n\Read on = INT : 0\n\Period = INT : 0\n\Event limit = DOUBLE : 0\n\Num subevents = DWORD : 0\n\Log history = INT : 0\n\Frontend host = STRING : [32] \n\Frontend name = STRING : [32] \n\Frontend file name = STRING : [256] \n\Status = STRING : [256] \n\Status color = STRING : [32] \n\Hidden = BOOL : 0\n\Write cache size = INT : 100000\n\"

#define	EQUIPMENT_STATISTICS_STR "\Events sent = DOUBLE : 0\n\Events per sec. = DOUBLE : 0\n\kBytes per sec. = DOUBLE : 0\n\"

#define	BANK_FORMAT_VERSION 1

#define	BANK_FORMAT_32BIT (1<<4)

#define	BANK_FORMAT_64BIT_ALIGNED (1<<5)

#define	ANA_OUTPUT_INFO_STR "\Filename = STRING : [256] run%05d.asc\n\RWNT = BOOL : 0\n\Histo Dump = BOOL : 0\n\Histo Dump Filename = STRING : [256] his%05d.rz\n\Clear histos = BOOL : 1\n\Last Histo Filename = STRING : [256] last.rz\n\Events to ODB = BOOL : 1\n\Global Memory Name = STRING : [8] ONLN\n\"

#define	SET_TEST(t, v) { if (!t.registered) test_register(&t); t.value = (v); }

#define	TEST(t) (t.value)

#define	DEF_TEST(t) extern ANA_TEST t;

#define	RT_DATA (((DWORD ) "HSDA"))

#define	RT_DEF (((DWORD ) "HSDF"))

#define	RUNINFO_STR(_name)

#define	AT_INTERNAL 1

#define	AT_PROGRAM 2

#define	AT_EVALUATED 3

#define	AT_PERIODIC 4

#define	AT_LAST 4

#define	PROGRAM_INFO_STR(_name)

#define	ALARM_CLASS_STR(_name)

#define	ALARM_ODB_STR(_name)

#define	ALARM_PERIODIC_STR(_name)

#define	M_MALLOC(x) malloc(x)

#define	M_CALLOC(x, y) calloc(x,y)

#define	M_FREE(x) free(x)

#define	PAWC_NAME PAWC

#define	PAWC_DEFINE(size)

#define	RPC_IN (1 << 0)

#define	RPC_OUT (1 << 1)

#define	RPC_POINTER (1 << 2)

#define	RPC_FIXARRAY (1 << 3)

#define	RPC_VARARRAY (1 << 4)

#define	RPC_OUTGOING (1 << 5)

#define	MAX_RPC_PARAMS 20

#define	RPC_MIN_ID 1

#define	RPC_MAX_ID 9999

#define	CF_ENDIAN (1<<0)

#define	CF_IEEE2VAX (1<<1)

#define	CF_VAX2IEEE (1<<2)

#define	CBYTE(_i) (* ((BYTE *) prpc_param[_i]))

#define	CPBYTE(_i) ( ((BYTE *) prpc_param[_i]))

#define	CSHORT(_i) (* ((short *) prpc_param[_i]))

#define	CPSHORT(_i) ( ((short *) prpc_param[_i]))

#define	CINT(_i) (* ((INT *) prpc_param[_i]))

#define	CPINT(_i) ( ((INT *) prpc_param[_i]))

#define	CWORD(_i) (* ((WORD *) prpc_param[_i]))

#define	CPWORD(_i) ( ((WORD *) prpc_param[_i]))

#define	CLONG(_i) (* ((long *) prpc_param[_i]))

#define	CPLONG(_i) ( ((long *) prpc_param[_i]))

#define	CDWORD(_i) (* ((DWORD *) prpc_param[_i]))

#define	CPDWORD(_i) ( ((DWORD *) prpc_param[_i]))

#define	CHNDLE(_i) (* ((HNDLE *) prpc_param[_i]))

#define	CPHNDLE(_i) ( ((HNDLE *) prpc_param[_i]))

#define	CBOOL(_i) (* ((BOOL *) prpc_param[_i]))

#define	CPBOOL(_i) ( ((BOOL *) prpc_param[_i]))

#define	CFLOAT(_i) (* ((float *) prpc_param[_i]))

#define	CPFLOAT(_i) ( ((float *) prpc_param[_i]))

#define	CDOUBLE(_i) (* ((double *) prpc_param[_i]))

#define	CPDOUBLE(_i) ( ((double *) prpc_param[_i]))

#define	CSTRING(_i) ( ((char *) prpc_param[_i]))

#define	CARRAY(_i) ( ((void *) prpc_param[_i]))

#define	CBYTE(_i) (* ((BYTE *) prpc_param[_i]))

#define	CPBYTE(_i) ( ((BYTE *) prpc_param[_i]))

#define	CSHORT(_i) (* ((short *) prpc_param[_i]))

#define	CPSHORT(_i) ( ((short *) prpc_param[_i]))

#define	CINT(_i) (* ((INT *) prpc_param[_i]))

#define	CPINT(_i) ( ((INT *) prpc_param[_i]))

#define	CWORD(_i) (* ((WORD *) prpc_param[_i]))

#define	CPWORD(_i) ( ((WORD *) prpc_param[_i]))

#define	CLONG(_i) (* ((long *) prpc_param[_i]))

#define	CPLONG(_i) ( ((long *) prpc_param[_i]))

#define	CDWORD(_i) (* ((DWORD *) prpc_param[_i]))

#define	CPDWORD(_i) ( ((DWORD *) prpc_param[_i]))

#define	CHNDLE(_i) (* ((HNDLE *) prpc_param[_i]))

#define	CPHNDLE(_i) ( ((HNDLE *) prpc_param[_i]))

#define	CBOOL(_i) (* ((BOOL *) prpc_param[_i]))

#define	CPBOOL(_i) ( ((BOOL *) prpc_param[_i]))

#define	CFLOAT(_i) (* ((float *) prpc_param[_i]))

#define	CPFLOAT(_i) ( ((float *) prpc_param[_i]))

#define	CDOUBLE(_i) (* ((double *) prpc_param[_i]))

#define	CPDOUBLE(_i) ( ((double *) prpc_param[_i]))

#define	CSTRING(_i) ( ((char *) prpc_param[_i]))

#define	CARRAY(_i) ( ((void *) prpc_param[_i]))

#define	cBYTE (* ((BYTE *) prpc_param[--n_param]))

#define	cPBYTE ( ((BYTE *) prpc_param[--n_param]))

#define	cSHORT (* ((short *) prpc_param[--n_param]))

#define	cPSHORT ( ((short *) prpc_param[--n_param]))

#define	cINT (* ((INT *) prpc_param[--n_param]))

#define	cPINT ( ((INT *) prpc_param[--n_param]))

#define	cWORD (* ((WORD *) prpc_param[--n_param]))

#define	cPWORD ( ((WORD *) prpc_param[--n_param]))

#define	cLONG (* ((long *) prpc_param[--n_param]))

#define	cPLONG ( ((long *) prpc_param[--n_param]))

#define	cDWORD (* ((DWORD *) prpc_param[--n_param]))

#define	cPDWORD ( ((DWORD *) prpc_param[--n_param]))

#define	cHNDLE (* ((HNDLE *) prpc_param[--n_param]))

#define	cPHNDLE ( ((HNDLE *) prpc_param[--n_param]))

#define	cBOOL (* ((BOOL *) prpc_param[--n_param]))

#define	cPBOOL ( ((BOOL *) prpc_param[--n_param]))

#define	cFLOAT (* ((float *) prpc_param[--n_param]))

#define	cPFLOAT ( ((float *) prpc_param[--n_param]))

#define	cDOUBLE (* ((double *) prpc_param[--n_param]))

#define	cPDOUBLE ( ((double *) prpc_param[--n_param]))

#define	cSTRING ( ((char *) prpc_param[--n_param]))

#define	cARRAY ( ((void *) prpc_param[--n_param]))

#define	JS_LEVEL_0 0

#define	JS_LEVEL_1 1

#define	JS_MUST_BE_SUBDIR 1

#define	JSFLAG_SAVE_KEYS (1<<1)

#define	JSFLAG_FOLLOW_LINKS (1<<2)

#define	JSFLAG_RECURSE (1<<3)

#define	JSFLAG_LOWERCASE (1<<4)

#define	JSFLAG_OMIT_NAMES (1<<5)

#define	JSFLAG_OMIT_LAST_WRITTEN (1<<6)

#define	JSFLAG_OMIT_OLD (1<<7)

#define	EXPRT

#define	HAVE_CM_GET_CLIENT_NAME 1

#define	HAVE_CM_PERIODIC_TASKS 1

#define	HAVE_BM_SEND_EVENT_VEC 1

#define	HAVE_BM_RECEIVE_EVENT_VEC 1

#define	HAVE_BM_RECEIVE_EVENT_ALLOC 1

#define	HAVE_DB_GET_VALUE_STRING_CREATE_STRING_LENGTH 1

Typedefs
typedef unsigned char	BYTE

typedef unsigned short int	WORD

typedef unsigned int	DWORD

typedef DWORD	BOOL

typedef int	INT

typedef INT	HNDLE

typedef unsigned char	UINT8

typedef char	INT8

typedef unsigned short	UINT16

typedef short	INT16

typedef unsigned int	UINT32

typedef int	INT32

typedef unsigned long long	UINT64

typedef long long	INT64

typedef INT	midas_thread_t

typedef INT	MUTEX_T

typedef std::vector< std::string >	STRING_LIST

typedef void()	EVENT_HANDLER(HNDLE buffer_handler, HNDLE request_id, EVENT_HEADER event_header, void event_data)

typedef INT()	RPC_HANDLER(INT index, void *prpc_param[])

typedef struct eqpmnt *	PEQUIPMENT

typedef struct eqpmnt	EQUIPMENT

typedef struct history_struct	HISTORY

Functions

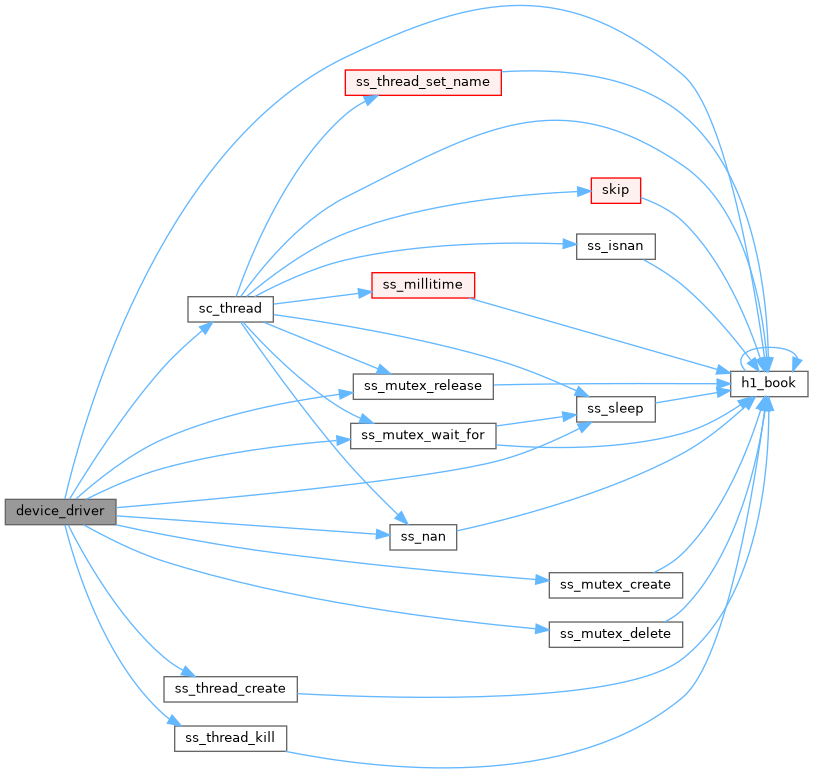

INT	device_driver (DEVICE_DRIVER *device_driver, INT cmd,...)

void *	dbg_malloc (unsigned int size, char *file, int line)

void *	dbg_calloc (unsigned int size, unsigned int count, char *file, int line)

void	dbg_free (void adr, char file, int line)

std::string	cm_get_error (INT code)

const char *EXPRT	cm_get_version (void)

const char *EXPRT	cm_get_revision (void)

INT EXPRT	cm_get_experiment_name (char *name, int name_size)

std::string	cm_get_experiment_name ()

INT EXPRT	cm_get_environment (char host_name, int host_name_size, char exp_name, int exp_name_size)

INT EXPRT	cm_get_environment (std::string host_name, std::string exp_name)

INT EXPRT	cm_list_experiments_local (STRING_LIST *exp_names)

INT EXPRT	cm_list_experiments_remote (const char host_name, STRING_LIST exp_names)

INT EXPRT	cm_get_exptab_filename (char *filename, int filename_size)

std::string	cm_get_exptab_filename ()

INT EXPRT	cm_get_exptab (const char exp_name, char expdir, int expdir_size, char *expuser, int expuser_size)

INT EXPRT	cm_get_exptab (const char exp_name, std::string expdir, std::string *expuser)

INT EXPRT	cm_select_experiment_local (std::string *exp_name)

INT EXPRT	cm_select_experiment_remote (const char host_name, std::string exp_name)

INT EXPRT	cm_set_experiment_local (const char *exp_name)

INT EXPRT	cm_connect_experiment (const char host_name, const char exp_name, const char client_name, void(func)(char *))

INT EXPRT	cm_connect_experiment1 (const char host_name, const char exp_name, const char client_name, void(func)(char *), INT odb_size, DWORD watchdog_timeout)

INT EXPRT	cm_disconnect_experiment (void)

INT EXPRT	cm_register_transition (INT transition, INT(func)(INT, char ), int sequence_number)

INT EXPRT	cm_deregister_transition (INT transition)

INT EXPRT	cm_set_transition_sequence (INT transition, INT sequence_number)

INT EXPRT	cm_set_client_run_state (INT state)

INT EXPRT	cm_query_transition (int transition, int run_number, int *trans_time)

INT EXPRT	cm_register_deferred_transition (INT transition, BOOL(*func)(INT, BOOL))

INT EXPRT	cm_check_deferred_transition (void)

INT EXPRT	cm_transition (INT transition, INT run_number, char *error, INT strsize, INT async_flag, INT debug_flag)

INT EXPRT	cm_transition_cleanup ()

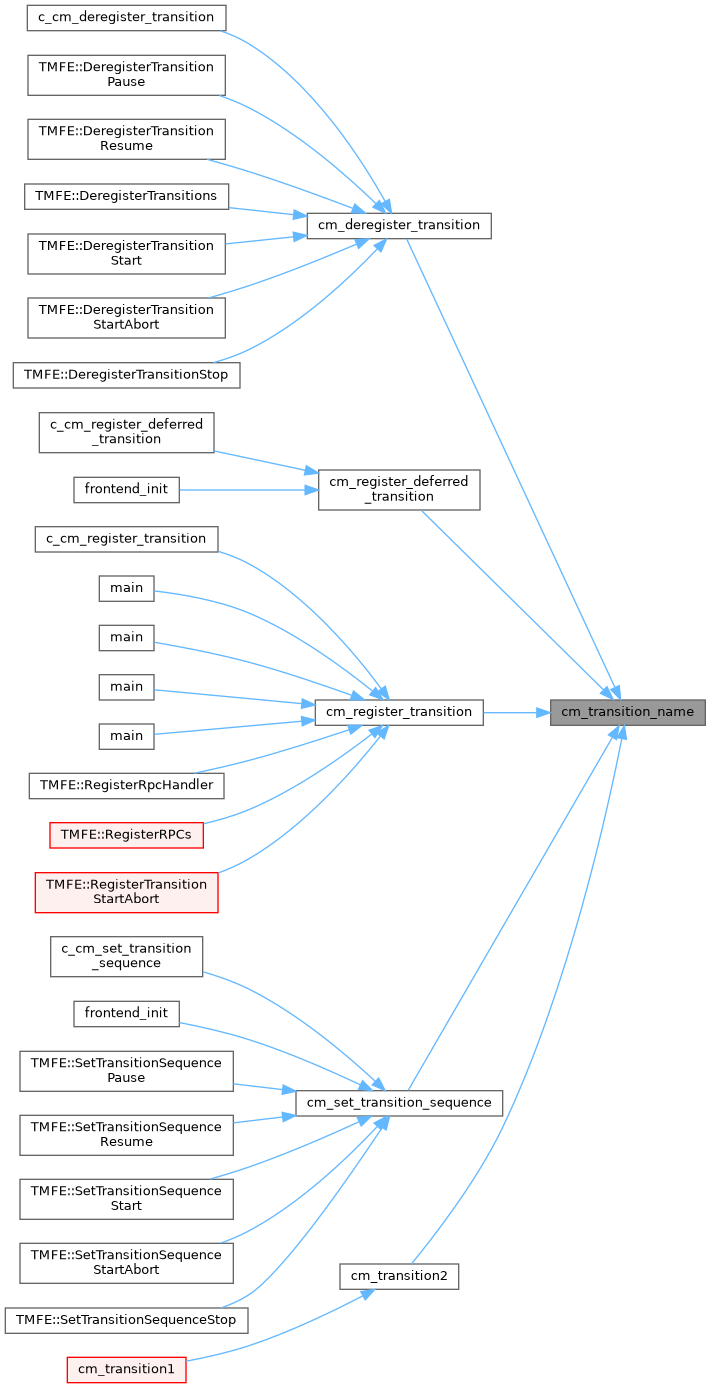

std::string EXPRT	cm_transition_name (int transition)

INT EXPRT	cm_register_server (void)

INT EXPRT	cm_register_function (INT id, INT(func)(INT, void *))

INT EXPRT	cm_connect_client (const char client_name, HNDLE hConn)

INT EXPRT	cm_disconnect_client (HNDLE hConn, BOOL bShutdown)

INT EXPRT	cm_set_experiment_database (HNDLE hDB, HNDLE hKeyClient)

INT EXPRT	cm_get_experiment_database (HNDLE hDB, HNDLE hKeyClient)

INT EXPRT	cm_set_experiment_semaphore (INT semaphore_alarm, INT semaphore_elog, INT semaphore_history, INT semaphore_msg)

INT EXPRT	cm_get_experiment_semaphore (INT semaphore_alarm, INT semaphore_elog, INT semaphore_history, INT semaphore_msg)

INT EXPRT	cm_set_client_info (HNDLE hDB, HNDLE hKeyClient, const char host_name, char client_name, INT computer_id, const char password, DWORD watchdog_timeout)

std::string EXPRT	cm_get_client_name ()

INT EXPRT	cm_check_client (HNDLE hDB, HNDLE hKeyClient)

INT EXPRT	cm_set_watchdog_params (BOOL call_watchdog, DWORD timeout)

INT EXPRT	cm_get_watchdog_params (BOOL call_watchdog, DWORD timeout)

INT EXPRT	cm_get_watchdog_info (HNDLE hDB, const char client_name, DWORD timeout, DWORD *last)

INT EXPRT	cm_watchdog_thread (void *unused)

INT EXPRT	cm_start_watchdog_thread (void)

INT EXPRT	cm_stop_watchdog_thread (void)

INT EXPRT	cm_shutdown (const char *name, BOOL bUnique)

INT EXPRT	cm_exist (const char *name, BOOL bUnique)

INT EXPRT	cm_cleanup (const char *client_name, BOOL ignore_timeout)

INT EXPRT	cm_yield (INT millisec)

INT EXPRT	cm_periodic_tasks (void)

INT EXPRT	cm_execute (const char command, char result, INT buf_size)

INT EXPRT	cm_synchronize (DWORD *sec)

INT EXPRT	cm_asctime (char *str, INT buf_size)

std::string EXPRT	cm_asctime ()

INT EXPRT	cm_time (DWORD *t)

BOOL EXPRT	cm_is_ctrlc_pressed (void)

void EXPRT	cm_ack_ctrlc_pressed (void)

INT EXPRT	cm_exec_script (const char *odb_path_to_script)

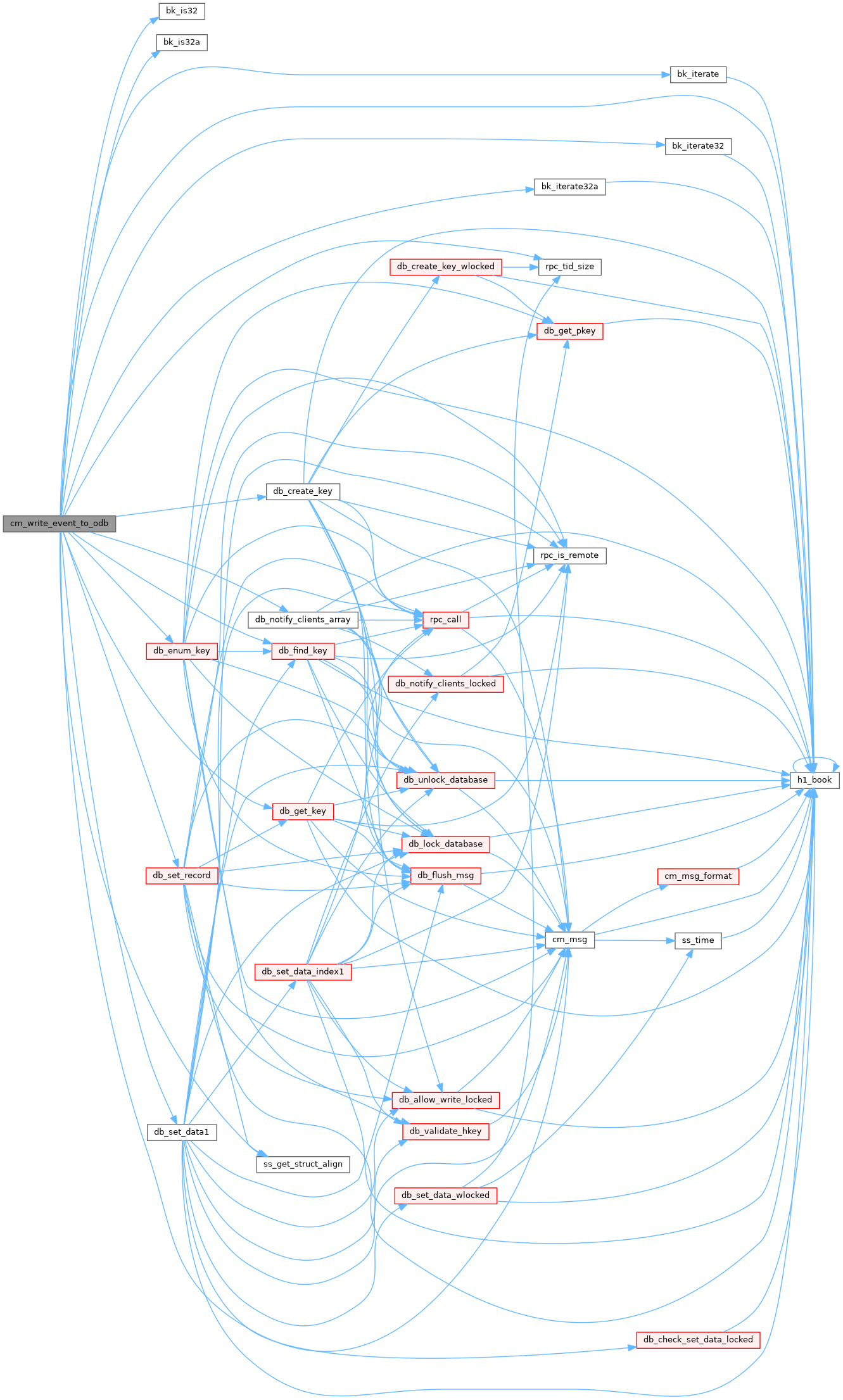

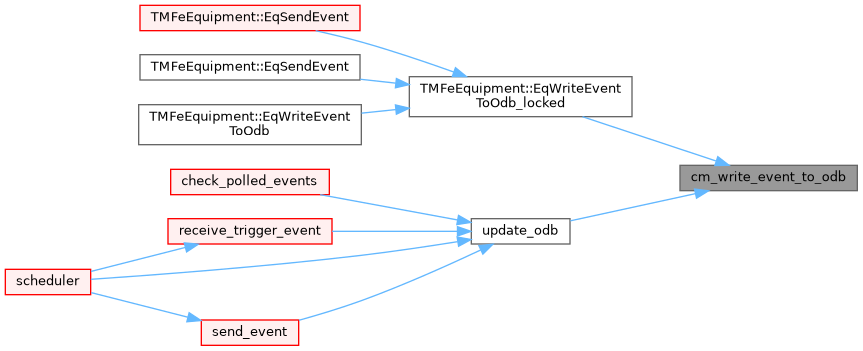

int EXPRT	cm_write_event_to_odb (HNDLE hDB, HNDLE hKey, const EVENT_HEADER *pevent, INT format)

INT EXPRT	cm_set_msg_print (INT system_mask, INT user_mask, int(func)(const char ))

INT EXPRT	cm_msg (INT message_type, const char filename, INT line, const char routine, const char *format,...) MATTRPRINTF(5

INT EXPRT INT EXPRT	cm_msg1 (INT message_type, const char filename, INT line, const char facility, const char routine, const char format,...) MATTRPRINTF(6

INT EXPRT INT EXPRT INT EXPRT	cm_msg_flush_buffer (void)

INT EXPRT	cm_msg_register (EVENT_HANDLER *func)

INT EXPRT	cm_msg_retrieve (INT n_message, char *message, INT buf_size)

INT EXPRT	cm_msg_retrieve2 (const char facility, time_t t, int min_messages, char messages, int num_messages)

INT EXPRT	cm_msg_facilities (STRING_LIST *list)

void EXPRT	cm_msg_get_logfile (const char facility, time_t t, std::string filename, std::string linkname, std::string linktarget)

INT EXPRT	cm_msg_open_buffer (void)

INT EXPRT	cm_msg_close_buffer (void)

INT EXPRT	cm_msg_early_init (void)

BOOL EXPRT	equal_ustring (const char str1, const char str2)

BOOL EXPRT	ends_with_ustring (const char str, const char suffix)

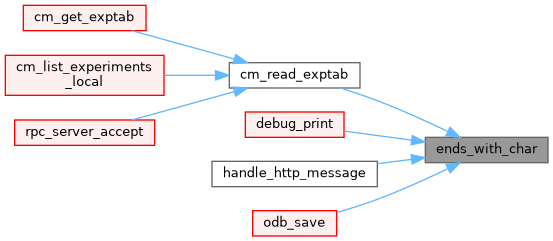

bool EXPRT	ends_with_char (const std::string &s, char c)

BOOL EXPRT	strmatch (char pattern, char str)

void EXPRT	strarrayindex (char odbpath, int index1, int *index2)

std::string	msprintf (const char *format,...) MATTRPRINTF(1

std::string std::string	cm_expand_env (const char *str)

INT EXPRT	bm_open_buffer (const char buffer_name, INT buffer_size, INT buffer_handle)

INT EXPRT	bm_get_buffer_handle (const char buffer_name, INT buffer_handle)

INT EXPRT	bm_close_buffer (INT buffer_handle)

INT EXPRT	bm_close_all_buffers (void)

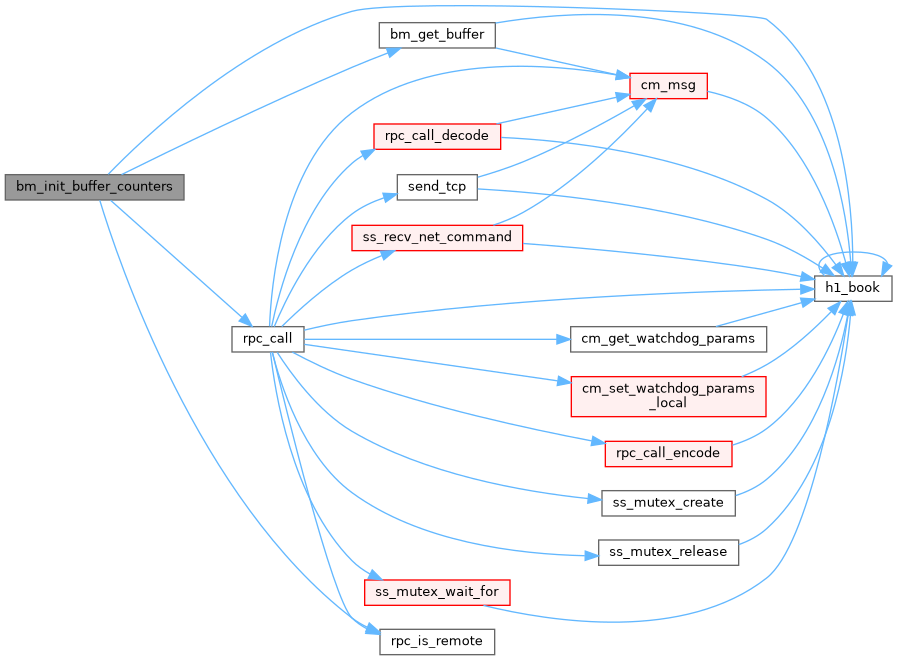

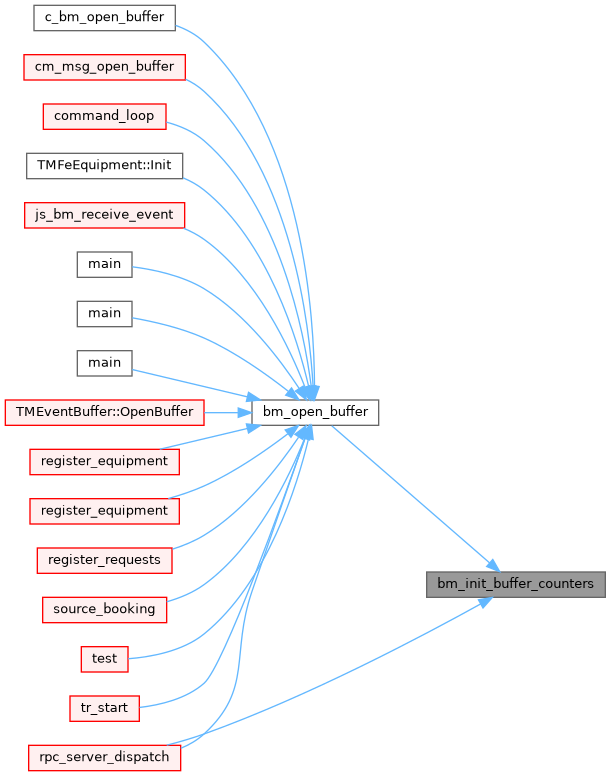

INT EXPRT	bm_init_buffer_counters (INT buffer_handle)

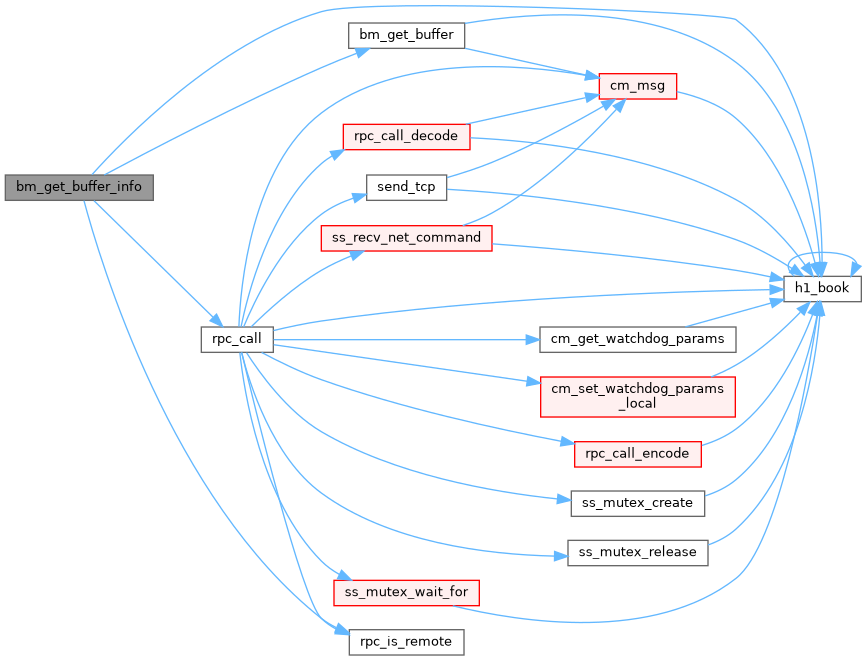

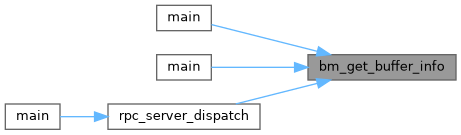

INT EXPRT	bm_get_buffer_info (INT buffer_handle, BUFFER_HEADER *buffer_header)

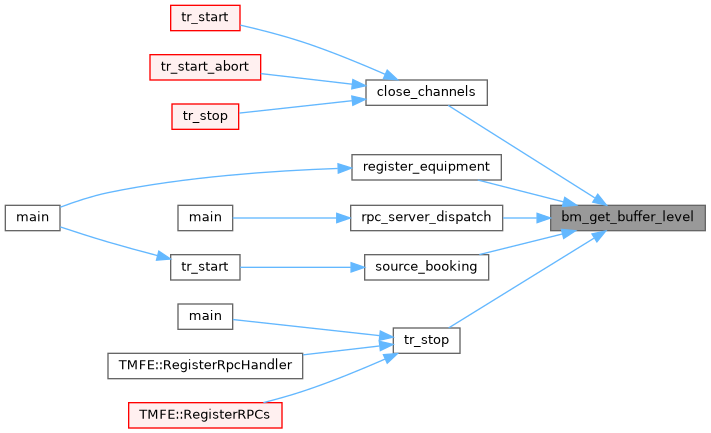

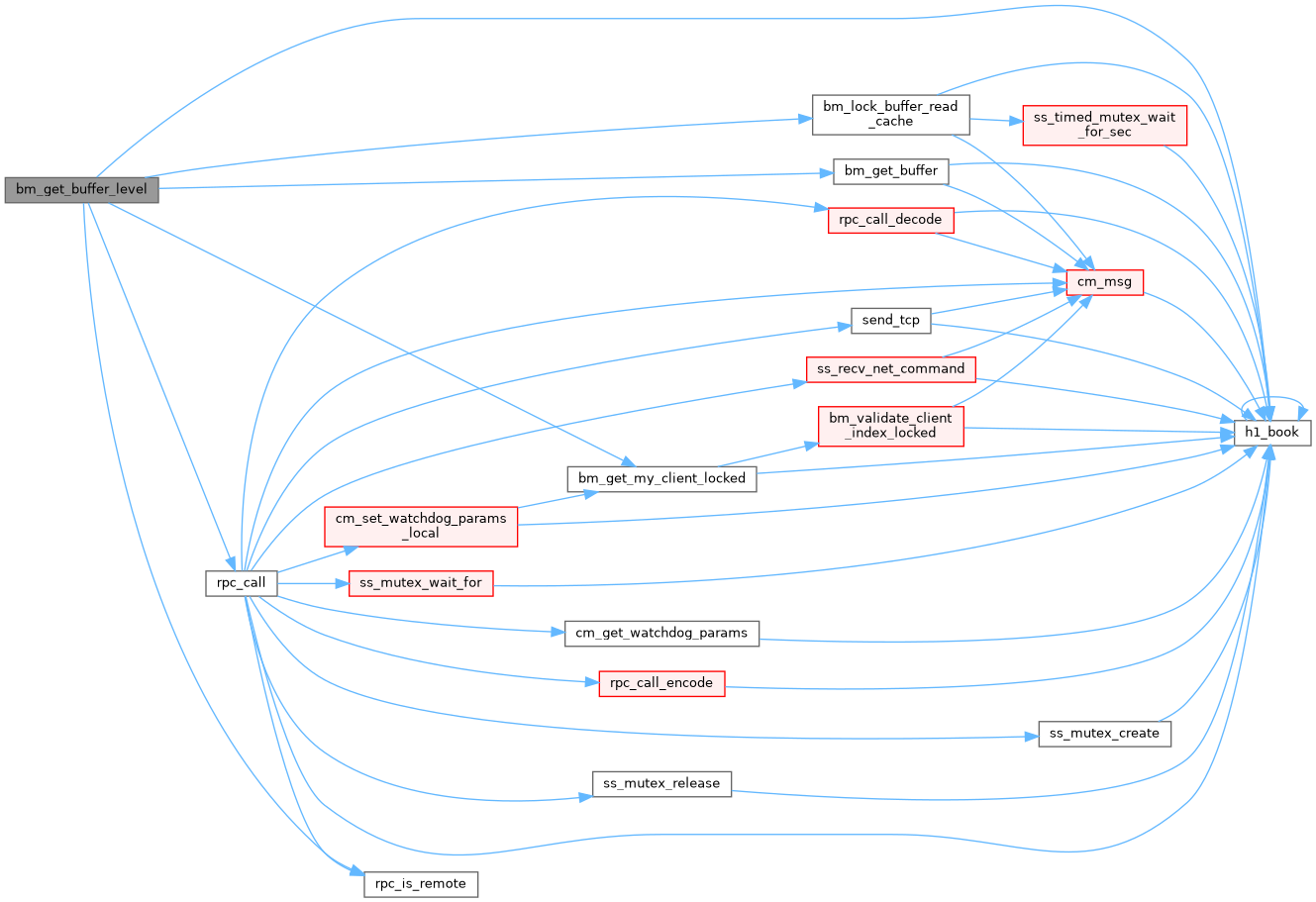

INT EXPRT	bm_get_buffer_level (INT buffer_handle, INT *n_bytes)

INT EXPRT	bm_set_cache_size (INT buffer_handle, size_t read_size, size_t write_size)

INT EXPRT	bm_compose_event (EVENT_HEADER *event_header, short int event_id, short int trigger_mask, DWORD data_size, DWORD serial)

INT EXPRT	bm_compose_event_threadsafe (EVENT_HEADER event_header, short int event_id, short int trigger_mask, DWORD data_size, DWORD serial)

INT EXPRT	bm_match_event (short int event_id, short int trigger_mask, const EVENT_HEADER *pevent)

INT EXPRT	bm_request_event (INT buffer_handle, short int event_id, short int trigger_mask, INT sampling_type, INT request_id, EVENT_HANDLER func)

INT EXPRT	bm_add_event_request (INT buffer_handle, short int event_id, short int trigger_mask, INT sampling_type, EVENT_HANDLER *func, INT request_id)

INT EXPRT	bm_remove_event_request (INT buffer_handle, INT request_id)

INT EXPRT	bm_delete_request (INT request_id)

INT EXPRT	bm_send_event (INT buffer_handle, const EVENT_HEADER *event, int unused, int timeout_msec)

INT EXPRT	bm_send_event_vec (INT buffer_handle, const std::vector< char > &event, int timeout_msec)

INT EXPRT	bm_send_event_vec (INT buffer_handle, const std::vector< std::vector< char > > &event, int timeout_msec)

INT EXPRT	bm_send_event_sg (INT buffer_handle, int sg_n, const char *const sg_ptr[], const size_t sg_len[], int timeout_msec)

INT EXPRT	bm_receive_event (INT buffer_handle, void destination, INT buf_size, int timeout_msec)

INT EXPRT	bm_receive_event_vec (INT buffer_handle, std::vector< char > *event, int timeout_msec)

INT EXPRT	bm_receive_event_alloc (INT buffer_handle, EVENT_HEADER **ppevent, int timeout_msec)

INT EXPRT	bm_skip_event (INT buffer_handle)

INT EXPRT	bm_flush_cache (INT buffer_handle, int timeout_msec)

INT EXPRT	bm_poll_event (void)

INT EXPRT	bm_empty_buffers (void)

INT EXPRT	bm_check_buffers (void)

INT EXPRT	bm_write_statistics_to_odb (void)

INT	db_open_database (const char xdatabase_name, INT database_size, HNDLE hDB, const char *client_name)

INT	db_close_database (HNDLE hDB)

INT	db_close_all_databases (void)

INT	db_protect_database (HNDLE hDB)

INT	db_create_key (HNDLE hDB, HNDLE hKey, const char *key_name, DWORD type)

INT	db_create_link (HNDLE hDB, HNDLE hKey, const char link_name, const char destination)

INT	db_set_value (HNDLE hDB, HNDLE hKeyRoot, const char key_name, const void data, INT data_size, INT num_values, DWORD type)

INT	db_set_value_index (HNDLE hDB, HNDLE hKeyRoot, const char key_name, const void data, INT data_size, INT idx, DWORD type, BOOL trunc)

INT	db_get_value (HNDLE hDB, HNDLE hKeyRoot, const char key_name, void data, INT *buf_size, DWORD type, BOOL create)

INT EXPRT	db_resize_string (HNDLE hdb, HNDLE hKeyRoot, const char *key_name, int num_values, int max_string_length)

INT EXPRT	db_get_value_string (HNDLE hdb, HNDLE hKeyRoot, const char key_name, int index, std::string s, BOOL create, int create_string_length)

INT EXPRT	db_set_value_string (HNDLE hDB, HNDLE hKeyRoot, const char key_name, const std::string s)

INT	db_find_key (HNDLE hDB, HNDLE hKey, const char key_name, HNDLE subhKey)

INT	db_find_link (HNDLE hDB, HNDLE hKey, const char key_name, HNDLE subhKey)

INT	db_find_key1 (HNDLE hDB, HNDLE hKey, const char key_name, HNDLE subhKey)

INT	db_find_link1 (HNDLE hDB, HNDLE hKey, const char key_name, HNDLE subhKey)

INT	db_find_keys (HNDLE hDB, HNDLE hKeyRoot, char *odbpath, std::vector< HNDLE > &hKeyVector)

INT	db_get_parent (HNDLE hDB, HNDLE hKey, HNDLE *parenthKey)

INT	db_scan_tree (HNDLE hDB, HNDLE hKey, INT level, INT(callback)(HNDLE, HNDLE, KEY , INT, void ), void info)

INT	db_scan_tree_link (HNDLE hDB, HNDLE hKey, INT level, void(callback)(HNDLE, HNDLE, KEY , INT, void ), void info)

INT	db_get_path (HNDLE hDB, HNDLE hKey, char *path, INT buf_size)

std::string	db_get_path (HNDLE hDB, HNDLE hKey)

INT	db_delete_key (HNDLE hDB, HNDLE hKey, BOOL follow_links)

INT	db_enum_key (HNDLE hDB, HNDLE hKey, INT idx, HNDLE *subkey_handle)

INT	db_enum_link (HNDLE hDB, HNDLE hKey, INT idx, HNDLE *subkey_handle)

INT	db_get_next_link (HNDLE hDB, HNDLE hKey, HNDLE *subkey_handle)

INT	db_get_key (HNDLE hDB, HNDLE hKey, KEY *key)

INT	db_get_link (HNDLE hDB, HNDLE hKey, KEY *key)

INT	db_get_key_info (HNDLE hDB, HNDLE hKey, char name, INT name_size, INT type, INT num_values, INT item_size)

INT	db_get_key_time (HNDLE hDB, HNDLE hKey, DWORD *delta)

INT	db_rename_key (HNDLE hDB, HNDLE hKey, const char *name)

INT	db_reorder_key (HNDLE hDB, HNDLE hKey, INT idx)

INT	db_get_data (HNDLE hDB, HNDLE hKey, void data, INT buf_size, DWORD type)

INT	db_get_link_data (HNDLE hDB, HNDLE hKey, void data, INT buf_size, DWORD type)

INT	db_get_data1 (HNDLE hDB, HNDLE hKey, void data, INT buf_size, DWORD type, INT *num_values)

INT	db_get_data_index (HNDLE hDB, HNDLE hKey, void data, INT buf_size, INT idx, DWORD type)

INT	db_set_data (HNDLE hDB, HNDLE hKey, const void *data, INT buf_size, INT num_values, DWORD type)

INT	db_set_data1 (HNDLE hDB, HNDLE hKey, const void *data, INT buf_size, INT num_values, DWORD type)

INT	db_notify_clients_array (HNDLE hDB, HNDLE hKeys[], INT size)

INT	db_set_link_data (HNDLE hDB, HNDLE hKey, const void *data, INT buf_size, INT num_values, DWORD type)

INT	db_set_data_index (HNDLE hDB, HNDLE hKey, const void *data, INT data_size, INT idx, DWORD type)

INT	db_set_link_data_index (HNDLE hDB, HNDLE hKey, const void *data, INT data_size, INT idx, DWORD type)

INT	db_set_data_index1 (HNDLE hDB, HNDLE hKey, const void *data, INT data_size, INT idx, DWORD type, BOOL bNotify)

INT	db_set_num_values (HNDLE hDB, HNDLE hKey, INT num_values)

INT	db_merge_data (HNDLE hDB, HNDLE hKeyRoot, const char name, void data, INT data_size, INT num_values, INT type)

INT	db_set_mode (HNDLE hDB, HNDLE hKey, WORD mode, BOOL recurse)

INT	db_create_record (HNDLE hDB, HNDLE hKey, const char orig_key_name, const char init_str)

INT	db_check_record (HNDLE hDB, HNDLE hKey, const char keyname, const char rec_str, BOOL correct)

INT	db_open_record (HNDLE hDB, HNDLE hKey, void ptr, INT rec_size, WORD access_mode, void(dispatcher)(INT, INT, void ), void info)

INT	db_open_record1 (HNDLE hDB, HNDLE hKey, void ptr, INT rec_size, WORD access_mode, void(dispatcher)(INT, INT, void ), void info, const char *rec_str)

INT	db_close_record (HNDLE hDB, HNDLE hKey)

INT	db_get_record (HNDLE hDB, HNDLE hKey, void data, INT buf_size, INT align)

INT	db_get_record1 (HNDLE hDB, HNDLE hKey, void data, INT buf_size, INT align, const char *rec_str)

INT	db_get_record2 (HNDLE hDB, HNDLE hKey, void data, INT xbuf_size, INT align, const char *rec_str, BOOL correct)

INT	db_get_record_size (HNDLE hDB, HNDLE hKey, INT align, INT *buf_size)

INT	db_set_record (HNDLE hDB, HNDLE hKey, void *data, INT buf_size, INT align)

INT EXPRT	db_set_record2 (HNDLE hdb, HNDLE hKey, void data, INT buf_size, INT align, const char rec_str)

INT	db_send_changed_records ()

INT	db_get_open_records (HNDLE hDB, HNDLE hKey, char *str, INT buf_size, BOOL fix)

INT	db_add_open_record (HNDLE hDB, HNDLE hKey, WORD access_mode)

INT	db_remove_open_record (HNDLE hDB, HNDLE hKey, BOOL lock)

INT EXPRT	db_watch (HNDLE hDB, HNDLE hKey, void(dispatcher)(INT, INT, INT, void info), void *info)

INT	db_unwatch (HNDLE hDB, HNDLE hKey)

INT	db_unwatch_all ()

INT	db_load (HNDLE hDB, HNDLE hKeyRoot, const char *filename, BOOL bRemote)

INT	db_save (HNDLE hDB, HNDLE hKey, const char *filename, BOOL bRemote)

INT	db_copy (HNDLE hDB, HNDLE hKey, char buffer, INT buffer_size, const char *path)

INT	db_paste (HNDLE hDB, HNDLE hKeyRoot, const char *buffer)

INT	db_paste_xml (HNDLE hDB, HNDLE hKeyRoot, const char *buffer)

INT	db_save_struct (HNDLE hDB, HNDLE hKey, const char file_name, const char struct_name, BOOL append)

INT	db_save_string (HNDLE hDB, HNDLE hKey, const char file_name, const char string_name, BOOL append)

INT	db_save_xml (HNDLE hDB, HNDLE hKey, const char *filename)

INT	db_copy_xml (HNDLE hDB, HNDLE hKey, char buffer, int buffer_size, bool header)

INT	db_save_json (HNDLE hDB, HNDLE hKey, const char *filename, int flags)

INT EXPRT	db_load_json (HNDLE hdb, HNDLE key_handle, const char *filename)

void	json_write (char *buffer, int buffer_size, int buffer_end, int level, const char s, int quoted)

int EXPRT	json_write_anything (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end, int level, int must_be_subdir, int flags, time_t timestamp)

INT	db_copy_json_obsolete (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end, int save_keys, int follow_links, int recurse)

INT	db_copy_json_save (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end)

INT	db_copy_json_ls (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end)

INT	db_copy_json_values (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end, int omit_names, int omit_last_written, time_t omit_old_timestamp, int preserve_case)

INT	db_copy_json_array (HNDLE hDB, HNDLE hKey, char *buffer, int buffer_size, int *buffer_end)

INT	db_copy_json_index (HNDLE hDB, HNDLE hKey, int index, char *buffer, int buffer_size, int *buffer_end)

INT EXPRT	db_paste_json (HNDLE hDB, HNDLE hKey, const char *buffer)

INT EXPRT	db_paste_json_node (HNDLE hDB, HNDLE hKey, int index, const MJsonNode *json_node)

MJsonNode *	db_sor (HNDLE hDB, const char *root_path)

MJsonNode *	db_scl (HNDLE hDB)

INT	db_sprintf (char string, const void data, INT data_size, INT idx, DWORD type)

INT	db_sprintff (char string, const char format, const void *data, INT data_size, INT idx, DWORD type)

INT	db_sprintfh (char string, const void data, INT data_size, INT idx, DWORD type)

std::string	db_sprintf (const void *data, INT data_size, INT idx, DWORD type)

std::string	db_sprintff (const char format, const void data, INT data_size, INT idx, DWORD type)

std::string	db_sprintfh (const void *data, INT data_size, INT idx, DWORD type)

INT	db_sscanf (const char data_str, void data, INT *data_size, INT i, DWORD tid)

INT	db_get_watchdog_info (HNDLE hDB, const char client_name, DWORD timeout, DWORD *last)

INT	db_update_last_activity (DWORD millitime)

int	db_delete_client_info (HNDLE hDB, int pid)

char *	strcomb (const char **list)

std::string	strcomb1 (const char **list)

void EXPRT	bk_init (void *pbh)

void EXPRT	bk_init32 (void *event)

void EXPRT	bk_init32a (void *event)

BOOL EXPRT	bk_is32 (const void *event)

BOOL EXPRT	bk_is32a (const void *event)

INT EXPRT	bk_size (const void *pbh)

void EXPRT	bk_create (void pbh, const char name, WORD type, void **pdata)

INT EXPRT	bk_delete (void event, const char name)

INT EXPRT	bk_close (void pbh, void pdata)

INT EXPRT	bk_list (const void pbh, char bklist)

INT EXPRT	bk_locate (const void pbh, const char name, void *pdata)

INT EXPRT	bk_iterate (const void pbh, BANK pbk, void pdata)

INT EXPRT	bk_iterate32 (const void pbh, BANK32 pbk, void pdata)

INT EXPRT	bk_iterate32a (const void pbh, BANK32A pbk, void pdata)

INT EXPRT	bk_copy (char pevent, char psrce, const char *bkname)

INT EXPRT	bk_swap (void *event, BOOL force)

INT EXPRT	bk_find (const BANK_HEADER pbkh, const char name, DWORD bklen, DWORD bktype, void **pdata)

INT EXPRT	rpc_clear_allowed_hosts (void)

INT EXPRT	rpc_add_allowed_host (const char *hostname)

INT EXPRT	rpc_check_allowed_host (const char *hostname)

INT EXPRT	rpc_register_functions (const RPC_LIST *new_list, RPC_HANDLER func)

INT EXPRT	rpc_register_function (INT id, RPC_HANDLER func)

INT EXPRT	rpc_get_hw_type ()

INT EXPRT	rpc_get_timeout (HNDLE hConn)

INT EXPRT	rpc_set_timeout (HNDLE hConn, int timeout_msec, int *old_timeout_msec=NULL)

INT EXPRT	rpc_set_name (const char *name)

std::string	rpc_get_name ()

bool EXPRT	rpc_is_remote (void)

bool EXPRT	rpc_is_connected (void)

std::string	rpc_get_mserver_hostname ()

bool EXPRT	rpc_is_mserver (void)

INT EXPRT	rpc_set_debug (void(func)(const char ), INT mode)

void EXPRT	rpc_debug_printf (const char *format,...)

INT EXPRT	rpc_register_server (int port, int plsock, int pport)

INT EXPRT	rpc_register_client (const char name, RPC_LIST list)

INT EXPRT	rpc_server_loop (void)

INT EXPRT	rpc_server_shutdown (void)

INT EXPRT	rpc_client_call (HNDLE hConn, DWORD routine_id,...)

INT EXPRT	rpc_call (DWORD routine_id,...)

INT EXPRT	rpc_tid_size (INT id)

const char EXPRT *	rpc_tid_name (INT id)

const char EXPRT *	rpc_tid_name_old (INT id)

INT EXPRT	rpc_name_tid (const char *name)

INT EXPRT	rpc_server_connect (const char host_name, const char exp_name)

INT EXPRT	rpc_client_connect (const char host_name, INT midas_port, const char client_name, HNDLE *hConnection)

INT EXPRT	rpc_client_disconnect (HNDLE hConn, BOOL bShutdown)

INT EXPRT	rpc_send_event (INT buffer_handle, const EVENT_HEADER *event, int unused, INT async_flag, INT mode)

INT EXPRT	rpc_flush_event (void)

INT EXPRT	rpc_send_event1 (INT buffer_handle, const EVENT_HEADER *event)

INT EXPRT	rpc_send_event_sg (INT buffer_handle, int sg_n, const char *const sg_ptr[], const size_t sg_len[])

INT EXPRT	rpc_test_rpc ()

void EXPRT	rpc_get_convert_flags (INT *convert_flags)

void EXPRT	rpc_convert_single (void *data, INT tid, INT flags, INT convert_flags)

void EXPRT	rpc_convert_data (void *data, INT tid, INT flags, INT size, INT convert_flags)

DWORD	ss_millitime ()

DWORD	ss_time ()

double	ss_time_sec ()

DWORD	ss_settime (DWORD seconds)

void	ss_tzset ()

time_t	ss_mktime (struct tm *tms)

std::string	ss_asctime ()

INT	ss_sleep (INT millisec)

BOOL	ss_kbhit ()

std::string	ss_getcwd ()

double	ss_nan ()

int	ss_isnan (double x)

int	ss_isfin (double x)

void	ss_clear_screen ()

void	ss_printf (INT x, INT y, const char *format,...)

void	ss_set_screen_size (int x, int y)

char *	ss_getpass (const char *prompt)

INT	ss_getchar (BOOL reset)

char *	ss_crypt (const char buf, const char salt)

char *	ss_gets (char *string, int size)

void *	ss_ctrlc_handler (void(*func)(int))

INT	ss_write_tcp (int sock, const char *buffer, size_t buffer_size)

INT	ss_directio_give_port (INT start, INT end)

INT	ss_directio_lock_port (INT start, INT end)

INT	ss_tape_open (char path, INT oflag, INT channel)

INT	ss_tape_close (INT channel)

INT	ss_tape_status (char *path)

INT	ss_tape_read (INT channel, void pdata, INT count)

INT	ss_tape_write (INT channel, void *pdata, INT count)

INT	ss_tape_write_eof (INT channel)

INT	ss_tape_fskip (INT channel, INT count)

INT	ss_tape_rskip (INT channel, INT count)

INT	ss_tape_rewind (INT channel)

INT	ss_tape_spool (INT channel)

INT	ss_tape_mount (INT channel)

INT	ss_tape_unmount (INT channel)

INT	ss_tape_get_blockn (INT channel)

double	ss_disk_free (const char *path)

double	ss_file_size (const char *path)

time_t	ss_file_time (const char *path)

int	ss_dir_exist (const char *path)

int	ss_file_exist (const char *path)

int	ss_file_link_exist (const char *path)

INT	ss_file_remove (const char *path)

INT	ss_file_find (const char path, const char pattern, char **plist)

INT	ss_dir_find (const char path, const char pattern, char **plist)

INT	ss_dirlink_find (const char path, const char pattern, char **plist)

INT	ss_file_find (const char path, const char pattern, STRING_LIST *plist)

INT	ss_dir_find (const char path, const char pattern, STRING_LIST *plist)

INT	ss_dirlink_find (const char path, const char pattern, STRING_LIST *plist)

double	ss_disk_size (const char *path)

int	ss_file_copy (const char src, const char dst, bool append)

bool	ss_is_valid_utf8 (const char *string)

bool	ss_repair_utf8 (char *string)

bool	ss_repair_utf8 (std::string &s)

INT EXPRT	el_retrieve (char tag, char date, int run, char author, char type, char system, char subject, char text, int textsize, char orig_tag, char reply_tag, char attachment1, char attachment2, char attachment3, char *encoding)

INT EXPRT	el_submit (int run, const char author, const char type, const char system, const char subject, const char text, const char reply_to, const char encoding, const char afilename1, const char buffer1, INT buffer_size1, const char afilename2, const char buffer2, INT buffer_size2, const char afilename3, const char buffer3, INT buffer_size3, char tag, INT tag_size)

INT EXPRT	el_search_message (char tag, int fh, BOOL walk, char *filename, int filename_size)

INT EXPRT	el_search_run (int run, char *return_tag)

INT EXPRT	el_delete_message (const char *tag)

INT EXPRT	al_check (void)

INT EXPRT	al_trigger_alarm (const char alarm_name, const char alarm_message, const char default_class, const char cond_str, INT type)

INT EXPRT	al_trigger_class (const char alarm_class, const char alarm_message, BOOL first)

INT EXPRT	al_reset_alarm (const char *alarm_name)

BOOL EXPRT	al_evaluate_condition (const char alarm_name, const char condition, std::string *pvalue)

INT	al_get_alarms (std::string *presult)

INT EXPRT	al_define_odb_alarm (const char name, const char condition, const char aclass, const char message)

void EXPRT	test_register (ANA_TEST *t)

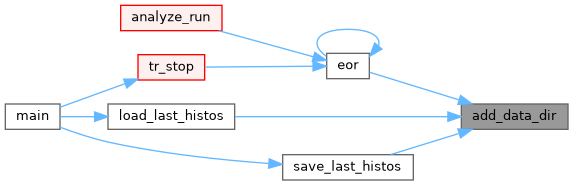

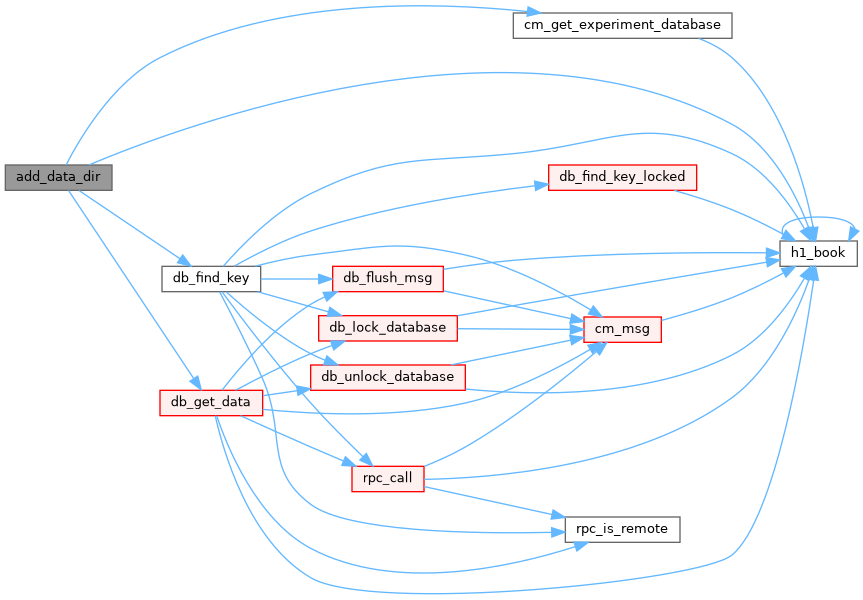

void EXPRT	add_data_dir (char result, char file)

void EXPRT	lock_histo (INT id)

void EXPRT	open_subfolder (const char *name)

void EXPRT	close_subfolder (void)

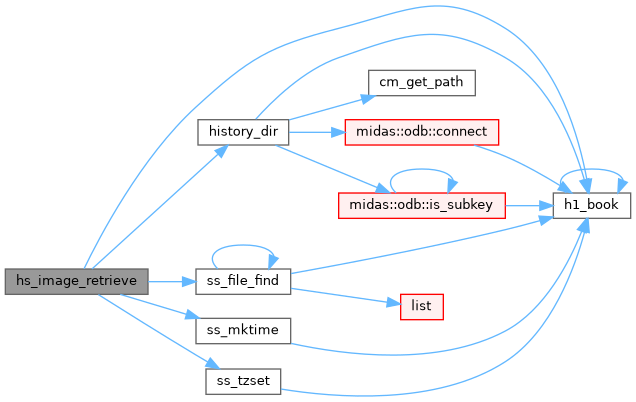

int	hs_image_retrieve (std::string image_name, time_t start, time_t stop, std::vector< time_t > &vtime, std::vector< std::string > &vfilename)

Detailed Description

dox

The main include file

Definition in file midas.h.

Macro Definition Documentation

◆ ALARM_CLASS_STR

#define ALARM_CLASS_STR ( _name )

Value:

const char *_name[] = {\
"[.]",\
"Write system message = BOOL : y",\
"Write Elog message = BOOL : n",\
"System message interval = INT : 60",\
"System message last = DWORD : 0",\
"Execute command = STRING : [256] ",\
"Execute interval = INT : 0",\
"Execute last = DWORD : 0",\
"Stop run = BOOL : n",\
"Display BGColor = STRING : [32] red",\
"Display FGColor = STRING : [32] black",\
"Alarm sound = BOOL : y"\
"",\
NULL }

Definition at line 1478 of file midas.h.

                                                     {\
"[.]",\
"Write system message = BOOL : y",\
"Write Elog message = BOOL : n",\
"System message interval = INT : 60",\
"System message last = DWORD : 0",\
"Execute command = STRING : [256] ",\
"Execute interval = INT : 0",\
"Execute last = DWORD : 0",\
"Stop run = BOOL : n",\
"Display BGColor = STRING : [32] red",\
"Display FGColor = STRING : [32] black",\
"Alarm sound = BOOL : y"\
"",\
NULL }

◆ ALARM_ODB_STR

#define ALARM_ODB_STR ( _name )

Value:

const char *_name[] = {\
"[.]",\
"Active = BOOL : n",\
"Triggered = INT : 0",\
"Type = INT : 3",\
"Check interval = INT : 60",\
"Checked last = DWORD : 0",\
"Trigger count = DWORD : 0",\
"Trigger count required = DWORD : 0",\
"Time triggered first = STRING : [32] ",\
"Time triggered last = STRING : [32] ",\
"Condition = STRING : [256] /Runinfo/Run number > 100",\
"Alarm Class = STRING : [32] Alarm",\
"Alarm Message = STRING : [80] Run number became too large",\
"",\
NULL }

Definition at line 1511 of file midas.h.

                                                   {\
"[.]",\
"Active = BOOL : n",\
"Triggered = INT : 0",\
"Type = INT : 3",\
"Check interval = INT : 60",\
"Checked last = DWORD : 0",\
"Trigger count = DWORD : 0",\
"Trigger count required = DWORD : 0",\
"Time triggered first = STRING : [32] ",\
"Time triggered last = STRING : [32] ",\
"Condition = STRING : [256] /Runinfo/Run number > 100",\
"Alarm Class = STRING : [32] Alarm",\
"Alarm Message = STRING : [80] Run number became too large",\
"",\
NULL }

◆ ALARM_PERIODIC_STR

#define ALARM_PERIODIC_STR ( _name )

Value:

const char *_name[] = {\
"[.]",\
"Active = BOOL : n",\
"Triggered = INT : 0",\
"Type = INT : 4",\
"Check interval = INT : 28800",\
"Checked last = DWORD : 0",\
"Trigger count = DWORD : 0",\
"Trigger count required = DWORD : 0",\
"Time triggered first = STRING : [32] ",\
"Time triggered last = STRING : [32] ",\
"Condition = STRING : [256] ",\
"Alarm Class = STRING : [32] Warning",\
"Alarm Message = STRING : [80] Please do your shift checks",\
"",\
NULL }

Definition at line 1528 of file midas.h.

                                                        {\
"[.]",\
"Active = BOOL : n",\
"Triggered = INT : 0",\
"Type = INT : 4",\
"Check interval = INT : 28800",\
"Checked last = DWORD : 0",\
"Trigger count = DWORD : 0",\
"Trigger count required = DWORD : 0",\
"Time triggered first = STRING : [32] ",\
"Time triggered last = STRING : [32] ",\
"Condition = STRING : [256] ",\
"Alarm Class = STRING : [32] Warning",\
"Alarm Message = STRING : [80] Please do your shift checks",\
"",\
NULL }

◆ ANA_CONTINUE

#define ANA_CONTINUE 1

dox dox

Definition at line 839 of file midas.h.

◆ ANA_OUTPUT_INFO_STR

#define ANA_OUTPUT_INFO_STR "\Filename = STRING : [256] run%05d.asc\n\RWNT = BOOL : 0\n\Histo Dump = BOOL : 0\n\Histo Dump Filename = STRING : [256] his%05d.rz\n\Clear histos = BOOL : 1\n\Last Histo Filename = STRING : [256] last.rz\n\Events to ODB = BOOL : 1\n\Global Memory Name = STRING : [8] ONLN\n\"

Definition at line 1325 of file midas.h.

◆ ANA_SKIP

#define ANA_SKIP 0

Definition at line 840 of file midas.h.

◆ AT_EVALUATED

#define AT_EVALUATED 3

Definition at line 1444 of file midas.h.

◆ AT_INTERNAL

#define AT_INTERNAL 1

Definition at line 1442 of file midas.h.

◆ AT_LAST

#define AT_LAST 4

Definition at line 1446 of file midas.h.

◆ AT_PERIODIC

#define AT_PERIODIC 4

Definition at line 1445 of file midas.h.

◆ AT_PROGRAM

#define AT_PROGRAM 2

Definition at line 1443 of file midas.h.

◆ BANK_FORMAT_32BIT

#define BANK_FORMAT_32BIT (1<<4)

Definition at line 1204 of file midas.h.

◆ BANK_FORMAT_64BIT_ALIGNED

#define BANK_FORMAT_64BIT_ALIGNED (1<<5)

Definition at line 1205 of file midas.h.

◆ BANK_FORMAT_VERSION

#define BANK_FORMAT_VERSION 1

Definition at line 1203 of file midas.h.

◆ BANKLIST_MAX

#define BANKLIST_MAX 4096

max # of banks in event

Definition at line 278 of file midas.h.

◆ CARRAY [1/2]

#define CARRAY ( _i ) ( ((void *) prpc_param[_i]))

Definition at line 1647 of file midas.h.

◆ CARRAY [2/2]

#define CARRAY ( _i ) ( ((void *) prpc_param[_i]))

Definition at line 1647 of file midas.h.

◆ cARRAY

#define cARRAY ( ((void *) prpc_param[--n_param]))

Definition at line 1715 of file midas.h.

◆ CBOOL [1/2]

#define CBOOL ( _i ) (* ((BOOL *) prpc_param[_i]))

Definition at line 1637 of file midas.h.

◆ CBOOL [2/2]

#define CBOOL ( _i ) (* ((BOOL *) prpc_param[_i]))

Definition at line 1637 of file midas.h.

◆ cBOOL

#define cBOOL (* ((BOOL *) prpc_param[--n_param]))

Definition at line 1705 of file midas.h.

◆ CBYTE [1/2]

#define CBYTE ( _i ) (* ((BYTE *) prpc_param[_i]))

Definition at line 1616 of file midas.h.

◆ CBYTE [2/2]

#define CBYTE ( _i ) (* ((BYTE *) prpc_param[_i]))

Definition at line 1616 of file midas.h.

◆ cBYTE

#define cBYTE (* ((BYTE *) prpc_param[--n_param]))

Definition at line 1684 of file midas.h.

◆ CDOUBLE [1/2]

#define CDOUBLE ( _i ) (* ((double *) prpc_param[_i]))

Definition at line 1643 of file midas.h.

◆ CDOUBLE [2/2]

#define CDOUBLE ( _i ) (* ((double *) prpc_param[_i]))

Definition at line 1643 of file midas.h.

◆ cDOUBLE

#define cDOUBLE (* ((double *) prpc_param[--n_param]))

Definition at line 1711 of file midas.h.

◆ CDWORD [1/2]

#define CDWORD ( _i ) (* ((DWORD *) prpc_param[_i]))

Definition at line 1631 of file midas.h.

◆ CDWORD [2/2]

#define CDWORD ( _i ) (* ((DWORD *) prpc_param[_i]))

Definition at line 1631 of file midas.h.

◆ cDWORD

#define cDWORD (* ((DWORD *) prpc_param[--n_param]))

Definition at line 1699 of file midas.h.

◆ CF_ENDIAN

#define CF_ENDIAN (1<<0)

Data conversion flags

Definition at line 1611 of file midas.h.

◆ CF_IEEE2VAX

#define CF_IEEE2VAX (1<<1)

Definition at line 1612 of file midas.h.

◆ CF_VAX2IEEE

#define CF_VAX2IEEE (1<<2)

Definition at line 1613 of file midas.h.

◆ CFLOAT [1/2]

#define CFLOAT ( _i ) (* ((float *) prpc_param[_i]))

Definition at line 1640 of file midas.h.

◆ CFLOAT [2/2]

#define CFLOAT ( _i ) (* ((float *) prpc_param[_i]))

Definition at line 1640 of file midas.h.

◆ cFLOAT

#define cFLOAT (* ((float *) prpc_param[--n_param]))

Definition at line 1708 of file midas.h.

◆ CH_BS

#define CH_BS 8

dox special characters

Definition at line 445 of file midas.h.

◆ CH_CR

#define CH_CR 13

Definition at line 448 of file midas.h.

◆ CH_DELETE

#define CH_DELETE (CH_EXT+2)

Definition at line 454 of file midas.h.

◆ CH_DOWN

#define CH_DOWN (CH_EXT+7)

Definition at line 459 of file midas.h.

◆ CH_END

#define CH_END (CH_EXT+3)

Definition at line 455 of file midas.h.

◆ CH_EXT

#define CH_EXT 0x100

Definition at line 450 of file midas.h.

◆ CH_HOME

#define CH_HOME (CH_EXT+0)

Definition at line 452 of file midas.h.

◆ CH_INSERT

#define CH_INSERT (CH_EXT+1)

Definition at line 453 of file midas.h.

◆ CH_LEFT

#define CH_LEFT (CH_EXT+9)

Definition at line 461 of file midas.h.

◆ CH_LF

#define CH_LF 10

Definition at line 447 of file midas.h.

◆ CH_PDOWN

#define CH_PDOWN (CH_EXT+5)

Definition at line 457 of file midas.h.

◆ CH_PUP

#define CH_PUP (CH_EXT+4)

Definition at line 456 of file midas.h.

◆ CH_RIGHT

#define CH_RIGHT (CH_EXT+8)

Definition at line 460 of file midas.h.

◆ CH_TAB

#define CH_TAB 9

Definition at line 446 of file midas.h.

◆ CH_UP

#define CH_UP (CH_EXT+6)

Definition at line 458 of file midas.h.

◆ CHNDLE [1/2]

#define CHNDLE ( _i ) (* ((HNDLE *) prpc_param[_i]))

Definition at line 1634 of file midas.h.

◆ CHNDLE [2/2]

#define CHNDLE ( _i ) (* ((HNDLE *) prpc_param[_i]))

Definition at line 1634 of file midas.h.

◆ cHNDLE

#define cHNDLE (* ((HNDLE *) prpc_param[--n_param]))

Definition at line 1702 of file midas.h.

◆ CINT [1/2]

#define CINT ( _i ) (* ((INT *) prpc_param[_i]))

Definition at line 1622 of file midas.h.

◆ CINT [2/2]

#define CINT ( _i ) (* ((INT *) prpc_param[_i]))

Definition at line 1622 of file midas.h.

◆ cINT

#define cINT (* ((INT *) prpc_param[--n_param]))

Definition at line 1690 of file midas.h.

◆ CLONG [1/2]

#define CLONG ( _i ) (* ((long *) prpc_param[_i]))

Definition at line 1628 of file midas.h.

◆ CLONG [2/2]

#define CLONG ( _i ) (* ((long *) prpc_param[_i]))

Definition at line 1628 of file midas.h.

◆ cLONG

#define cLONG (* ((long *) prpc_param[--n_param]))

Definition at line 1696 of file midas.h.

◆ CNAF

#define CNAF 0x1 /* normal read/write */

CNAF commands

Definition at line 491 of file midas.h.

◆ CNAF_CRATE_CLEAR

#define CNAF_CRATE_CLEAR 0x102

Definition at line 496 of file midas.h.

◆ CNAF_CRATE_ZINIT

#define CNAF_CRATE_ZINIT 0x103

Definition at line 497 of file midas.h.

◆ CNAF_INHIBIT_CLEAR

#define CNAF_INHIBIT_CLEAR 0x101

Definition at line 495 of file midas.h.

◆ CNAF_INHIBIT_SET

#define CNAF_INHIBIT_SET 0x100

Definition at line 494 of file midas.h.

◆ CNAF_nQ

#define CNAF_nQ 0x2 /* Repeat read until noQ */

Definition at line 492 of file midas.h.

◆ CNAF_TEST

#define CNAF_TEST 0x110

Definition at line 498 of file midas.h.

◆ CPBOOL [1/2]

#define CPBOOL ( _i ) ( ((BOOL *) prpc_param[_i]))

Definition at line 1638 of file midas.h.

◆ CPBOOL [2/2]

#define CPBOOL ( _i ) ( ((BOOL *) prpc_param[_i]))

Definition at line 1638 of file midas.h.

◆ cPBOOL

#define cPBOOL ( ((BOOL *) prpc_param[--n_param]))

Definition at line 1706 of file midas.h.

◆ CPBYTE [1/2]

#define CPBYTE ( _i ) ( ((BYTE *) prpc_param[_i]))

Definition at line 1617 of file midas.h.

◆ CPBYTE [2/2]

#define CPBYTE ( _i ) ( ((BYTE *) prpc_param[_i]))

Definition at line 1617 of file midas.h.

◆ cPBYTE

#define cPBYTE ( ((BYTE *) prpc_param[--n_param]))

Definition at line 1685 of file midas.h.

◆ CPDOUBLE [1/2]

#define CPDOUBLE ( _i ) ( ((double *) prpc_param[_i]))

Definition at line 1644 of file midas.h.

◆ CPDOUBLE [2/2]

#define CPDOUBLE ( _i ) ( ((double *) prpc_param[_i]))

Definition at line 1644 of file midas.h.

◆ cPDOUBLE

#define cPDOUBLE ( ((double *) prpc_param[--n_param]))

Definition at line 1712 of file midas.h.

◆ CPDWORD [1/2]

#define CPDWORD ( _i ) ( ((DWORD *) prpc_param[_i]))

Definition at line 1632 of file midas.h.

◆ CPDWORD [2/2]

#define CPDWORD ( _i ) ( ((DWORD *) prpc_param[_i]))

Definition at line 1632 of file midas.h.

◆ cPDWORD

#define cPDWORD ( ((DWORD *) prpc_param[--n_param]))

Definition at line 1700 of file midas.h.

◆ CPFLOAT [1/2]

#define CPFLOAT ( _i ) ( ((float *) prpc_param[_i]))

Definition at line 1641 of file midas.h.

◆ CPFLOAT [2/2]

#define CPFLOAT ( _i ) ( ((float *) prpc_param[_i]))

Definition at line 1641 of file midas.h.

◆ cPFLOAT

#define cPFLOAT ( ((float *) prpc_param[--n_param]))

Definition at line 1709 of file midas.h.

◆ CPHNDLE [1/2]

#define CPHNDLE ( _i ) ( ((HNDLE *) prpc_param[_i]))

Definition at line 1635 of file midas.h.

◆ CPHNDLE [2/2]

#define CPHNDLE ( _i ) ( ((HNDLE *) prpc_param[_i]))

Definition at line 1635 of file midas.h.

◆ cPHNDLE

#define cPHNDLE ( ((HNDLE *) prpc_param[--n_param]))

Definition at line 1703 of file midas.h.

◆ CPINT [1/2]

#define CPINT ( _i ) ( ((INT *) prpc_param[_i]))

Definition at line 1623 of file midas.h.

◆ CPINT [2/2]

#define CPINT ( _i ) ( ((INT *) prpc_param[_i]))

Definition at line 1623 of file midas.h.

◆ cPINT

#define cPINT ( ((INT *) prpc_param[--n_param]))

Definition at line 1691 of file midas.h.

◆ CPLONG [1/2]

#define CPLONG ( _i ) ( ((long *) prpc_param[_i]))

Definition at line 1629 of file midas.h.

◆ CPLONG [2/2]

#define CPLONG ( _i ) ( ((long *) prpc_param[_i]))

Definition at line 1629 of file midas.h.

◆ cPLONG

#define cPLONG ( ((long *) prpc_param[--n_param]))

Definition at line 1697 of file midas.h.

◆ CPSHORT [1/2]

#define CPSHORT ( _i ) ( ((short *) prpc_param[_i]))

Definition at line 1620 of file midas.h.

◆ CPSHORT [2/2]

#define CPSHORT ( _i ) ( ((short *) prpc_param[_i]))

Definition at line 1620 of file midas.h.

◆ cPSHORT

#define cPSHORT ( ((short *) prpc_param[--n_param]))

Definition at line 1688 of file midas.h.

◆ CPWORD [1/2]

#define CPWORD ( _i ) ( ((WORD *) prpc_param[_i]))

Definition at line 1626 of file midas.h.

◆ CPWORD [2/2]

#define CPWORD ( _i ) ( ((WORD *) prpc_param[_i]))

Definition at line 1626 of file midas.h.

◆ cPWORD

#define cPWORD ( ((WORD *) prpc_param[--n_param]))

Definition at line 1694 of file midas.h.

◆ CSHORT [1/2]

#define CSHORT ( _i ) (* ((short *) prpc_param[_i]))

Definition at line 1619 of file midas.h.

◆ CSHORT [2/2]

#define CSHORT ( _i ) (* ((short *) prpc_param[_i]))

Definition at line 1619 of file midas.h.

◆ cSHORT

#define cSHORT (* ((short *) prpc_param[--n_param]))

Definition at line 1687 of file midas.h.

◆ CSTRING [1/2]

#define CSTRING ( _i ) ( ((char *) prpc_param[_i]))

Definition at line 1646 of file midas.h.

◆ CSTRING [2/2]

#define CSTRING ( _i ) ( ((char *) prpc_param[_i]))

Definition at line 1646 of file midas.h.

◆ cSTRING

#define cSTRING ( ((char *) prpc_param[--n_param]))

Definition at line 1714 of file midas.h.

◆ CWORD [1/2]

#define CWORD ( _i ) (* ((WORD *) prpc_param[_i]))

Definition at line 1625 of file midas.h.

◆ CWORD [2/2]

#define CWORD ( _i ) (* ((WORD *) prpc_param[_i]))

Definition at line 1625 of file midas.h.

◆ cWORD

#define cWORD (* ((WORD *) prpc_param[--n_param]))

Definition at line 1693 of file midas.h.

◆ DATA_SIZE

#define DATA_SIZE ( e ) ((((EVENT_HEADER *) e)-1)->data_size)

DATA_SIZE Extract or set/reset the data size field pointed by the argument.

Parameters

e	pointer to the midas event (pevent)

Definition at line 894 of file midas.h.

◆ DATABASE_VERSION

#define DATABASE_VERSION 3

Definition at line 34 of file midas.h.

◆ DEF_TEST

#define DEF_TEST ( t ) extern ANA_TEST t;

Definition at line 1352 of file midas.h.

◆ DEFAULT_BUFFER_SIZE

#define DEFAULT_BUFFER_SIZE (32*1024*1024)

default event buffer size 32MiB, actual event buffer size is set by ODB /Experiment/Buffer sizes/SYSTEM

Definition at line 255 of file midas.h.

◆ DEFAULT_MAX_EVENT_SIZE

#define DEFAULT_MAX_EVENT_SIZE (4*1024*1024)

default maximum event size 4MiB, actual maximum event size is set by ODB /Experiment/MAX_EVENT_SIZE

Definition at line 254 of file midas.h.

◆ DEFAULT_ODB_SIZE

#define DEFAULT_ODB_SIZE 0x100000

online database 1M

Definition at line 270 of file midas.h.

◆ DEFAULT_RPC_TIMEOUT

#define DEFAULT_RPC_TIMEOUT 10000

Timeouts [ms]

Definition at line 287 of file midas.h.

◆ DEFAULT_WATCHDOG_TIMEOUT

#define DEFAULT_WATCHDOG_TIMEOUT 10000

Watchdog

Definition at line 290 of file midas.h.

◆ DF_HW_RAMP

#define DF_HW_RAMP (1<<5)

Definition at line 1055 of file midas.h.

◆ DF_INPUT

#define DF_INPUT (1<<0)

channel is input

Definition at line 1050 of file midas.h.

◆ DF_LABELS_FROM_DEVICE

#define DF_LABELS_FROM_DEVICE (1<<6)

Definition at line 1056 of file midas.h.

◆ DF_MULTITHREAD

#define DF_MULTITHREAD (1<<4)

Definition at line 1054 of file midas.h.

◆ DF_OUTPUT

#define DF_OUTPUT (1<<1)

channel is output

Definition at line 1051 of file midas.h.

◆ DF_POLL_DEMAND

#define DF_POLL_DEMAND (1<<12)

Definition at line 1062 of file midas.h.

◆ DF_PRIO_DEVICE

#define DF_PRIO_DEVICE (1<<2)

get demand values from device instead of ODB

Definition at line 1052 of file midas.h.

◆ DF_PRIORITY_READ

#define DF_PRIORITY_READ (1<<13)

Definition at line 1063 of file midas.h.

◆ DF_QUICKSTART

#define DF_QUICKSTART (1<<11)

Definition at line 1061 of file midas.h.

◆ DF_READ_ONLY

#define DF_READ_ONLY (1<<3)

never write demand values to device

Definition at line 1053 of file midas.h.

◆ DF_REPORT_CHSTATE

#define DF_REPORT_CHSTATE (1<<9)

Definition at line 1059 of file midas.h.

◆ DF_REPORT_CRATEMAP

#define DF_REPORT_CRATEMAP (1<<10)

Definition at line 1060 of file midas.h.

◆ DF_REPORT_STATUS

#define DF_REPORT_STATUS (1<<8)

Definition at line 1058 of file midas.h.

◆ DF_REPORT_TEMP

#define DF_REPORT_TEMP (1<<7)

Definition at line 1057 of file midas.h.

◆ DIR_SEPARATOR

#define DIR_SEPARATOR '/'

Definition at line 193 of file midas.h.

◆ DIR_SEPARATOR_STR

#define DIR_SEPARATOR_STR "/"

Definition at line 194 of file midas.h.

◆ EQUIPMENT_COMMON_STR

#define EQUIPMENT_COMMON_STR "\Event ID = WORD : 0\n\Trigger mask = WORD : 0\n\Buffer = STRING : [32] SYSTEM\n\Type = INT : 0\n\Source = INT : 0\n\Format = STRING : [8] FIXED\n\Enabled = BOOL : 0\n\Read on = INT : 0\n\Period = INT : 0\n\Event limit = DOUBLE : 0\n\Num subevents = DWORD : 0\n\Log history = INT : 0\n\Frontend host = STRING : [32] \n\Frontend name = STRING : [32] \n\Frontend file name = STRING : [256] \n\Status = STRING : [256] \n\Status color = STRING : [32] \n\Hidden = BOOL : 0\n\Write cache size = INT : 100000\n\"

Definition at line 1112 of file midas.h.

◆ EQUIPMENT_STATISTICS_STR

#define EQUIPMENT_STATISTICS_STR "\Events sent = DOUBLE : 0\n\Events per sec. = DOUBLE : 0\n\kBytes per sec. = DOUBLE : 0\n\"

Definition at line 1145 of file midas.h.

◆ EVENT_BUFFER_NAME

#define EVENT_BUFFER_NAME "SYSTEM"

buffer name for commands

Definition at line 269 of file midas.h.

◆ EVENT_ID

#define EVENT_ID ( e ) ((((EVENT_HEADER *) e)-1)->event_id)

EVENT_ID Extract or set the event ID field pointed by the argument..

Parameters

e	pointer to the midas event (pevent)

Definition at line 873 of file midas.h.

◆ EVENT_SOURCE

#define EVENT_SOURCE	(	e,
		o
	)	(* (INT*) (e+o))

Definition at line 896 of file midas.h.

◆ EVENTID_BOR

#define EVENTID_BOR ((short int) 0x8000)

system event IDs Begin-of-run

Definition at line 900 of file midas.h.

◆ EVENTID_EOR

#define EVENTID_EOR ((short int) 0x8001)

End-of-run

Definition at line 901 of file midas.h.

◆ EVENTID_FRAG

#define EVENTID_FRAG ((short int) 0xD000) /* added to real event-id */

Definition at line 907 of file midas.h.

◆ EVENTID_FRAG1

#define EVENTID_FRAG1 ((short int) 0xC000) /* first fragment */

fragmented events

Definition at line 906 of file midas.h.

◆ EVENTID_MESSAGE

#define EVENTID_MESSAGE ((short int) 0x8002)

Message events

Definition at line 902 of file midas.h.

◆ EXPRT

#define EXPRT

Definition at line 1736 of file midas.h.

◆ FALSE

#define FALSE 0

Definition at line 183 of file midas.h.

◆ HAVE_BM_RECEIVE_EVENT_ALLOC

#define HAVE_BM_RECEIVE_EVENT_ALLOC 1

Definition at line 1871 of file midas.h.

◆ HAVE_BM_RECEIVE_EVENT_VEC

#define HAVE_BM_RECEIVE_EVENT_VEC 1

Definition at line 1869 of file midas.h.

◆ HAVE_BM_SEND_EVENT_VEC

#define HAVE_BM_SEND_EVENT_VEC 1

Definition at line 1864 of file midas.h.

◆ HAVE_CM_GET_CLIENT_NAME

#define HAVE_CM_GET_CLIENT_NAME 1

Definition at line 1788 of file midas.h.

◆ HAVE_CM_PERIODIC_TASKS

#define HAVE_CM_PERIODIC_TASKS 1

Definition at line 1801 of file midas.h.

◆ HOST_NAME_LENGTH

#define HOST_NAME_LENGTH 256

length of TCP/IP names

Definition at line 273 of file midas.h.

◆ INLINE

#define INLINE

Definition at line 205 of file midas.h.

◆ JS_LEVEL_0

#define JS_LEVEL_0 0

flags for db_json_save()

Definition at line 1719 of file midas.h.

◆ JS_LEVEL_1

#define JS_LEVEL_1 1

Definition at line 1720 of file midas.h.

◆ JS_MUST_BE_SUBDIR

#define JS_MUST_BE_SUBDIR 1

Definition at line 1721 of file midas.h.

◆ JSFLAG_FOLLOW_LINKS

#define JSFLAG_FOLLOW_LINKS (1<<2)

Definition at line 1723 of file midas.h.

◆ JSFLAG_LOWERCASE

#define JSFLAG_LOWERCASE (1<<4)

Definition at line 1725 of file midas.h.

◆ JSFLAG_OMIT_LAST_WRITTEN

#define JSFLAG_OMIT_LAST_WRITTEN (1<<6)

Definition at line 1727 of file midas.h.

◆ JSFLAG_OMIT_NAMES

#define JSFLAG_OMIT_NAMES (1<<5)

Definition at line 1726 of file midas.h.

◆ JSFLAG_OMIT_OLD

#define JSFLAG_OMIT_OLD (1<<7)

Definition at line 1728 of file midas.h.

◆ JSFLAG_RECURSE

#define JSFLAG_RECURSE (1<<3)

Definition at line 1724 of file midas.h.

◆ JSFLAG_SAVE_KEYS

#define JSFLAG_SAVE_KEYS (1<<1)

Definition at line 1722 of file midas.h.

◆ LAM_SOURCE

#define LAM_SOURCE	(	c,
		s
	)	(c<<24 \| ((s) & 0xFFFFFF))

Code the LAM crate and LAM station into a bitwise register.

Parameters

c	Crate number
s	Slot number

Definition at line 469 of file midas.h.

◆ LAM_SOURCE_CRATE

#define LAM_SOURCE_CRATE ( c ) (c>>24)

Convert the coded LAM crate to Crate number.

Parameters

c	coded crate

Definition at line 481 of file midas.h.

◆ LAM_SOURCE_STATION

#define LAM_SOURCE_STATION ( s ) ((s) & 0xFFFFFF)

Convert the coded LAM station to Station number.

Parameters

s	Slot number

Definition at line 487 of file midas.h.

◆ LAM_STATION

#define LAM_STATION ( s ) (1<<(s-1))

Code the Station number bitwise for the LAM source.

Parameters

s	Slot number

Definition at line 475 of file midas.h.

◆ M_CALLOC

#define M_CALLOC	(	x,
		y
	)	calloc(x,y)

Definition at line 1553 of file midas.h.

◆ M_FREE

#define M_FREE ( x ) free(x)

Definition at line 1554 of file midas.h.

◆ M_MALLOC

#define M_MALLOC ( x ) malloc(x)

Definition at line 1552 of file midas.h.

◆ MATTRPRINTF

#define MATTRPRINTF	(	a,
		b
	)

Definition at line 221 of file midas.h.

◆ MAX_CLIENTS

#define MAX_CLIENTS 64

client processes per buf/db

Definition at line 274 of file midas.h.

◆ MAX_EVENT_REQUESTS

#define MAX_EVENT_REQUESTS 10

event requests per client

Definition at line 275 of file midas.h.

◆ MAX_ODB_PATH

#define MAX_ODB_PATH 256

length of path in ODB

Definition at line 277 of file midas.h.

◆ MAX_OPEN_RECORDS

#define MAX_OPEN_RECORDS 256

number of open DB records

Definition at line 276 of file midas.h.

◆ MAX_RPC_PARAMS

#define MAX_RPC_PARAMS 20

Definition at line 1595 of file midas.h.

◆ MAX_WRITE_CACHE_EVENT_SIZE_DIV

#define MAX_WRITE_CACHE_EVENT_SIZE_DIV (10)

maximum event size cached in write cache as fraction of write cache size

Definition at line 259 of file midas.h.

◆ MAX_WRITE_CACHE_SIZE_DIV

#define MAX_WRITE_CACHE_SIZE_DIV (3)

maximum write cache size as fraction of buffer size

Definition at line 258 of file midas.h.

◆ MIDAS_MAGIC

#define MIDAS_MAGIC 0x494d

magic number used in trigger_mask for BOR event 'MI'

Definition at line 911 of file midas.h.

◆ MIDAS_TCP_PORT

#define MIDAS_TCP_PORT 1175 /* port under which server is listening */

Definition at line 283 of file midas.h.

◆ MIDAS_TYPE_DEFINED

#define MIDAS_TYPE_DEFINED

Definition at line 95 of file midas.h.

◆ MIDAS_VERSION

#define MIDAS_VERSION "2.1"

Definition at line 37 of file midas.h.

◆ MIN_WRITE_CACHE_SIZE

#define MIN_WRITE_CACHE_SIZE (10000000)

default and minimum write cache size, in bytes

Definition at line 257 of file midas.h.

◆ MUTEX_T_DEFINED

#define MUTEX_T_DEFINED

Definition at line 238 of file midas.h.

◆ NAME_LENGTH

#define NAME_LENGTH 32

length of names, mult.of 8!

Definition at line 272 of file midas.h.

◆ NET_TCP_SIZE

#define NET_TCP_SIZE 0xFFFF

maximum TCP transfer size

Definition at line 266 of file midas.h.

◆ O_LARGEFILE

#define O_LARGEFILE 0

Definition at line 210 of file midas.h.

◆ OPT_TCP_SIZE

#define OPT_TCP_SIZE 8192

optimal TCP buffer size

Definition at line 267 of file midas.h.

◆ PAWC_DEFINE

#define PAWC_DEFINE ( size )

Value:

INT PAWC_NAME[size/4]; \

INT pawc_size = size

pawc_size

INT pawc_size

INT

int INT

Definition midas.h:129

PAWC_NAME

#define PAWC_NAME

Definition midas.h:1566

Definition at line 1569 of file midas.h.

◆ PAWC_NAME

#define PAWC_NAME PAWC

Definition at line 1566 of file midas.h.

◆ POINTER_T

#define POINTER_T int

Definition at line 166 of file midas.h.

◆ PROGRAM_INFO_STR

#define PROGRAM_INFO_STR ( _name )

Value:

const char *_name[] = {\
"[.]",\
"Required = BOOL : n",\
"Watchdog timeout = INT : 10000",\
"Check interval = DWORD : 180000",\
"Start command = STRING : [256] ",\
"Auto start = BOOL : n",\
"Auto stop = BOOL : n",\
"Auto restart = BOOL : n",\
"Alarm class = STRING : [32] ",\
"First failed = DWORD : 0",\
"",\
NULL }

Definition at line 1448 of file midas.h.

                                                      {\
"[.]",\
"Required = BOOL : n",\
"Watchdog timeout = INT : 10000",\
"Check interval = DWORD : 180000",\
"Start command = STRING : [256] ",\
"Auto start = BOOL : n",\
"Auto stop = BOOL : n",\
"Auto restart = BOOL : n",\
"Alarm class = STRING : [32] ",\
"First failed = DWORD : 0",\
"",\
NULL }

◆ PTYPE

#define PTYPE POINTER_T

Definition at line 170 of file midas.h.

◆ RPC_FIXARRAY

#define RPC_FIXARRAY (1 << 3)

Definition at line 1583 of file midas.h.

◆ RPC_IN

#define RPC_IN (1 << 0)

flags

Definition at line 1580 of file midas.h.

◆ RPC_MAX_ID

#define RPC_MAX_ID 9999

Definition at line 1607 of file midas.h.

◆ RPC_MIN_ID

#define RPC_MIN_ID 1

IDs allow for users

Definition at line 1606 of file midas.h.

◆ RPC_OUT

#define RPC_OUT (1 << 1)

Definition at line 1581 of file midas.h.

◆ RPC_OUTGOING

#define RPC_OUTGOING (1 << 5)

Definition at line 1585 of file midas.h.

◆ RPC_POINTER

#define RPC_POINTER (1 << 2)

Definition at line 1582 of file midas.h.

◆ RPC_VARARRAY

#define RPC_VARARRAY (1 << 4)

Definition at line 1584 of file midas.h.

◆ RT_DATA

#define RT_DATA (*((DWORD *) "HSDA"))

Definition at line 1357 of file midas.h.

◆ RT_DEF

#define RT_DEF (*((DWORD *) "HSDF"))

Definition at line 1358 of file midas.h.

◆ RUNINFO_STR

#define RUNINFO_STR ( _name )

Value:

const char *_name[] = {\
"[.]",\
"State = INT : 1",\
"Online Mode = INT : 1",\
"Run number = INT : 0",\
"Transition in progress = INT : 0",\
"Start abort = INT : 0",\
"Requested transition = INT : 0",\
"Start time = STRING : [32] Tue Sep 09 15:04:42 1997",\
"Start time binary = DWORD : 0",\
"Stop time = STRING : [32] Tue Sep 09 15:04:42 1997",\
"Stop time binary = DWORD : 0",\
"",\
NULL }

Definition at line 1410 of file midas.h.

                                                 {\
"[.]",\
"State = INT : 1",\
"Online Mode = INT : 1",\
"Run number = INT : 0",\
"Transition in progress = INT : 0",\
"Start abort = INT : 0",\
"Requested transition = INT : 0",\
"Start time = STRING : [32] Tue Sep 09 15:04:42 1997",\
"Start time binary = DWORD : 0",\
"Stop time = STRING : [32] Tue Sep 09 15:04:42 1997",\
"Stop time binary = DWORD : 0",\
"",\
NULL }

◆ SERIAL_NUMBER

#define SERIAL_NUMBER ( e ) ((((EVENT_HEADER *) e)-1)->serial_number)

SERIAL_NUMBER Extract or set/reset the serial number field pointed by the argument.

Parameters

e	pointer to the midas event (pevent)

Definition at line 880 of file midas.h.

◆ SET_TEST

#define SET_TEST	(	t,
		v
	)	{ if (!t.registered) test_register(&t); t.value = (v); }

Definition at line 1346 of file midas.h.

◆ STRING_BANKLIST_MAX

#define STRING_BANKLIST_MAX BANKLIST_MAX * 4

for bk_list()

Definition at line 279 of file midas.h.

◆ TAPE_BUFFER_SIZE

#define TAPE_BUFFER_SIZE 0x8000

buffer size for taping data

Definition at line 264 of file midas.h.

◆ TEST

#define TEST ( t ) (t.value)

Definition at line 1347 of file midas.h.

◆ TIME_STAMP

#define TIME_STAMP ( e ) ((((EVENT_HEADER *) e)-1)->time_stamp)

TIME_STAMP Extract or set/reset the time stamp field pointed by the argument.

Parameters

e	pointer to the midas event (pevent)

Definition at line 887 of file midas.h.

◆ TRANSITION_ERROR_STRING_LENGTH

#define TRANSITION_ERROR_STRING_LENGTH 256

length of transition error string

Definition at line 280 of file midas.h.

◆ TRIGGER_MASK

#define TRIGGER_MASK ( e ) ((((EVENT_HEADER *) e)-1)->trigger_mask)

TRIGGER_MASK Extract or set the trigger mask field pointed by the argument.

Parameters

e	pointer to the midas event (pevent)

Definition at line 866 of file midas.h.

◆ TRUE

#define TRUE 1

Definition at line 182 of file midas.h.

◆ USE_HIDDEN_EQ

#define USE_HIDDEN_EQ

Use hidden equipment in status page

Definition at line 292 of file midas.h.

◆ WATCHDOG_INTERVAL

#define WATCHDOG_INTERVAL 1000

Definition at line 288 of file midas.h.

Typedef Documentation

◆ BOOL

typedef DWORD BOOL

Definition at line 105 of file midas.h.

◆ BYTE

typedef unsigned char BYTE

Definition at line 97 of file midas.h.

◆ DWORD

typedef unsigned int DWORD

Definition at line 100 of file midas.h.

◆ HISTORY

typedef struct history_struct HISTORY

◆ HNDLE

typedef INT HNDLE

Definition at line 132 of file midas.h.

◆ INT

typedef int INT

Definition at line 129 of file midas.h.

◆ INT16

typedef short INT16

Definition at line 139 of file midas.h.

◆ INT32

typedef int INT32

Definition at line 141 of file midas.h.

◆ INT64

typedef long long INT64

Definition at line 143 of file midas.h.

◆ INT8

typedef char INT8

Definition at line 137 of file midas.h.

◆ midas_thread_t

typedef INT midas_thread_t

Definition at line 179 of file midas.h.

◆ MUTEX_T

typedef INT MUTEX_T

Definition at line 237 of file midas.h.

◆ PEQUIPMENT

typedef struct eqpmnt* PEQUIPMENT

Definition at line 1151 of file midas.h.

◆ STRING_LIST

typedef std::vector<std::string> STRING_LIST

Definition at line 246 of file midas.h.

◆ UINT16

typedef unsigned short UINT16

Definition at line 138 of file midas.h.

◆ UINT32

typedef unsigned int UINT32

Definition at line 140 of file midas.h.

◆ UINT64

typedef unsigned long long UINT64

Definition at line 142 of file midas.h.

◆ UINT8

typedef unsigned char UINT8

Definition at line 136 of file midas.h.

◆ WORD

typedef unsigned short int WORD

Definition at line 98 of file midas.h.

Function Documentation

◆ add_data_dir()

void EXPRT add_data_dir	(	char *	result,
		char *	file
	)

Definition at line 424 of file mana.cxx.

{
   HNDLE hDB, hkey;
   char str[256];
   int size;

   cm_get_experiment_database(&hDB, NULL);
   db_find_key(hDB, 0, "/Logger/Data dir", &hkey);

   if (hkey) {
      size = sizeof(str);
      db_get_data(hDB, hkey, str, &size, TID_STRING);
      if (str[strlen(str) - 1] != DIR_SEPARATOR)
         strcat(str, DIR_SEPARATOR_STR);
      strcat(str, file);
      strcpy(result, str);
   } else
      strcpy(result, file);
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bm_get_buffer_info()

INT EXPRT bm_get_buffer_info	(	INT	buffer_handle,
		BUFFER_HEADER *	buffer_header
	)

dox dox

Definition at line 7791 of file midas.cxx.

{
   if (rpc_is_remote())
      return rpc_call(RPC_BM_GET_BUFFER_INFO, buffer_handle, buffer_header);

#ifdef LOCAL_ROUTINES

   int status = 0;
   BUFFER *pbuf = bm_get_buffer("bm_get_buffer_info", buffer_handle, &status);

   if (!pbuf)
      return status;

   bm_lock_buffer_guard pbuf_guard(pbuf);

   if (!pbuf_guard.is_locked())
      return pbuf_guard.get_status();

   memcpy(buffer_header, pbuf->buffer_header, sizeof(BUFFER_HEADER));

#endif                          /* LOCAL_ROUTINES */

   return BM_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bm_get_buffer_level()

INT EXPRT bm_get_buffer_level	(	INT	buffer_handle,
		INT *	n_bytes
	)

Definition at line 7838 of file midas.cxx.

{
   if (rpc_is_remote())
      return rpc_call(RPC_BM_GET_BUFFER_LEVEL, buffer_handle, n_bytes);

#ifdef LOCAL_ROUTINES
   {
      int status = 0;

      BUFFER *pbuf = bm_get_buffer("bm_get_buffer_level", buffer_handle, &status);

      if (!pbuf)
         return status;

      bm_lock_buffer_guard pbuf_guard(pbuf);

      if (!pbuf_guard.is_locked())
         return pbuf_guard.get_status();

      BUFFER_HEADER *pheader = pbuf->buffer_header;

      BUFFER_CLIENT *pclient = bm_get_my_client_locked(pbuf_guard);

      *n_bytes = pheader->write_pointer - pclient->read_pointer;
      if (*n_bytes < 0)
         *n_bytes += pheader->size;

      pbuf_guard.unlock();

      if (pbuf->read_cache_size) {
         status = bm_lock_buffer_read_cache(pbuf);
         if (status == BM_SUCCESS) {
            /* add bytes in cache */
            if (pbuf->read_cache_wp > pbuf->read_cache_rp)
               *n_bytes += pbuf->read_cache_wp - pbuf->read_cache_rp;
            pbuf->read_cache_mutex.unlock();
         }
      }
   }
#endif                          /* LOCAL_ROUTINES */

   return BM_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bm_init_buffer_counters()

INT EXPRT bm_init_buffer_counters ( INT buffer_handle )

Definition at line 8063 of file midas.cxx.

{
   if (rpc_is_remote())
      return rpc_call(RPC_BM_INIT_BUFFER_COUNTERS, buffer_handle);

#ifdef LOCAL_ROUTINES

   int status = 0;

   BUFFER* pbuf = bm_get_buffer("bm_init_buffer_counters", buffer_handle, &status);

   if (!pbuf)
      return status;

   bm_lock_buffer_guard pbuf_guard(pbuf);

   if (!pbuf_guard.is_locked())
      return pbuf_guard.get_status();

   pbuf->buffer_header->num_in_events = 0;
   pbuf->buffer_header->num_out_events = 0;

#endif                          /* LOCAL_ROUTINES */

   return BM_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ close_subfolder()

void EXPRT close_subfolder ( void )

Here is the caller graph for this function:

◆ cm_msg()

INT EXPRT cm_msg	(	INT	message_type,
		const char *	filename,
		INT	line,
		const char *	routine,
		const char *	format,
			...
	)

◆ cm_msg1()

INT EXPRT INT EXPRT cm_msg1	(	INT	message_type,
		const char *	filename,
		INT	line,
		const char *	facility,
		const char *	routine,
		const char *	format,
			...
	)

◆ cm_transition_name()

std::string EXPRT cm_transition_name ( int transition )

Definition at line 133 of file midas.cxx.

{
   if (transition == TR_START) return "START";
   if (transition == TR_STOP)  return "STOP";
   if (transition == TR_PAUSE) return "PAUSE";
   if (transition == TR_RESUME) return "RESUME";
   if (transition == TR_STARTABORT) return "STARTABORT";
   if (transition == TR_DEFERRED) return "DEFERRED";
   return msprintf("UNKNOWN TRANSITION %d", transition);
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cm_write_event_to_odb()

int EXPRT cm_write_event_to_odb	(	HNDLE	hDB,
		HNDLE	hKey,
		const EVENT_HEADER *	pevent,
		INT	format
	)

Definition at line 17723 of file midas.cxx.

{
   if (format == FORMAT_FIXED) {
      int status;
      status = db_set_record(hDB, hKey, (char *) (pevent + 1), pevent->data_size, 0);
      if (status != DB_SUCCESS) {
         cm_msg(MERROR, "cm_write_event_to_odb", "event %d ODB record size mismatch, db_set_record() status %d", pevent->event_id, status);
         return status;
      }
      return SUCCESS;
   } else if (format == FORMAT_MIDAS) {
      INT size, i, status, n_data;
      int n;
      char *pdata, *pdata0;

      char name[5];
      BANK_HEADER *pbh;
      BANK *pbk;
      BANK32 *pbk32;
      BANK32A *pbk32a;
      DWORD bkname;
      WORD bktype;
      HNDLE hKeyRoot, hKeyl, *hKeys;
      KEY key;

      pbh = (BANK_HEADER *) (pevent + 1);
      pbk = NULL;
      pbk32 = NULL;
      pbk32a = NULL;

      /* count number of banks */
      for (n=0 ; ; n++) {
         if (bk_is32a(pbh)) {
            bk_iterate32a(pbh, &pbk32a, &pdata);
            if (pbk32a == NULL)
               break;
         } else if (bk_is32(pbh)) {
            bk_iterate32(pbh, &pbk32, &pdata);
            if (pbk32 == NULL)
               break;
         } else {
            bk_iterate(pbh, &pbk, &pdata);
            if (pbk == NULL)
               break;
         }
      }

      /* build array of keys */
      hKeys = (HNDLE *)malloc(sizeof(HNDLE) * n);

      pbk = NULL;
      pbk32 = NULL;
      n = 0;
      do {
         /* scan all banks */
         if (bk_is32a(pbh)) {
            size = bk_iterate32a(pbh, &pbk32a, &pdata);
            if (pbk32a == NULL)
               break;
            bkname = *((DWORD *) pbk32a->name);
            bktype = (WORD) pbk32a->type;
         } else if (bk_is32(pbh)) {
            size = bk_iterate32(pbh, &pbk32, &pdata);
            if (pbk32 == NULL)
               break;
            bkname = *((DWORD *) pbk32->name);
            bktype = (WORD) pbk32->type;
         } else {
            size = bk_iterate(pbh, &pbk, &pdata);
            if (pbk == NULL)
               break;
            bkname = *((DWORD *) pbk->name);
            bktype = (WORD) pbk->type;
         }

         n_data = size;
         if (rpc_tid_size(bktype & 0xFF))
            n_data /= rpc_tid_size(bktype & 0xFF);

         /* get bank key */
         *((DWORD *) name) = bkname;
         name[4] = 0;
         /* record the start of the data in case it is struct */
         pdata0 = pdata;
         if (bktype == TID_STRUCT) {
            status = db_find_key(hDB, hKey, name, &hKeyRoot);
            if (status != DB_SUCCESS) {
               cm_msg(MERROR, "cm_write_event_to_odb", "please define bank \"%s\" in BANK_LIST in frontend", name);
               continue;
            }

            /* write structured bank */
            for (i = 0;; i++) {
               status = db_enum_key(hDB, hKeyRoot, i, &hKeyl);
               if (status == DB_NO_MORE_SUBKEYS)
                  break;

               db_get_key(hDB, hKeyl, &key);

               /* adjust for alignment */
               if (key.type != TID_STRING && key.type != TID_LINK)
                  pdata = (pdata0 + VALIGN(pdata-pdata0, MIN(ss_get_struct_align(), key.item_size)));

               status = db_set_data1(hDB, hKeyl, pdata, key.item_size * key.num_values, key.num_values, key.type);
               if (status != DB_SUCCESS) {
                  cm_msg(MERROR, "cm_write_event_to_odb", "cannot write bank \"%s\" to ODB, db_set_data1() status %d", name, status);
                  continue;
               }
               hKeys[n++] = hKeyl;

               /* shift data pointer to next item */
               pdata += key.item_size * key.num_values;
            }
         } else {
            /* write variable length bank  */
            status = db_find_key(hDB, hKey, name, &hKeyRoot);
            if (status != DB_SUCCESS) {
               status = db_create_key(hDB, hKey, name, bktype);
               if (status != DB_SUCCESS) {
                  cm_msg(MERROR, "cm_write_event_to_odb", "cannot create key for bank \"%s\" with tid %d in ODB, db_create_key() status %d", name, bktype, status);
                  continue;
               }
               status = db_find_key(hDB, hKey, name, &hKeyRoot);
               if (status != DB_SUCCESS) {
                  cm_msg(MERROR, "cm_write_event_to_odb", "cannot find key for bank \"%s\" in ODB, after db_create_key(), db_find_key() status %d", name, status);
                  continue;
               }
            }
            if (n_data > 0) {
               status = db_set_data1(hDB, hKeyRoot, pdata, size, n_data, bktype & 0xFF);
               if (status != DB_SUCCESS) {
                  cm_msg(MERROR, "cm_write_event_to_odb", "cannot write bank \"%s\" to ODB, db_set_data1() status %d", name, status);
               }
               hKeys[n++] = hKeyRoot;
            }
         }
      } while (1);

      /* notify all hot-lined clients in one go */
      db_notify_clients_array(hDB, hKeys, n*sizeof(INT));

      free(hKeys);

      return SUCCESS;
   } else {
      cm_msg(MERROR, "cm_write_event_to_odb", "event format %d is not supported (see midas.h definitions of FORMAT_xxx)", format);
      return CM_DB_ERROR;
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dbg_calloc()

void * dbg_calloc	(	unsigned int	size,
		unsigned int	count,
		char *	file,
		int	line
	)

Definition at line 341 of file midas.cxx.

                                                                              {
   void *adr;

   adr = dbg_malloc(size * count, file, line);
   if (adr)
      memset(adr, 0, size * count);

   return adr;
}

Here is the call graph for this function:

◆ dbg_free()

void dbg_free	(	void *	adr,
		char *	file,
		int	line
	)

Definition at line 351 of file midas.cxx.

                                               {
   FILE *f;
   int i;

   free(adr);

   for (i = 0; i < _n_mem; i++)
      if (_mem_loc[i].adr == adr)
         break;

   if (i < _n_mem)
      _mem_loc[i].adr = NULL;

   f = fopen("mem.txt", "w");
   for (i = 0; i < _n_mem; i++)
      if (_mem_loc[i].adr)
         fprintf(f, "%s:%d %s:%d size=%d adr=%p\n", _mem_loc[i].file, _mem_loc[i].line,
                 file, line, _mem_loc[i].size, _mem_loc[i].adr);
   fclose(f);
}

Here is the call graph for this function:

◆ dbg_malloc()

void * dbg_malloc	(	unsigned int	size,
		char *	file,
		int	line
	)

Definition at line 306 of file midas.cxx.

                                                          {
   FILE *f;
   void *adr;
   int i;

   adr = malloc(size);

   /* search for deleted entry */
   for (i = 0; i < _n_mem; i++)
      if (_mem_loc[i].adr == NULL)
         break;

   if (i == _n_mem) {
      _n_mem++;
      if (!_mem_loc)
         _mem_loc = (DBG_MEM_LOC *) malloc(sizeof(DBG_MEM_LOC));
      else
         _mem_loc = (DBG_MEM_LOC *) realloc(_mem_loc, sizeof(DBG_MEM_LOC) * _n_mem);
   }

   _mem_loc[i].adr = adr;
   _mem_loc[i].size = size;
   strcpy(_mem_loc[i].file, file);
   _mem_loc[i].line = line;

   f = fopen("mem.txt", "w");
   for (i = 0; i < _n_mem; i++)
      if (_mem_loc[i].adr)
         fprintf(f, "%s:%d size=%d adr=%p\n", _mem_loc[i].file, _mem_loc[i].line, _mem_loc[i].size,
                 _mem_loc[i].adr);
   fclose(f);

   return adr;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ device_driver()

INT device_driver	(	DEVICE_DRIVER *	device_driver,
		INT	cmd,
			...
	)

Definition at line 153 of file device_driver.cxx.

{
   va_list argptr;
   HNDLE hKey;
   INT channel, status, i, j;
   float value, *pvalue;
   char *name, *label;

   va_start(argptr, cmd);
   status = FE_SUCCESS;

   /* don't execute command if driver is disabled */
   if (!device_drv->enabled)
      return FE_PARTIALLY_DISABLED;

   switch (cmd) {
   case CMD_INIT:
      hKey = va_arg(argptr, HNDLE);

      if (device_drv->flags & DF_MULTITHREAD) {
         status = device_drv->dd(CMD_INIT, hKey, &device_drv->dd_info,
                                    device_drv->channels, device_drv->flags,
                                    device_drv->bd);

         if (status == FE_SUCCESS && (device_drv->flags & DF_MULTITHREAD)) {
            /* create inter-thread data exchange buffers */
            device_drv->mt_buffer = (DD_MT_BUFFER *) calloc(1, sizeof(DD_MT_BUFFER));
            device_drv->mt_buffer->n_channels = device_drv->channels;
            device_drv->mt_buffer->channel = (DD_MT_CHANNEL *) calloc(device_drv->channels, sizeof(DD_MT_CHANNEL));
            assert(device_drv->mt_buffer->channel);

            /* initialize n_read for all channels */
            for (i=0 ; i<device_drv->channels ; i++)
               device_drv->mt_buffer->channel[i].n_read = 0;

            /* set all get values to NaN */
            for (i=0 ; i<device_drv->channels ; i++)
               for (j=CMD_GET_FIRST ; j<=CMD_GET_LAST ; j++)
                  device_drv->mt_buffer->channel[i].variable[j] = (float) ss_nan();

            /* set all set values to NaN */
            for (i=0 ; i<device_drv->channels ; i++)
               for (j=CMD_SET_FIRST ; j<=CMD_SET_LAST ; j++)
                  device_drv->mt_buffer->channel[i].variable[j] = (float)ss_nan();

            /* get default names for this driver already now */
            for (i = 0; i < device_drv->channels; i++) {
               device_drv->dd(CMD_GET_LABEL, device_drv->dd_info, i,
                              device_drv->mt_buffer->channel[i].label);
            }
            /* create semaphore */
            status = ss_mutex_create(&device_drv->mutex, FALSE);
            if (status != SS_CREATED && status != SS_SUCCESS)
               return FE_ERR_DRIVER;
            status = FE_SUCCESS;
         }
      } else {
         status = device_drv->dd(CMD_INIT, hKey, &device_drv->dd_info,
                                    device_drv->channels, device_drv->flags,
                                    device_drv->bd);
      }
      break;

   case CMD_START:
      if (device_drv->flags & DF_MULTITHREAD && device_drv->mt_buffer != NULL) {
         /* create dedicated thread for this device */
         device_drv->mt_buffer->thread_id = ss_thread_create(sc_thread, device_drv);
      }
      break;

   case CMD_CLOSE:
      /* signal all threads to stop */
      if (device_drv->flags & DF_MULTITHREAD && device_drv->mt_buffer != NULL)
         device_drv->stop_thread = 1;
      break;

   case CMD_STOP:
      if (device_drv->flags & DF_MULTITHREAD && device_drv->mt_buffer != NULL) {
         if (device_drv->stop_thread == 0)
            device_drv->stop_thread = 1;

         /* wait for max. 10 seconds until thread has gracefully stopped */
         for (i = 0; i < 1000; i++) {
            if (device_drv->stop_thread == 2)
               break;
            ss_sleep(10);
         }

         /* if timeout expired, kill thread */
         if (i == 1000)
            ss_thread_kill(device_drv->mt_buffer->thread_id);

         ss_mutex_delete(device_drv->mutex);
         free(device_drv->mt_buffer->channel);
         free(device_drv->mt_buffer);
      }
      break;

   case CMD_EXIT:
      status = device_drv->dd(CMD_EXIT, device_drv->dd_info);
      break;

   case CMD_SET_LABEL:
      channel = va_arg(argptr, INT);
      label = va_arg(argptr, char *);
      status = device_drv->dd(CMD_SET_LABEL, device_drv->dd_info, channel, label);
      break;

   case CMD_GET_LABEL:
      channel = va_arg(argptr, INT);
      name = va_arg(argptr, char *);
      status = device_drv->dd(CMD_GET_LABEL, device_drv->dd_info, channel, name);
      break;

   default:

      if (cmd >= CMD_SET_FIRST && cmd <= CMD_SET_LAST) {

         /* transfer data to sc_thread for SET commands */
         channel = va_arg(argptr, INT);
         value = (float) va_arg(argptr, double);        // floats are passed as double
         if (device_drv->flags & DF_MULTITHREAD) {
            ss_mutex_wait_for(device_drv->mutex, 1000);
            device_drv->mt_buffer->channel[channel].variable[cmd] = value;
            status = device_drv->mt_buffer->status;
            ss_mutex_release(device_drv->mutex);
         } else {
            status = device_drv->dd(cmd, device_drv->dd_info, channel, value);
         }

      } else if (cmd >= CMD_GET_FIRST && cmd <= CMD_GET_LAST) {

         /* transfer data from sc_thread for GET commands */
         channel = va_arg(argptr, INT);
         pvalue = va_arg(argptr, float *);
         if (device_drv->flags & DF_MULTITHREAD) {
            ss_mutex_wait_for(device_drv->mutex, 1000);
            *pvalue = device_drv->mt_buffer->channel[channel].variable[cmd];
            status = device_drv->mt_buffer->status;
            if (device_drv->mt_buffer->channel[channel].n_read < 1)
               status = FE_NOT_YET_READ;
            ss_mutex_release(device_drv->mutex);
         } else
            status = device_drv->dd(cmd, device_drv->dd_info, channel, pvalue);

      } else {

         /* all remaining commands which are passed directly to the device driver */
         channel = va_arg(argptr, INT);
         pvalue = va_arg(argptr, float *);
         status = device_drv->dd(cmd, device_drv->dd_info, channel, pvalue);
      }

      break;
   }

   va_end(argptr);
   return status;
}

Here is the call graph for this function:

◆ ends_with_char()

bool EXPRT ends_with_char	(	const std::string &	s,
		char	c
	)

Definition at line 403 of file midas.cxx.

{
   if (s.length() < 1)
      return false;
   return s[s.length()-1] == c;
}

Here is the caller graph for this function:

◆ hs_image_retrieve()

int hs_image_retrieve	(	std::string	image_name,
		time_t	start,
		time_t	stop,
		std::vector< time_t > &	vtime,
		std::vector< std::string > &	vfilename
	)

Definition at line 332 of file history_image.cxx.

{
   // auto start = usStart();
   std::string path = history_dir() + image_name;

   std::string mask;
   if (start_time == stop_time) {
      ss_tzset(); // required by localtime_r()
      struct tm ltm;
      localtime_r(&start_time, &ltm);
      std::stringstream s;
      s <<
        std::setfill('0') << std::setw(2) << ltm.tm_year - 100 <<
        std::setfill('0') << std::setw(2) << ltm.tm_mon + 1 <<
        std::setfill('0') << std::setw(2) << ltm.tm_mday <<
        "_" << "??????.*";
      mask = s.str();
   } else {
      ss_tzset(); // required by localtime_r()
      struct tm ltStart, ltStop;
      localtime_r(&start_time, &ltStart);
      localtime_r(&stop_time, &ltStop);
      std::stringstream sStart, sStop;
      std::string mStart, mStop;
      mask = "??????_??????.*";

      sStart <<
        std::setfill('0') << std::setw(2) << ltStart.tm_year - 100 <<
        std::setfill('0') << std::setw(2) << ltStart.tm_mon + 1 <<
        std::setfill('0') << std::setw(2) << ltStart.tm_mday <<
        "_" <<
        std::setfill('0') << std::setw(2) << ltStart.tm_hour <<
        std::setfill('0') << std::setw(2) << ltStart.tm_min <<
        std::setfill('0') << std::setw(2) << ltStart.tm_sec;
      mStart = sStart.str();
      sStop <<
        std::setfill('0') << std::setw(2) << ltStop.tm_year - 100 <<
        std::setfill('0') << std::setw(2) << ltStop.tm_mon + 1 <<
        std::setfill('0') << std::setw(2) << ltStop.tm_mday <<
        "_" <<
        std::setfill('0') << std::setw(2) << ltStop.tm_hour <<
        std::setfill('0') << std::setw(2) << ltStop.tm_min <<
        std::setfill('0') << std::setw(2) << ltStop.tm_sec;
      mStop = sStop.str();
      for (int i=0 ; i<13 ; i++) {
         if (mStart[i] == mStop[i])
            mask[i] = mStart[i];
         else
            break;
      }
   }

   STRING_LIST vfn;

   ss_file_find(path.c_str(), mask.c_str(), &vfn);

   if (vfn.size() == 0)
      ss_file_find(path.c_str(), "??????_??????.*", &vfn);

   std::sort(vfn.begin(), vfn.end());

   time_t minDiff = 1E7;
   time_t minTime{};
   int minIndex{};

   for (unsigned i=0 ; i<vfn.size() ; i++) {
      struct tm ti{};
      sscanf(vfn[i].c_str(), "%2d%2d%2d_%2d%2d%2d", &ti.tm_year, &ti.tm_mon,
             &ti.tm_mday, &ti.tm_hour, &ti.tm_min, &ti.tm_sec);
      ti.tm_year += 100;
      ti.tm_mon -= 1;
      ti.tm_isdst = -1;
      time_t ft = ss_mktime(&ti);
      time_t now;
      time(&now);

      if (abs(ft - start_time) < minDiff) {
         minDiff = abs(ft - start_time);
         minTime = ft;
         minIndex = i;
      }

      if (start_time != stop_time && ft >= start_time && ft <= stop_time) {
         vtime.push_back(ft);
         vfilename.push_back(vfn[i]);
      }
   }

   // start == stop means return single image closest to them
   if (start_time == stop_time && vfn.size() > 0) {
      vtime.push_back(minTime);
      vfilename.push_back(vfn[minIndex]);
   }

   //std::cout << "mask = " << mask << ", n = " << n << ", t = " << usSince(start)/1000.0 << " ms" << std::endl;

   return HS_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lock_histo()

void EXPRT lock_histo ( INT id )

Definition at line 3523 of file mana.cxx.

{
   INT i;

   for (i = 0; i < 10000; i++)
      if (lock_list[i] == 0)
         break;

   lock_list[i] = id;
}

◆ msprintf()

std::string msprintf	(	const char *	format,
			...
	)

◆ open_subfolder()

void EXPRT open_subfolder ( const char * name )

Here is the caller graph for this function:

◆ rpc_register_function()

INT EXPRT rpc_register_function	(	INT	id,
		RPC_HANDLER	func
	)

◆ test_register()

void EXPRT test_register ( ANA_TEST * t )

Definition at line 546 of file mana.cxx.

{
   int i;

   /* check if test already registered */
   for (i = 0; i < n_test; i++)
      if (tl[i] == t)
         break;
   if (i < n_test) {
      t->registered = TRUE;
      return;
   }

   /* allocate space for pointer to test */
   if (n_test == 0) {
      tl = (ANA_TEST **) malloc(2 * sizeof(void *));

      /* define "always true" test */
      tl[0] = (ANA_TEST *) malloc(sizeof(ANA_TEST));
      strcpy(tl[0]->name, "Always true");
      tl[0]->count = 0;
      tl[0]->previous_count = 0;
      tl[0]->value = TRUE;
      tl[0]->registered = TRUE;
      n_test++;
   } else
      tl = (ANA_TEST **) realloc(tl, (n_test + 1) * sizeof(void *));

   tl[n_test] = t;
   t->count = 0;
   t->value = FALSE;
   t->registered = TRUE;

   n_test++;
}

Here is the call graph for this function:

Classes

Macros

Typedefs

Functions

Detailed Description

Macro Definition Documentation

◆ ALARM_CLASS_STR

◆ ALARM_ODB_STR

◆ ALARM_PERIODIC_STR

◆ ANA_CONTINUE

◆ ANA_OUTPUT_INFO_STR

◆ ANA_SKIP

◆ AT_EVALUATED

◆ AT_INTERNAL

◆ AT_LAST

◆ AT_PERIODIC

◆ AT_PROGRAM

◆ BANK_FORMAT_32BIT

◆ BANK_FORMAT_64BIT_ALIGNED

◆ BANK_FORMAT_VERSION

◆ BANKLIST_MAX

◆ CARRAY [1/2]

◆ CARRAY [2/2]

◆ cARRAY

◆ CBOOL [1/2]

◆ CBOOL [2/2]

◆ cBOOL

◆ CBYTE [1/2]

◆ CBYTE [2/2]

◆ cBYTE

◆ CDOUBLE [1/2]

◆ CDOUBLE [2/2]

◆ cDOUBLE

◆ CDWORD [1/2]

◆ CDWORD [2/2]

◆ cDWORD

◆ CF_ENDIAN

◆ CF_IEEE2VAX

◆ CF_VAX2IEEE

◆ CFLOAT [1/2]

◆ CFLOAT [2/2]

◆ cFLOAT

◆ CH_BS

◆ CH_CR

◆ CH_DELETE

◆ CH_DOWN

◆ CH_END

◆ CH_EXT

◆ CH_HOME

◆ CH_INSERT

◆ CH_LEFT

◆ CH_LF

◆ CH_PDOWN

◆ CH_PUP

◆ CH_RIGHT

◆ CH_TAB

◆ CH_UP

◆ CHNDLE [1/2]

◆ CHNDLE [2/2]

◆ cHNDLE

◆ CINT [1/2]

◆ CINT [2/2]

◆ cINT

◆ CLONG [1/2]

◆ CLONG [2/2]

◆ cLONG

◆ CNAF

◆ CNAF_CRATE_CLEAR

◆ CNAF_CRATE_ZINIT

◆ CNAF_INHIBIT_CLEAR

◆ CNAF_INHIBIT_SET

◆ CNAF_nQ

◆ CNAF_TEST

◆ CPBOOL [1/2]

◆ CPBOOL [2/2]

◆ cPBOOL

◆ CPBYTE [1/2]

◆ CPBYTE [2/2]

◆ cPBYTE

◆ CPDOUBLE [1/2]
