EqBulk Class Reference

Inheritance diagram for EqBulk:

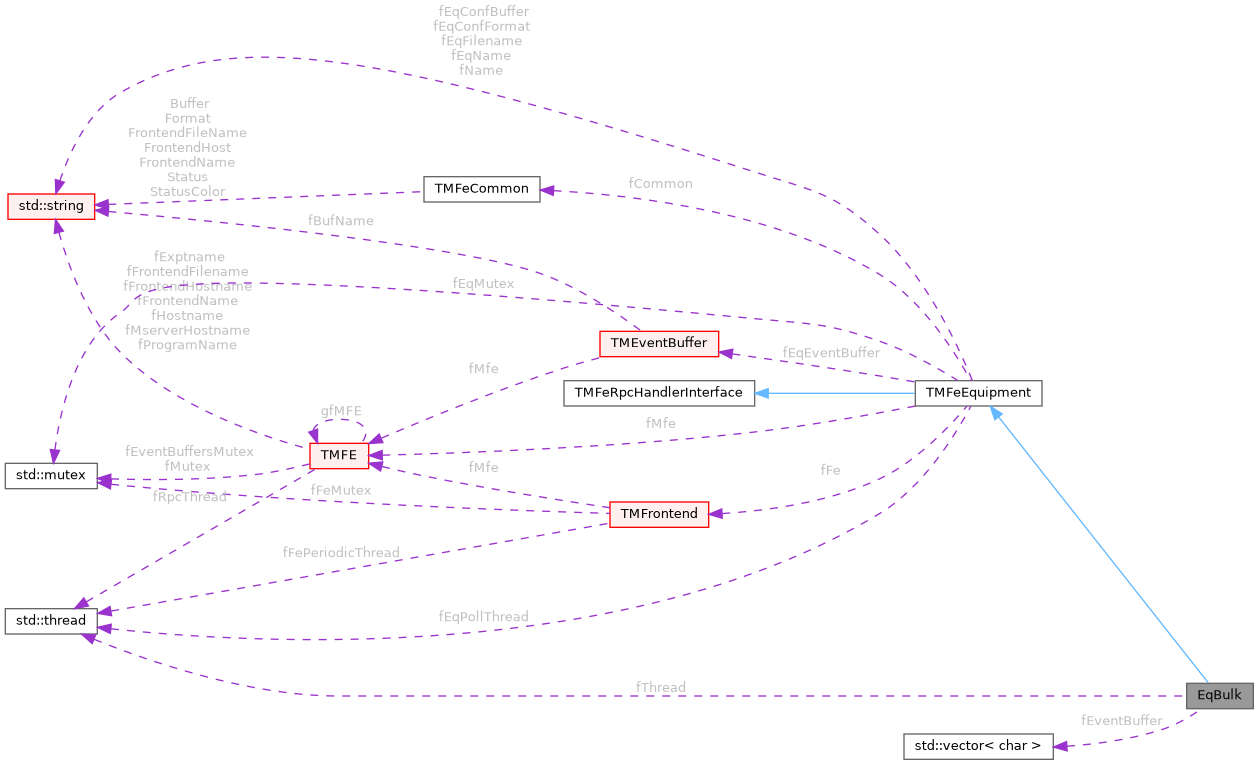

Collaboration diagram for EqBulk:

Public Member Functions
	EqBulk (const char *eqname, const char *eqfilename)
	~EqBulk ()
TMFeResult	HandleInit (const std::vector< std::string > &args)
void	SendEvent ()
void	Thread ()
Public Member Functions inherited from TMFeEquipment
	TMFeEquipment (const char *eqname, const char *eqfilename)
virtual	~TMFeEquipment ()
TMFeResult	EqInit (const std::vector< std::string > &args)
	Initialize equipment.
TMFeResult	EqPreInit ()
	Initialize equipment, before EquipmentBase::Init()
TMFeResult	EqPostInit ()
	Initialize equipment, after EquipmentBase::Init()
TMFeResult	EqReadCommon ()
	Read TMFeEqInfo from ODB /Equipment/NAME/Common.
TMFeResult	EqWriteCommon (bool create=false)
	Write TMFeEqInfo to ODB /Equipment/NAME/Common.
virtual void	HandleUsage ()
virtual TMFeResult	HandleBeginRun (int run_number)
virtual TMFeResult	HandleEndRun (int run_number)
virtual TMFeResult	HandlePauseRun (int run_number)
virtual TMFeResult	HandleResumeRun (int run_number)
virtual TMFeResult	HandleStartAbortRun (int run_number)
virtual TMFeResult	HandleRpc (const char *cmd, const char *args, std::string &response)
virtual TMFeResult	HandleBinaryRpc (const char *cmd, const char *args, std::vector< char > &result)
virtual void	HandlePeriodic ()
virtual bool	HandlePoll ()
virtual void	HandlePollRead ()
void	EqPollThread ()
void	EqStartPollThread ()
void	EqStopPollThread ()
TMFeResult	ComposeEvent (char *pevent, size_t size) const
TMFeResult	BkInit (char *pevent, size_t size) const
void *	BkOpen (char *pevent, const char *bank_name, int bank_type) const
TMFeResult	BkClose (char *pevent, void *ptr) const
int	BkSize (const char *pevent) const
TMFeResult	EqSendEvent (const char *pevent, bool write_to_odb=true)
TMFeResult	EqSendEvent (const std::vector< char > &event, bool write_to_odb=true)
TMFeResult	EqSendEvent (const std::vector< std::vector< char > > &event, bool write_to_odb=true)
TMFeResult	EqSendEvent (int sg_n, const char *sg_ptr[], const size_t sg_len[], bool write_to_odb=true)
TMFeResult	EqWriteEventToOdb (const char *pevent)
TMFeResult	EqZeroStatistics ()
TMFeResult	EqWriteStatistics ()
TMFeResult	EqSetStatus (const char *status, const char *color)
	TMFeEquipment (TMFE *mfe, const char *name, TMFeCommon *common)
TMFeError	Init ()
	Initialize equipment.
TMFeError	SendData (const char *data, int size)
	...
TMFeError	ComposeEvent (char *pevent, int size)
TMFeError	BkInit (char *pevent, int size)
void *	BkOpen (char *pevent, const char *bank_name, int bank_type)
TMFeError	BkClose (char *pevent, void *ptr)
int	BkSize (const char *pevent)
TMFeError	SendEvent (const char *pevent)
TMFeError	ZeroStatistics ()
TMFeError	WriteStatistics ()
TMFeError	SetStatus (const char *status, const char *color)
Public Member Functions inherited from TMFeRpcHandlerInterface
virtual	~TMFeRpcHandlerInterface ()
virtual void	HandleBeginRun ()
virtual void	HandleEndRun ()
virtual void	HandlePauseRun ()
virtual void	HandleResumeRun ()
virtual void	HandleStartAbortRun ()
virtual std::string	HandleRpc (const char *cmd, const char *args)

Public Attributes
int	fEventSize = 0
double	fEventSleep = 1.0
std::vector< char >	fEventBuffer
std::atomic_bool	fThreadRunning {false}
std::thread *	fThread = NULL
Public Attributes inherited from TMFeEquipment
std::string	fEqName
std::string	fEqFilename
bool	fEqConfEnableRpc = true
bool	fEqConfEnablePeriodic = true
bool	fEqConfEnablePoll = false
bool	fEqConfReadConfigFromOdb = true
bool	fEqConfEnabled = true
uint16_t	fEqConfEventID = 1
uint16_t	fEqConfTriggerMask = 0
std::string	fEqConfBuffer = "SYSTEM"
int	fEqConfType = 0
int	fEqConfSource = 0
std::string	fEqConfFormat = "MIDAS"
int	fEqConfReadOn = 0
int	fEqConfPeriodMilliSec = 1000
double	fEqConfEventLimit = 0
uint32_t	fEqConfNumSubEvents = 0
int	fEqConfLogHistory = 0
bool	fEqConfHidden = false
int	fEqConfWriteCacheSize = 10000000
bool	fEqConfReadOnlyWhenRunning = true
bool	fEqConfWriteEventsToOdb = false
double	fEqConfPeriodStatisticsSec = 1.0
double	fEqConfPollSleepSec = 0.000100
size_t	fEqConfMaxEventSize = 0
size_t	fEqConfBufferSize = 0
std::mutex	fEqMutex
TMFE *	fMfe = NULL
TMFrontend *	fFe = NULL
MVOdb *	fOdbEq = NULL
	ODB Equipment/EQNAME.
MVOdb *	fOdbEqCommon = NULL
	ODB Equipment/EQNAME/Common.
MVOdb *	fOdbEqSettings = NULL
	ODB Equipment/EQNAME/Settings.
MVOdb *	fOdbEqVariables = NULL
	ODB Equipment/EQNAME/Variables.
MVOdb *	fOdbEqStatistics = NULL
	ODB Equipment/EQNAME/Statistics.
TMEventBuffer *	fEqEventBuffer = NULL
int	fEqSerial = 0
double	fEqStatEvents = 0
double	fEqStatBytes = 0
double	fEqStatEpS = 0
double	fEqStatKBpS = 0
double	fEqStatLastTime = 0
double	fEqStatLastEvents = 0
double	fEqStatLastBytes = 0
double	fEqStatLastWrite = 0
double	fEqStatNextWrite = 0
double	fEqPeriodicLastCallTime = 0
double	fEqPeriodicNextCallTime = 0
std::atomic_bool	fEqPollThreadStarting {false}
std::atomic_bool	fEqPollThreadRunning {false}
std::atomic_bool	fEqPollThreadShutdownRequested {false}
std::thread *	fEqPollThread = NULL
std::string	fName
TMFeCommon *	fCommon
int	fBufferHandle
int	fSerial
double	fStatEvents
double	fStatBytes
double	fStatEpS
double	fStatKBpS
double	fStatLastTime
double	fStatLastEvents
double	fStatLastBytes

Detailed Description

Definition at line 246 of file fetest.cxx.

Constructor & Destructor Documentation

EqBulk()

EqBulk::EqBulk ( const char *  eqname, const char *  eqfilename  )

inline

Definition at line 259 of file fetest.cxx.

      : TMFeEquipment(eqname, eqfilename)
   {
      fEqConfPeriodMilliSec = 1000;
      fEqConfEventID = 3;
      fEqConfReadOnlyWhenRunning = true;
   }

~EqBulk()

EqBulk::~EqBulk ( )

inline

Definition at line 267 of file fetest.cxx.

   {
      // wait for thread to finish
      while (fThreadRunning) {
         fMfe->Sleep(0.1);
      }

      if (fThread) {
         fThread->join();
         delete fThread;
         fThread = NULL;
      }
   }

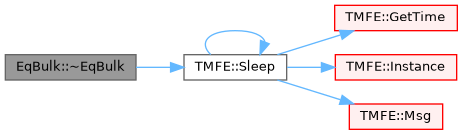

Here is the call graph for this function:

Member Function Documentation

HandleInit()

TMFeResult EqBulk::HandleInit ( const std::vector< std::string > &  args )

inlinevirtual

Reimplemented from TMFeEquipment.

Definition at line 281 of file fetest.cxx.

   {
      EqSetStatus("Starting...", "white");

      fEqConfReadOnlyWhenRunning = true;
      fEqConfWriteEventsToOdb = false;

      fOdbEqSettings->RI("event_size", &fEventSize, true);
      fOdbEqSettings->RD("event_sleep_sec", &fEventSleep, true);

      printf("Event size set to %d bytes\n", fEventSize);

      fEventBuffer.resize(16+8+16+fEventSize+100);

      //size = sizeof(test_rb_wait_sleep);
      //status = db_get_value(hDB, hSet, "rb_wait_sleep", &test_rb_wait_sleep, &size, TID_DWORD, TRUE);
      //assert(status == DB_SUCCESS);
      //printf("Ring buffer wait sleep %d ms\n", test_rb_wait_sleep);

      fThread = new std::thread(&EqBulk::Thread, this);

      return TMFeOk();
   }

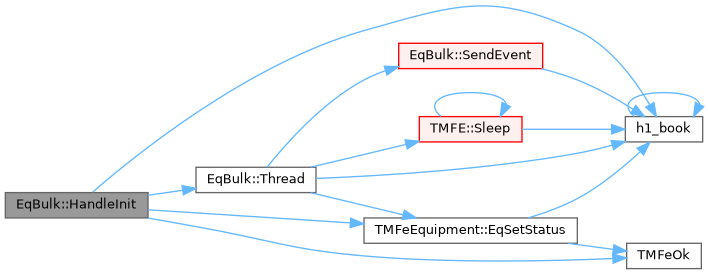

Here is the call graph for this function:

SendEvent()

void EqBulk::SendEvent ( )

inline

Definition at line 305 of file fetest.cxx.

   {
      char* buf = fEventBuffer.data();
      size_t bufsize = fEventBuffer.size();
      ComposeEvent(buf, bufsize);
      BkInit(buf, bufsize);

      char* ptr = (char*)BkOpen(buf, "bulk", TID_BYTE);
      ptr += fEventSize;
      BkClose(buf, ptr);

      EqSendEvent(buf);
   }

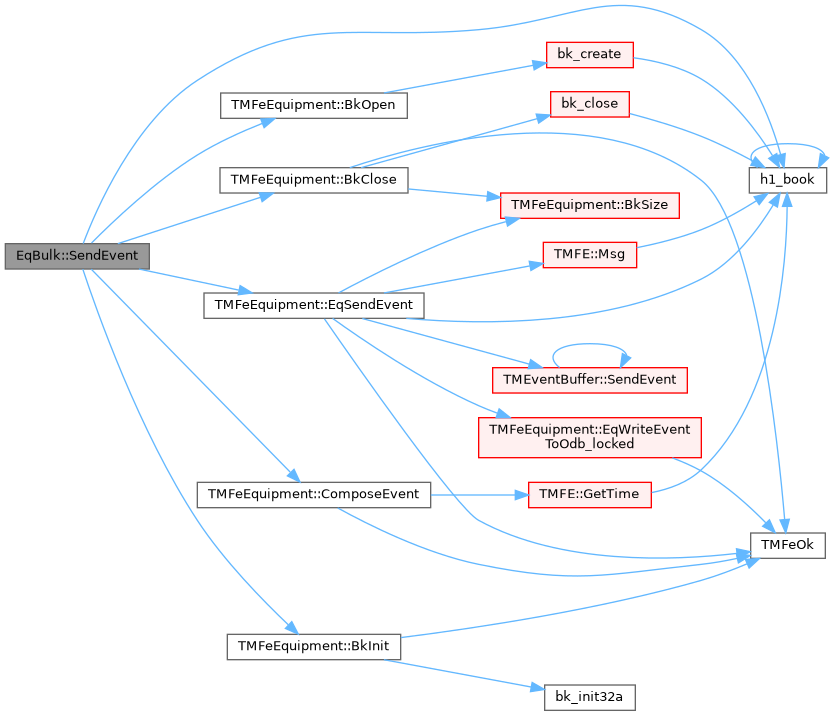

Here is the call graph for this function:

Here is the caller graph for this function:

Thread()

void EqBulk::Thread ( )

inline

Definition at line 319 of file fetest.cxx.

   {
      printf("FeBulk::Thread: thread started\n");

      EqSetStatus("Thread running", "#00FF00");

      fThreadRunning = true;
      while (!fMfe->fShutdownRequested) {
         if (fMfe->fStateRunning || !fEqConfReadOnlyWhenRunning) {
            fMfe->Sleep(fEventSleep);
            SendEvent();
         } else {
            fMfe->Sleep(1.0);
         }
      }

      printf("FeBulk::Thread: thread finished\n");
      fThreadRunning = false;
   }

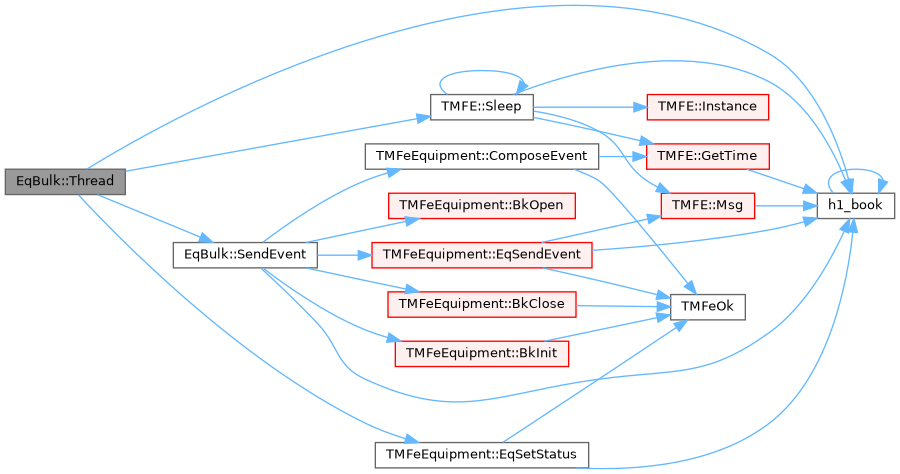

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

fEventBuffer

std::vector<char> EqBulk::fEventBuffer

Definition at line 252 of file fetest.cxx.

fEventSize

int EqBulk::fEventSize = 0

Definition at line 250 of file fetest.cxx.

fEventSleep

double EqBulk::fEventSleep = 1.0

Definition at line 251 of file fetest.cxx.

fThread

std::thread* EqBulk::fThread = NULL

Definition at line 256 of file fetest.cxx.

fThreadRunning

std::atomic_bool EqBulk::fThreadRunning {false}

Definition at line 255 of file fetest.cxx.

{false};

---

The documentation for this class was generated from the following file:

• progs/fetest.cxx
