FeExample Class Reference

Inheritance diagram for FeExample:

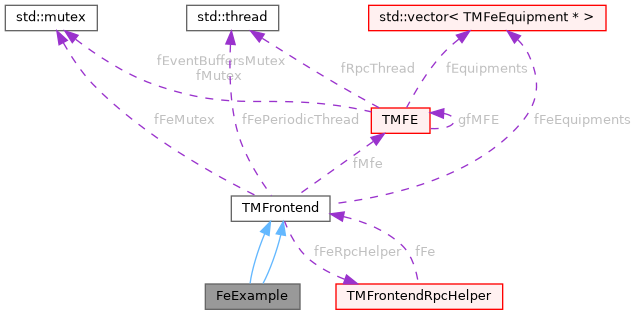

Collaboration diagram for FeExample:

Public Member Functions
	FeExample ()
TMFeResult	HandleFrontendInit (const std::vector< std::string > &args)
TMFeResult	HandleFrontendReady (const std::vector< std::string > &args)
void	HandleFrontendExit ()
	FeExample ()
Public Member Functions inherited from TMFrontend
	TMFrontend ()
virtual	~TMFrontend ()
int	FeMain (int argc, char *argv[])
int	FeMain (const std::vector< std::string > &args)
void	FeUsage (const char *argv0)
virtual TMFeResult	HandleArguments (const std::vector< std::string > &args)
virtual void	HandleUsage ()
void	FeSetName (const char *program_name)
TMFeResult	FeAddEquipment (TMFeEquipment *eq)
TMFeResult	FeRemoveEquipment (TMFeEquipment *eq)
TMFeResult	FeInitEquipments (const std::vector< std::string > &args)
void	FeDeleteEquipments ()
void	FeStopEquipmentPollThreads ()
double	FePeriodicTasks ()
double	FePollTasks (double next_periodic_time)
TMFeResult	FeInit (const std::vector< std::string > &args)
void	FeMainLoop ()
void	FeShutdown ()
void	FePollMidas (double sleep_sec)
void	FePeriodicThread ()
void	FeStartPeriodicThread ()
void	FeStopPeriodicThread ()

Additional Inherited Members
Public Attributes inherited from TMFrontend
TMFE *	fMfe = NULL
TMFrontendRpcHelper *	fFeRpcHelper = NULL
int	fFeIndex = 0
bool	fFeIfRunningCallExit = false
bool	fFeIfRunningCallBeginRun = true
std::mutex	fFeMutex
std::vector< TMFeEquipment * >	fFeEquipments
std::thread *	fFePeriodicThread = NULL
std::atomic_bool	fFePeriodicThreadStarting {false}
std::atomic_bool	fFePeriodicThreadRunning {false}
std::atomic_bool	fFePeriodicThreadShutdownRequested {false}
double	fFeFlushWriteCachePeriodSec = 0.5
double	fFeFlushWriteCacheNextCallTime = 0

Detailed Description

Definition at line 225 of file tmfe_example_frontend.cxx.

Constructor & Destructor Documentation

FeExample() [1/2]

FeExample::FeExample ( )

inline

Definition at line 228 of file tmfe_example_frontend.cxx.

   {
      /* register with the framework */
      FeSetName("Sample Frontend");
      FeAddEquipment(new EqTrigger("Trigger", __FILE__));
      FeAddEquipment(new EqPeriodic("Periodic", __FILE__));
   }

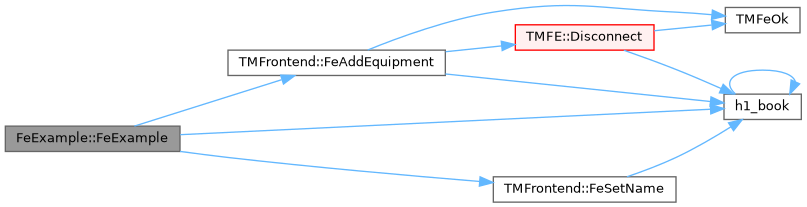

Here is the call graph for this function:

FeExample() [2/2]

FeExample::FeExample ( )

inline

Definition at line 57 of file tmfe_example_indexed.cxx.

   {
      /* register with the framework */
      FeSetName("example_%02d");
      FeAddEquipment(new EqPeriodic("example_%02d", __FILE__));
   }

Here is the call graph for this function:

Member Function Documentation

HandleFrontendExit()

void FeExample::HandleFrontendExit ( )

inlinevirtual

Reimplemented from TMFrontend.

Definition at line 260 of file tmfe_example_frontend.cxx.

   {
      /* hardware shutdown goes here */

      printf("frontend exit!\n");
   };

Here is the call graph for this function:

HandleFrontendInit()

TMFeResult FeExample::HandleFrontendInit ( const std::vector< std::string > &  args )

inlinevirtual

Reimplemented from TMFrontend.

Definition at line 236 of file tmfe_example_frontend.cxx.

   {
      /* called before equipment HandleInit(), do all hardware initialization here */

      printf("frontend init!\n");

      return TMFeOk();
   };

Here is the call graph for this function:

HandleFrontendReady()

TMFeResult FeExample::HandleFrontendReady ( const std::vector< std::string > &  args )

inlinevirtual

Reimplemented from TMFrontend.

Definition at line 245 of file tmfe_example_frontend.cxx.

   {
      /* called after equipment HandleInit(), anything that needs to be done
       * before starting the main loop goes here */

      printf("frontend ready!\n");

      /* start periodic and rpc threads here */

      //fMfe->StartPeriodicThread();
      //fMfe->StartRpcThread();

      return TMFeOk();
   };

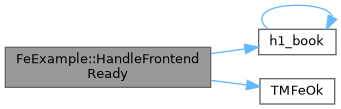

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• progs/tmfe_example_frontend.cxx
• progs/tmfe_example_indexed.cxx
