MidasHistoryInterface Class Reference

#include <history.h>

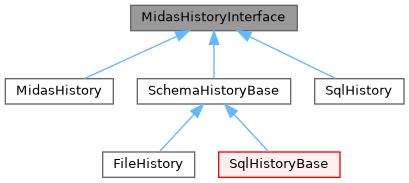

Inheritance diagram for MidasHistoryInterface:

Public Member Functions
	MidasHistoryInterface ()
	history type: MIDAS, ODBC, SQLITE, etc
virtual	~MidasHistoryInterface ()
virtual int	hs_connect (const char *connect_string)=0
	returns HS_SUCCESS
virtual int	hs_disconnect ()=0
	disconnect from history, returns HS_SUCCESS
virtual int	hs_set_debug (int debug)=0
	set debug level, returns previous debug level
virtual int	hs_clear_cache ()=0
	clear internal cache, returns HS_SUCCESS
virtual int	hs_define_event (const char *event_name, time_t timestamp, int ntags, const TAG tags[])=0
	see hs_define_event(), returns HS_SUCCESS or HS_FILE_ERROR
virtual int	hs_write_event (const char *event_name, time_t timestamp, int data_size, const char *data)=0
	see hs_write_event(), returns HS_SUCCESS or HS_FILE_ERROR
virtual int	hs_flush_buffers ()=0
	flush buffered data to storage where it is visible to mhttpd
virtual int	hs_get_events (time_t time_from, std::vector< std::string > *pevents)=0
	get list of events that exist(ed) at given time and later (value 0 means "return all events from beginning of time"), returns HS_SUCCESS
virtual int	hs_get_tags (const char *event_name, time_t time_from, std::vector< TAG > *ptags)=0
	get list of history variables for given event (use event names returned by hs_get_events()) that exist(ed) at given time and later (value 0 means "all variables for this event that ever existed"), also see hs_get_tags(), returns HS_SUCCESS
virtual int	hs_get_last_written (time_t start_time, int num_var, const char *const event_name[], const char *const tag_name[], const int var_index[], time_t last_written[])=0
virtual int	hs_read_buffer (time_t start_time, time_t end_time, int num_var, const char *const event_name[], const char *const tag_name[], const int var_index[], MidasHistoryBufferInterface *buffer[], int status[])=0
	returns HS_SUCCESS
virtual int	hs_read (time_t start_time, time_t end_time, time_t interval, int num_var, const char *const event_name[], const char *const tag_name[], const int var_index[], int num_entries[], time_t *time_buffer[], double *data_buffer[], int status[])=0
	see hs_read(), returns HS_SUCCESS
virtual int	hs_read_binned (time_t start_time, time_t end_time, int num_bins, int num_var, const char *const event_name[], const char *const tag_name[], const int var_index[], int num_entries[], int *count_bins[], double *mean_bins[], double *rms_bins[], double *min_bins[], double *max_bins[], time_t *bins_first_time[], double *bins_first_value[], time_t *bins_last_time[], double *bins_last_value[], time_t last_time[], double last_value[], int status[])=0
	returns HS_SUCCESS

Public Attributes
char	name [NAME_LENGTH]
char	type [NAME_LENGTH]
	history channel name

Detailed Description

Definition at line 108 of file history.h.

Constructor & Destructor Documentation

MidasHistoryInterface()

MidasHistoryInterface::MidasHistoryInterface ( )

inline

history type: MIDAS, ODBC, SQLITE, etc

Definition at line 115 of file history.h.

      {
         name[0] = 0;
         type[0] = 0;
      }

~MidasHistoryInterface()

virtual MidasHistoryInterface::~MidasHistoryInterface ( )

inlinevirtual

Definition at line 121 of file history.h.

{ }; // dtor

Member Function Documentation

hs_clear_cache()

virtual int MidasHistoryInterface::hs_clear_cache ( )

pure virtual

clear internal cache, returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, SchemaHistoryBase, and FileHistory.

Here is the caller graph for this function:

hs_connect()

virtual int MidasHistoryInterface::hs_connect ( const char *  connect_string )

pure virtual

returns HS_SUCCESS

Implemented in SqlHistory, SqlHistoryBase, FileHistory, SchemaHistoryBase, and MidasHistory.

Here is the caller graph for this function:

hs_define_event()

virtual int MidasHistoryInterface::hs_define_event ( const char *  event_name, time_t  timestamp, int  ntags, const TAG  tags[]  )

pure virtual

see hs_define_event(), returns HS_SUCCESS or HS_FILE_ERROR

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

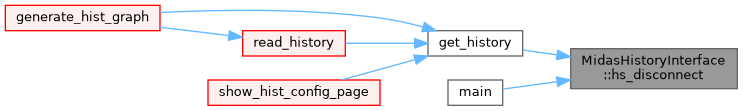

hs_disconnect()

virtual int MidasHistoryInterface::hs_disconnect ( )

pure virtual

disconnect from history, returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, SqlHistoryBase, FileHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

hs_flush_buffers()

virtual int MidasHistoryInterface::hs_flush_buffers ( )

pure virtual

flush buffered data to storage where it is visible to mhttpd

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

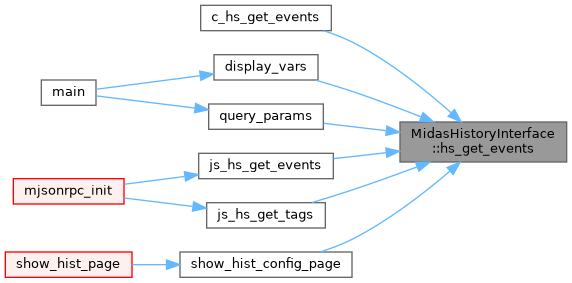

hs_get_events()

virtual int MidasHistoryInterface::hs_get_events ( time_t  time_from, std::vector< std::string > *  pevents  )

pure virtual

get list of events that exist(ed) at given time and later (value 0 means "return all events from beginning of time"), returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

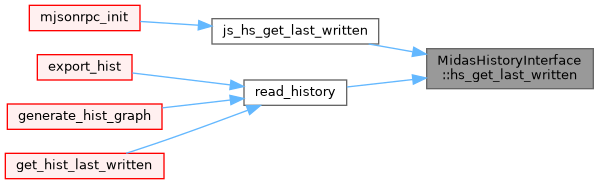

hs_get_last_written()

virtual int MidasHistoryInterface::hs_get_last_written ( time_t  start_time, int  num_var, const char *const  event_name[], const char *const  tag_name[], const int  var_index[], time_t  last_written[]  )

pure virtual

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

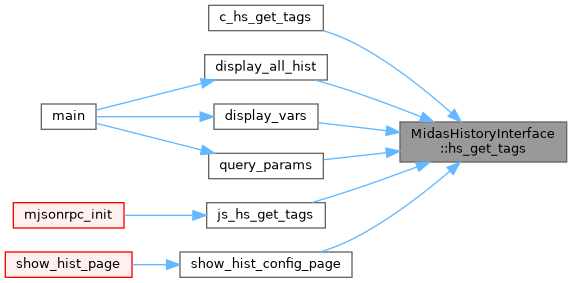

hs_get_tags()

virtual int MidasHistoryInterface::hs_get_tags ( const char *  event_name, time_t  time_from, std::vector< TAG > *  ptags  )

pure virtual

get list of history variables for given event (use event names returned by hs_get_events()) that exist(ed) at given time and later (value 0 means "all variables for this event that ever existed"), also see hs_get_tags(), returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

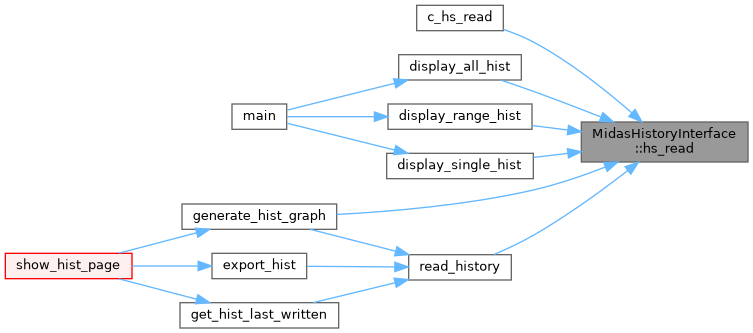

hs_read()

virtual int MidasHistoryInterface::hs_read ( time_t  start_time, time_t  end_time, time_t  interval, int  num_var, const char *const  event_name[], const char *const  tag_name[], const int  var_index[], int  num_entries[], time_t *  time_buffer[], double *  data_buffer[], int  status[]  )

pure virtual

see hs_read(), returns HS_SUCCESS

Implemented in SqlHistory, MidasHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

hs_read_binned()

virtual int MidasHistoryInterface::hs_read_binned ( time_t  start_time, time_t  end_time, int  num_bins, int  num_var, const char *const  event_name[], const char *const  tag_name[], const int  var_index[], int  num_entries[], int *  count_bins[], double *  mean_bins[], double *  rms_bins[], double *  min_bins[], double *  max_bins[], time_t *  bins_first_time[], double *  bins_first_value[], time_t *  bins_last_time[], double *  bins_last_value[], time_t  last_time[], double  last_value[], int  status[]  )

pure virtual

returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

hs_read_buffer()

virtual int MidasHistoryInterface::hs_read_buffer ( time_t  start_time, time_t  end_time, int  num_var, const char *const  event_name[], const char *const  tag_name[], const int  var_index[], MidasHistoryBufferInterface *  buffer[], int  status[]  )

pure virtual

returns HS_SUCCESS

Implemented in MidasHistory, SqlHistory, and SchemaHistoryBase.

Here is the caller graph for this function:

hs_set_debug()

virtual int MidasHistoryInterface::hs_set_debug ( int  debug )

pure virtual

set debug level, returns previous debug level

Implemented in MidasHistory, SqlHistory, SchemaHistoryBase, and SqlHistoryBase.

Here is the caller graph for this function:

hs_write_event()

virtual int MidasHistoryInterface::hs_write_event ( const char *  event_name, time_t  timestamp, int  data_size, const char *  data  )

pure virtual

see hs_write_event(), returns HS_SUCCESS or HS_FILE_ERROR

Implemented in SqlHistory, SchemaHistoryBase, and MidasHistory.

Here is the caller graph for this function:

Member Data Documentation

name

char MidasHistoryInterface::name[NAME_LENGTH]

Definition at line 111 of file history.h.

type

char MidasHistoryInterface::type[NAME_LENGTH]

history channel name

Definition at line 112 of file history.h.

---

The documentation for this class was generated from the following file:

• include/history.h
