#include <v1740CONET2.hxx>

Collaboration diagram for v1740CONET2:

Classes
struct	V1740_CONFIG_SETTINGS
	Settings structure for this v1740 module. More...

Public Member Functions
	v1740CONET2 (int link, int board, int moduleID)
	Constructor for the module object.

	~v1740CONET2 ()
	Destructor for the module object.

CAENComm_ErrorCode	Connect ()
	Connect the board through the optical link.

CAENComm_ErrorCode	Disconnect ()
	Disconnect the board through the optical link.

CAENComm_ErrorCode	StartRun ()
	Start data acquisition.

CAENComm_ErrorCode	StopRun ()
	Start data acquisition.

CAENComm_ErrorCode	SetupPreset (int)
	Setup board registers using preset (see ov1720.c:ov1720_Setup())

CAENComm_ErrorCode	AcqCtl (uint32_t)
	Control data acquisition.

CAENComm_ErrorCode	ReadReg (DWORD, DWORD *)
	Read 32-bit register.

CAENComm_ErrorCode	WriteReg (DWORD, DWORD)
	Write to 32-bit register.

CAENComm_ErrorCode	ReadEvent (DWORD , int )
	Read event buffer.

CAENComm_ErrorCode	SendTrigger ()
	Send a software trigger to the board.

int	SetODBRecord (HNDLE h, void(cb_func)(INT, INT, void ))
	Set the ODB record for this module.

int	InitializeForAcq ()
	Initialize the hardware for data acquisition.

bool	IsConnected ()
	Get connected status.

bool	IsRunning ()
	Get run status.

std::string	GetName ()
	Get short string identifying the module's board number.

void	CheckBoardType ()
	Check board type.

void	ShowRegs ()
	Misc reg printout, for debug purposes.

HNDLE	GetODBHandle ()
	returns ODB handle

bool	GetSettingsTouched ()

void	SetSettingsTouched (bool t)

int	GetHandle ()
	returns device handler

int	GetModuleID ()
	returns unique module ID

int	GetLink ()
	returns optical link number

int	GetBoard ()
	returns board number

Public Attributes
int	verbose

struct v1740CONET2::V1740_CONFIG_SETTINGS	config
	instance of config structure

Static Public Attributes
static const char *	config_str []
	Configuration string for this module. (ODB: /Equipment/[eq_name]/Settings/[board_name]/)

Private Attributes
int	_handle
	Device handler.

int	_link
	Optical link number.

int	_board
	Module/Board number.

int	_moduleID
	Unique module ID.

HNDLE	_odb_handle

bool	_settings_loaded
	ODB settings loaded.

bool	_settings_touched
	ODB settings touched.

bool	_running
	Run in progress.

Detailed Description

Driver class for the v1740 module using the CAEN CONET2 (optical) interface. Contains all the methods necessary to:

Connect/disconnect the board through an optical connection
Initialize the hardware (set the registers) for data acquisition
Read and write to the ODB
Poll the hardware and read the event buffer into a midas bank
Send a software trigger to the board if desired

Definition at line 34 of file v1740CONET2.hxx.

Constructor & Destructor Documentation

◆ v1740CONET2()

v1740CONET2::v1740CONET2	(	int	link,
		int	board,
		int	moduleID
	)

Constructor for the module object.

Set the basic hardware parameters

Parameters

[in]	link	Optical link number
[in]	board	Board number on the optical link
[in]	moduleID	Unique ID assigned to module

Definition at line 58 of file v1740CONET2.cxx.

                                                          :
        _link(link), _board(board), _moduleID(moduleID)
{
  _handle = -1;
  _odb_handle = 0;
  verbose = 0;
  _settings_loaded=false;
  _settings_touched=false;
  _running = false;
}

◆ ~v1740CONET2()

v1740CONET2::~v1740CONET2 ( )

Destructor for the module object.

Nothing to do.

Definition at line 73 of file v1740CONET2.cxx.

73{}

Member Function Documentation

◆ AcqCtl()

CAENComm_ErrorCode v1740CONET2::AcqCtl ( uint32_t operation )

Control data acquisition.

Write to Acquisition Control reg

Parameters

[in] operation acquisition mode (see v1720.h)

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 217 of file v1740CONET2.cxx.

{
#if SIMULATION
  return CAENComm_Success;
#else
  return ov1740_AcqCtl(_handle, operation);
#endif
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckBoardType()

void v1740CONET2::CheckBoardType ( )

Check board type.

Check if board type is v1740, if not issue a warning

Definition at line 453 of file v1740CONET2.cxx.

{
  // Verify Board Type
  uint32_t version = 0;
  const uint32_t v1740_board_type = 0x04;
  CAENComm_ErrorCode sCAEN = ReadReg(V1740_BOARD_INFO, &version);
  if((version & 0xFF) != v1740_board_type)
    cm_msg(MINFO,"feoV1740","*** WARNING *** Trying to use a v1740 frontend with another"
        " type of board.  Results will be unexpected!");

  UNUSED(sCAEN);
}

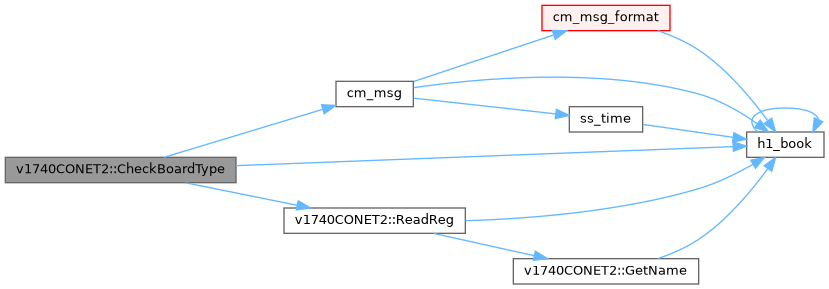

Here is the call graph for this function:

◆ Connect()

CAENComm_ErrorCode v1740CONET2::Connect ( )

Connect the board through the optical link.

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 109 of file v1740CONET2.cxx.

{
  if (verbose) cout << "Opening device (l,b) = (" << _link << "," << _board << ")" << endl;
  CAENComm_ErrorCode sCAEN;

#if SIMULATION  //Simulate success opening device
  sCAEN = CAENComm_Success;
  _handle = 1;  //random
#else
  sCAEN = CAENComm_OpenDevice(CAENComm_PCIE_OpticalLink, _link, _board, 0, &_handle);
#endif

  if (sCAEN != CAENComm_Success) _handle = -1;
  return sCAEN;
}

Here is the call graph for this function:

◆ Disconnect()

CAENComm_ErrorCode v1740CONET2::Disconnect ( )

Disconnect the board through the optical link.

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 129 of file v1740CONET2.cxx.

{
  if (verbose) cout << "Closing device (l,b) = (" << _link << "," << _board << ")" << endl;
  CAENComm_ErrorCode sCAEN;

#if SIMULATION  //Simulate success closing device
  sCAEN = CAENComm_Success;
#else
  sCAEN = CAENComm_CloseDevice(_handle);
#endif


  _handle = -1;
  return sCAEN;
}

Here is the call graph for this function:

◆ GetBoard()

int v1740CONET2::GetBoard ( )

inline

returns board number

Definition at line 100 of file v1740CONET2.hxx.

◆ GetHandle()

int v1740CONET2::GetHandle ( )

inline

returns device handler

Definition at line 97 of file v1740CONET2.hxx.

Here is the caller graph for this function:

◆ GetLink()

int v1740CONET2::GetLink ( )

inline

returns optical link number

Definition at line 99 of file v1740CONET2.hxx.

◆ GetModuleID()

int v1740CONET2::GetModuleID ( )

inline

returns unique module ID

Definition at line 98 of file v1740CONET2.hxx.

◆ GetName()

string v1740CONET2::GetName ( )

Get short string identifying the module's board number.

Returns: name string

Definition at line 80 of file v1740CONET2.cxx.

{
  stringstream txt;
  txt << "B" << _board;
  return txt.str();
}

Here is the call graph for this function:

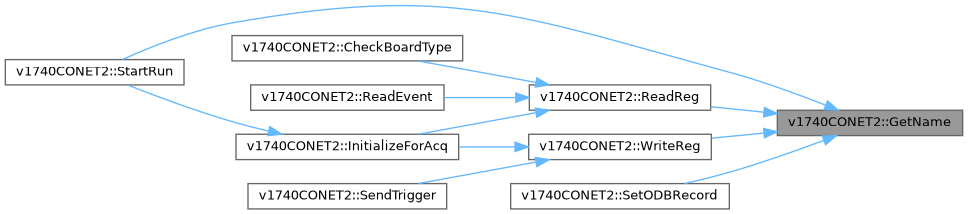

Here is the caller graph for this function:

◆ GetODBHandle()

HNDLE v1740CONET2::GetODBHandle ( )

inline

returns ODB handle

Definition at line 90 of file v1740CONET2.hxx.

◆ GetSettingsTouched()

bool v1740CONET2::GetSettingsTouched ( )

inline

returns true if odb settings touched

Definition at line 91 of file v1740CONET2.hxx.

                            {
    return _settings_touched;
  }

◆ InitializeForAcq()

int v1740CONET2::InitializeForAcq ( )

Initialize the hardware for data acquisition.

Set the registers using a preset if setup != 0 in the config string, or set them manually otherwise.

Returns: 0 on success, -1 on error

Definition at line 382 of file v1740CONET2.cxx.

{
  if (!_settings_loaded) {
    cout << "Error: cannot call InitializeForAcq() without settings loaded properly" << endl;
    return -1;    }
  if (!IsConnected())     {
    cout << "Error: trying to call InitializeForAcq() to unconnected board" << endl;
    return -1;    }
  if (IsRunning())    {
    cout << "Error: trying to call InitializeForAcq() to already running board" << endl;
    return -1;    }

  if (_settings_loaded && !_settings_touched) return 0; //don't do anything if settings haven't been changed

  CAENComm_ErrorCode sCAEN;
  uint32_t temp;

  //use preset setting if enabled
  if (config.setup != 0) {
    SetupPreset(config.setup);
    //else use odb values
  } else {

    AcqCtl(config.acq_mode);
    printf("group config 0x%x\n", config.group_config);
    WriteReg(V1740_GROUP_CONFIG, config.group_config);
    WriteReg(V1740_GROUP_CONFIG        , config.group_config);
    WriteReg(V1740_BUFFER_ORGANIZATION   , config.buffer_organization);
    WriteReg(V1740_CUSTOM_SIZE       , config.custom_size);
    WriteReg(V1740_GROUP_EN_MASK       , config.group_mask);
    AcqCtl(V1740_COUNT_ACCEPTED_TRIGGER);
    WriteReg(V1740_TRIG_SRCE_EN_MASK     , config.trigger_source);
    WriteReg(V1740_FP_TRIGGER_OUT_EN_MASK, config.trigger_output);
    WriteReg(V1740_POST_TRIGGER_SETTING  , config.post_trigger);
    ReadReg(V1740_GROUP_CONFIG, &temp);
    WriteReg(V1740_MONITOR_MODE, 0x3);  // buffer occupancy
    printf("group config 0x%x\n",  temp);
    /*sCAEN = ov1740_GroupConfig(GetHandle()
      , config.trigger_positive_pulse == 1 ? V1740_TRIGGER_OVERTH : V1740_TRIGGER_UNDERTH);*/
    WriteReg(V1740_VME_CONTROL, V1740_ALIGN64);

    // Set individual channel stuff
    for (int i=0;i<8;i++) {
      //group threshold
      sCAEN = ov1740_GroupSet(GetHandle(), i, V1740_GROUP_THRESHOLD, config.threshold[i]);
      sCAEN = ov1740_GroupGet(GetHandle(), i, V1740_GROUP_THRESHOLD, &temp);
      printf("Threshold[%i] = %d \n", i, temp);
      //set DAC
      sCAEN = ov1740_GroupDACSet(GetHandle(), i, config.dac[i]);
      printf("DAC[%i] = %d \n", i, temp);
      //disable channel triggers
      WriteReg(V1740_GROUP_CH_TRG_MASK + (i<<8), 0);
    }

    // Doesn't set the ID in the data stream!
    WriteReg( V1740_BOARD_ID, 6);
    ov1740_Status(GetHandle());
  }

  _settings_touched = false;
  UNUSED(sCAEN);

  //ready to do startrun

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsConnected()

bool v1740CONET2::IsConnected ( )

Get connected status.

Returns: true if board is connected

Definition at line 91 of file v1740CONET2.cxx.

{
  return (_handle >= 0);
}

Here is the caller graph for this function:

◆ IsRunning()

bool v1740CONET2::IsRunning ( )

Get run status.

Returns: true if run is started

Definition at line 100 of file v1740CONET2.cxx.

{
  return _running;
}

Here is the caller graph for this function:

◆ ReadEvent()

CAENComm_ErrorCode v1740CONET2::ReadEvent	(	DWORD *	data,
		int *	dwords_read
	)

Read event buffer.

Read the event buffer for this module using BLT (32-bit) cycles. This function reads nothing if EVENT_SIZE register was zero.

Parameters

[out]	data	Where to write content of event buffer
[out]	dwords_read	Number of DWORDs read from the buffer

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 270 of file v1740CONET2.cxx.

{
  DWORD size_remaining, *data_pos = data, to_read;
  int tempnw = 0;
  *dwords_read = 0;

#if SIMULATION  //read maximum size allowed
  CAENComm_ErrorCode sCAEN = CAENComm_Success;
  size_remaining = MAX_BLT_READ_SIZE;
#else
  CAENComm_ErrorCode sCAEN = ReadReg(V1740_EVENT_SIZE, &size_remaining);
#endif

  if (verbose>=2) cout << "Start of ReadEvent... "
      << "size_rem = " << size_remaining << " " << sCAEN << endl;

  while (size_remaining > 0 && sCAEN == CAENComm_Success)
  {
#if SIMULATION  //read random 32-bit integers
    to_read = size_remaining > MAX_BLT_READ_SIZE ? MAX_BLT_READ_SIZE : size_remaining;
    for (WORD i = 0; i < to_read; i++)
      *data_pos++ = rand();
    sCAEN = CAENComm_Success;
    tempnw = to_read; //simulate success reading all data
#else
    to_read = size_remaining > MAX_BLT_READ_SIZE ? MAX_BLT_READ_SIZE : size_remaining;
    sCAEN = CAENComm_BLTRead(_handle, V1740_EVENT_READOUT_BUFFER, data_pos, to_read, &tempnw);
#endif

    if (verbose>=2) cout << sCAEN << " = BLTRead(handle=" << _handle
        << ", addr=" << V1740_EVENT_READOUT_BUFFER
        << ", data_pos=" << data_pos
        << ", to_read=" << to_read
        << ", tempnw returned " << tempnw << ");" << endl;
    *dwords_read += tempnw;
    size_remaining -= tempnw;
    data_pos += tempnw;
  }
  if (verbose>=2) cout << "End of ReadEvent... "
      << "dwords_read = " << *dwords_read << endl;;

  return sCAEN;
}

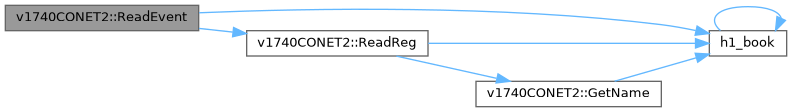

Here is the call graph for this function:

◆ ReadReg()

CAENComm_ErrorCode v1740CONET2::ReadReg	(	DWORD	address,
		DWORD *	val
	)

Read 32-bit register.

Parameters

[in]	address	address of the register to read
[out]	val	value read from register

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 232 of file v1740CONET2.cxx.

{
  if (verbose >= 2) cout << GetName() << "::ReadReg(" << hex << address << ")" << endl;
#if SIMULATION
  return CAENComm_Success;
#else
  return CAENComm_Read32(_handle, address, val);
#endif
}

Here is the call graph for this function:

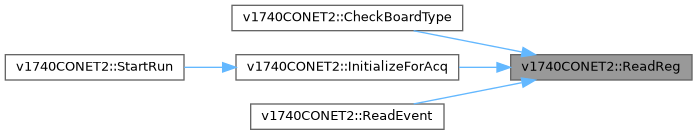

Here is the caller graph for this function:

◆ SendTrigger()

CAENComm_ErrorCode v1740CONET2::SendTrigger ( )

Send a software trigger to the board.

Send a software trigger to the board. May require software triggers to be enabled in register.

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 321 of file v1740CONET2.cxx.

{
  if (verbose) cout << "Sending Trigger (l,b) = (" << _link << "," << _board << ")" << endl;
  return WriteReg(V1740_SOFTWARE_TRIGGER, 0x1);
}

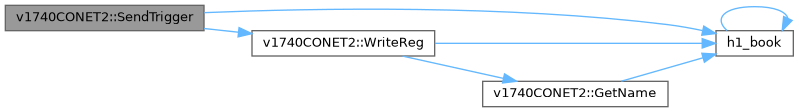

Here is the call graph for this function:

◆ SetODBRecord()

int v1740CONET2::SetODBRecord	(	HNDLE	h,
		void()(INT, INT, void )	cb_func
	)

Set the ODB record for this module.

Create a record for the board with settings from the configuration string (v1740CONET2::config_str) if it doesn't exist or merge with existing record. Create hotlink with callback function for when the record is updated. Get the handle to the record.

Ex: For a frontend with index number 2 and board number 0, this record will be created/merged:

/Equipment/FEv1740I2/Settings/Board0

Parameters

[in]	h	main ODB handle
[in]	cb_func	Callback function to call when record is updated

Returns: ODB Error Code (see midas.h)

Definition at line 343 of file v1740CONET2.cxx.

{
  char set_str[80];
  int status,size;

#if SIMULATION
  sprintf(set_str, "/Equipment/FEv1740_SIM/Settings/Board%d", _board);
#else
  sprintf(set_str, "/Equipment/FEv1740/Settings/Board%d", _board);
#endif

  if (verbose) cout << GetName() << "::SetODBRecord(" << h << "," << set_str << ",...)" << endl;

  //create record if doesn't exist and find key
  status = db_create_record(h, 0, set_str, strcomb(config_str));
  status = db_find_key(h, 0, set_str, &_odb_handle);
  if (status != DB_SUCCESS) cm_msg(MINFO,"FE","Key %s not found", set_str);

  //hotlink
  //  size = sizeof(config_type);
  size = sizeof(V1740_CONFIG_SETTINGS);
  status = db_open_record(h, _odb_handle, &config, size, MODE_READ, cb_func, NULL);

  //get actual record
  status = db_get_record(h, _odb_handle, &config, &size, 0);

  if (status == DB_SUCCESS) _settings_loaded = true;
  _settings_touched = true;

  return status; //== DB_SUCCESS for success
}

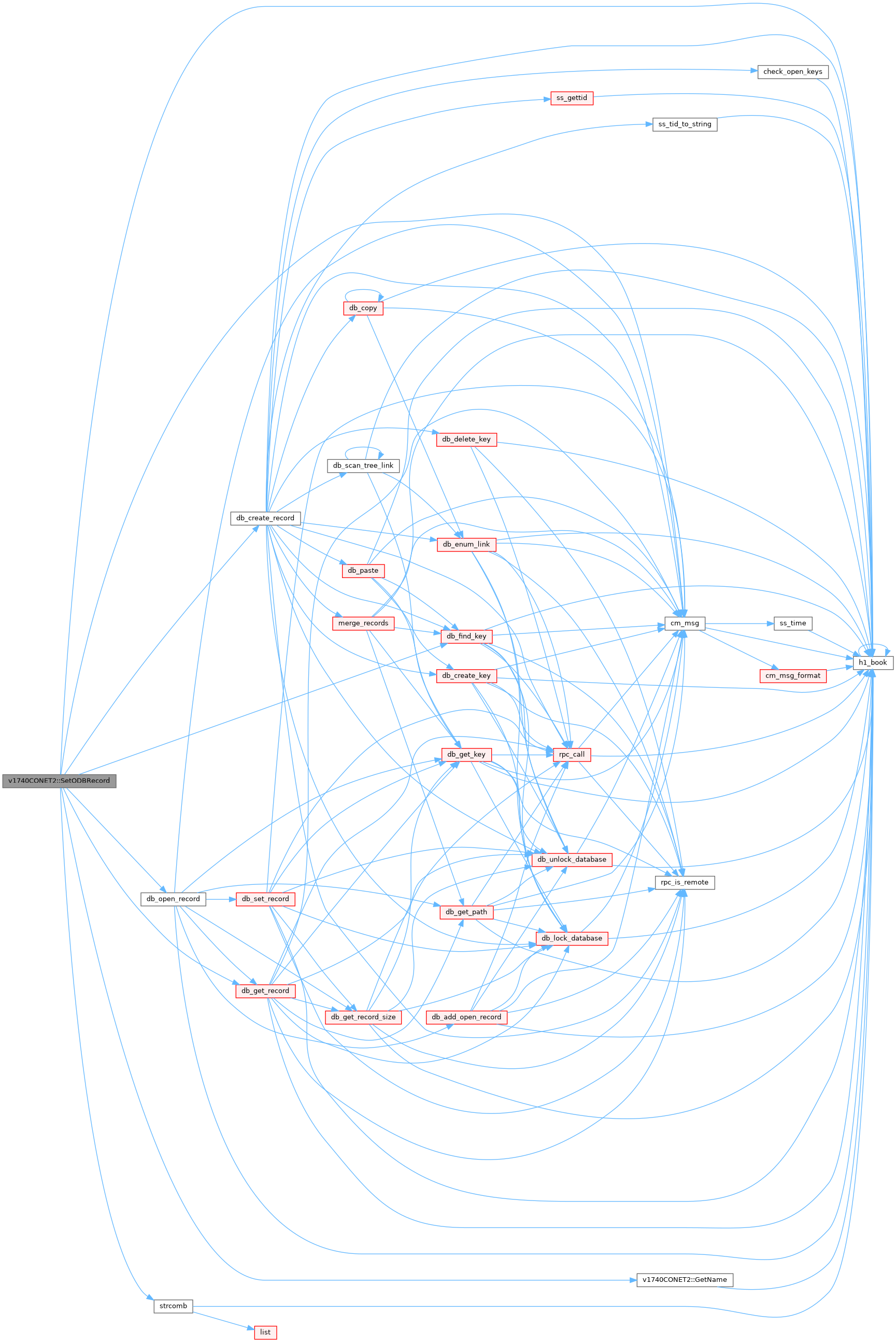

Here is the call graph for this function:

◆ SetSettingsTouched()

void v1740CONET2::SetSettingsTouched ( bool t )

inline

set _settings_touched

Definition at line 94 of file v1740CONET2.hxx.

                                  {
    _settings_touched = t;
  }

◆ SetupPreset()

CAENComm_ErrorCode v1740CONET2::SetupPreset ( int mode )

Setup board registers using preset (see ov1720.c:ov1720_Setup())

Setup board registers using a preset defined in the midas file ov1720.c

Mode 0x0: "Setup Skip\n"
Mode 0x1: "Trigger from FP, 8ch, 1Ks, postTrigger 800\n"
Mode 0x2: "Trigger from LEMO\n"

Parameters

[in] mode Configuration mode number

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 201 of file v1740CONET2.cxx.

{
#if SIMULATION
  return CAENComm_Success;
#else
  return ov1740_Setup(_handle, mode);
#endif
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ShowRegs()

void v1740CONET2::ShowRegs ( )

Misc reg printout, for debug purposes.

Definition at line 468 of file v1740CONET2.cxx.

{
#if !SIMULATION
  DWORD temp;
  CAENComm_ErrorCode sCAEN;
  cout << "   *** regs: ";
  sCAEN = CAENComm_Read32(_handle, V1740_EVENT_SIZE, &temp); cout << "E_SIZE=0x" << hex <<  temp << " ";
  sCAEN = CAENComm_Read32(_handle, V1740_EVENT_STORED, &temp); cout << "E_STORED=0x" << hex <<  temp << " ";
  sCAEN = CAENComm_Read32(_handle, V1740_GROUP_BUFFER_OCCUPANCY, &temp); cout << "GRP_BUFF_OCC[0]=0x" << temp << " ";
  sCAEN = CAENComm_Read32(_handle, V1740_ACQUISITION_STATUS, &temp); cout << "ACQ_STATUS=0x" << temp << " lam=" << (temp & 0x4);
  //sCAEN = CAENComm_Read32(_handle, V1740_BLT_EVENT_NB, &temp); cout << "BLT_EVENT_NB=0x" << temp << " ";
  //sCAEN = CAENComm_Read32(_handle, V1740_GROUP_CONFIG, &temp); cout << "GROUP_CONFIG= " << temp << " ";
  //sCAEN = CAENComm_Read32(_handle, V1740_GROUP_EN_MASK, &temp); cout << "GROUP_EN_MASK= " << temp << " ";
  cout << dec << endl;
  UNUSED(sCAEN);
#endif
}

Here is the call graph for this function:

◆ StartRun()

CAENComm_ErrorCode v1740CONET2::StartRun ( )

Start data acquisition.

Write to Acquisition Control reg to put board in RUN mode. If ODB settings have been changed, re-initialize the board with the new settings. Set _running flag true.

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 153 of file v1740CONET2.cxx.

{
  if (verbose) cout << GetName() << "::StartRun()\n";
  if (IsRunning()) {
    cout << "Error: trying to start already started board" << endl;
    return (CAENComm_ErrorCode)1;
  }
  if (!IsConnected()) {
    cout << "Error: trying to start disconnected board" << endl;
    return (CAENComm_ErrorCode)1;
  }
  if (_settings_touched)
  {
    cm_msg(MINFO, "feoV1740", "Note: settings on board %s touched. Re-initializing board.",
        GetName().c_str());
    cout << "reinitializing" << endl;
    InitializeForAcq();
  }

  CAENComm_ErrorCode e = ov1740_AcqCtl(_handle, V1740_RUN_START);
  if (e == CAENComm_Success) _running=true;
  return e;
}

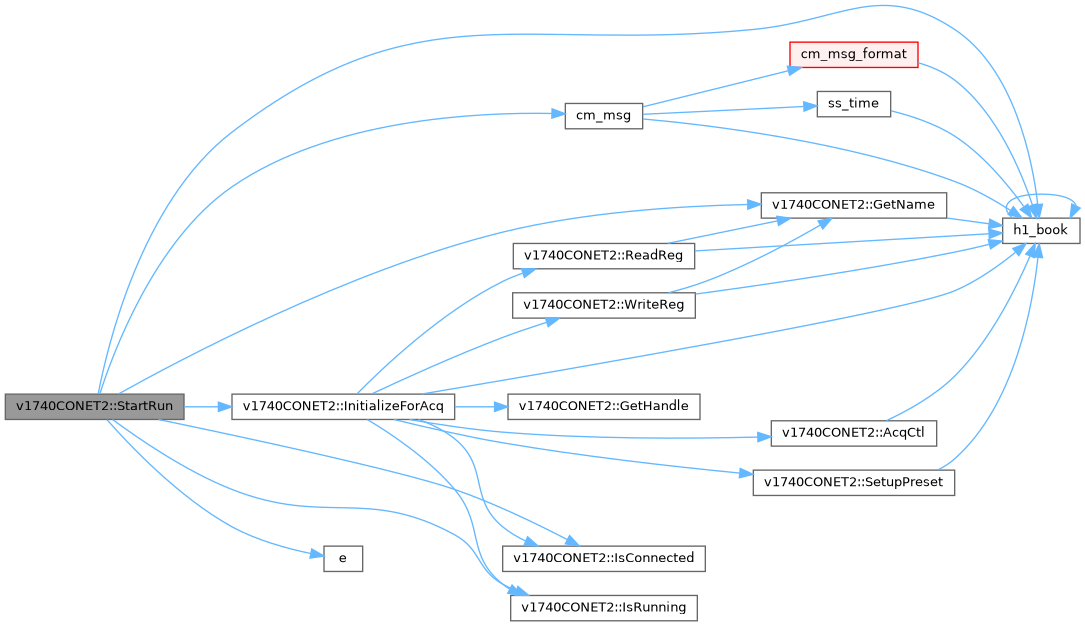

Here is the call graph for this function:

◆ StopRun()

CAENComm_ErrorCode v1740CONET2::StopRun ( )

Start data acquisition.

Write to Acquisition Control reg to put board in STOP mode. Set _running flag false.

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 184 of file v1740CONET2.cxx.

{
  CAENComm_ErrorCode e = ov1740_AcqCtl(_handle, V1740_RUN_STOP);
  if (e == CAENComm_Success) _running=false;
  return e;
}

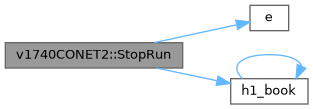

Here is the call graph for this function:

◆ WriteReg()

CAENComm_ErrorCode v1740CONET2::WriteReg	(	DWORD	address,
		DWORD	val
	)

Write to 32-bit register.

Parameters

[in]	address	address of the register to write to
[in]	val	value to write to the register

Returns: CAENComm Error Code (see CAENComm.h)

Definition at line 248 of file v1740CONET2.cxx.

{
  if (verbose >= 2) cout << GetName() << "::WriteReg(" << hex << address << "," << val << ")" << endl;
#if SIMULATION
  return CAENComm_Success;
#else
  return CAENComm_Write32(_handle, address, val);
#endif
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _board

int v1740CONET2::_board

private

Module/Board number.

Definition at line 39 of file v1740CONET2.hxx.

◆ _handle

int v1740CONET2::_handle

private

Device handler.

Definition at line 37 of file v1740CONET2.hxx.

◆ _link

int v1740CONET2::_link

private

Optical link number.

Definition at line 38 of file v1740CONET2.hxx.

◆ _moduleID

int v1740CONET2::_moduleID

private

Unique module ID.

Definition at line 40 of file v1740CONET2.hxx.

◆ _odb_handle

HNDLE v1740CONET2::_odb_handle

private

Definition at line 42 of file v1740CONET2.hxx.

◆ _running

bool v1740CONET2::_running

private

Run in progress.

Definition at line 45 of file v1740CONET2.hxx.

◆ _settings_loaded

bool v1740CONET2::_settings_loaded

private

ODB settings loaded.

Definition at line 43 of file v1740CONET2.hxx.

◆ _settings_touched

bool v1740CONET2::_settings_touched

private

ODB settings touched.

Definition at line 44 of file v1740CONET2.hxx.

◆ config

struct v1740CONET2::V1740_CONFIG_SETTINGS v1740CONET2::config

instance of config structure

◆ config_str

const char * v1740CONET2::config_str

static

Initial value:

= {
    "setup = INT : 0",
    "Acq mode = INT : 1",
    "Group Configuration = DWORD : 0",
    "Buffer organization = INT : 8",
    "Custom size = INT : 0",
    "Group Mask = DWORD : 0xFF",
    "Trigger Source = DWORD : 0x40000000",
    "Trigger Output = DWORD : 0x40000000",
    "Post Trigger = DWORD : 200",
    "Threshold = DWORD[8] :",
    "[0] 2080",
    "[1] 1900",
    "[2] 2080",
    "[3] 9",
    "[4] 9",
    "[5] 9",
    "[6] 9",
    "[7] 9",
    "DAC = DWORD[8] :",
    "[0] 35000",
    "[1] 35000",
    "[2] 35000",
    "[3] 35000",
    "[4] 35000",
    "[5] 35000",
    "[6] 9190",
    "[7] 9190",
    NULL
}

Configuration string for this module. (ODB: /Equipment/[eq_name]/Settings/[board_name]/)

Definition at line 18 of file v1740CONET2.hxx.

{
private:
  int _handle,
  _link,
  _board,
  _moduleID;

  HNDLE _odb_handle;
  bool _settings_loaded,
  _settings_touched,
  _running;
public:
  int verbose;

◆ verbose

int v1740CONET2::verbose

Make the driver verbose 0: off 1: normal 2: very verbose

Definition at line 47 of file v1740CONET2.hxx.

The documentation for this class was generated from the following files:

examples/oofes/v1740/v1740CONET2.hxx
examples/oofes/v1740/v1740CONET2.cxx

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ v1740CONET2()

◆ ~v1740CONET2()

Member Function Documentation

◆ AcqCtl()

◆ CheckBoardType()

◆ Connect()

◆ Disconnect()

◆ GetBoard()

◆ GetHandle()

◆ GetLink()

◆ GetModuleID()

◆ GetName()

◆ GetODBHandle()

◆ GetSettingsTouched()

◆ InitializeForAcq()

◆ IsConnected()

◆ IsRunning()

◆ ReadEvent()

◆ ReadReg()

◆ SendTrigger()

◆ SetODBRecord()

◆ SetSettingsTouched()

◆ SetupPreset()

◆ ShowRegs()

◆ StartRun()

◆ StopRun()

◆ WriteReg()

Member Data Documentation

◆ _board

◆ _handle

◆ _link

◆ _moduleID

◆ _odb_handle

◆ _running

◆ _settings_loaded

◆ _settings_touched

◆ config

◆ config_str

◆ verbose
