GD Graphics Library

Classes
struct	gdImageStruct
struct	gdGifBufferStruct
struct	gdFont
struct	gdPoint

Macros
#define	gdMaxColors   256
#define	gdDashSize   4
#define	gdStyled   (-2)
#define	gdBrushed   (-3)
#define	gdStyledBrushed   (-4)
#define	gdTiled   (-5)
#define	gdTransparent   (-6)
#define	gdImageSX(im)   ((im)->sx)
#define	gdImageSY(im)   ((im)->sy)
#define	gdImageColorsTotal(im)   ((im)->colorsTotal)
#define	gdImageRed(im, c)   ((im)->red[(c)])
#define	gdImageGreen(im, c)   ((im)->green[(c)])
#define	gdImageBlue(im, c)   ((im)->blue[(c)])
#define	gdImageGetTransparent(im)   ((im)->transparent)
#define	gdImageGetInterlaced(im)   ((im)->interlace)

Typedefs
typedef struct gdImageStruct	gdImage
typedef gdImage *	gdImagePtr
typedef struct gdGifBufferStruct	gdGifBuffer
typedef gdFont *	gdFontPtr
typedef struct gdPoint *	gdPointPtr

Functions
gdImagePtr	gdImageCreate (int sx, int sy)
gdImagePtr	gdImageCreateFromGif (FILE *fd)
void	gdImageDestroy (gdImagePtr im)
void	gdImageSetPixel (gdImagePtr im, int x, int y, int color)
int	gdImageGetPixel (gdImagePtr im, int x, int y)
void	gdImageLine (gdImagePtr im, int x1, int y1, int x2, int y2, int color)
void	gdImageDashedLine (gdImagePtr im, int x1, int y1, int x2, int y2, int color)
void	gdImageRectangle (gdImagePtr im, int x1, int y1, int x2, int y2, int color)
void	gdImageFilledRectangle (gdImagePtr im, int x1, int y1, int x2, int y2, int color)
int	gdImageBoundsSafe (gdImagePtr im, int x, int y)
void	gdImageChar (gdImagePtr im, gdFontPtr f, int x, int y, int c, int color)
void	gdImageCharUp (gdImagePtr im, gdFontPtr f, int x, int y, char c, int color)
void	gdImageString (gdImagePtr im, gdFontPtr f, int x, int y, const char *s, int color)
void	gdImageStringUp (gdImagePtr im, gdFontPtr f, int x, int y, const char *s, int color)
void	gdImagePolygon (gdImagePtr im, gdPointPtr p, int n, int c)
void	gdImageFilledPolygon (gdImagePtr im, gdPointPtr p, int n, int c)
int	gdImageColorAllocate (gdImagePtr im, int r, int g, int b)
int	gdImageColorClosest (gdImagePtr im, int r, int g, int b)
int	gdImageColorExact (gdImagePtr im, int r, int g, int b)
void	gdImageColorDeallocate (gdImagePtr im, int color)
void	gdImageColorTransparent (gdImagePtr im, int color)
void	gdImageGif (gdImagePtr im, gdGifBuffer *buffer)
void	gdImageFillToBorder (gdImagePtr im, int x, int y, int border, int color)
void	gdImageFill (gdImagePtr im, int x, int y, int color)
void	gdImageCopy (gdImagePtr dst, gdImagePtr src, int dstX, int dstY, int srcX, int srcY, int w, int h)
void	gdImageCopyResized (gdImagePtr dst, gdImagePtr src, int dstX, int dstY, int srcX, int srcY, int dstW, int dstH, int srcW, int srcH)
void	gdImageSetBrush (gdImagePtr im, gdImagePtr brush)
void	gdImageSetTile (gdImagePtr im, gdImagePtr tile)
void	gdImageSetStyle (gdImagePtr im, int *style, int noOfPixels)
void	gdImageInterlace (gdImagePtr im, int interlaceArg)

Variables
unsigned char **	gdImageStruct::pixels
int	gdImageStruct::sx
int	gdImageStruct::sy
int	gdImageStruct::colorsTotal
int	gdImageStruct::red [gdMaxColors]
int	gdImageStruct::green [gdMaxColors]
int	gdImageStruct::blue [gdMaxColors]
int	gdImageStruct::open [gdMaxColors]
int	gdImageStruct::transparent
int *	gdImageStruct::polyInts
int	gdImageStruct::polyAllocated
struct gdImageStruct *	gdImageStruct::brush
struct gdImageStruct *	gdImageStruct::tile
int	gdImageStruct::brushColorMap [gdMaxColors]
int	gdImageStruct::tileColorMap [gdMaxColors]
int	gdImageStruct::styleLength
int	gdImageStruct::stylePos
int *	gdImageStruct::style
int	gdImageStruct::interlace
char *	gdGifBufferStruct::data
int	gdGifBufferStruct::size
int	gdFont::nchars
int	gdFont::offset
int	gdFont::w
int	gdFont::h
int *	gdFont::data
gdFontPtr	gdFontMediumBold
gdFontPtr	gdFontGiant
gdFontPtr	gdFontSmall
int	gdPoint::x
int	gdPoint::y

Detailed Description

Macro Definition Documentation

gdBrushed

#define gdBrushed   (-3)

Definition at line 88 of file mgd.h.

gdDashSize

#define gdDashSize   4

Definition at line 83 of file mgd.h.

gdImageBlue

#define gdImageBlue	(		im,
			c
	)		((im)->blue[(c)])

Definition at line 153 of file mgd.h.

gdImageColorsTotal

#define gdImageColorsTotal

(

im

)

((im)->colorsTotal)

Definition at line 150 of file mgd.h.

gdImageGetInterlaced

#define gdImageGetInterlaced

(

im

)

((im)->interlace)

Definition at line 155 of file mgd.h.

gdImageGetTransparent

#define gdImageGetTransparent

(

im

)

((im)->transparent)

Definition at line 154 of file mgd.h.

gdImageGreen

#define gdImageGreen	(		im,
			c
	)		((im)->green[(c)])

Definition at line 152 of file mgd.h.

gdImageRed

#define gdImageRed	(		im,
			c
	)		((im)->red[(c)])

Definition at line 151 of file mgd.h.

gdImageSX

#define gdImageSX

(

im

)

((im)->sx)

Definition at line 148 of file mgd.h.

gdImageSY

#define gdImageSY

(

im

)

((im)->sy)

Definition at line 149 of file mgd.h.

gdMaxColors

#define gdMaxColors   256

Definition at line 22 of file mgd.h.

gdStyled

#define gdStyled   (-2)

Definition at line 87 of file mgd.h.

gdStyledBrushed

#define gdStyledBrushed   (-4)

Definition at line 89 of file mgd.h.

gdTiled

#define gdTiled   (-5)

Definition at line 90 of file mgd.h.

gdTransparent

#define gdTransparent   (-6)

Definition at line 94 of file mgd.h.

Typedef Documentation

gdFontPtr

typedef gdFont* gdFontPtr

Definition at line 73 of file mgd.h.

gdGifBuffer

typedef struct gdGifBufferStruct gdGifBuffer

gdImage

typedef struct gdImageStruct gdImage

gdImagePtr

typedef gdImage* gdImagePtr

Definition at line 51 of file mgd.h.

gdPointPtr

typedef struct gdPoint * gdPointPtr

Function Documentation

gdImageBoundsSafe()

int gdImageBoundsSafe	(	gdImagePtr	im,
		int	x,
		int	y
	)

Definition at line 826 of file mgd.cxx.

{
   return (!(((y < 0) || (y >= im->sy)) || ((x < 0) || (x >= im->sx))));
}

Here is the call graph for this function:

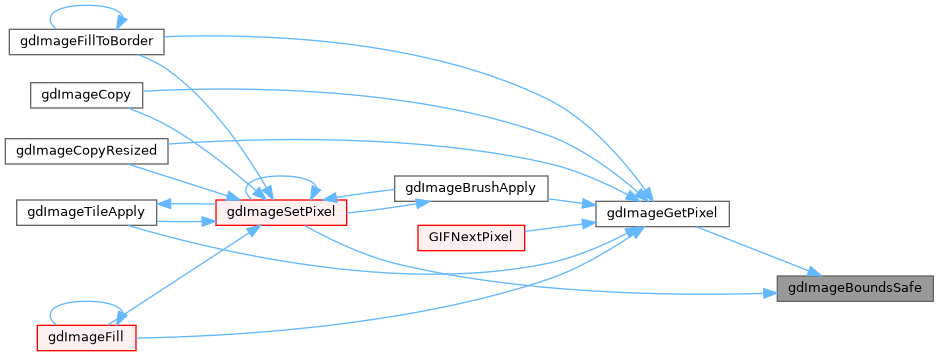

Here is the caller graph for this function:

gdImageChar()

void gdImageChar	(	gdImagePtr	im,
		gdFontPtr	f,
		int	x,
		int	y,
		int	c,
		int	color
	)

Definition at line 831 of file mgd.cxx.

{
   int cx, cy;
   int px, py;
   int fline;
   cx = 0;
   cy = 0;
   if ((c < f->offset) || (c >= (f->offset + f->nchars))) {
      return;
   }
   fline = (c - f->offset) * f->h;
   for (py = y; (py < (y + f->h)); py++) {
      for (px = x; (px < (x + f->w)); px++) {
         if (f->data[fline + cy] & (1 << cx)) {
            gdImageSetPixel(im, px, py, color);
         }
         cx++;
      }
      cx = 0;
      cy++;
   }
}

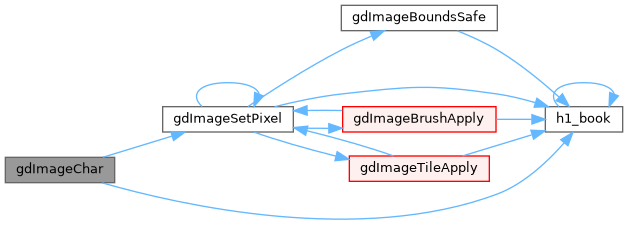

Here is the call graph for this function:

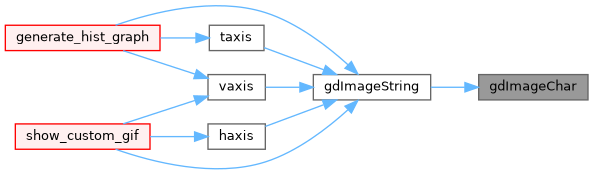

Here is the caller graph for this function:

gdImageCharUp()

void gdImageCharUp	(	gdImagePtr	im,
		gdFontPtr	f,
		int	x,
		int	y,
		char	c,
		int	color
	)

Definition at line 854 of file mgd.cxx.

{
   int cx, cy;
   int px, py;
   int fline;
   cx = 0;
   cy = 0;
   if ((c < f->offset) || (c >= (f->offset + f->nchars))) {
      return;
   }
   fline = (c - f->offset) * f->h;
   for (py = y; (py > (y - f->w)); py--) {
      for (px = x; (px < (x + f->h)); px++) {
         if (f->data[fline + cy] & (1 << cx)) {
            gdImageSetPixel(im, px, py, color);
         }
         cy++;
      }
      cy = 0;
      cx++;
   }
}

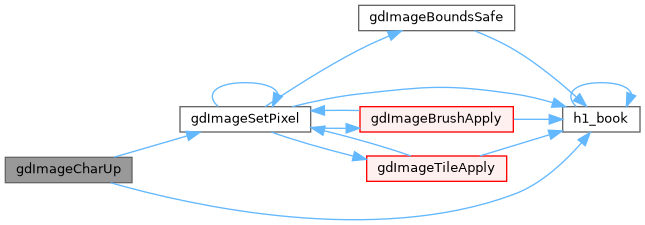

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageColorAllocate()

int gdImageColorAllocate	(	gdImagePtr	im,
		int	r,
		int	g,
		int	b
	)

Definition at line 492 of file mgd.cxx.

{
   int i;
   int ct = (-1);

   /* check if color exists already */
   for (i = 0; (i < (im->colorsTotal)); i++) {
      if (!im->open[i] &&
          im->red[i] == r &&
          im->green[i] == g &&
          im->blue[i] == b) {
         return i;
      }
   }

   for (i = 0; (i < (im->colorsTotal)); i++) {
      if (im->open[i]) {
         ct = i;
         break;
      }
   }
   if (ct == (-1)) {
      ct = im->colorsTotal;
      if (ct == gdMaxColors) {
         return -1;
      }
      im->colorsTotal++;
   }
   im->red[ct] = r;
   im->green[ct] = g;
   im->blue[ct] = b;
   im->open[ct] = 0;
   return ct;
}

Here is the call graph for this function:

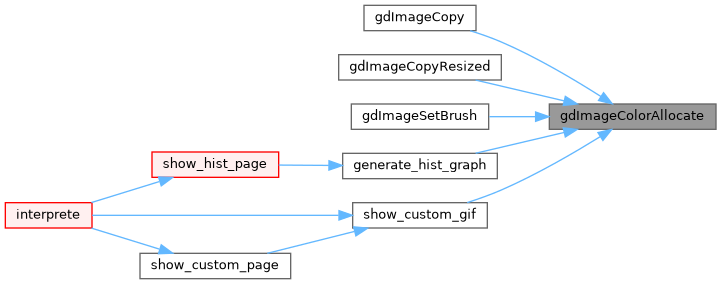

Here is the caller graph for this function:

gdImageColorClosest()

int gdImageColorClosest	(	gdImagePtr	im,
		int	r,
		int	g,
		int	b
	)

Definition at line 455 of file mgd.cxx.

{
   int i;
   long rd, gd, bd;
   int ct = (-1);
   long mindist = 0;
   for (i = 0; (i < (im->colorsTotal)); i++) {
      long dist;
      if (im->open[i]) {
         continue;
      }
      rd = (im->red[i] - r);
      gd = (im->green[i] - g);
      bd = (im->blue[i] - b);
      dist = rd * rd + gd * gd + bd * bd;
      if ((i == 0) || (dist < mindist)) {
         mindist = dist;
         ct = i;
      }
   }
   return ct;
}

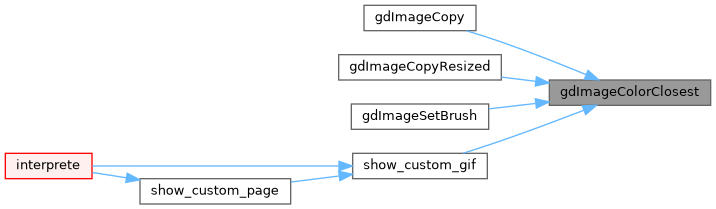

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageColorDeallocate()

void gdImageColorDeallocate	(	gdImagePtr	im,
		int	color
	)

Definition at line 527 of file mgd.cxx.

{
   /* Mark it open. */
   im->open[color] = 1;
}

Here is the call graph for this function:

gdImageColorExact()

int gdImageColorExact	(	gdImagePtr	im,
		int	r,
		int	g,
		int	b
	)

Definition at line 478 of file mgd.cxx.

{
   int i;
   for (i = 0; (i < (im->colorsTotal)); i++) {
      if (im->open[i]) {
         continue;
      }
      if ((im->red[i] == r) && (im->green[i] == g) && (im->blue[i] == b)) {
         return i;
      }
   }
   return -1;
}

Here is the call graph for this function:

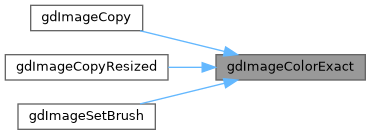

Here is the caller graph for this function:

gdImageColorTransparent()

void gdImageColorTransparent	(	gdImagePtr	im,
		int	color
	)

Definition at line 533 of file mgd.cxx.

{
   im->transparent = color;
}

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageCopy()

void gdImageCopy	(	gdImagePtr	dst,
		gdImagePtr	src,
		int	dstX,
		int	dstY,
		int	srcX,
		int	srcY,
		int	w,
		int	h
	)

Definition at line 2317 of file mgd.cxx.

{
   int c;
   int x, y;
   int tox, toy;
   int i;
   int colorMap[gdMaxColors];
   for (i = 0; (i < gdMaxColors); i++) {
      colorMap[i] = (-1);
   }
   toy = dstY;
   for (y = srcY; (y < (srcY + h)); y++) {
      tox = dstX;
      for (x = srcX; (x < (srcX + w)); x++) {
         int nc;
         c = gdImageGetPixel(src, x, y);
         /* Added 7/24/95: support transparent copies */
         if (gdImageGetTransparent(src) == c) {
            tox++;
            continue;
         }
         /* Have we established a mapping for this color? */
         if (colorMap[c] == (-1)) {
            /* If it's the same image, mapping is trivial */
            if (dst == src) {
               nc = c;
            } else {
               /* First look for an exact match */
               nc = gdImageColorExact(dst, src->red[c], src->green[c], src->blue[c]);
            }
            if (nc == (-1)) {
               /* No, so try to allocate it */
               nc = gdImageColorAllocate(dst, src->red[c], src->green[c], src->blue[c]);
               /* If we're out of colors, go for the
                  closest color */
               if (nc == (-1)) {
                  nc = gdImageColorClosest(dst, src->red[c], src->green[c], src->blue[c]);
               }
            }
            colorMap[c] = nc;
         }
         gdImageSetPixel(dst, tox, toy, colorMap[c]);
         tox++;
      }
      toy++;
   }
}

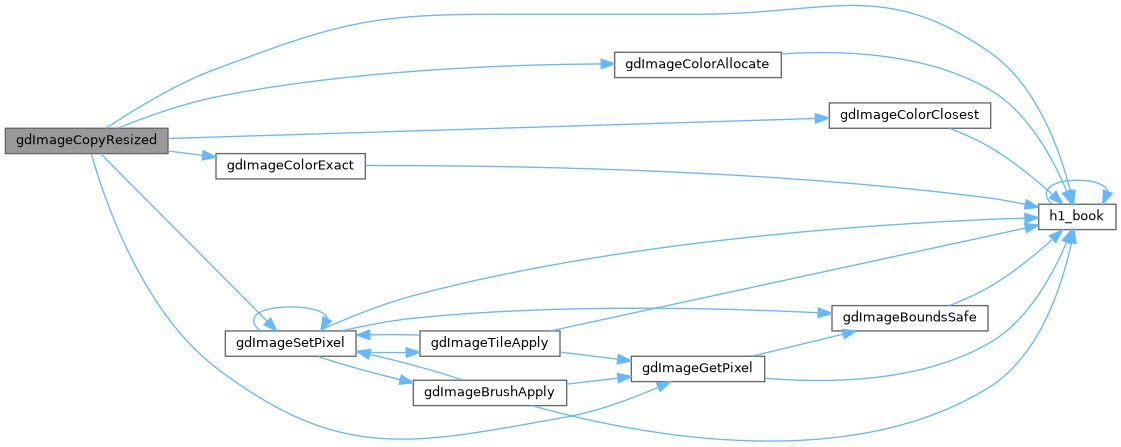

Here is the call graph for this function:

gdImageCopyResized()

void gdImageCopyResized	(	gdImagePtr	dst,
		gdImagePtr	src,
		int	dstX,
		int	dstY,
		int	srcX,
		int	srcY,
		int	dstW,
		int	dstH,
		int	srcW,
		int	srcH
	)

Definition at line 2366 of file mgd.cxx.

{
   int c;
   int x, y;
   int tox, toy;
   int ydest;
   int i;
   int colorMap[gdMaxColors];
   /* Stretch vectors */
   int *stx;
   int *sty;
   /* We only need to use floating point to determine the correct
      stretch vector for one line's worth. */
   double accum;
   stx = (int *) M_MALLOC(sizeof(int) * srcW);
   sty = (int *) M_MALLOC(sizeof(int) * srcH);
   accum = 0;
   for (i = 0; (i < srcW); i++) {
      int got;
      accum += (double) dstW / (double) srcW;
      got = (int) floor(accum);
      stx[i] = got;
      accum -= got;
   }
   accum = 0;
   for (i = 0; (i < srcH); i++) {
      int got;
      accum += (double) dstH / (double) srcH;
      got = (int) floor(accum);
      sty[i] = got;
      accum -= got;
   }
   for (i = 0; (i < gdMaxColors); i++) {
      colorMap[i] = (-1);
   }
   toy = dstY;
   for (y = srcY; (y < (srcY + srcH)); y++) {
      for (ydest = 0; (ydest < sty[y - srcY]); ydest++) {
         tox = dstX;
         for (x = srcX; (x < (srcX + srcW)); x++) {
            int nc;
            if (!stx[x - srcX]) {
               continue;
            }
            c = gdImageGetPixel(src, x, y);
            /* Added 7/24/95: support transparent copies */
            if (gdImageGetTransparent(src) == c) {
               tox += stx[x - srcX];
               continue;
            }
            /* Have we established a mapping for this color? */
            if (colorMap[c] == (-1)) {
               /* If it's the same image, mapping is trivial */
               if (dst == src) {
                  nc = c;
               } else {
                  /* First look for an exact match */
                  nc = gdImageColorExact(dst, src->red[c], src->green[c], src->blue[c]);
               }
               if (nc == (-1)) {
                  /* No, so try to allocate it */
                  nc = gdImageColorAllocate(dst,
                                            src->red[c], src->green[c], src->blue[c]);
                  /* If we're out of colors, go for the
                     closest color */
                  if (nc == (-1)) {
                     nc = gdImageColorClosest(dst,
                                              src->red[c], src->green[c], src->blue[c]);
                  }
               }
               colorMap[c] = nc;
            }
            for (i = 0; (i < stx[x - srcX]); i++) {
               gdImageSetPixel(dst, tox, toy, colorMap[c]);
               tox++;
            }
         }
         toy++;
      }
   }
   M_FREE(stx);
   M_FREE(sty);
}

Here is the call graph for this function:

gdImageCreate()

gdImagePtr gdImageCreate	(	int	sx,
		int	sy
	)

Definition at line 417 of file mgd.cxx.

{
   int i;
   gdImagePtr im;
   im = (gdImage *) M_MALLOC(sizeof(gdImage));
   im->pixels = (unsigned char **) M_MALLOC(sizeof(unsigned char *) * sx);
   im->polyInts = 0;
   im->polyAllocated = 0;
   im->brush = 0;
   im->tile = 0;
   im->style = 0;
   for (i = 0; (i < sx); i++) {
      im->pixels[i] = (unsigned char *) M_CALLOC(sy, sizeof(unsigned char));
   }
   im->sx = sx;
   im->sy = sy;
   im->colorsTotal = 0;
   im->transparent = (-1);
   im->interlace = 0;
   return im;
}

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageCreateFromGif()

gdImagePtr gdImageCreateFromGif

(

FILE *

fd

)

Definition at line 1888 of file mgd.cxx.

{
   int imageNumber;
   int BitPixel;
   //int ColorResolution;
   //int Background;
   //int AspectRatio;
   int Transparent = (-1);
   unsigned char buf[16];
   unsigned char c;
   unsigned char ColorMap[3][MAXCOLORMAPSIZE];
   unsigned char localColorMap[3][MAXCOLORMAPSIZE];
   int imw, imh;
   int useGlobalColormap;
   int bitPixel;
   int imageCount = 0;
   char version[4];
   gdImagePtr im = 0;
   ZeroDataBlock = FALSE;

   imageNumber = 1;
   if (!ReadOK(fd, buf, 6)) {
      return 0;
   }
   if (strncmp((char *) buf, "GIF", 3) != 0) {
      return 0;
   }
   strncpy(version, (char *) buf + 3, 3);
   version[3] = '\0';

   if ((strcmp(version, "87a") != 0) && (strcmp(version, "89a") != 0)) {
      return 0;
   }
   if (!ReadOK(fd, buf, 7)) {
      return 0;
   }
   BitPixel = 2 << (buf[4] & 0x07);
   //ColorResolution = (int) (((buf[4] & 0x70) >> 3) + 1);
   //Background = buf[5];
   //AspectRatio = buf[6];

   if (BitSet(buf[4], LOCALCOLORMAP)) { /* Global Colormap */
      if (ReadColorMap(fd, BitPixel, ColorMap)) {
         return 0;
      }
   }
   for (;;) {
      if (!ReadOK(fd, &c, 1)) {
         return 0;
      }
      if (c == ';') {           /* GIF terminator */
         int i;
         if (imageCount < imageNumber) {
            return 0;
         }
         /* Terminator before any image was declared! */
         if (!im) {
            return 0;
         }
         /* Check for open colors at the end, so
            we can reduce colorsTotal and ultimately
            BitsPerPixel */
         for (i = ((im->colorsTotal - 1)); (i >= 0); i--) {
            if (im->open[i]) {
               im->colorsTotal--;
            } else {
               break;
            }
         }
         return im;
      }

      if (c == '!') {           /* Extension */
         if (!ReadOK(fd, &c, 1)) {
            return 0;
         }
         DoExtension(fd, c, &Transparent);
         continue;
      }

      if (c != ',') {           /* Not a valid start character */
         continue;
      }

      ++imageCount;

      if (!ReadOK(fd, buf, 9)) {
         return 0;
      }

      useGlobalColormap = !BitSet(buf[8], LOCALCOLORMAP);

      bitPixel = 1 << ((buf[8] & 0x07) + 1);

      imw = LM_to_uint(buf[4], buf[5]);
      imh = LM_to_uint(buf[6], buf[7]);
      if (!(im = gdImageCreate(imw, imh))) {
         return 0;
      }
      im->interlace = BitSet(buf[8], INTERLACE);
      if (!useGlobalColormap) {
         if (ReadColorMap(fd, bitPixel, localColorMap)) {
            return 0;
         }
         ReadImage(im, fd, imw, imh, localColorMap,
                   BitSet(buf[8], INTERLACE), imageCount != imageNumber);
      } else {
         ReadImage(im, fd, imw, imh,
                   ColorMap, BitSet(buf[8], INTERLACE), imageCount != imageNumber);
      }
      if (Transparent != (-1)) {
         gdImageColorTransparent(im, Transparent);
      }
   }
}

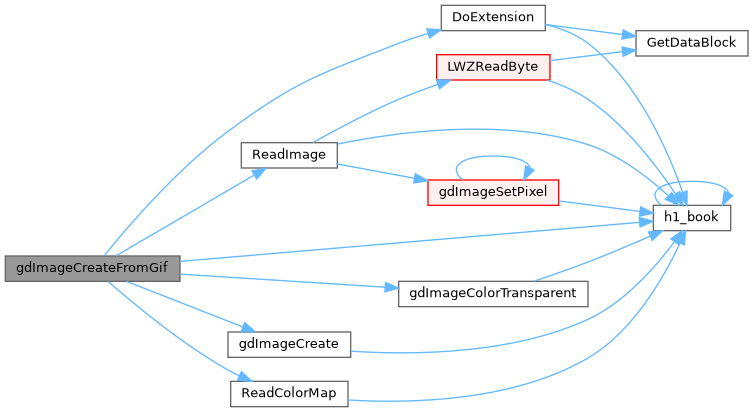

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageDashedLine()

void gdImageDashedLine	(	gdImagePtr	im,
		int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	color
	)

Definition at line 738 of file mgd.cxx.

{
   int dx, dy, incr1, incr2, d, x, y, xend, yend, xdirflag, ydirflag;
   int dashStep = 0;
   int on = 1;
   dx = abs(x2 - x1);
   dy = abs(y2 - y1);
   if (dy <= dx) {
      d = 2 * dy - dx;
      incr1 = 2 * dy;
      incr2 = 2 * (dy - dx);
      if (x1 > x2) {
         x = x2;
         y = y2;
         ydirflag = (-1);
         xend = x1;
      } else {
         x = x1;
         y = y1;
         ydirflag = 1;
         xend = x2;
      }
      dashedSet;
      if (((y2 - y1) * ydirflag) > 0) {
         while (x < xend) {
            x++;
            if (d < 0) {
               d += incr1;
            } else {
               y++;
               d += incr2;
            }
            dashedSet;
         }
      } else {
         while (x < xend) {
            x++;
            if (d < 0) {
               d += incr1;
            } else {
               y--;
               d += incr2;
            }
            dashedSet;
         }
      }
   } else {
      d = 2 * dx - dy;
      incr1 = 2 * dx;
      incr2 = 2 * (dx - dy);
      if (y1 > y2) {
         y = y2;
         x = x2;
         yend = y1;
         xdirflag = (-1);
      } else {
         y = y1;
         x = x1;
         yend = y2;
         xdirflag = 1;
      }
      dashedSet;
      if (((x2 - x1) * xdirflag) > 0) {
         while (y < yend) {
            y++;
            if (d < 0) {
               d += incr1;
            } else {
               x++;
               d += incr2;
            }
            dashedSet;
         }
      } else {
         while (y < yend) {
            y++;
            if (d < 0) {
               d += incr1;
            } else {
               x--;
               d += incr2;
            }
            dashedSet;
         }
      }
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageDestroy()

void gdImageDestroy

(

gdImagePtr

im

)

Definition at line 439 of file mgd.cxx.

{
   int i;
   for (i = 0; (i < im->sx); i++) {
      M_FREE(im->pixels[i]);
   }
   M_FREE(im->pixels);
   if (im->polyInts) {
      M_FREE(im->polyInts);
   }
   if (im->style) {
      M_FREE(im->style);
   }
   M_FREE(im);
}

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageFill()

void gdImageFill	(	gdImagePtr	im,
		int	x,
		int	y,
		int	color
	)

Definition at line 964 of file mgd.cxx.

{
   int lastBorder;
   int old;
   int leftLimit, rightLimit;
   int i;
   old = gdImageGetPixel(im, x, y);
   if (color == gdTiled) {
      /* Tile fill -- got to watch out! */
      int p, tileColor;
      int srcx, srcy;
      if (!im->tile) {
         return;
      }
      /* Refuse to flood-fill with a transparent pattern --
         I can't do it without allocating another image */
      if (gdImageGetTransparent(im->tile) != (-1)) {
         return;
      }
      srcx = x % gdImageSX(im->tile);
      srcy = y % gdImageSY(im->tile);
      p = gdImageGetPixel(im->tile, srcx, srcy);
      tileColor = im->tileColorMap[p];
      if (old == tileColor) {
         /* Nothing to be done */
         return;
      }
   } else {
      if (old == color) {
         /* Nothing to be done */
         return;
      }
   }
   /* Seek left */
   leftLimit = (-1);
   for (i = x; (i >= 0); i--) {
      if (gdImageGetPixel(im, i, y) != old) {
         break;
      }
      gdImageSetPixel(im, i, y, color);
      leftLimit = i;
   }
   if (leftLimit == (-1)) {
      return;
   }
   /* Seek right */
   rightLimit = x;
   for (i = (x + 1); (i < im->sx); i++) {
      if (gdImageGetPixel(im, i, y) != old) {
         break;
      }
      gdImageSetPixel(im, i, y, color);
      rightLimit = i;
   }
   /* Look at lines above and below and start paints */
   /* Above */
   if (y > 0) {
      lastBorder = 1;
      for (i = leftLimit; (i <= rightLimit); i++) {
         int c;
         c = gdImageGetPixel(im, i, y - 1);
         if (lastBorder) {
            if (c == old) {
               gdImageFill(im, i, y - 1, color);
               lastBorder = 0;
            }
         } else if (c != old) {
            lastBorder = 1;
         }
      }
   }
   /* Below */
   if (y < ((im->sy) - 1)) {
      lastBorder = 1;
      for (i = leftLimit; (i <= rightLimit); i++) {
         int c;
         c = gdImageGetPixel(im, i, y + 1);
         if (lastBorder) {
            if (c == old) {
               gdImageFill(im, i, y + 1, color);
               lastBorder = 0;
            }
         } else if (c != old) {
            lastBorder = 1;
         }
      }
   }
}

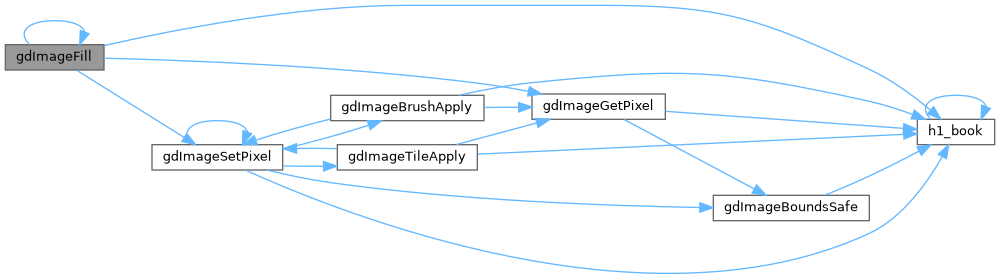

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageFilledPolygon()

void gdImageFilledPolygon	(	gdImagePtr	im,
		gdPointPtr	p,
		int	n,
		int	c
	)

Definition at line 2471 of file mgd.cxx.

{
   int i;
   int y;
   int y1, y2;
   int ints;
   if (!n) {
      return;
   }
   if (!im->polyAllocated) {
      im->polyInts = (int *) M_MALLOC(sizeof(int) * n);
      im->polyAllocated = n;
   }
   if (im->polyAllocated < n) {
      while (im->polyAllocated < n) {
         im->polyAllocated *= 2;
      }
      im->polyInts = (int *) realloc(im->polyInts, sizeof(int) * im->polyAllocated);
   }
   y1 = p[0].y;
   y2 = p[0].y;
   for (i = 1; (i < n); i++) {
      if (p[i].y < y1) {
         y1 = p[i].y;
      }
      if (p[i].y > y2) {
         y2 = p[i].y;
      }
   }
   for (y = y1; (y <= y2); y++) {
      int interLast = 0;
      int dirLast = 0;
      int interFirst = 1;
      ints = 0;
      for (i = 0; (i <= n); i++) {
         int x1, x2;
         int y1, y2;
         int dir;
         int ind1, ind2;
         int lastInd1 = 0;
         if ((i == n) || (!i)) {
            ind1 = n - 1;
            ind2 = 0;
         } else {
            ind1 = i - 1;
            ind2 = i;
         }
         y1 = p[ind1].y;
         y2 = p[ind2].y;
         if (y1 < y2) {
            y1 = p[ind1].y;
            y2 = p[ind2].y;
            x1 = p[ind1].x;
            x2 = p[ind2].x;
            dir = -1;
         } else if (y1 > y2) {
            y2 = p[ind1].y;
            y1 = p[ind2].y;
            x2 = p[ind1].x;
            x1 = p[ind2].x;
            dir = 1;
         } else {
            /* Horizontal; just draw it */
            gdImageLine(im, p[ind1].x, y1, p[ind2].x, y1, c);
            continue;
         }
         if ((y >= y1) && (y <= y2)) {
            int inter = (y - y1) * (x2 - x1) / (y2 - y1) + x1;
            /* Only count intersections once
               except at maxima and minima. Also,
               if two consecutive intersections are
               endpoints of the same horizontal line
               that is not at a maxima or minima,
               discard the leftmost of the two. */
            if (!interFirst) {
               if ((p[ind1].y == p[lastInd1].y) && (p[ind1].x != p[lastInd1].x)) {
                  if (dir == dirLast) {
                     if (inter > interLast) {
                        /* Replace the old one */
                        im->polyInts[ints] = inter;
                     } else {
                        /* Discard this one */
                     }
                     continue;
                  }
               }
               if (inter == interLast) {
                  if (dir == dirLast) {
                     continue;
                  }
               }
            }
            if (i > 0) {
               im->polyInts[ints++] = inter;
            }
            lastInd1 = i;
            dirLast = dir;
            interLast = inter;
            interFirst = 0;
         }
      }
      qsort(im->polyInts, ints, sizeof(int), gdCompareInt);
      for (i = 0; (i < (ints - 1)); i += 2) {
         gdImageLine(im, im->polyInts[i], y, im->polyInts[i + 1], y, c);
      }
   }
}

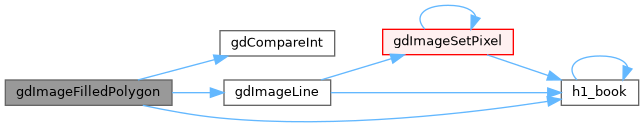

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageFilledRectangle()

void gdImageFilledRectangle	(	gdImagePtr	im,
		int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	color
	)

Definition at line 2307 of file mgd.cxx.

{
   int x, y;
   for (y = y1; (y <= y2); y++) {
      for (x = x1; (x <= x2); x++) {
         gdImageSetPixel(im, x, y, color);
      }
   }
}

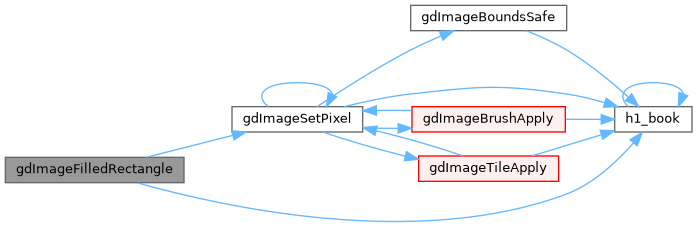

Here is the call graph for this function:

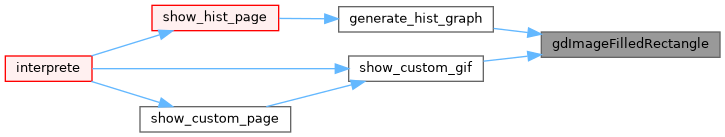

Here is the caller graph for this function:

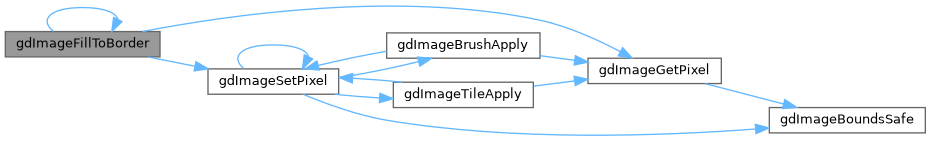

gdImageFillToBorder()

void gdImageFillToBorder	(	gdImagePtr	im,
		int	x,
		int	y,
		int	border,
		int	color
	)

Definition at line 899 of file mgd.cxx.

{
   int lastBorder;
   /* Seek left */
   int leftLimit, rightLimit;
   int i;
   leftLimit = (-1);
   if (border < 0) {
      /* Refuse to fill to a non-solid border */
      return;
   }
   for (i = x; (i >= 0); i--) {
      if (gdImageGetPixel(im, i, y) == border) {
         break;
      }
      gdImageSetPixel(im, i, y, color);
      leftLimit = i;
   }
   if (leftLimit == (-1)) {
      return;
   }
   /* Seek right */
   rightLimit = x;
   for (i = (x + 1); (i < im->sx); i++) {
      if (gdImageGetPixel(im, i, y) == border) {
         break;
      }
      gdImageSetPixel(im, i, y, color);
      rightLimit = i;
   }
   /* Look at lines above and below and start paints */
   /* Above */
   if (y > 0) {
      lastBorder = 1;
      for (i = leftLimit; (i <= rightLimit); i++) {
         int c;
         c = gdImageGetPixel(im, i, y - 1);
         if (lastBorder) {
            if ((c != border) && (c != color)) {
               gdImageFillToBorder(im, i, y - 1, border, color);
               lastBorder = 0;
            }
         } else if ((c == border) || (c == color)) {
            lastBorder = 1;
         }
      }
   }
   /* Below */
   if (y < ((im->sy) - 1)) {
      lastBorder = 1;
      for (i = leftLimit; (i <= rightLimit); i++) {
         int c;
         c = gdImageGetPixel(im, i, y + 1);
         if (lastBorder) {
            if ((c != border) && (c != color)) {
               gdImageFillToBorder(im, i, y + 1, border, color);
               lastBorder = 0;
            }
         } else if ((c == border) || (c == color)) {
            lastBorder = 1;
         }
      }
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

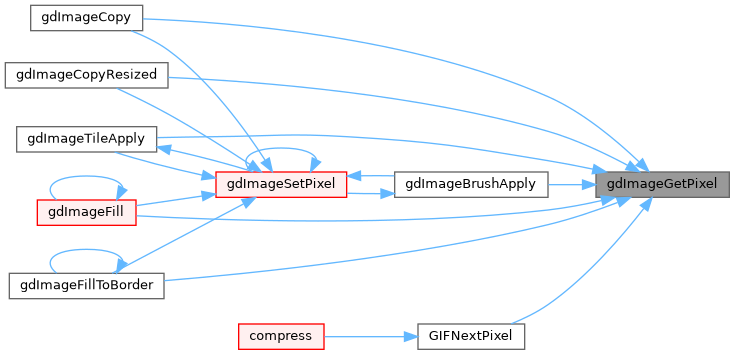

gdImageGetPixel()

int gdImageGetPixel	(	gdImagePtr	im,
		int	x,
		int	y
	)

Definition at line 627 of file mgd.cxx.

{
   if (gdImageBoundsSafe(im, x, y)) {
      return im->pixels[x][y];
   } else {
      return 0;
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

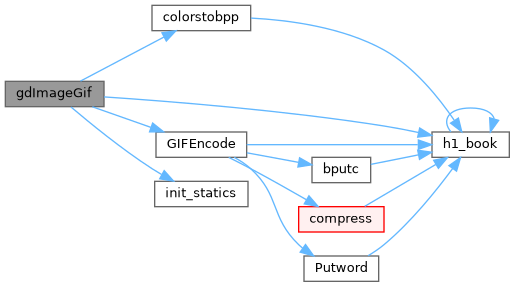

gdImageGif()

void gdImageGif	(	gdImagePtr	im,
		gdGifBuffer *	buffer
	)

Definition at line 1118 of file mgd.cxx.

{
   int interlace, transparent, BitsPerPixel;
   interlace = im->interlace;
   transparent = im->transparent;

   /* allocate buffer */
   buffer->size = 0;
   buffer->data = gif_buffer;

   BitsPerPixel = colorstobpp(im->colorsTotal);
   /* Clear any old values in statics strewn through the GIF code */
   init_statics();
   /* All set, let's do it. */
   GIFEncode(buffer, im->sx, im->sy, interlace, 0, transparent, BitsPerPixel,
             im->red, im->green, im->blue, im);
}

Here is the call graph for this function:

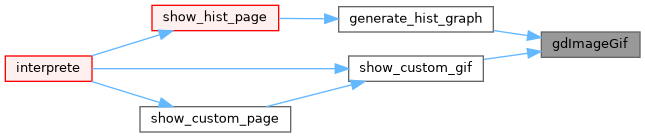

Here is the caller graph for this function:

gdImageInterlace()

void gdImageInterlace	(	gdImagePtr	im,
		int	interlaceArg
	)

Definition at line 2619 of file mgd.cxx.

{
   im->interlace = interlaceArg;
}

Here is the call graph for this function:

Here is the caller graph for this function:

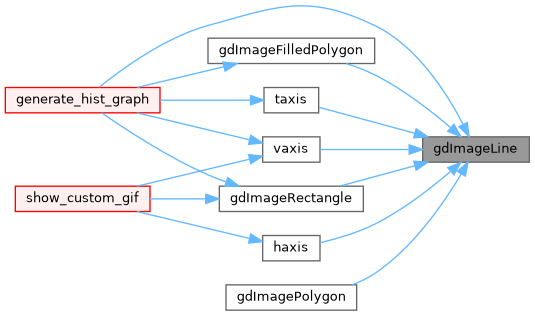

gdImageLine()

void gdImageLine	(	gdImagePtr	im,
		int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	color
	)

Definition at line 638 of file mgd.cxx.

{
   int dx, dy, incr1, incr2, d, x, y, xend, yend, xdirflag, ydirflag;
   dx = abs(x2 - x1);
   dy = abs(y2 - y1);
   if (dy <= dx) {
      d = 2 * dy - dx;
      incr1 = 2 * dy;
      incr2 = 2 * (dy - dx);
      if (x1 > x2) {
         x = x2;
         y = y2;
         ydirflag = (-1);
         xend = x1;
      } else {
         x = x1;
         y = y1;
         ydirflag = 1;
         xend = x2;
      }
      gdImageSetPixel(im, x, y, color);
      if (((y2 - y1) * ydirflag) > 0) {
         while (x < xend) {
            x++;
            if (d < 0) {
               d += incr1;
            } else {
               y++;
               d += incr2;
            }
            gdImageSetPixel(im, x, y, color);
         }
      } else {
         while (x < xend) {
            x++;
            if (d < 0) {
               d += incr1;
            } else {
               y--;
               d += incr2;
            }
            gdImageSetPixel(im, x, y, color);
         }
      }
   } else {
      d = 2 * dx - dy;
      incr1 = 2 * dx;
      incr2 = 2 * (dx - dy);
      if (y1 > y2) {
         y = y2;
         x = x2;
         yend = y1;
         xdirflag = (-1);
      } else {
         y = y1;
         x = x1;
         yend = y2;
         xdirflag = 1;
      }
      gdImageSetPixel(im, x, y, color);
      if (((x2 - x1) * xdirflag) > 0) {
         while (y < yend) {
            y++;
            if (d < 0) {
               d += incr1;
            } else {
               x++;
               d += incr2;
            }
            gdImageSetPixel(im, x, y, color);
         }
      } else {
         while (y < yend) {
            y++;
            if (d < 0) {
               d += incr1;
            } else {
               x--;
               d += incr2;
            }
            gdImageSetPixel(im, x, y, color);
         }
      }
   }
}

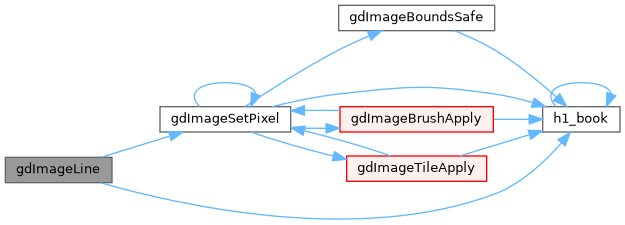

Here is the call graph for this function:

Here is the caller graph for this function:

gdImagePolygon()

void gdImagePolygon	(	gdImagePtr	im,
		gdPointPtr	p,
		int	n,
		int	c
	)

Definition at line 2451 of file mgd.cxx.

{
   int i;
   int lx, ly;
   if (!n) {
      return;
   }
   lx = p->x;
   ly = p->y;
   gdImageLine(im, lx, ly, p[n - 1].x, p[n - 1].y, c);
   for (i = 1; (i < n); i++) {
      p++;
      gdImageLine(im, lx, ly, p->x, p->y, c);
      lx = p->x;
      ly = p->y;
   }
}

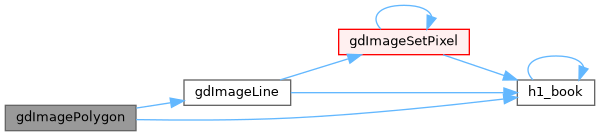

Here is the call graph for this function:

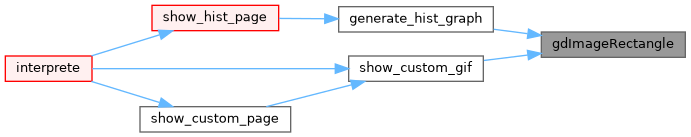

gdImageRectangle()

void gdImageRectangle	(	gdImagePtr	im,
		int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	color
	)

Definition at line 2299 of file mgd.cxx.

{
   gdImageLine(im, x1, y1, x2, y1, color);
   gdImageLine(im, x1, y2, x2, y2, color);
   gdImageLine(im, x1, y1, x1, y2, color);
   gdImageLine(im, x2, y1, x2, y2, color);
}

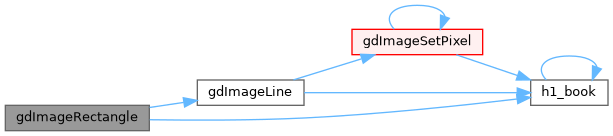

Here is the call graph for this function:

Here is the caller graph for this function:

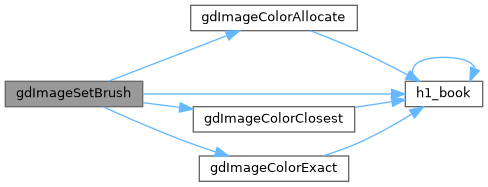

gdImageSetBrush()

void gdImageSetBrush	(	gdImagePtr	im,
		gdImagePtr	brush
	)

Definition at line 2596 of file mgd.cxx.

{
   int i;
   im->brush = brush;
   for (i = 0; (i < gdImageColorsTotal(brush)); i++) {
      int index;
      index = gdImageColorExact(im,
                                gdImageRed(brush, i),
                                gdImageGreen(brush, i), gdImageBlue(brush, i));
      if (index == (-1)) {
         index = gdImageColorAllocate(im,
                                      gdImageRed(brush, i),
                                      gdImageGreen(brush, i), gdImageBlue(brush, i));
         if (index == (-1)) {
            index = gdImageColorClosest(im,
                                        gdImageRed(brush, i),
                                        gdImageGreen(brush, i), gdImageBlue(brush, i));
         }
      }
      im->brushColorMap[i] = index;
   }
}

Here is the call graph for this function:

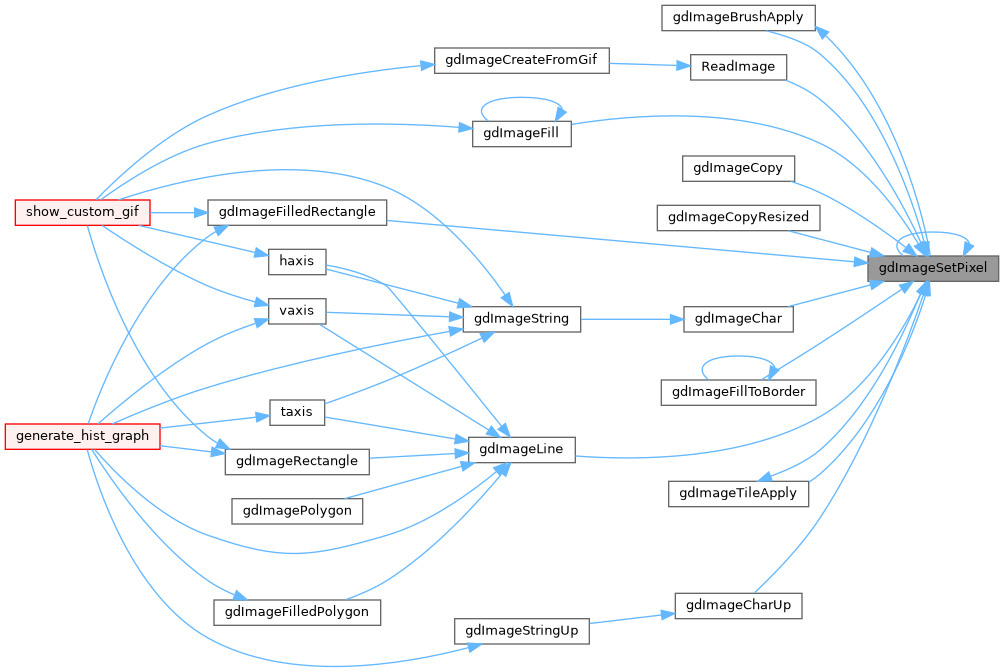

gdImageSetPixel()

void gdImageSetPixel	(	gdImagePtr	im,
		int	x,
		int	y,
		int	color
	)

Definition at line 538 of file mgd.cxx.

{
   int p;
   switch (color) {
   case gdStyled:
      if (!im->style) {
         /* Refuse to draw if no style is set. */
         return;
      } else {
         p = im->style[im->stylePos++];
      }
      if (p != (gdTransparent)) {
         gdImageSetPixel(im, x, y, p);
      }
      im->stylePos = im->stylePos % im->styleLength;
      break;
   case gdStyledBrushed:
      if (!im->style) {
         /* Refuse to draw if no style is set. */
         return;
      }
      p = im->style[im->stylePos++];
      if ((p != gdTransparent) && (p != 0)) {
         gdImageSetPixel(im, x, y, gdBrushed);
      }
      im->stylePos = im->stylePos % im->styleLength;
      break;
   case gdBrushed:
      gdImageBrushApply(im, x, y);
      break;
   case gdTiled:
      gdImageTileApply(im, x, y);
      break;
   default:
      if (gdImageBoundsSafe(im, x, y)) {
         im->pixels[x][y] = color;
      }
      break;
   }
}

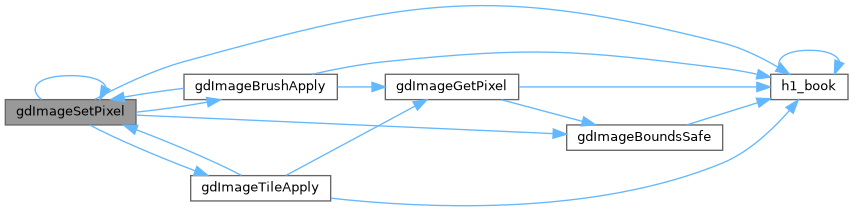

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageSetStyle()

void gdImageSetStyle	(	gdImagePtr	im,
		int *	style,
		int	noOfPixels
	)

Definition at line 2584 of file mgd.cxx.

{
   if (im->style) {
      M_FREE(im->style);
   }
   im->style = (int *)
       M_MALLOC(sizeof(int) * noOfPixels);
   memcpy(im->style, style, sizeof(int) * noOfPixels);
   im->styleLength = noOfPixels;
   im->stylePos = 0;
}

Here is the call graph for this function:

gdImageSetTile()

void gdImageSetTile	(	gdImagePtr	im,
		gdImagePtr	tile
	)

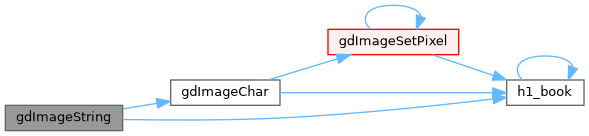

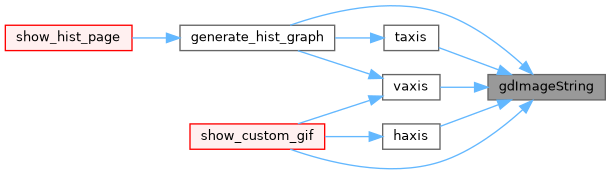

gdImageString()

void gdImageString	(	gdImagePtr	im,
		gdFontPtr	f,
		int	x,
		int	y,
		const char *	s,
		int	color
	)

Definition at line 877 of file mgd.cxx.

{
   int i;
   int l;
   l = strlen(s);
   for (i = 0; (i < l); i++) {
      gdImageChar(im, f, x, y, s[i], color);
      x += f->w;
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

gdImageStringUp()

void gdImageStringUp	(	gdImagePtr	im,
		gdFontPtr	f,
		int	x,
		int	y,
		const char *	s,
		int	color
	)

Definition at line 888 of file mgd.cxx.

{
   int i;
   int l;
   l = strlen(s);
   for (i = 0; (i < l); i++) {
      gdImageCharUp(im, f, x, y, s[i], color);
      y -= f->w;
   }
}

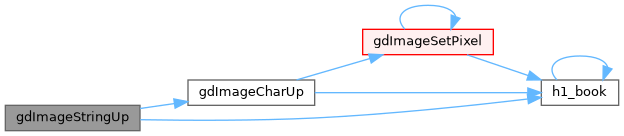

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

blue

int gdImageStruct::blue[gdMaxColors]

Definition at line 36 of file mgd.h.

brush

struct gdImageStruct* gdImageStruct::brush

Definition at line 41 of file mgd.h.

brushColorMap

int gdImageStruct::brushColorMap[gdMaxColors]

Definition at line 43 of file mgd.h.

colorsTotal

int gdImageStruct::colorsTotal

Definition at line 33 of file mgd.h.

data [1/2]

char* gdGifBufferStruct::data

Definition at line 54 of file mgd.h.

data [2/2]

int* gdFont::data

Definition at line 69 of file mgd.h.

gdFontGiant

gdFontPtr gdFontGiant

extern

Definition at line 409 of file mgd.cxx.

gdFontMediumBold

gdFontPtr gdFontMediumBold

extern

Definition at line 408 of file mgd.cxx.

gdFontSmall

gdFontPtr gdFontSmall

extern

Definition at line 410 of file mgd.cxx.

green

int gdImageStruct::green[gdMaxColors]

Definition at line 35 of file mgd.h.

h

int gdFont::h

Definition at line 65 of file mgd.h.

interlace

int gdImageStruct::interlace

Definition at line 48 of file mgd.h.

nchars

int gdFont::nchars

Definition at line 60 of file mgd.h.

offset

int gdFont::offset

Definition at line 62 of file mgd.h.

open

int gdImageStruct::open[gdMaxColors]

Definition at line 37 of file mgd.h.

pixels

unsigned char** gdImageStruct::pixels

Definition at line 30 of file mgd.h.

polyAllocated

int gdImageStruct::polyAllocated

Definition at line 40 of file mgd.h.

polyInts

int* gdImageStruct::polyInts

Definition at line 39 of file mgd.h.

red

int gdImageStruct::red[gdMaxColors]

Definition at line 34 of file mgd.h.

size

int gdGifBufferStruct::size

Definition at line 55 of file mgd.h.

style

int* gdImageStruct::style

Definition at line 47 of file mgd.h.

styleLength

int gdImageStruct::styleLength

Definition at line 45 of file mgd.h.

stylePos

int gdImageStruct::stylePos

Definition at line 46 of file mgd.h.

sx

int gdImageStruct::sx

Definition at line 31 of file mgd.h.

sy

int gdImageStruct::sy

Definition at line 32 of file mgd.h.

tile

struct gdImageStruct* gdImageStruct::tile

Definition at line 42 of file mgd.h.

tileColorMap

int gdImageStruct::tileColorMap[gdMaxColors]

Definition at line 44 of file mgd.h.

transparent

int gdImageStruct::transparent

Definition at line 38 of file mgd.h.

w

int gdFont::w

Definition at line 64 of file mgd.h.

x

int gdPoint::x

Definition at line 121 of file mgd.h.

y

int gdPoint::y

Definition at line 121 of file mgd.h.
