largefe.cxx File Reference

#include <stdio.h>
#include <stdlib.h>
#include "midas.h"
#include "mfe.h"

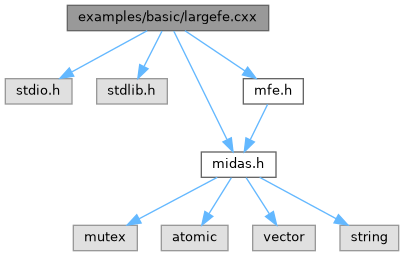

Include dependency graph for largefe.cxx:

Go to the source code of this file.

Functions
INT	frontend_init ()
	Frontend initialization.
INT	frontend_exit ()
	Frontend exit.
INT	begin_of_run (INT run_number, char *error)
	Begin of Run.
INT	end_of_run (INT run_number, char *error)
	End of Run.
INT	pause_run (INT run_number, char *error)
	Pause Run.
INT	resume_run (INT run_number, char *error)
	Resume Run.
INT	frontend_loop ()
	Frontend loop.
INT	read_large_event (char *pevent, INT off)
INT	poll_event (INT source, INT count, BOOL test)
INT	interrupt_configure (INT cmd, INT source, PTYPE adr)

Variables
const char *	frontend_name = "largefe"
const char *	frontend_file_name = __FILE__
BOOL	frontend_call_loop = TRUE
INT	display_period = 0000
INT	max_event_size = 10000
INT	max_event_size_frag = 5 * 1024 * 1024
INT	event_buffer_size = 10 * 10000
BOOL	equipment_common_overwrite = FALSE
EQUIPMENT	equipment []

Function Documentation

begin_of_run()

INT begin_of_run	(	INT	run_number,
		char *	error
	)

Begin of Run.

Called every run start transition. Set equipment status in ODB, start acquisition on the modules.

Parameters

[in]	run_number	Number of the run being started
[out]	error	Can be used to write a message string to midas.log

Definition at line 118 of file largefe.cxx.

{
   return SUCCESS;
}

end_of_run()

INT end_of_run	(	INT	run_number,
		char *	error
	)

End of Run.

Called every stop run transition. Set equipment status in ODB, stop acquisition on the modules.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Definition at line 125 of file largefe.cxx.

{
   return SUCCESS;
}

frontend_exit()

INT frontend_exit

(

void

)

Frontend exit.

Runs at frontend shutdown. Disconnect hardware and set equipment status in ODB

Returns

Midas status code

Definition at line 111 of file largefe.cxx.

{
   return SUCCESS;
}

frontend_init()

INT frontend_init

(

void

)

Frontend initialization.

Runs once at application startup. We initialize the hardware and optical interfaces and set the equipment status in ODB. We also lock the frontend to once physical cpu core.

Returns

Midas status code

Definition at line 104 of file largefe.cxx.

{
   return SUCCESS;
}

frontend_loop()

INT frontend_loop

(

void

)

Frontend loop.

If frontend_call_loop is true, this routine gets called when the frontend is idle or once between every event.

Returns

Midas status code

Definition at line 145 of file largefe.cxx.

{
   return SUCCESS;
}

interrupt_configure()

INT interrupt_configure	(	INT	cmd,
		INT	source,
		PTYPE	adr
	)

Definition at line 184 of file largefe.cxx.

{
   switch (cmd) {
   case CMD_INTERRUPT_ENABLE:
      break;
   case CMD_INTERRUPT_DISABLE:
      break;
   case CMD_INTERRUPT_ATTACH:
      break;
   case CMD_INTERRUPT_DETACH:
      break;
   }
   return SUCCESS;
}

pause_run()

INT pause_run	(	INT	run_number,
		char *	error
	)

Pause Run.

Called every pause run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 132 of file largefe.cxx.

{
   return SUCCESS;
}

poll_event()

INT poll_event	(	INT	source,
		INT	count,
		BOOL	test
	)

Definition at line 160 of file largefe.cxx.

{

   /* Example for camac
   int i;
   DWORD lam;

   for (i = 0; i < count; i++) {
      cam_lam_read(LAM_SOURCE_CRATE(source), &lam);

      if (lam & LAM_SOURCE_STATION(source))
         if (!test)
            return lam;
   }
   */

   return 0;
}

read_large_event()

INT read_large_event	(	char *	pevent,
		INT	off
	)

Definition at line 201 of file largefe.cxx.

{
   DWORD *pddata;

   /* init bank structure */
   bk_init32(pevent);

   bk_create(pevent, "BIGG", TID_DWORD, (void **) &pddata);
   memset((char *) pddata, 0x0000, 100);
   pddata += 1000000;
   memset((char *) pddata - 100, 0xFFFF, 100);
   bk_close(pevent, pddata);

   return bk_size(pevent);
}

Here is the call graph for this function:

resume_run()

INT resume_run	(	INT	run_number,
		char *	error
	)

Resume Run.

Called every resume run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 139 of file largefe.cxx.

{
   return SUCCESS;
}

Variable Documentation

display_period

INT display_period = 0000

Definition at line 30 of file largefe.cxx.

equipment

EQUIPMENT equipment[]

Initial value:

= {

   {"large",
      {3, 0,
      "SYSTEM",
      EQ_PERIODIC | EQ_FRAGMENTED,
      0,
      "MIDAS",
      TRUE,
      RO_ALWAYS,
      2000,
      0,
      0,
      0,
      "", "", ""},
      read_large_event,
      NULL, NULL,
      NULL,
      },

   {""}
}

Definition at line 56 of file largefe.cxx.

                        {

   {"large",                 /* equipment name */
      {3, 0,                    /* event ID, trigger mask */
      "SYSTEM",                /* event buffer */
      EQ_PERIODIC | EQ_FRAGMENTED,     /* equipment type */
      0,                       /* event source */
      "MIDAS",                 /* format */
      TRUE,                    /* enabled */
      RO_ALWAYS,               /* read when running and on transitions */
      2000,                    /* read every 2 sec */
      0,                       /* stop run after this event limit */
      0,                       /* number of sub events */
      0,                       /* log history */
      "", "", ""},
      read_large_event,        /* readout routine */
      NULL, NULL,              /* keep null */
      NULL,                    /* init string */
      },

   {""}
};

equipment_common_overwrite

BOOL equipment_common_overwrite = FALSE

Definition at line 54 of file largefe.cxx.

event_buffer_size

INT event_buffer_size = 10 * 10000

Definition at line 39 of file largefe.cxx.

frontend_call_loop

BOOL frontend_call_loop = TRUE

Definition at line 27 of file largefe.cxx.

frontend_file_name

const char* frontend_file_name = __FILE__

Definition at line 24 of file largefe.cxx.

frontend_name

const char* frontend_name = "largefe"

Definition at line 21 of file largefe.cxx.

max_event_size

INT max_event_size = 10000

Definition at line 33 of file largefe.cxx.

max_event_size_frag

INT max_event_size_frag = 5 * 1024 * 1024

Definition at line 36 of file largefe.cxx.
