mcstd.h File Reference

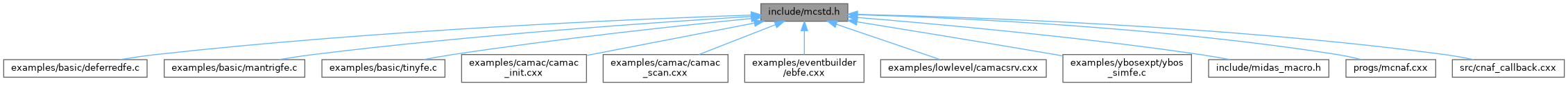

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	EXPRT
#define	EXTERNAL   extern
#define	MIDAS_TYPE_DEFINED
#define	SUCCESS   1

Typedefs
typedef unsigned char	BYTE
typedef unsigned short int	WORD
typedef unsigned int	DWORD

Functions
EXTERNAL void EXPRT	cam8i (const int c, const int n, const int a, const int f, BYTE *d)
EXTERNAL void EXPRT	cam8i_r (const int c, const int n, const int a, const int f, BYTE **d, const int r)
EXTERNAL void EXPRT	cam16i (const int c, const int n, const int a, const int f, WORD *d)
EXTERNAL void EXPRT	cam24i (const int c, const int n, const int a, const int f, DWORD *d)
EXTERNAL void EXPRT	cam8i_q (const int c, const int n, const int a, const int f, BYTE *d, int *x, int *q)
EXTERNAL void EXPRT	cam16i_q (const int c, const int n, const int a, const int f, WORD *d, int *x, int *q)
EXTERNAL void EXPRT	cam24i_q (const int c, const int n, const int a, const int f, DWORD *d, int *x, int *q)
EXTERNAL void EXPRT	cam16i_r (const int c, const int n, const int a, const int f, WORD **d, const int r)
EXTERNAL void EXPRT	cam24i_r (const int c, const int n, const int a, const int f, DWORD **d, const int r)
EXTERNAL void EXPRT	cam8i_rq (const int c, const int n, const int a, const int f, BYTE **d, const int r)
EXTERNAL void EXPRT	cam16i_rq (const int c, const int n, const int a, const int f, WORD **d, const int r)
EXTERNAL void EXPRT	cam24i_rq (const int c, const int n, const int a, const int f, DWORD **d, const int r)
EXTERNAL void EXPRT	cam8i_sa (const int c, const int n, const int a, const int f, BYTE **d, const int r)
EXTERNAL void EXPRT	cam16i_sa (const int c, const int n, const int a, const int f, WORD **d, const int r)
EXTERNAL void EXPRT	cam24i_sa (const int c, const int n, const int a, const int f, DWORD **d, const int r)
EXTERNAL void EXPRT	cam8i_sn (const int c, const int n, const int a, const int f, BYTE **d, const int r)
EXTERNAL void EXPRT	cam16i_sn (const int c, const int n, const int a, const int f, WORD **d, const int r)
EXTERNAL void EXPRT	cam24i_sn (const int c, const int n, const int a, const int f, DWORD **d, const int r)
EXTERNAL void EXPRT	cami (const int c, const int n, const int a, const int f, WORD *d)
EXTERNAL void EXPRT	cam8o (const int c, const int n, const int a, const int f, BYTE d)
EXTERNAL void EXPRT	cam16o (const int c, const int n, const int a, const int f, WORD d)
EXTERNAL void EXPRT	cam24o (const int c, const int n, const int a, const int f, DWORD d)
EXTERNAL void EXPRT	cam8o_q (const int c, const int n, const int a, const int f, BYTE d, int *x, int *q)
EXTERNAL void EXPRT	cam16o_q (const int c, const int n, const int a, const int f, WORD d, int *x, int *q)
EXTERNAL void EXPRT	cam24o_q (const int c, const int n, const int a, const int f, DWORD d, int *x, int *q)
EXTERNAL void EXPRT	cam8o_r (const int c, const int n, const int a, const int f, BYTE *d, const int r)
EXTERNAL void EXPRT	cam16o_r (const int c, const int n, const int a, const int f, WORD *d, const int r)
EXTERNAL void EXPRT	cam24o_r (const int c, const int n, const int a, const int f, DWORD *d, const int r)
EXTERNAL void EXPRT	camo (const int c, const int n, const int a, const int f, WORD d)
EXTERNAL int EXPRT	camc_chk (const int c)
EXTERNAL void EXPRT	camc (const int c, const int n, const int a, const int f)
EXTERNAL void EXPRT	camc_q (const int c, const int n, const int a, const int f, int *q)
EXTERNAL void EXPRT	camc_sa (const int c, const int n, const int a, const int f, const int r)
EXTERNAL void EXPRT	camc_sn (const int c, const int n, const int a, const int f, const int r)
EXTERNAL int EXPRT	cam_init (void)
EXTERNAL int EXPRT	cam_init_rpc (const char *host_name, const char *exp_name, const char *fe_name, const char *client_name, const char *rpc_server)
EXTERNAL void EXPRT	cam_exit (void)
EXTERNAL void EXPRT	cam_inhibit_set (const int c)
EXTERNAL void EXPRT	cam_inhibit_clear (const int c)
EXTERNAL int EXPRT	cam_inhibit_test (const int c)
EXTERNAL void EXPRT	cam_crate_clear (const int c)
EXTERNAL void EXPRT	cam_crate_zinit (const int c)
EXTERNAL void EXPRT	cam_lam_enable (const int c, const int n)
EXTERNAL void EXPRT	cam_lam_disable (const int c, const int n)
EXTERNAL void	cam_lam_read (const int c, DWORD *lam)
EXTERNAL void EXPRT	cam_lam_clear (const int c, const int n)
EXTERNAL int EXPRT	cam_lam_wait (int *c, DWORD *n, const int millisec)
EXTERNAL void EXPRT	cam_interrupt_enable (const int c)
EXTERNAL void EXPRT	cam_interrupt_disable (const int c)
EXTERNAL int EXPRT	cam_interrupt_test (const int c)
EXTERNAL void EXPRT	cam_interrupt_attach (const int c, const int n, void(*isr)(void))
EXTERNAL void EXPRT	cam_interrupt_detach (const int c, const int n)
EXTERNAL void EXPRT	cam_op ()

Detailed Description

dox

The Midas CAMAC include file

Definition in file mcstd.h.
