mfe_link_test_cxx.cxx File Reference

#include <stdio.h>
#include "midas.h"
#include "mfe.h"

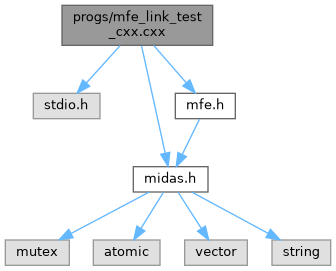

Include dependency graph for mfe_link_test_cxx.cxx:

Go to the source code of this file.

Functions
int	frontend_init ()
	Frontend initialization.
int	frontend_exit ()
	Frontend exit.
int	begin_of_run (int runno, char *errstr)
	Begin of Run.
int	end_of_run (int runno, char *errstr)
	End of Run.
int	pause_run (int runno, char *errstr)
	Pause Run.
int	resume_run (int runno, char *errstr)
	Resume Run.
int	interrupt_configure (INT cmd, INT source, POINTER_T adr)
int	frontend_loop ()
	Frontend loop.
int	poll_event (INT source, INT count, BOOL test)

Variables
const char *	frontend_name = "frontend_name"
const char *	frontend_file_name = "frontend_file_name"
BOOL	frontend_call_loop = 0
int	event_buffer_size = 1000
int	max_event_size = 1000
int	max_event_size_frag = 1000
int	display_period = 1000
BOOL	equipment_common_overwrite = FALSE
EQUIPMENT	equipment [1]

Function Documentation

begin_of_run()

int begin_of_run	(	int	runno,
		char *	errstr
	)

Begin of Run.

Called every run start transition. Set equipment status in ODB, start acquisition on the modules.

Parameters

[in]	run_number	Number of the run being started
[out]	error	Can be used to write a message string to midas.log

Definition at line 27 of file mfe_link_test_cxx.cxx.

{ return 0; };

end_of_run()

int end_of_run	(	int	runno,
		char *	errstr
	)

End of Run.

Called every stop run transition. Set equipment status in ODB, stop acquisition on the modules.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Definition at line 28 of file mfe_link_test_cxx.cxx.

{ return 0; };

frontend_exit()

int frontend_exit

(

void

)

Frontend exit.

Runs at frontend shutdown. Disconnect hardware and set equipment status in ODB

Returns

Midas status code

Definition at line 26 of file mfe_link_test_cxx.cxx.

{ return 0; };

frontend_init()

int frontend_init

(

void

)

Frontend initialization.

Runs once at application startup. We initialize the hardware and optical interfaces and set the equipment status in ODB. We also lock the frontend to once physical cpu core.

Returns

Midas status code

Definition at line 25 of file mfe_link_test_cxx.cxx.

{ return 0; };

frontend_loop()

int frontend_loop

(

void

)

Frontend loop.

If frontend_call_loop is true, this routine gets called when the frontend is idle or once between every event.

Returns

Midas status code

Definition at line 32 of file mfe_link_test_cxx.cxx.

{ return 0; };

interrupt_configure()

int interrupt_configure	(	INT	cmd,
		INT	source,
		POINTER_T	adr
	)

Definition at line 31 of file mfe_link_test_cxx.cxx.

{ return 0; };

pause_run()

int pause_run	(	int	runno,
		char *	errstr
	)

Pause Run.

Called every pause run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 29 of file mfe_link_test_cxx.cxx.

{ return 0; };

poll_event()

int poll_event	(	INT	source,
		INT	count,
		BOOL	test
	)

Definition at line 33 of file mfe_link_test_cxx.cxx.

{ return 0; };

resume_run()

int resume_run	(	int	runno,
		char *	errstr
	)

Resume Run.

Called every resume run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 30 of file mfe_link_test_cxx.cxx.

{ return 0; };

Variable Documentation

display_period

int display_period = 1000

Definition at line 22 of file mfe_link_test_cxx.cxx.

equipment

EQUIPMENT equipment[1]

Definition at line 24 of file mfe_link_test_cxx.cxx.

equipment_common_overwrite

BOOL equipment_common_overwrite = FALSE

Definition at line 23 of file mfe_link_test_cxx.cxx.

event_buffer_size

int event_buffer_size = 1000

Definition at line 19 of file mfe_link_test_cxx.cxx.

frontend_call_loop

BOOL frontend_call_loop = 0

Definition at line 18 of file mfe_link_test_cxx.cxx.

frontend_file_name

const char* frontend_file_name = "frontend_file_name"

Definition at line 17 of file mfe_link_test_cxx.cxx.

frontend_name

const char* frontend_name = "frontend_name"

Definition at line 16 of file mfe_link_test_cxx.cxx.

max_event_size

int max_event_size = 1000

Definition at line 20 of file mfe_link_test_cxx.cxx.

max_event_size_frag

int max_event_size_frag = 1000

Definition at line 21 of file mfe_link_test_cxx.cxx.
