rpc_srvr.cxx File Reference

#include "midas.h"
#include <stdio.h>

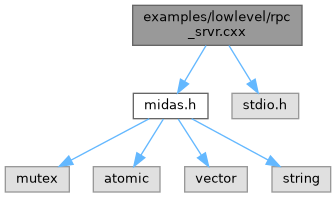

Include dependency graph for rpc_srvr.cxx:

Go to the source code of this file.

Macros
#define	RPC_MYTEST   RPC_MIN_ID

Functions
INT	rpc_mytest (BYTE b, WORD w, INT i, float f, double d, BYTE *b1, WORD *w1, INT *i1, float *f1, double *d1)
INT	rpc_dispatch (INT index, void *prpc_param[])
int	main ()

Variables
RPC_LIST	rpc_list []

Macro Definition Documentation

RPC_MYTEST

#define RPC_MYTEST   RPC_MIN_ID

Definition at line 18 of file rpc_srvr.cxx.

Function Documentation

main()

int main

(

void

)

Definition at line 87 of file rpc_srvr.cxx.

{
   INT status;

   /* register RPC server under port 1750 */
   status = rpc_register_server(1750, NULL, NULL);
   if (status != RPC_SUCCESS) {
      printf("Cannot start server");
      return 0;
   }

   /* Register function list. Calls get forwarded to rpc_dispatch */
   rpc_register_functions(rpc_list, rpc_dispatch);

   /* Print debugging messages */
   rpc_set_debug((void (*)(const char *)) puts, 0);

   /* Server loop */
   while (cm_yield(1000) != RPC_SHUTDOWN);

   /* Shutdown server */
   rpc_server_shutdown();

   return 1;
}

Here is the call graph for this function:

rpc_dispatch()

INT rpc_dispatch	(	INT	index,
		void *	prpc_param[]
	)

Definition at line 68 of file rpc_srvr.cxx.

{
   INT status = 1;

   switch (index) {
   case RPC_MYTEST:
      status = rpc_mytest(CBYTE(0), CWORD(1), CINT(2), CFLOAT(3), CDOUBLE(4),
                          CPBYTE(5), CPWORD(6), CPINT(7), CPFLOAT(8), CPDOUBLE(9));
      break;

   default:
      cm_msg(MERROR, "rpc_dispatch", "received unrecognized command");
   }

   return status;
}

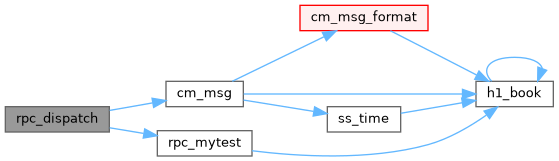

Here is the call graph for this function:

Here is the caller graph for this function:

rpc_mytest()

INT rpc_mytest	(	BYTE	b,
		WORD	w,
		INT	i,
		float	f,
		double	d,
		BYTE *	b1,
		WORD *	w1,
		INT *	i1,
		float *	f1,
		double *	d1
	)

Definition at line 55 of file rpc_srvr.cxx.

{
   *b1 = b * 2;
   *w1 = w * 2;
   *i1 = i * 2;
   *f1 = f * 2;
   *d1 = d * 2;

   return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

rpc_list

RPC_LIST rpc_list[]

Definition at line 20 of file rpc_srvr.cxx.

                      {

   {RPC_MYTEST, "rpc_mytest",
    {{TID_UINT8, RPC_IN}
     ,
     {TID_UINT16, RPC_IN}
     ,
     {TID_INT32, RPC_IN}
     ,
     {TID_FLOAT, RPC_IN}
     ,
     {TID_DOUBLE, RPC_IN}
     ,
     {TID_UINT8, RPC_OUT}
     ,
     {TID_UINT16, RPC_OUT}
     ,
     {TID_UINT32, RPC_OUT}
     ,
     {TID_FLOAT, RPC_OUT}
     ,
     {TID_DOUBLE, RPC_OUT}
     ,
     {0}
     }
    }
   ,

   {0}

};
