scaler.cxx File Reference

#include <stdio.h>
#include <string.h>
#include <time.h>
#include "midas.h"
#include "experim.h"
#include "analyzer.h"

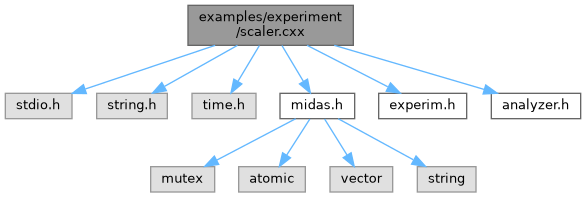

Include dependency graph for scaler.cxx:

Go to the source code of this file.

Functions
INT	scaler_accum (EVENT_HEADER *, void *)
INT	scaler_clear (INT run_number)
INT	scaler_eor (INT run_number)

Variables
ANA_MODULE	scaler_accum_module
double	scaler [32]

Function Documentation

scaler_accum()

INT scaler_accum	(	EVENT_HEADER *	pheader,
		void *	pevent
	)

Definition at line 66 of file scaler.cxx.

{
   INT n, i;
   DWORD *psclr;
   double *pacum;

   /* look for SCLR bank */
   n = bk_locate(pevent, "SCLR", &psclr);
   if (n == 0)
      return 1;

   /* create acummulated scaler bank */
   bk_create(pevent, "ACUM", TID_DOUBLE, (void**)&pacum);

   /* accumulate scalers */
   for (i = 0; i < n; i++) {
      scaler[i] += psclr[i];
      pacum[i] = scaler[i];
   }

   /* close bank */
   bk_close(pevent, pacum + n);

   return SUCCESS;
}

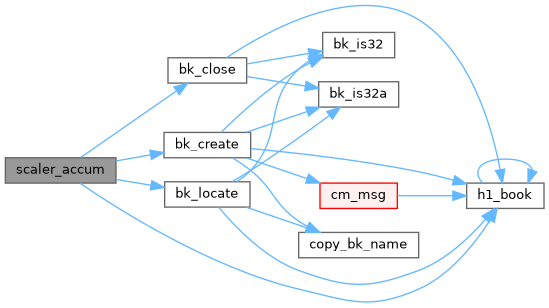

Here is the call graph for this function:

scaler_clear()

INT scaler_clear

(

INT

run_number

)

Definition at line 51 of file scaler.cxx.

{
   memset(scaler, 0, sizeof(scaler));
   return SUCCESS;
}

Here is the call graph for this function:

scaler_eor()

INT scaler_eor

(

INT

run_number

)

Definition at line 59 of file scaler.cxx.

{
   return SUCCESS;
}

Variable Documentation

scaler

double scaler[32]

Definition at line 47 of file scaler.cxx.

scaler_accum_module

ANA_MODULE scaler_accum_module

Initial value:

= {
   "Scaler accumulation",
   "Stefan Ritt",
   scaler_accum,
   scaler_clear,
   scaler_eor,
   NULL,
   NULL,
   NULL,
   0,
   NULL,
}

Definition at line 32 of file scaler.cxx.

                                 {
   "Scaler accumulation",       /* module name           */
   "Stefan Ritt",               /* author                */
   scaler_accum,                /* event routine         */
   scaler_clear,                /* BOR routine           */
   scaler_eor,                  /* EOR routine           */
   NULL,                        /* init routine          */
   NULL,                        /* exit routine          */
   NULL,                        /* parameter structure   */
   0,                           /* structure size        */
   NULL,                        /* initial parameters    */
};
