mevb.cxx File Reference

#include <stdio.h>
#include "midas.h"
#include "mevb.h"
#include "msystem.h"
#include "mdsupport.h"
#include "mfe.h"

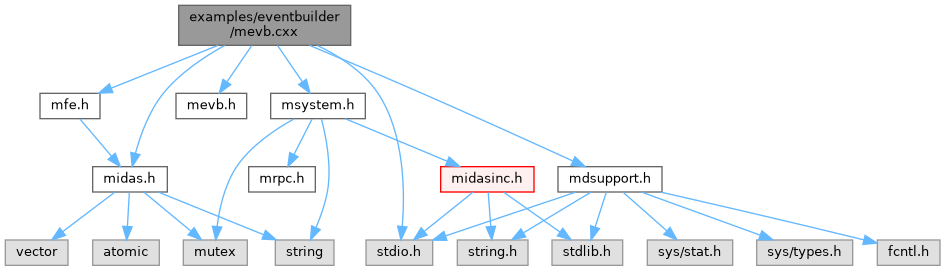

Include dependency graph for mevb.cxx:

Go to the source code of this file.

Macros
#define	SERVER_CACHE_SIZE   100000 /* event cache before buffer */
#define	ODB_UPDATE_TIME   1000 /* 1 seconds for ODB update */
#define	DEFAULT_FE_TIMEOUT   60000 /* 60 seconds for watchdog timeout */
#define	TIMEOUT_ABORT   300 /* seconds waiting for data before aborting run */
#define	EQUIPMENT_STATISTICS_STR   "\Events sent = DOUBLE : 0\n\Events per sec. = DOUBLE : 0\n\kBytes per sec. = DOUBLE : 0\n\"

Functions
INT	handFlush (void)
INT	source_booking (void)
INT	source_unbooking (void)
INT	close_buffers (void)
INT	source_scan (INT fmt, EQUIPMENT_INFO *eq_info)
INT	eb_mfragment_add (char *pdest, char *psrce, INT *size)
INT	eb_yfragment_add (char *pdest, char *psrce, INT *size)
INT	eb_begin_of_run (INT, char *, char *)
INT	eb_end_of_run (INT, char *)
INT	eb_user (INT, BOOL mismatch, EBUILDER_CHANNEL *, EVENT_HEADER *, void *, INT *)
INT	load_fragment (void)
INT	scan_fragment (void)
INT	ebuilder_init (void)
INT	ebuilder_exit (void)
INT	ebuilder_loop (void)
INT	md_event_swap (INT fmt, void *pevt)
INT	register_equipment (void)
INT	tr_start (INT rn, char *error)
INT	tr_resume (INT rn, char *error)
INT	tr_pause (INT rn, char *error)
INT	tr_stop (INT rn, char *error)
void	free_event_buffer (INT nfrag)
int	main (int argc, char **argv)

Variables
EBUILDER_SETTINGS	ebset
EBUILDER_CHANNEL	ebch [MAX_CHANNELS]
INT	run_state
INT	run_number
DWORD	last_time
DWORD	actual_time
DWORD	actual_millitime
char	host_name [HOST_NAME_LENGTH]
char	expt_name [NAME_LENGTH]
char	buffer_name [NAME_LENGTH]
INT	nfragment
char *	dest_event
HNDLE	hDB
	main ODB handle
HNDLE	hKey
HNDLE	hStatKey
HNDLE	hSubkey
HNDLE	hEqKey
HNDLE	hESetKey
BOOL	debug = FALSE
	debug printouts
BOOL	debug1 = FALSE
BOOL	wheel = FALSE
char	bars [] = "|\\-/"
int	i_bar
BOOL	abort_requested = FALSE
BOOL	stop_requested = TRUE
DWORD	stop_time = 0
DWORD	request_stop_time = 0
INT(*	meb_fragment_add )(char *, char *, INT *)
BOOL	frontend_call_loop
INT	max_event_size
	maximum event size produced by this frontend
INT	max_event_size_frag
	maximum event size for fragmented events (EQ_FRAGMENTED)
INT	event_buffer_size
	buffer size to hold events
INT	display_period
	a frontend status page is displayed with this frequency in ms
EQUIPMENT	equipment []
	Main structure for midas equipment.
static int	waiting_for_stop = FALSE

Macro Definition Documentation

DEFAULT_FE_TIMEOUT

#define DEFAULT_FE_TIMEOUT   60000 /* 60 seconds for watchdog timeout */

Definition at line 28 of file mevb.cxx.

EQUIPMENT_STATISTICS_STR

#define EQUIPMENT_STATISTICS_STR   "\Events sent = DOUBLE : 0\n\Events per sec. = DOUBLE : 0\n\kBytes per sec. = DOUBLE : 0\n\"

Definition at line 86 of file mevb.cxx.

ODB_UPDATE_TIME

#define ODB_UPDATE_TIME   1000 /* 1 seconds for ODB update */

Definition at line 26 of file mevb.cxx.

SERVER_CACHE_SIZE

#define SERVER_CACHE_SIZE   100000 /* event cache before buffer */

dox

Definition at line 24 of file mevb.cxx.

TIMEOUT_ABORT

#define TIMEOUT_ABORT   300 /* seconds waiting for data before aborting run */

Definition at line 32 of file mevb.cxx.

Function Documentation

close_buffers()

INT close_buffers

(

void

)

Definition at line 935 of file mevb.cxx.

{
   INT status;
   char error[256];
   EQUIPMENT *eq;

   eq = &equipment[0];

   /* Flush local destination cache */
   bm_flush_cache(equipment[0].buffer_handle, BM_WAIT);
   /* Call user function */
   eb_end_of_run(run_number, error);
   /* Cleanup buffers */
   handFlush();
   /* Detach all source from midas */
   status = source_unbooking();

   /* Compose message */
   stop_time = ss_millitime() - request_stop_time;
   sprintf(error, "Run %d Stop after %1.0lf + %d events sent DT:%d[ms]",
           run_number, eq->stats.events_sent, eq->events_sent, stop_time);
   cm_msg(MINFO, "close_buffers", "%s", error);

   run_state = STATE_STOPPED;
   abort_requested = FALSE;
   return status;
}

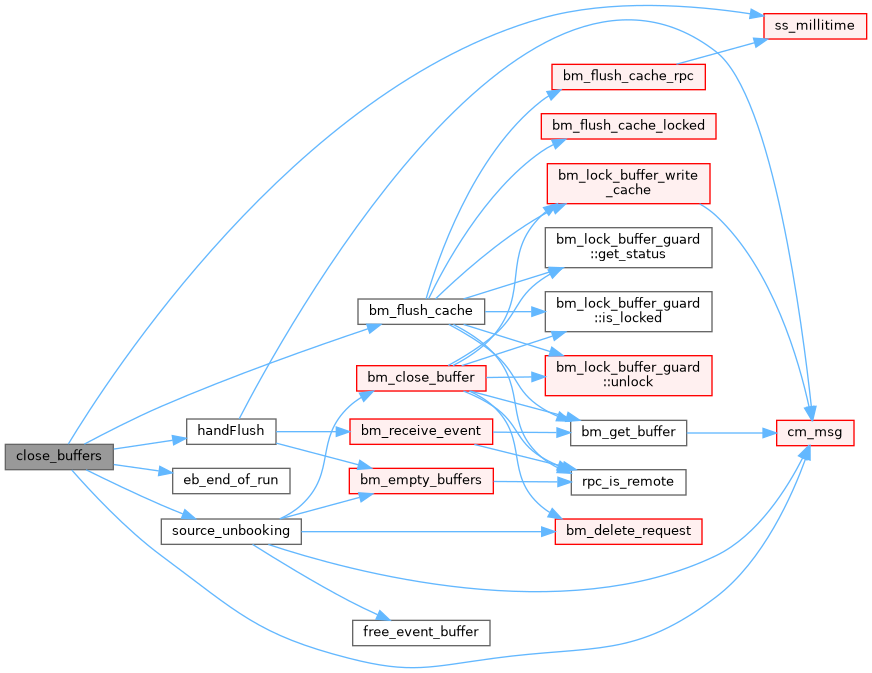

Here is the call graph for this function:

Here is the caller graph for this function:

eb_begin_of_run()

INT eb_begin_of_run	(	INT	rn,
		char *	UserField,
		char *	error
	)

Hook to the event builder task at PreStart transition.

Parameters

rn	run number
UserField	argument from /Ebuilder/Settings
error	error string to be passed back to the system.

Returns

EB_SUCCESS

Definition at line 106 of file ebuser.cxx.

{
  printf("In eb_begin_of_run for run:%d User_field:%s \n", rn, UserField);
   lModulo = atoi(UserField);
   return EB_SUCCESS;
}

Here is the caller graph for this function:

eb_end_of_run()

INT eb_end_of_run	(	INT	rn,
		char *	error
	)

Hook to the event builder task at completion of event collection after receiving the Stop transition.

Parameters

rn	run number
error	error string to be passed back to the system.

Returns

EB_SUCCESS

Definition at line 121 of file ebuser.cxx.

{
   printf("In eb_end_of_run\n");
   return EB_SUCCESS;
}

Here is the caller graph for this function:

eb_mfragment_add()

INT eb_mfragment_add	(	char *	pdest,
		char *	psrce,
		INT *	size
	)

Definition at line 473 of file mevb.cxx.

{
   BANK_HEADER *psbh, *pdbh;
   char *psdata, *pddata;
   INT bksize;

   /* Condition for new EVENT the data_size should be ZERO */
   *size = ((EVENT_HEADER *) pdest)->data_size;

   /* destination pointer */
   pddata = pdest + *size + sizeof(EVENT_HEADER);

   if (*size) {
      /* NOT the first fragment */

      /* Swap event source if necessary */
      psbh = (BANK_HEADER *) (((EVENT_HEADER *) psrce) + 1);
      bk_swap(psbh, FALSE);

      /* source pointer */
      psbh = (BANK_HEADER *) (((EVENT_HEADER *) psrce) + 1);
      psdata = (char *) (psbh + 1);

      /* copy all banks without the bank header */
      bksize = psbh->data_size;

      /* copy */
      memcpy(pddata, psdata, bksize);

      /* update event size */
      ((EVENT_HEADER *) pdest)->data_size += bksize;

      /* update bank size */
      pdbh = (BANK_HEADER *) (((EVENT_HEADER *) pdest) + 1);
      pdbh->data_size += bksize;

      *size = ((EVENT_HEADER *) pdest)->data_size;
   } else {
      /* First event without the event header but with the
         bank header as the size is zero */
      *size = ((EVENT_HEADER *) psrce)->data_size;

      /* Swap event if necessary */
      psbh = (BANK_HEADER *) (((EVENT_HEADER *) psrce) + 1);
      bk_swap(psbh, FALSE);

      /* copy first fragment */
      memcpy(pddata, psbh, *size);

      /* update destination event size */
      ((EVENT_HEADER *) pdest)->data_size = *size;
   }
   return CM_SUCCESS;
}

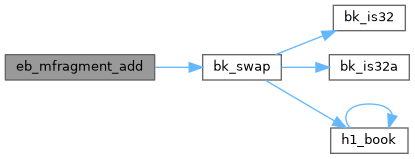

Here is the call graph for this function:

Here is the caller graph for this function:

eb_user()

INT eb_user	(	INT	nfrag,
		BOOL	mismatch,
		EBUILDER_CHANNEL *	ebch,
		EVENT_HEADER *	pheader,
		void *	pevent,
		INT *	dest_size
	)

Hook to the event builder task after the reception of all fragments of the same serial number. The destination event has already the final EVENT_HEADER setup with the data size set to 0. It is than possible to add private data at this point using the proper bank calls. Therefore any new banks created within eb_user will be appearing before the collected banks from the fragments. When using the eb_user with the ODB flag "user build=y" (equipments/EB/settings) the automatic event builder is skipped. This allow the user to extract selectively from the different fragments the appropriate banks and compose the final destination event. In order to do so, the function "bk_copy(pevent, ebch[i].pfragment, bankname)" will copy a particular bank from a given fragment.

Note: It exists two Midas event format to address bank size less than 32KB and larger bank size <4GB. This distinction is done by the call bk_init(pevent) for the small bank size and bk_init32(pevent) for large bank size. Within an experiment, this declaration has to be consistant. Therefore the bk_init in the eb_user should follow as well the type of the frontends.

The ebch[] array structure points to nfragment channel structure with the following content:

typedef struct {
    char  name[32];         // Fragment name (Buffer name).
    DWORD serial;           // Serial fragment number.
    char *pfragment;        // Pointer to fragment (EVENT_HEADER *)
    ...
} EBUILDER_CHANNEL;

The correct code for including your own MIDAS bank is shown below where TID_xxx is one of the valid Bank type starting with TID_ for midas format bank_name is a 4 character descriptor. pdata has to be declared accordingly with the bank type. Refers to the ebuser.c source code for further description.

It is not possible to mix within the same destination event different event format! No bk_swap performed when user build is requested.

  // Event is empty, fill it with BANK_HEADER
  // If you need to add your own bank at this stage

  // Need to match the decalration in the Frontends.
  bk_init(pevent);
//  bk_init32(pevent);
  bk_create(pevent, bank_name, TID_xxxx, &pdata);
  *pdata++ = ...;
  *dest_size = bk_close(pevent, pdata);
  pheader->data_size = *dest_size + sizeof(EVENT_HEADER);

Parameters

nfrag	Number of fragment.
mismatch	Midas Serial number mismatch flag.
ebch	Structure to all the fragments.
pheader	Destination pointer to the header.
pevent	Destination pointer to the bank header.
dest_size	Destination event size in bytes.

Returns

EB_SUCCESS

Definition at line 192 of file ebuser.cxx.

{
  INT i, frag_size, serial, status;
  DWORD  *pdata;


  //
  // Do some extra fragment consistency check
  if (mismatch){
    printf("Serial number do not match across fragments\n");
    for (i = 0; i < nfrag; i++) {
      serial = ((EVENT_HEADER *) ebch[i].pfragment)->serial_number;
      printf("Ser[%i]:%d ", i + 1, serial);
    }
    printf("\n");
    return EB_USER_ERROR;
  }

  //
  // Include my own bank
  bk_init(pevent);
  bk_create(pevent, "MYOW", TID_DWORD, (void**)&pdata);
  for (i = 0; i < nfrag; i++) {
     if (ebset.preqfrag[i]) { // if channel enable
        *pdata++ = ((EVENT_HEADER *) ebch[i].pfragment)->serial_number;
        *pdata++ = ((EVENT_HEADER *) ebch[i].pfragment)->time_stamp;
     }
  }
  *dest_size = bk_close(pevent, pdata);
  pheader->data_size = *dest_size + sizeof(EVENT_HEADER);

  // Copy the bank TC01 if found from fragment0 to the destination
  status = bk_copy((char*)pevent, ebch[0].pfragment, "TC01");
  if (status == EB_BANK_NOT_FOUND) {
    printf("bank TC01 not found\n");
  }

  // Destination access
  // dest_serial = pheader->serial_number;
  // printf("DSer#:%d ", dest_serial);

  // Stop run if condition requires
  // if (dest_serial == 505) return EB_USER_ERROR;

  // Skip event if condition requires
  // if (dest_serial == 505) return EB_SKIP;

  //
  // Loop over fragments.
  if (debug) {
    for (i = 0; i < nfrag; i++) {
      if (1) {
   if (ebset.preqfrag[i]) { // printf if channel enable
     frag_size = ((EVENT_HEADER *) ebch[i].pfragment)->data_size;
     serial = ((EVENT_HEADER *) ebch[i].pfragment)->serial_number;
     printf("Frg#:%d Dsz:%d Ser:%d ", i, frag_size, serial);
     // For Data fragment Access.
     // psrcData = (DWORD *) (((EVENT_HEADER *) ebch[i].pfragment) + 1);
   }
      }
    }
    printf("\n");
  }
  return EB_SUCCESS;
}

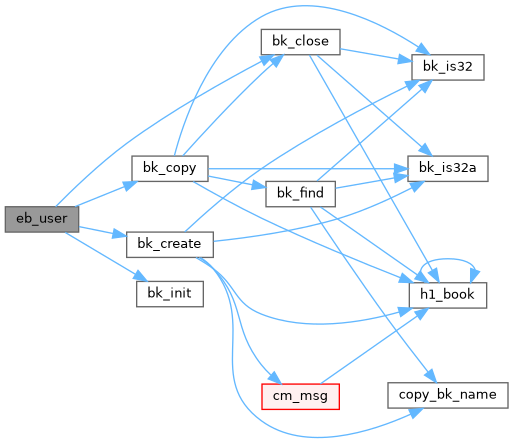

Here is the call graph for this function:

Here is the caller graph for this function:

eb_yfragment_add()

INT eb_yfragment_add	(	char *	pdest,
		char *	psrce,
		INT *	size
	)

Definition at line 529 of file mevb.cxx.

{
   /* pdest : EVENT_HEADER pointer
      psrce : EVENT_HEADER pointer
      Keep pbkh for later incrementation
    */
   char *psdata, *pddata;
   DWORD *pslrl, *pdlrl;
   INT i4frgsize, i1frgsize;

   /* Condition for new EVENT the data_size should be ZERO */
   *size = ((EVENT_HEADER *) pdest)->data_size;

   /* destination pointer skip the header as it has been already
      composed and the usere may have modified it on purpose (Midas Control) */
   pddata = pdest + *size + sizeof(EVENT_HEADER);

   /* the Midas header is present for logger */
   if (*size) {                 /* already filled with a fragment */

      /* source pointer: number of DWORD (lrl included) */
      pslrl = (DWORD *) (((EVENT_HEADER *) psrce) + 1);

      /* Swap event if necessary */
      md_event_swap(FORMAT_MIDAS, pslrl);

      /* copy done in bytes, do not include LRL */
      psdata = (char *) (pslrl + 1);

      /* copy size in I*4 (lrl included, remove it) */
      i4frgsize = (*pslrl);
      i1frgsize = 4 * i4frgsize;

      /* append fragment */
      memcpy(pddata, psdata, i1frgsize);

      /* update Midas header event size */
      ((EVENT_HEADER *) pdest)->data_size += i1frgsize;

      /* update LRL size (I*4) */
      pdlrl = (DWORD *) (((EVENT_HEADER *) pdest) + 1);
      *pdlrl += i4frgsize;

      /* Return event size in bytes */
      *size = ((EVENT_HEADER *) pdest)->data_size;
   } else {                     /* new destination event */
      /* The composed event has already the MIDAS header.
         which may have been modified by the user in ebuser.c
         Will be stripped by the logger (YBOS).
         Copy the first full event ( no EVID suppression )
         First event (without the event header) */

      /* source pointer */
      pslrl = (DWORD *) (((EVENT_HEADER *) psrce) + 1);

      /* Swap event if necessary */
      md_event_swap(FORMAT_MIDAS, pslrl);

      /* size in byte from the source midas header */
      *size = ((EVENT_HEADER *) psrce)->data_size;

      /* copy first fragment */
      memcpy(pddata, (char *) pslrl, *size);

      /* update destination Midas header event size */
      ((EVENT_HEADER *) pdest)->data_size += *size;

   }
   return CM_SUCCESS;
}

Here is the call graph for this function:

ebuilder_exit()

INT ebuilder_exit ( void  )

extern

Definition at line 87 of file ebuser.cxx.

{
  return EB_SUCCESS;
}

Here is the caller graph for this function:

ebuilder_init()

INT ebuilder_init ( void  )

extern

Definition at line 79 of file ebuser.cxx.

{
  setbuf(stdout, NULL);
  setbuf(stderr, NULL);
  return EB_SUCCESS;
}

Here is the caller graph for this function:

ebuilder_loop()

INT ebuilder_loop ( void  )

extern

Definition at line 93 of file ebuser.cxx.

{
  return EB_SUCCESS;
}

free_event_buffer()

void free_event_buffer

(

INT

nfrag

)

Definition at line 774 of file mevb.cxx.

{
   INT i;
   for (i = 0; i < nfrag; i++) {
      if (ebch[i].pfragment) {
         free(ebch[i].pfragment);
         ebch[i].pfragment = NULL;
      }
   }
}

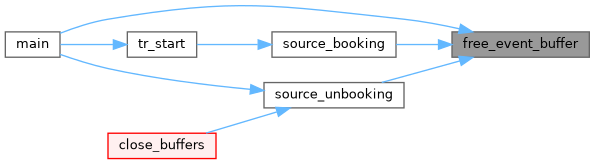

Here is the caller graph for this function:

handFlush()

INT handFlush

(

void

)

Definition at line 786 of file mevb.cxx.

{
   int i, size, status;
   char strout[256];

   /* Do Hand flush until better way to  garantee the input buffer to be empty */
   if (debug)
      printf("Hand flushing system buffer... \n");
   for (i = 0; i < nfragment; i++) {
      do {
         status = 0;
         if (ebset.preqfrag[i]) {
            size = max_event_size;
            status = bm_receive_event(ebch[i].hBuf, ebch[i].pfragment, &size, BM_NO_WAIT);
            if (debug1) {
               sprintf(strout,
                       "booking:Hand flush bm_receive_event[%d] hndle:%d stat:%d  Last Ser:%d",
                       i, ebch[i].hBuf, status, ((EVENT_HEADER *) ebch[i].pfragment)->serial_number);
               printf("%s\n", strout);
            }
         }
      } while (status == BM_SUCCESS);
   }

   /* Empty source buffer */
   status = bm_empty_buffers();
   if (status != BM_SUCCESS)
      cm_msg(MERROR, "handFlush", "bm_empty_buffers failure [%d]", status);
   run_state = STATE_STOPPED;
   return status;
}

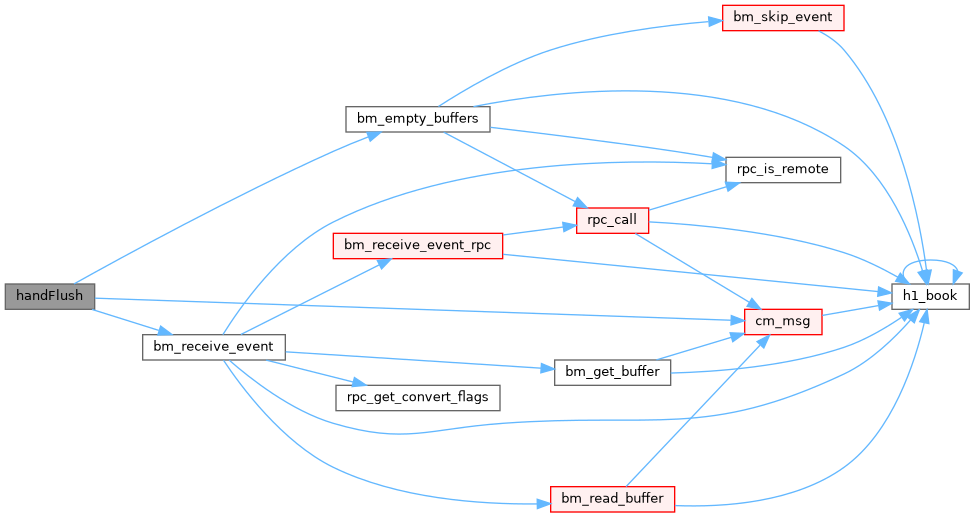

Here is the call graph for this function:

Here is the caller graph for this function:

load_fragment()

INT load_fragment

(

void

)

Definition at line 230 of file mevb.cxx.

{
   INT i, size, type;
   HNDLE hEqKey, hSubkey;
   EQUIPMENT_INFO *eq_info;
   KEY key;
   char buffer[NAME_LENGTH];
   char format[8];

   /* Get equipment pointer, only one eqp for now */
   eq_info = &equipment[0].info;

   /* Scan Equipment/Common listing */
   if (db_find_key(hDB, 0, "Equipment", &hEqKey) != DB_SUCCESS) {
      cm_msg(MINFO, "load_fragment", "Equipment listing not found");
      return EB_ERROR;
   }

   /* Scan the Equipment list for fragment info collection */
   for (i = 0, nfragment = 0;; i++) {
      db_enum_key(hDB, hEqKey, i, &hSubkey);
      if (!hSubkey)
         break;
      db_get_key(hDB, hSubkey, &key);
      if (key.type == TID_KEY) {
         /* Equipment name */
         if (debug)
            printf("Equipment name:%s\n", key.name);
         /* Check if equipment is EQ_EB */
         size = sizeof(INT);
         db_get_value(hDB, hSubkey, "common/type", &type, &size, TID_INT, 0);
         size = sizeof(buffer);
         db_get_value(hDB, hSubkey, "common/Buffer", buffer, &size, TID_STRING, 0);
         size = sizeof(format);
         db_get_value(hDB, hSubkey, "common/Format", format, &size, TID_STRING, 0);
         /* Check if equipment match EB requirements */
    //    if (debug)
    //  printf("Equipment name: %s, Type: 0x%x, Buffer: %s, Format: %s\n",
    //     key.name, type, buffer, format);
    if ((type & EQ_EB)
             && (strncmp(buffer, buffer_name, strlen(buffer_name)) == 0)
             && (strncmp(format, eq_info->format, strlen(format)) == 0)) {
            /* match=> fill internal eb structure */
            strcpy(ebch[nfragment].format, format);
            strcpy(ebch[nfragment].buffer, buffer);
            size = sizeof(WORD);
            db_get_value(hDB, hSubkey, "common/Trigger Mask", &ebch[nfragment].trigger_mask, &size, TID_WORD,
                         0);
            size = sizeof(WORD);
            db_get_value(hDB, hSubkey, "common/Event ID", &ebch[nfragment].event_id, &size, TID_WORD, 0);
       printf("Fragment %d: Equipment name %s,  evID %d, buffer %s\n",nfragment,key.name, ebch[nfragment].event_id, buffer);
       //       printf("Fragment %d: Equipment name %s,  evID %d, buffer %s\n",key.name, ebch[nfragment].event_id, buffer);
            nfragment++;
         }
      }
   }

   if (nfragment > 1)
      printf("Found %d fragments for event building\n", nfragment);
   else
      printf("Found one fragment for event building\n");

   /* Point to the Ebuilder settings */
   /* Set fragment_add function based on the format */
   if (equipment[0].format == FORMAT_MIDAS)
      meb_fragment_add = eb_mfragment_add;
   else {
      cm_msg(MERROR, "load_fragment", "Unknown data format \"%s\"", format);
      return EB_ERROR;
   }

   /* allocate destination event buffer */
   dest_event = (char *) malloc(nfragment * (max_event_size + sizeof(EVENT_HEADER)));
   memset(dest_event, 0, nfragment * (max_event_size + sizeof(EVENT_HEADER)));
   if (dest_event == NULL) {
      cm_msg(MERROR, "load_fragment", "%s: Not enough memory for event buffer", frontend_name);
      return EB_ERROR;
   }
   return EB_SUCCESS;
}

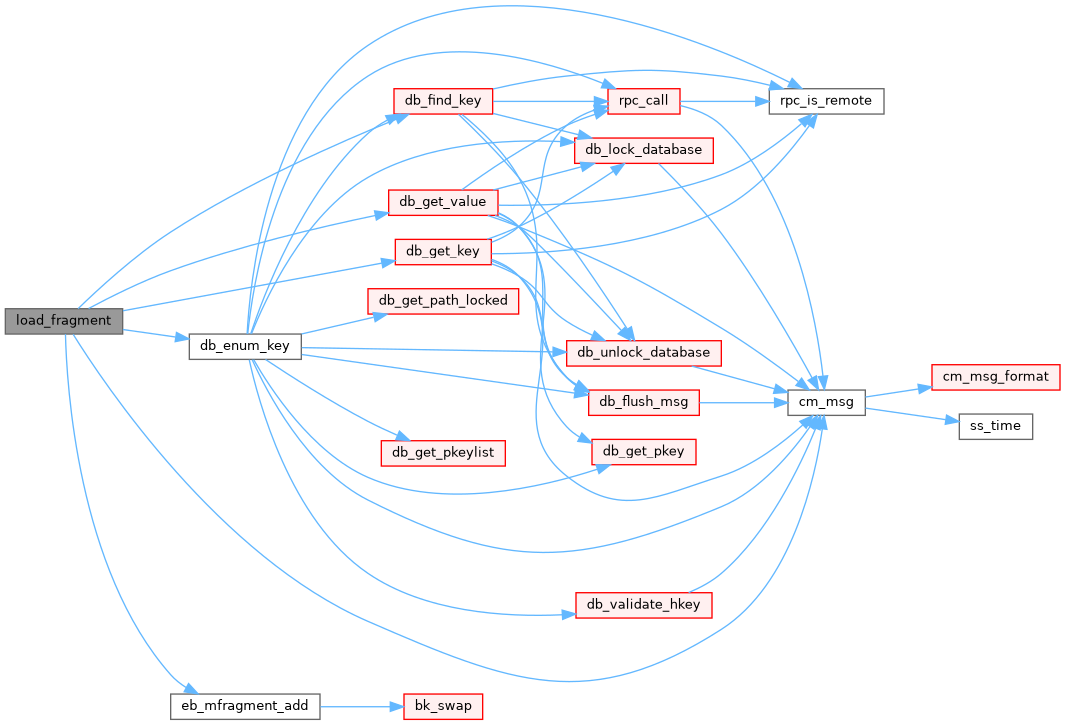

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 1140 of file mevb.cxx.

{
   INT status, size, rstate;
   int i;
   BOOL daemon = FALSE;
   HNDLE hEqkey;
   EBUILDER(ebuilder_str);
   char str[128];
   int auto_restart = 0;
   int restart_count = 0;

   /* init structure */
   memset(&ebch[0], 0, sizeof(ebch));

   /* set default */
   cm_get_environment(host_name, sizeof(host_name), expt_name, sizeof(expt_name));

   /* set default buffer name */
   strcpy(buffer_name, "SYSTEM");

   /* get parameters */
   for (i = 1; i < argc; i++) {
      if (argv[i][0] == '-' && argv[i][1] == 'd')
         debug = TRUE;
      else if (argv[i][0] == '-' && argv[i][1] == 'D')
         daemon = TRUE;
      else if (argv[i][0] == '-' && argv[i][1] == 'w')
         wheel = TRUE;
      else if (argv[i][0] == '-') {
         if (i + 1 >= argc || argv[i + 1][0] == '-')
            goto usage;
         if (strncmp(argv[i], "-e", 2) == 0)
            strcpy(expt_name, argv[++i]);
         else if (strncmp(argv[i], "-h", 2) == 0)
            strcpy(host_name, argv[++i]);
         else if (strncmp(argv[i], "-b", 2) == 0)
            strcpy(buffer_name, argv[++i]);
      } else {
       usage:
         printf("usage: mevb [-h <Hostname>] [-e <Experiment>] [-b <buffername>] [-d] [-w] [-D]\n");
         printf("  [-h <Hostname>]    Host where midas experiment is running on\n");
         printf("  [-e <Experiment>]  Midas experiment if more than one exists\n");
         printf("  [-b <buffername>]  Specify evnet buffer name, use \"SYSTEM\" by default\n");
         printf("  [-d]               Print debugging output\n");
         printf("  [-w]               Show wheel\n");
         printf("  [-D]               Start as a daemon\n");
         return 0;
      }
   }

   printf("MIDAS example event builder. Press \"!\" to exit.\n");

   if (daemon) {
      printf("Becoming a daemon...\n");
      ss_daemon_init(FALSE);
   }

   /* Connect to experiment */
   status = cm_connect_experiment(host_name, expt_name, frontend_name, NULL);
   if (status != CM_SUCCESS) {
      ss_sleep(5000);
      goto exit;
   }

   if (debug)
      cm_set_watchdog_params(TRUE, 0);

   /* Connect to ODB */
   status = cm_get_experiment_database(&hDB, &hKey);
   if (status != EB_SUCCESS) {
      ss_sleep(5000);
      goto exit;
   }

   /* check if Ebuilder is already running */
   status = cm_exist(frontend_name, FALSE);
   if (status == CM_SUCCESS) {
      cm_msg(MERROR, "main", "%s running already!.", frontend_name);
      cm_disconnect_experiment();
      goto exit;
   }

   /* Check if run in progess if so abort */
   size = sizeof(rstate);
   db_get_value(hDB, 0, "/Runinfo/State", &rstate, &size, TID_INT, FALSE);
   if (rstate != STATE_STOPPED) {
      cm_msg(MERROR, "main", "Run in Progress, EBuilder aborted!.");
      cm_disconnect_experiment();
      goto exit;
   }

   if (ebuilder_init() != SUCCESS) {
      cm_disconnect_experiment();
      /* let user read message before window might close */
      ss_sleep(5000);
      goto exit;
   }

   /* Register single equipment */
   status = register_equipment();
   if (status != EB_SUCCESS) {
      ss_sleep(5000);
      goto exit;
   }

   /* Load Fragment info */
   status = load_fragment();
   if (status != EB_SUCCESS) {
      ss_sleep(5000);
      goto exit;
   }

   /* Register transition for reset counters */
   if (cm_register_transition(TR_START, tr_start, 400) != CM_SUCCESS)
      return status;
   if (cm_register_transition(TR_RESUME, tr_resume, 400) != CM_SUCCESS)
      return status;
   if (cm_register_transition(TR_PAUSE, tr_pause, 600) != CM_SUCCESS)
      goto exit;
   if (cm_register_transition(TR_STOP, tr_stop, 600) != CM_SUCCESS)
      goto exit;

 restart:

   /* Set Initial EB/Settings */
   sprintf(str, "/Equipment/%s/Settings", equipment[0].name);
   if (db_find_key(hDB, 0, str, &hEqkey) != DB_SUCCESS) {
      status = db_create_record(hDB, 0, str, strcomb1(ebuilder_str).c_str());
   }

   if (auto_restart && restart_count > 0)
     {
       int run_number = 0;
       int size = sizeof(run_number);
       status = db_get_value(hDB, 0, "Runinfo/Run number", &run_number, &size, TID_INT, TRUE);
       assert(status == SUCCESS);

       cm_msg(MINFO, frontend_name, "Restart the run!");

       cm_transition(TR_START, run_number+1, NULL, 0, TR_SYNC, 0);
     }

   /* initialize ss_getchar */
   ss_getchar(0);

   /* Scan fragments... will stay in */
   status = scan_fragment();
   printf("%s-Out of scan_fragment\n", frontend_name);

   /* Detach all source from midas */
   printf("%s-Unbooking\n", frontend_name);
   source_unbooking();

   ebuilder_exit();

   auto_restart = 0;
   db_get_value(hDB, 0, "/Logger/Auto restart", &auto_restart, &size, TID_BOOL, FALSE);

   cm_msg(MINFO, frontend_name, "evb exit status %d, auto_restart %d", status, auto_restart);

   if (status == EB_USER_ERROR)
     {
       restart_count ++;
       goto restart;
     }

   /* reset terminal */
   ss_getchar(TRUE);

 exit:
   /* Free local memory */
   free_event_buffer(ebset.nfragment);

   /* Clean disconnect from midas */
   cm_disconnect_experiment();
   return 0;
}

Here is the call graph for this function:

register_equipment()

INT register_equipment

(

void

)

Definition at line 94 of file mevb.cxx.

{
   INT index, size, status;
   char str[256];
   EQUIPMENT_INFO *eq_info;
   EQUIPMENT_STATS *eq_stats;
   HNDLE hKey;

   /* get current ODB run state */
   size = sizeof(run_state);
   run_state = STATE_STOPPED;
   db_get_value(hDB, 0, "/Runinfo/State", &run_state, &size, TID_INT, TRUE);
   size = sizeof(run_number);
   run_number = 1;
   status = db_get_value(hDB, 0, "/Runinfo/Run number", &run_number, &size, TID_INT, TRUE);
   assert(status == SUCCESS);

   /* scan EQUIPMENT table from mevb.C */
   for (index = 0; equipment[index].name[0]; index++) {
      eq_info = &equipment[index].info;
      eq_stats = &equipment[index].stats;

      if (eq_info->event_id == 0) {
         printf("\nEvent ID 0 for %s not allowed\n", equipment[index].name);
         cm_disconnect_experiment();
         ss_sleep(5000);
         exit(0);
      }

      /* init status */
      equipment[index].status = EB_SUCCESS;

      sprintf(str, "/Equipment/%s/Common", equipment[index].name);

      /* get last event limit from ODB */
      if (eq_info->eq_type != EQ_SLOW) {
         db_find_key(hDB, 0, str, &hKey);
         size = sizeof(double);
         if (hKey)
            db_get_value(hDB, hKey, "Event limit", &eq_info->event_limit, &size, TID_DOUBLE, TRUE);
      }

      /* Create common subtree */
      status = db_check_record(hDB, 0, str, EQUIPMENT_COMMON_STR, TRUE);
      if (status != DB_SUCCESS) {
         printf("Cannot check equipment record, status = %d\n", status);
         ss_sleep(3000);
      }
      db_find_key(hDB, 0, str, &hKey);

      if (equal_ustring(eq_info->format, "FIXED"))
         equipment[index].format = FORMAT_FIXED;
      else                      /* default format is MIDAS */
         equipment[index].format = FORMAT_MIDAS;

      gethostname(eq_info->frontend_host, sizeof(eq_info->frontend_host));
      strcpy(eq_info->frontend_name, frontend_name);
      strcpy(eq_info->frontend_file_name, frontend_file_name);

      /* set record from equipment[] table in frontend.c */
      db_set_record(hDB, hKey, eq_info, sizeof(EQUIPMENT_INFO), 0);

      /* get record once at the start equipment info */
      size = sizeof(EQUIPMENT_INFO);
      db_get_record(hDB, hKey, eq_info, &size, 0);

    /*---- Create just the key , leave it empty ---------------------------------*/
      sprintf(str, "/Equipment/%s/Variables", equipment[index].name);
      db_create_key(hDB, 0, str, TID_KEY);
      db_find_key(hDB, 0, str, &hKey);
      equipment[index].hkey_variables = hKey;

    /*---- Create and initialize statistics tree -------------------*/
      sprintf(str, "/Equipment/%s/Statistics", equipment[index].name);

      status = db_check_record(hDB, 0, str, EQUIPMENT_STATISTICS_STR, TRUE);
      if (status != DB_SUCCESS) {
         printf("Cannot create/check statistics record, error %d\n", status);
         ss_sleep(3000);
      }

      status = db_find_key(hDB, 0, str, &hKey);
      if (status != DB_SUCCESS) {
         printf("Cannot find statistics record, error %d\n", status);
         ss_sleep(3000);
      }

      eq_stats->events_sent = 0;
      eq_stats->events_per_sec = 0;
      eq_stats->kbytes_per_sec = 0;

      /* open hot link to statistics tree */
      status = db_open_record(hDB, hKey, eq_stats, sizeof(EQUIPMENT_STATS), MODE_WRITE, NULL, NULL);
      if (status == DB_NO_ACCESS) {
         /* record is probably still in exclusive access by dead FE, so reset it */
         status = db_set_mode(hDB, hKey, MODE_READ | MODE_WRITE | MODE_DELETE, TRUE);
         if (status != DB_SUCCESS)
            cm_msg(MERROR, "register_equipment", "Cannot change access mode for record \'%s\', error %d", str, status);
         else
            cm_msg(MINFO, "register_equipment", "Recovered access mode for record \'%s\'", str);
         status = db_open_record(hDB, hKey, eq_stats, sizeof(EQUIPMENT_STATS), MODE_WRITE, NULL, NULL);
      }
      if (status != DB_SUCCESS) {
         cm_msg(MERROR, "register_equipment", "Cannot open statistics record, error %d. Probably other FE is using it", status);
         ss_sleep(3000);
      }

    /*---- open event buffer ---------------------------------------*/
      if (eq_info->buffer[0]) {
         status = bm_open_buffer(eq_info->buffer, DEFAULT_BUFFER_SIZE, &equipment[index].buffer_handle);
         if (status != BM_SUCCESS && status != BM_CREATED) {
            cm_msg(MERROR, "register_equipment",
                   "Cannot open event buffer. Try to reduce EVENT_BUFFER_SIZE in midas.h \
          and rebuild the system.");
            return 0;
         }

    if (1)
      {
        int level = 0;
        bm_get_buffer_level(equipment[index].buffer_handle, &level);
        printf("Buffer %s, level %d, info: \n", eq_info->buffer, level);
      }

         /* set the default buffer cache size */
         bm_set_cache_size(equipment[index].buffer_handle, 0, SERVER_CACHE_SIZE);
      } else {
         cm_msg(MERROR, "register_equipment", "Destination buffer must be present");
         ss_sleep(3000);
         exit(0);
      }
   }
   return SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

scan_fragment()

INT scan_fragment

(

void

)

Definition at line 312 of file mevb.cxx.

{
   INT fragn, status;
   EQUIPMENT *eq;
   EQUIPMENT_INFO *eq_info;
   INT ch;

   /* Get equipment pointer, only one eqp for now */
   eq_info = &equipment[0].info;
   status = 0;
   eq = NULL;

   /* Main event loop */
   do {
      switch (run_state) {
      case STATE_STOPPED:
      case STATE_PAUSED:
         /* skip the source scan and yield */
         status = cm_yield(500);
         if (wheel) {
            printf("...%c Snoring\r", bars[i_bar++ % 4]);
            fflush(stdout);
         }
         break;
      case STATE_RUNNING:
         status = source_scan(equipment[0].format, eq_info);
         switch (status) {
         case BM_ASYNC_RETURN: // No event found for now, Check for timeout

      if (1) {
        /* advanced checking for timeouts */

        time_t now = time(NULL);
        int empty = 1;
        int badfrag = -1;

        /* check if we recieved any data */
        for (fragn = 0; fragn < nfragment; fragn++)
          if (ebset.received[fragn])
       empty = 0;

        /* only look for timeout if there is received data from any fragment */
        if (!empty)
          for (fragn = 0; fragn < nfragment; fragn++) {
       //if (debug)
       //  printf("frag %d, timeout %d, threshold %d, received %d, time %d\n", fragn, ebch[fragn].timeout, TIMEOUT, ebset.received[fragn], now - ebch[fragn].time);
       if (ebch[fragn].time && ebch[fragn].timeout)
         if (now - ebch[fragn].time > TIMEOUT_ABORT) {
           //cm_msg(MERROR, "scan_fragment", "frag %d, timeout %d, %d sec", fragn, ebch[fragn].timeout, now - ebch[fragn].time);
           badfrag = fragn;
         }
          }

        if (badfrag >= 0) {
          //status = SS_ABORT;
          if (!waiting_for_stop && !stop_requested) {
       cm_msg(MERROR, "scan_fragment", "timeout waiting for fragment %d, restarting run", badfrag);
       cm_msg(MINFO, "scan_fragment", "spawning mtransition");
       ss_system("mtransition STOP IF \"/Logger/Auto restart\" DELAY \"/Logger/Auto restart delay\" START &");
       waiting_for_stop = TRUE;
          }
          break;
        }
      }

       for (fragn = 0; fragn < nfragment; fragn++) {
          if (ebch[fragn].timeout > TIMEOUT) {     /* Timeout */
                  if (stop_requested) { /* Stop */
                     if (debug)
                        printf("Timeout waiting for fragment %d while stopping the run\n", fragn);
                     status = close_buffers();
                     break;
                  } else {
                     /* No stop requested  but timeout, allow a yield to not
                        eat all the CPU */
                     status = cm_yield(10);
                     if (wheel) {
                        printf("...%c Timing on %1.0lf\r", bars[i_bar++ % 4], eq->stats.events_sent);
                        fflush(stdout);
                     }

                  }
               }
               //else { /* No timeout loop back */
            }                   // for loop over all fragments
            break;
         case EB_ERROR:
         case EB_USER_ERROR:
            abort_requested = TRUE;
            if (status == EB_USER_ERROR)
               cm_msg(MTALK, "scan_fragment", "%s: Error signaled by user code - stopping run...",
                      frontend_name);
            else
               cm_msg(MTALK, "EBuilder", "%s: Event mismatch - Stopping run...", frontend_name);

            if (debug)
               printf("Stop requested on Error %d\n", status);
            close_buffers();

#if 0
       if (!waiting_for_stop && !stop_requested) {
         cm_msg(MINFO, "scan_fragment", "spawning mtransition");
         //ss_system("mtransition STOP IF \"/Logger/Auto restart\" DELAY \"/Logger/Auto restart delay\" START &");
         ss_system("mtransition STOP &");
         waiting_for_stop = TRUE;
       }
#endif
       for (ch=0; ch<5; ch++) {
          if (cm_transition(TR_STOP, 0, NULL, 0, TR_SYNC, 0) == CM_SUCCESS)
        break;
          cm_msg(MERROR, "scan_fragment", "%s: Stop Transition request failed, trying again!", frontend_name);
            }
            return status;
            break;
         case EB_SUCCESS:
         case EB_SKIP:
            //   Normal path if event has been assembled
            //   No yield in this case.
            break;
         default:
            cm_msg(MERROR, "scan_fragment", "unexpected return %d", status);
            status = SS_ABORT;
         }                      // switch scan_source
         break;
      }
      /* EB job done, update statistics if its time */
      /* Check if it's time to do statistics job */
      if ((actual_millitime = ss_millitime()) - last_time > 1000) {
         /* Force event to appear at the destination if Ebuilder is remote */
         rpc_flush_event();
         /* Force event ot appear at the destination if Ebuilder is local */
         bm_flush_cache(equipment[0].buffer_handle, BM_NO_WAIT);

         status = cm_yield(10);

         eq = &equipment[0];
         eq->stats.events_sent += eq->events_sent;
         eq->stats.events_per_sec = eq->events_sent / ((actual_millitime - last_time) / 1000.0);
         eq->stats.kbytes_per_sec = eq->bytes_sent / 1024.0 / ((actual_millitime - last_time) / 1000.0);
         eq->bytes_sent = 0;
         eq->events_sent = 0;
         /* update destination statistics */
         db_send_changed_records();
         /* Keep track of last ODB update */
         last_time = ss_millitime();
      }

      ch = 0;
      if (ss_kbhit()) {
         ch = ss_getchar(0);
         if (ch == -1)
            ch = getchar();
         if ((char) ch == '!')
            break;
      }
   } while (status != RPC_SHUTDOWN && status != SS_ABORT);

   return status;
}

Here is the call graph for this function:

Here is the caller graph for this function:

source_booking()

INT source_booking

(

void

)

Definition at line 820 of file mevb.cxx.

{
   INT j, i, status, status1, status2;

   if (debug)
      printf("Entering booking\n");

   status1 = status2 = 0;

   /* Book all the source channels */
   for (i = 0; i < nfragment; i++) {
      /* Book only the requested event mask */
      if (ebset.preqfrag[i]) {
         /* Connect channel to source buffer */
         status1 = bm_open_buffer(ebch[i].buffer, DEFAULT_BUFFER_SIZE, &(ebch[i].hBuf));

         if (debug)
            printf("bm_open_buffer frag:%d buf:%s handle:%d stat:%d\n",
                   i, ebch[i].buffer, ebch[i].hBuf, status1);

    if (1)
      {
        int level = 0;
        bm_get_buffer_level(ebch[i].hBuf, &level);
        printf("Buffer %s, level %d, info: \n", ebch[i].buffer, level);
      }


         /* Register for specified channel event ID and Trigger mask */
         status2 =
             bm_request_event(ebch[i].hBuf, ebch[i].event_id,
                              TRIGGER_ALL, GET_ALL, &ebch[i].req_id, NULL);
         if (debug)
            printf("bm_request_event frag:%d id:%d msk:%d req_id:%d stat:%d\n",
                   i, ebch[i].event_id, ebch[i].trigger_mask, ebch[i].req_id, status2);
         if (((status1 != BM_SUCCESS) && (status1 != BM_CREATED)) ||
             ((status2 != BM_SUCCESS) && (status2 != BM_CREATED))) {
            cm_msg(MERROR, "source_booking",
                   "Open buffer/event request failure [%d %d %d]", i, status1, status2);
            return BM_CONFLICT;
         }

         /* allocate local source event buffer */
         if (ebch[i].pfragment)
            free(ebch[i].pfragment);
         ebch[i].pfragment = (char *) malloc(max_event_size + sizeof(EVENT_HEADER));
         if (debug)
            printf("malloc pevent frag:%d pevent:%p\n", i, ebch[i].pfragment);
         if (ebch[i].pfragment == NULL) {
            free_event_buffer(nfragment);
            cm_msg(MERROR, "source_booking", "Can't allocate space for buffer");
            return BM_NO_MEMORY;
         }
      }
   }

   /* Empty source buffer */
   status = bm_empty_buffers();
   if (status != BM_SUCCESS) {
      cm_msg(MERROR, "source_booking", "bm_empty_buffers failure [%d]", status);
      return status;
   }

   if (debug) {
      printf("bm_empty_buffers stat:%d\n", status);
      for (j = 0; j < ebset.nfragment; j++) {
         printf(" buff:%s", ebch[j].buffer);
         printf(" ser#:%d", ebch[j].serial);
         printf(" hbuf:%2d", ebch[j].hBuf);
         printf(" rqid:%2d", ebch[j].req_id);
         printf(" opst:%d", status1);
         printf(" rqst:%d", status2);
         printf(" evid:%2d", ebch[j].event_id);
         printf(" tmsk:0x%4.4x\n", ebch[j].trigger_mask);
      }
   }

   return SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

source_scan()

INT source_scan	(	INT	fmt,
		EQUIPMENT_INFO *	eq_info
	)

Scan all the fragment source once per call.

1. This will retrieve the full midas event not swapped (except the MIDAS_HEADER) for each fragment if possible. The fragment will be stored in the channel event pointer.
2. if after a full nfrag path some frag are still not cellected, it returns with the frag# missing for timeout check.
3. If ALL fragments are present it will check the midas serial# for a full match across all the fragments.
4. If the serial check fails it returns with "event mismatch" and will abort the event builder but not stop the run for now.
5. If the serial check is passed, it will call the user_build function where the destination event is going to be composed.

Parameters

fmt	Fragment format type
eq_info	Equipement pointer

Returns

EB_NO_MORE_EVENT, EB_COMPOSE_TIMEOUT if different then SUCCESS (bm_compose, rpc_sent error)

Definition at line 984 of file mevb.cxx.

{
   static DWORD serial;
   INT i, status, size;
   INT act_size;
   BOOL found, event_mismatch;
   BANK_HEADER *psbh;

   status = 0;

   /* Scan all channels at least once */
   for (i = 0; i < nfragment; i++) {
      /* Check if current channel needs to be received */
      if (ebset.preqfrag[i] && !ebset.received[i]) {
         /* Get fragment and store it in ebch[i].pfragment */
         size = max_event_size;
         status = bm_receive_event(ebch[i].hBuf, ebch[i].pfragment, &size, BM_NO_WAIT);
    //printf("call bm_receive_event from %s, serial %d, status %d\n", ebch[i].buffer, serial, status);
         switch (status) {
         case BM_SUCCESS:      /* event received */
            /* Mask event */
            ebset.received[i] = TRUE;
            /* Keep local serial */
            ebch[i].serial = ((EVENT_HEADER *) ebch[i].pfragment)->serial_number;
       /* clear timeout */
            ebch[i].timeout = 0;
       ebch[i].time = time(NULL);

            /* Swap event depending on data format */
            switch (fmt) {
            case FORMAT_MIDAS:
               psbh = (BANK_HEADER *) (((EVENT_HEADER *) ebch[i].pfragment) + 1);
               bk_swap(psbh, FALSE);
               break;
            }

            if (debug1) {
               printf("SUCC: ch:%d ser:%d rec:%d sz:%d\n", i, ebch[i].serial, ebset.received[i], size);
            }
            break;
         case BM_ASYNC_RETURN: /* timeout */
            ebch[i].timeout++;
            if (debug1) {
         printf("ASYNC: ch:%d ser:%d rec:%d sz:%d, timeout:%d\n", i, ebch[i].serial, ebset.received[i], size, ebch[i].timeout);
            }
       //return status;
            break;
         default:              /* Error */
            cm_msg(MERROR, "source_scan", "bm_receive_event error %d", status);
            return status;
            break;
         }
      }                         /* next channel */
   }

   /* Check if all fragments have been received */
   for (i = 0; i < nfragment; i++) {
      if (ebset.preqfrag[i] && !ebset.received[i])
         break;
   }
   if (i == nfragment) {
      /* Check if serial matches */
      found = event_mismatch = FALSE;
      serial = 0;
      /* Check Serial, mark first serial */
      for (i = 0; i < nfragment; i++) {
         if (ebset.preqfrag[i] && ebset.received[i] && !found) {
            serial = ebch[i].serial;
            found = TRUE;
         } else {
            if (ebset.preqfrag[i] && ebset.received[i] && (serial != ebch[i].serial)) {
               /* Event mismatch */
               event_mismatch = TRUE;
            }
         }
      }

      /* internal action in case of event mismatch */
      if (event_mismatch && debug) {
         char str[256];
         char strsub[128];
         strcpy(str, "event mismatch: ");
         for (i = 0; i < nfragment; i++) {
            sprintf(strsub, "Ser[%d]:%d ", i, ebch[i].serial);
            strcat(str, strsub);
         }
         printf("event serial mismatch %s\n", str);
      }

      /* In any case reset destination buffer */
      memset(dest_event, 0, sizeof(EVENT_HEADER));
      act_size = 0;

      /* Fill reserved header space of destination event with
         final header information */
      bm_compose_event((EVENT_HEADER *) dest_event, eq_info->event_id, eq_info->trigger_mask,
                       act_size, serial);

      /* Pass fragments to user with mismatch flag, for final check before assembly */
      status =
          eb_user(nfragment, event_mismatch, ebch, (EVENT_HEADER *) dest_event,
                  (void *) ((EVENT_HEADER *) dest_event + 1), &act_size);
      if (status != EB_SUCCESS) {
         if (status == EB_SKIP) {
            /* Reset mask and timeouts as if event has been successfully send out */
            for (i = 0; i < nfragment; i++) {
               ebch[i].timeout = 0;
               ebset.received[i] = FALSE;
            }
         }
         return status;         // Event mark as EB_SKIP or EB_ABORT by user
      }

      /* Allow bypass of fragment assembly if user did it on its own */
      if (!ebset.user_build) {
         for (i = 0; i < nfragment; i++) {
            if (ebset.preqfrag[i]) {
               status = meb_fragment_add(dest_event, ebch[i].pfragment, &act_size);
               if (status != EB_SUCCESS) {
                  cm_msg(MERROR, "source_scan",
                         "compose fragment:%d current size:%d (%d)", i, act_size, status);
                  return EB_ERROR;
               }
            }
         }
      }

      /* Overall event to be sent */
      act_size = ((EVENT_HEADER *) dest_event)->data_size + sizeof(EVENT_HEADER);

      /* Send event and wait for completion */
      status = rpc_send_event(equipment[0].buffer_handle, (EVENT_HEADER *) dest_event, act_size, BM_WAIT, 0);
      if (status != BM_SUCCESS) {
         if (debug)
            printf("rpc_send_event returned error %d, event_size %d\n", status, act_size);
         cm_msg(MERROR, "source_scan", "%s: rpc_send_event returned error %d", frontend_name, status);
         return EB_ERROR;
      }

      /* Keep track of the total byte count */
      equipment[0].bytes_sent += act_size;

      /* update destination event count */
      equipment[0].events_sent++;

      /* Reset mask and timeouts as even thave been succesfully send */
      for (i = 0; i < nfragment; i++) {
         ebch[i].timeout = 0;
         ebset.received[i] = FALSE;
      }
   }                            // all fragment recieved for this event

   return status;
}

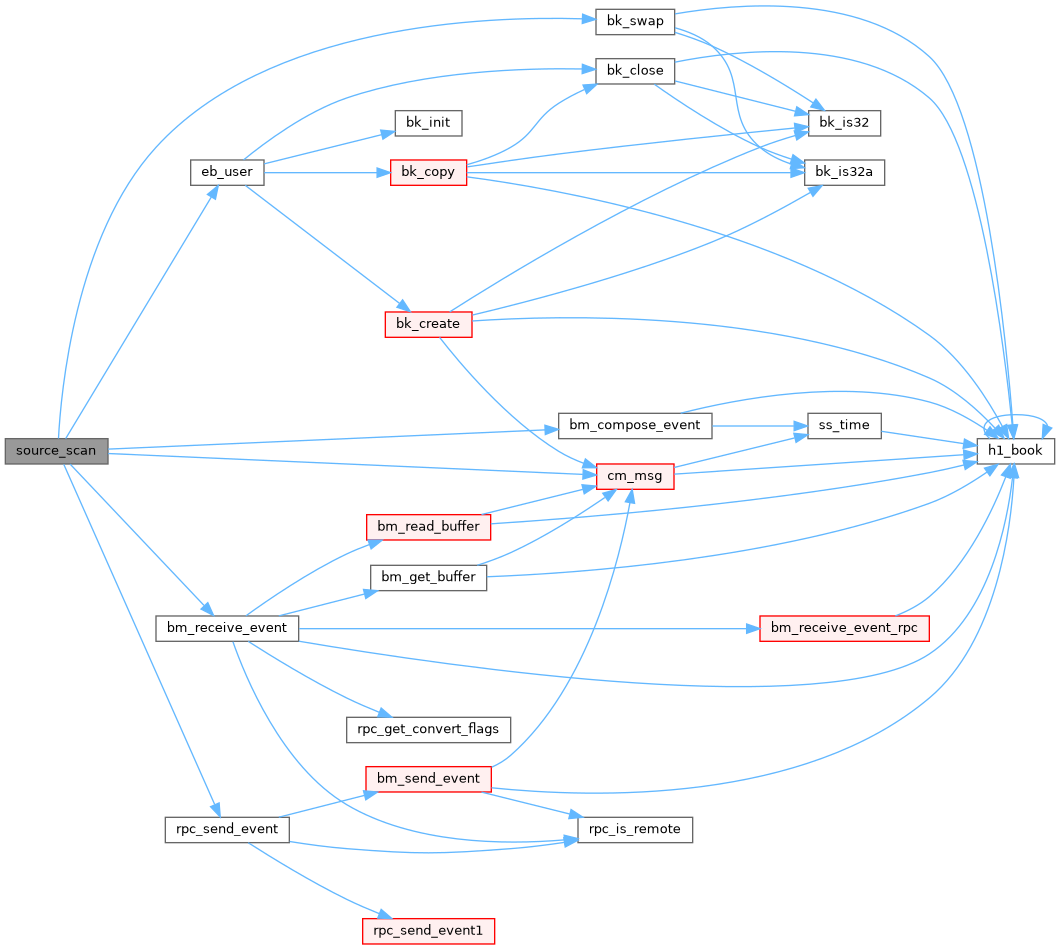

Here is the call graph for this function:

Here is the caller graph for this function:

source_unbooking()

INT source_unbooking

(

void

)

Definition at line 901 of file mevb.cxx.

{
   INT i, status;

   /* unbook all source channels */
   for (i = 0; i < nfragment; i++) {

   /* Skip unbooking if already done */
      if (ebch[i].pfragment != NULL) {
         bm_empty_buffers();

         /* Remove event ID registration */
         status = bm_delete_request(ebch[i].req_id);
         if (debug)
            printf("unbook: bm_delete_req[%d] req_id:%d stat:%d\n", i, ebch[i].req_id, status);

         /* Close source buffer */
         status = bm_close_buffer(ebch[i].hBuf);
         if (debug)
            printf("unbook: bm_close_buffer[%d] hndle:%d stat:%d\n", i, ebch[i].hBuf, status);
         if (status != BM_SUCCESS) {
            cm_msg(MERROR, "source_unbooking", "Close buffer[%d] stat: %d", i, status);
            return status;
         }
      }
   }

   /* release local event buffer memory */
   free_event_buffer(nfragment);

   return EB_SUCCESS;
}

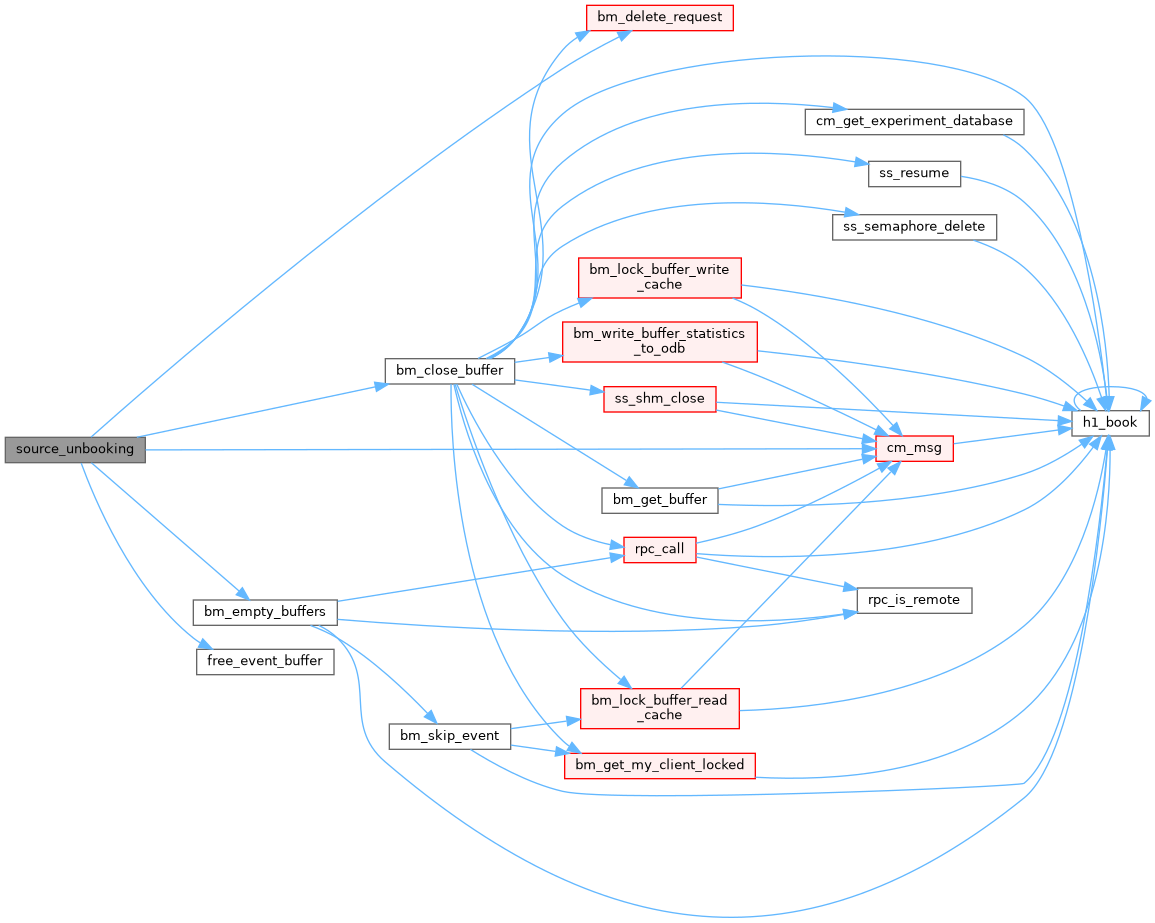

Here is the call graph for this function:

Here is the caller graph for this function:

tr_pause()

INT tr_pause	(	INT	rn,
		char *	error
	)

Definition at line 749 of file mevb.cxx.

{
   printf("\n%s-Pause Run: %d detected\n", frontend_name, rn);

   run_state = STATE_PAUSED;
   return CM_SUCCESS;
}

Here is the caller graph for this function:

tr_resume()

INT tr_resume	(	INT	rn,
		char *	error
	)

Definition at line 731 of file mevb.cxx.

{
  int fragn;
  time_t now = time(NULL);

   printf("\n%s-Resume Run: %d detected\n", frontend_name, rn);

   // reset timeouts
   for (fragn = 0; fragn < nfragment; fragn++) {
     ebch[fragn].time = now;
     ebch[fragn].timeout = 0;
   }

   run_state = STATE_RUNNING;
   return CM_SUCCESS;
}

Here is the caller graph for this function:

tr_start()

INT tr_start	(	INT	rn,
		char *	error
	)

Definition at line 601 of file mevb.cxx.

{
   EBUILDER(ebuilder_str);
   INT status, size, i;
   char str[128];
   KEY key;
   HNDLE hKey, hEqkey, hEqFRkey;
   EQUIPMENT_INFO *eq_info;

   if (debug)
     printf("tr_start: run %d\n", rn);

   eq_info = &equipment[0].info;

   /* Get update eq_info from ODB */
   sprintf(str, "/Equipment/%s/Common", equipment[0].name);
   status = db_find_key(hDB, 0, str, &hKey);
   size = sizeof(EQUIPMENT_INFO);
   db_get_record(hDB, hKey, eq_info, &size, 0);

   ebset.nfragment = nfragment;

   /* reset serial numbers */
   for (i = 0; equipment[i].name[0]; i++) {
      equipment[i].serial_number = 1;
      equipment[i].subevent_number = 0;
      equipment[i].stats.events_sent = 0;
      equipment[i].odb_in = equipment[i].odb_out = 0;
   }

   /* Get / Set Settings */
   sprintf(str, "/Equipment/%s/Settings", equipment[0].name);
   if (db_find_key(hDB, 0, str, &hEqkey) != DB_SUCCESS) {
      status = db_create_record(hDB, 0, str, strcomb1(ebuilder_str).c_str());
   }

   /* Keep Key on Ebuilder/Settings */
   sprintf(str, "/Equipment/%s/Settings", equipment[0].name);
   if (db_find_key(hDB, 0, str, &hEqkey) != DB_SUCCESS) {
      cm_msg(MINFO, "tr_start", "/Equipment/%s/Settings not found", equipment[0].name);
   }

   /* Update or Create User_field */
   size = sizeof(ebset.user_field);
   status = db_get_value(hDB, hEqkey, "User Field", ebset.user_field, &size, TID_STRING, TRUE);

   /* Update or Create User_Build */
   size = sizeof(ebset.user_build);
   status = db_get_value(hDB, hEqkey, "User Build", &ebset.user_build, &size, TID_BOOL, TRUE);

   /* update ODB */
   size = sizeof(INT);
   status = db_set_value(hDB, hEqkey, "Number of Fragment", &ebset.nfragment, size, 1, TID_INT);

   /* Create or update the fragment request list */
   status = db_find_key(hDB, hEqkey, "Fragment Required", &hEqFRkey);
   status = db_get_key(hDB, hEqFRkey, &key);
   assert(status == DB_SUCCESS);

   if (key.num_values != ebset.nfragment) {
      cm_msg(MINFO, "tr_start", "Number of Fragment mismatch ODB:%d - CUR:%d", key.num_values, ebset.nfragment);
      free(ebset.preqfrag);
      size = ebset.nfragment * sizeof(BOOL);
      ebset.preqfrag = (BOOL*)malloc(size);
      for (i = 0; i < ebset.nfragment; i++)
         ebset.preqfrag[i] = TRUE;
      status =
         db_set_value(hDB, hEqkey, "Fragment Required", ebset.preqfrag, size, ebset.nfragment, TID_BOOL);
   } else {                     // Take from ODBedit
      size = key.total_size;
      free(ebset.preqfrag);
      ebset.preqfrag = (BOOL*)malloc(size);
      status = db_get_data(hDB, hEqFRkey, ebset.preqfrag, &size, TID_BOOL);
   }
   /* Cleanup fragment flags */
   free(ebset.received);
   ebset.received = (BOOL*)malloc(size);
   for (i = 0; i < ebset.nfragment; i++)
      ebset.received[i] = FALSE;

   /* Check if at least one fragment is requested */
   for (i = 0; i < ebset.nfragment; i++)
      if (ebset.preqfrag[i])
         break;

   if (i == ebset.nfragment) {
      cm_msg(MERROR, "tr_start", "Run start aborted because no fragment required");
      return 0;
   }

   /* Call BOR user function */
   status = eb_begin_of_run(run_number, ebset.user_field, error);
   if (status != EB_SUCCESS) {
      cm_msg(MERROR, "tr_start", "run start aborted due to eb_begin_of_run (%d)", status);
      return status;
   }

   /* Book all fragment */
   status = source_booking();
   if (status != SUCCESS)
      return status;

   if (!eq_info->enabled) {
      cm_msg(MINFO, "tr_start", "Event Builder disabled");
      return CM_SUCCESS;
   }

   /* local run state */
   run_state = STATE_RUNNING;
   run_number = rn;
   stop_requested = FALSE;
   abort_requested = FALSE;
   printf("%s-Starting New Run: %d\n", frontend_name, rn);

   if (1) {
     int fragn;
     time_t now = time(NULL);

     // reset timeouts
     for (fragn = 0; fragn < nfragment; fragn++) {
       ebch[fragn].time = now;
       ebch[fragn].timeout = 0;
     }
   }

   /* Reset global trigger mask */
   return CM_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

tr_stop()

INT tr_stop	(	INT	rn,
		char *	error
	)

Definition at line 758 of file mevb.cxx.

{
   waiting_for_stop = FALSE;

   if (debug)
     printf("tr_stop: run %d\n", rn);

   /* local stop */
   stop_requested = TRUE;

   /* local stop time */
   request_stop_time = ss_millitime();
   return CM_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

abort_requested

BOOL abort_requested = FALSE

Definition at line 54 of file mevb.cxx.

actual_millitime

DWORD actual_millitime

Definition at line 41 of file mevb.cxx.

actual_time

DWORD actual_time

Definition at line 40 of file mevb.cxx.

bars

char bars[] = "|\\-/"

Definition at line 52 of file mevb.cxx.

buffer_name

char buffer_name[NAME_LENGTH]

Definition at line 45 of file mevb.cxx.

debug

BOOL debug = FALSE

debug printouts

Definition at line 49 of file mevb.cxx.

debug1

BOOL debug1 = FALSE

Definition at line 49 of file mevb.cxx.

dest_event

char* dest_event

Definition at line 47 of file mevb.cxx.

display_period

INT display_period

extern

a frontend status page is displayed with this frequency in ms

Definition at line 27 of file mfed.cxx.

ebch

EBUILDER_CHANNEL ebch[MAX_CHANNELS]

Definition at line 35 of file mevb.cxx.

ebset

EBUILDER_SETTINGS ebset

Definition at line 34 of file mevb.cxx.

equipment

EQUIPMENT equipment[]

extern

Main structure for midas equipment.

Definition at line 52 of file feudp.cxx.

                        {
   { EQ_NAME,                         /* equipment name */
      {EQ_EVID, 0, "SYSTEM",          /* event ID, trigger mask, Evbuf */
       EQ_MULTITHREAD, 0, "MIDAS",    /* equipment type, EventSource, format */
       TRUE, RO_ALWAYS,               /* enabled?, WhenRead? */
       50, 0, 0, 0,                   /* poll[ms], Evt Lim, SubEvtLim, LogHist */
       "", "", "",}, read_event,      /* readout routine */
   },
   {""}
};

event_buffer_size

INT event_buffer_size

extern

buffer size to hold events

Definition at line 36 of file mfed.cxx.

expt_name

char expt_name[NAME_LENGTH]

Definition at line 44 of file mevb.cxx.

frontend_call_loop

BOOL frontend_call_loop

Definition at line 73 of file mevb.cxx.

hDB

HNDLE hDB

main ODB handle

Definition at line 48 of file mevb.cxx.

hEqKey

HNDLE hEqKey

Definition at line 48 of file mevb.cxx.

hESetKey

HNDLE hESetKey

Definition at line 48 of file mevb.cxx.

hKey

HNDLE hKey

Definition at line 48 of file mevb.cxx.

host_name

char host_name[HOST_NAME_LENGTH]

Definition at line 43 of file mevb.cxx.

hStatKey

HNDLE hStatKey

Definition at line 48 of file mevb.cxx.

hSubkey

HNDLE hSubkey

Definition at line 48 of file mevb.cxx.

i_bar

int i_bar

Definition at line 53 of file mevb.cxx.

last_time

DWORD last_time

Definition at line 39 of file mevb.cxx.

max_event_size

INT max_event_size

extern

maximum event size produced by this frontend

Definition at line 30 of file mfed.cxx.

max_event_size_frag

INT max_event_size_frag

extern

maximum event size for fragmented events (EQ_FRAGMENTED)

Definition at line 33 of file mfed.cxx.

meb_fragment_add

INT(* meb_fragment_add) (char *, char *, INT *)	(	char *	,
		char *	,
		INT *
	)

Definition at line 57 of file mevb.cxx.

nfragment

INT nfragment

Definition at line 46 of file mevb.cxx.

request_stop_time

DWORD request_stop_time = 0

Definition at line 55 of file mevb.cxx.

run_number

INT run_number

Definition at line 38 of file mevb.cxx.

run_state

INT run_state

Definition at line 37 of file mevb.cxx.

stop_requested

BOOL stop_requested = TRUE

Definition at line 54 of file mevb.cxx.

stop_time

DWORD stop_time = 0

Definition at line 55 of file mevb.cxx.

waiting_for_stop

int waiting_for_stop = FALSE

static

Definition at line 91 of file mevb.cxx.

wheel

BOOL wheel = FALSE

Definition at line 51 of file mevb.cxx.
