mtfe.cxx File Reference

#include <stdio.h>
#include <stdlib.h>
#include "midas.h"
#include "msystem.h"
#include "mfe.h"

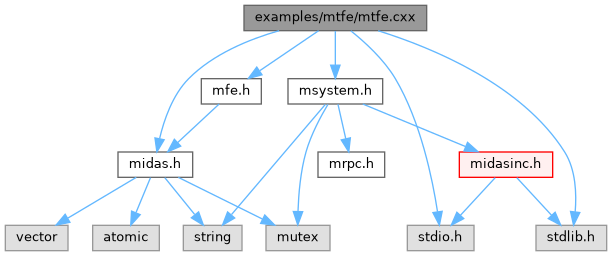

Include dependency graph for mtfe.cxx:

Go to the source code of this file.

Functions
INT	trigger_thread (void *param)
INT	frontend_init ()
	Frontend initialization.

Variables
const char *	frontend_name = "Sample Frontend"
const char *	frontend_file_name = __FILE__
BOOL	equipment_common_overwrite = TRUE
EQUIPMENT	equipment []

Function Documentation

frontend_init()

INT frontend_init

(

void

)

Frontend initialization.

Runs once at application startup. We initialize the hardware and optical interfaces and set the equipment status in ODB. We also lock the frontend to once physical cpu core.

Returns

Midas status code

Definition at line 57 of file mtfe.cxx.

{
   /* for this demo, use three readout threads */
   for (int i=0 ; i<3 ; i++) {

      /* create a ring buffer for each thread */
      create_event_rb(i);

      /* create readout thread */
      ss_thread_create(trigger_thread, (void*)(PTYPE)i);
   }

   return SUCCESS;
}

Here is the call graph for this function:

trigger_thread()

INT trigger_thread

(

void *

param

)

Definition at line 74 of file mtfe.cxx.

{
   EVENT_HEADER *pevent;
   WORD *pdata, *padc;
   int  index, i, status, exit = FALSE;
   INT rbh;

   /* index of this thread */
   index = (int)(PTYPE)param;

   /* tell framework that we are alive */
   signal_readout_thread_active(index, TRUE);

   /* set name of thread as seen by OS */
   ss_thread_set_name(std::string(equipment[0].name) + "RT" + std::to_string(index));

   /* Initialize hardware here ... */
   printf("Start readout thread %d\n", index);

   /* Obtain ring buffer for inter-thread data exchange */
   rbh = get_event_rbh(index);

   while (is_readout_thread_enabled()) {

      if (!readout_enabled()) {
         // do not produce events when run is stopped
         ss_sleep(10);
         continue;
      }

      /* check for new event (poll) */
      status = ss_sleep(100); // for this demo, just sleep a bit

      if (status) { // if event available, read it out

         // check once more in case state changed during the poll
         if (!is_readout_thread_enabled())
            break;

         // obtain buffer space
         do {
            status = rb_get_wp(rbh, (void **) &pevent, 0);
            if (status == DB_TIMEOUT) {
               ss_sleep(10);
               // check for readout thread disable, thread might be stop from main thread
               // in case Ctrl-C is hit for example
               if (!is_readout_thread_enabled()) {
                  exit = TRUE;
                  break;
               }
            }
         } while (status != DB_SUCCESS);

         if (exit)
            break;

         bm_compose_event_threadsafe(pevent, 1, 0, 0, &equipment[0].serial_number);
         pdata = (WORD *)(pevent + 1);

         /* init bank structure */
         bk_init32(pdata);

         /* create ADC0 bank */
         bk_create(pdata, "ADC0", TID_WORD, (void **)&padc);

         /* just put in some random numbers in this demo */
         int len = 32 + rand() % 10000;
         for (i=0 ; i<len; i++)
            *padc++ = len;

         bk_close(pdata, padc);

         pevent->data_size = bk_size(pdata);

         /* send event to ring buffer */
         rb_increment_wp(rbh, sizeof(EVENT_HEADER) + pevent->data_size);
      }
   }

   /* tell framework that we are finished */
   signal_readout_thread_active(index, FALSE);

   printf("Stop readout thread %d\n", index);

   return 0;
}

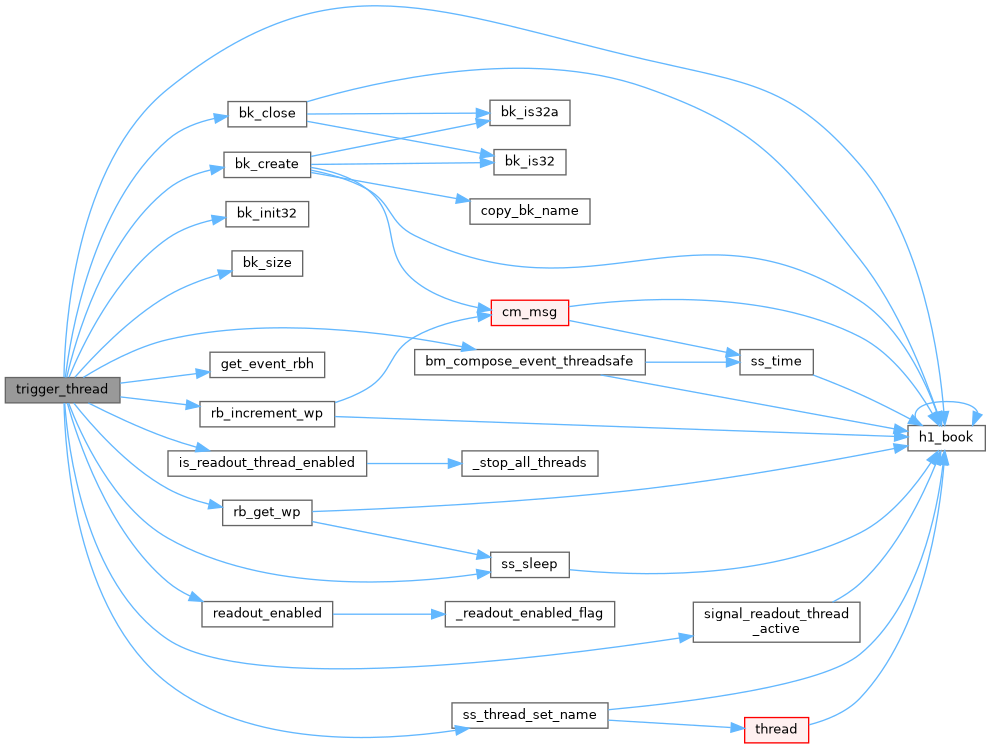

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

equipment

EQUIPMENT equipment[]

Initial value:

= {

   {"Trigger",
    {1, 0,
     "SYSTEM",
     EQ_USER,
     0,
     "MIDAS",
     TRUE,
     RO_RUNNING,
     500,
     0,
     0,
     0,
     "", "", "",},
    NULL,
    },

   {""}
}

Definition at line 34 of file mtfe.cxx.

                        {

   {"Trigger",               /* equipment name */
    {1, 0,                   /* event ID, trigger mask */
     "SYSTEM",               /* event buffer */
     EQ_USER,                /* equipment type */
     0,                      /* event source (not used) */
     "MIDAS",                /* format */
     TRUE,                   /* enabled */
     RO_RUNNING,             /* read only when running */
     500,                    /* poll for 500ms */
     0,                      /* stop run after this event limit */
     0,                      /* number of sub events */
     0,                      /* don't log history */
     "", "", "",},
    NULL,                    /* readout routine */
    },

   {""}
};

equipment_common_overwrite

BOOL equipment_common_overwrite = TRUE

Definition at line 32 of file mtfe.cxx.

frontend_file_name

const char* frontend_file_name = __FILE__

Definition at line 24 of file mtfe.cxx.

frontend_name

const char* frontend_name = "Sample Frontend"

Definition at line 22 of file mtfe.cxx.
