wdfe.cxx File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <string.h>
#include <iostream>
#include "midas.h"
#include "mfe.h"
#include "experim.h"
#include "WDBLib.h"
#include "DCBLib.h"

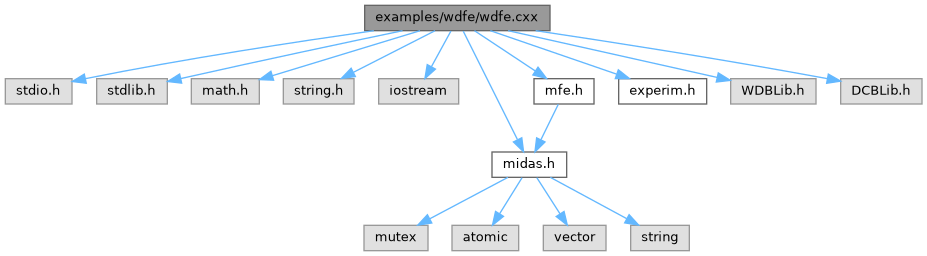

Include dependency graph for wdfe.cxx:

Go to the source code of this file.

Namespaces
namespace	WD

Functions
INT	frontend_init (void)
	Frontend initialization.
INT	frontend_exit (void)
	Frontend exit.
INT	begin_of_run (INT run_number, char *error)
	Begin of Run.
INT	end_of_run (INT run_number, char *error)
	End of Run.
INT	pause_run (INT run_number, char *error)
	Pause Run.
INT	resume_run (INT run_number, char *error)
	Resume Run.
INT	frontend_loop (void)
	Frontend loop.
INT	read_trigger_event (char *pevent, INT off)
INT	read_periodic_event (char *pevent, INT off)
INT	poll_event (INT source, INT count, BOOL test)
	Polling routine for events.
INT	interrupt_configure (INT cmd, INT source, POINTER_T adr)
	Interrupt configuration (not implemented)

Variables
const char *	frontend_name = "WD Frontend"
	The frontend name (client name) as seen by other MIDAS clients.
const char *	frontend_file_name = __FILE__
	The frontend file name, don't change it.
BOOL	frontend_call_loop = FALSE
	frontend_loop is called periodically if this variable is TRUE
INT	display_period = 3000
	a frontend status page is displayed with this frequency in ms
INT	max_event_size = 1024 * 1014
	maximum event size produced by this frontend
INT	max_event_size_frag = 5 * max_event_size
	maximum event size for fragmented events (EQ_FRAGMENTED)
INT	event_buffer_size = 5 * max_event_size
	buffer size to hold events
BOOL	equipment_common_overwrite = TRUE
EQUIPMENT	equipment []
	Main structure for midas equipment.
std::vector< WDB * >	WD::wdb
WP *	WD::wp
std::vector< WDEvent * >	WD::wde

Function Documentation

begin_of_run()

INT begin_of_run	(	INT	run_number,
		char *	error
	)

Begin of Run.

Called every run start transition. Set equipment status in ODB, start acquisition on the modules.

Parameters

[in]	run_number	Number of the run being started
[out]	error	Can be used to write a message string to midas.log

Definition at line 244 of file wdfe.cxx.

{
   // start DRS for first event
   for (auto b: WD::wdb) {
      b->ResetDrsControlFsm();
      b->ResetEventCounter();
      b->SetDaqSingle(true);
   }

   return SUCCESS;
}

end_of_run()

INT end_of_run	(	INT	run_number,
		char *	error
	)

End of Run.

Called every stop run transition. Set equipment status in ODB, stop acquisition on the modules.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Definition at line 258 of file wdfe.cxx.

{
   return SUCCESS;
}

frontend_exit()

INT frontend_exit

(

void

)

Frontend exit.

Runs at frontend shutdown. Disconnect hardware and set equipment status in ODB

Returns

Midas status code

Definition at line 237 of file wdfe.cxx.

{
   return SUCCESS;
}

frontend_init()

INT frontend_init

(

void

)

Frontend initialization.

Runs once at application startup. We initialize the hardware and optical interfaces and set the equipment status in ODB. We also lock the frontend to once physical cpu core.

Returns

Midas status code

Definition at line 118 of file wdfe.cxx.

{
   std::string drs_calib_path;

   // set calibration path according to WDBSYS
   const char *wavedaqpath = getenv("WDBSYS");
   if (wavedaqpath != nullptr) {
      drs_calib_path = wavedaqpath;
      drs_calib_path += "/sw/wds/";
   } else {
      cm_msg(MINFO, "frontend_init", "Calibration filepath set to current directory. "\
             "Use WDBSYS environnement variable to point to your wavedaq repository");
      drs_calib_path = "./";
   }

   // create WDB object
   WDB *b = new WDB("wd026");
   try {
      b->SetVerbose(true);                // change for debugging
      b->Connect();                       // connect to board, throws exception if unsuccessful
      b->ReceiveControlRegisters();

      // Reset DRS FSM
      b->ResetDrsControlFsm();
      b->ResetPackager();

      // Stop DRS
      b->SetDaqSingle(false);
      b->SetDaqAuto(false);
      b->SetDaqNormal(false);

      b->SetSendBlock(true);              // update all control registers together

      //---- readout settings
      b->SetDrsChTxEn(0xFFFF);            // enable all DRS readout
      b->SetAdcChTxEn(0);                 // disable ADC readout
      b->SetTdcChTxEn(0);                 // disable TDC readout
      b->SetSclTxEn(0);                   // disable scaler readout

      //---- board settings
      b->SetDaqClkSrcSel(1);              // select on-board clock oscillator
      b->SetDrsSampleFreq(1000);          // Sampling speed 1 GSPS
      b->SetFeGain(-1, 1);                // set FE gain to 1
      b->SetFePzc(-1, false);             // disable pole-zero cancellation
      b->SetInterPkgDelay(0x753);         // minimum inter-packet delay
      b->SetFeMux(-1, WDB::cFeMuxInput);  // set multiplexer to input

      //---- trigger settings
      b->SetExtAsyncTriggerEn(false);     // disable external trigger
      b->SetTriggerDelay(0);              // minimal inter-packet delay
      b->SetLeadTrailEdgeSel(0);          // trigger on leading edge
      b->SetPatternTriggerEn(true);       // enable internal pattern trigger
      b->SetDacTriggerLevelV(-1, -0.02);  // set trigger level to -20 mV for all channels

      b->SetTrgSrcPolarity(0xFFFF);       // negative signals
      b->SetTrgPtrnEn(0xFFFF);            // enable 16 trigger patterns
      // b->SetTrgPtrnEn(0x0001);            // enable first trigger pattern
      for (int i=0 ; i<16 ; i++) {
         b->SetTrgSrcEnPtrn(i, (1<<i));   // set individual channel as only source for pattern
         b->SetTrgStatePtrn(i, (1<<i));   // set trigger coincidence for single channel
      }

      // now send all changes in one packet
      b->SetSendBlock(false);
      b->SendControlRegisters();

      // check if PLLs are locked
      b->ResetAllPll();
      sleep_ms(100);
      b->GetPllLock(true);
      if (!b->GetLmkPllLock() || !b->GetDaqPllLock()) {
         cm_msg(MERROR, "frontend_init", "PLLs not locked on board %s. Mask = 0x%04X",
                 b->GetName().c_str(), b->GetPllLock(false));
         return FE_ERR_HW;
      }

      // read all status registers
      b->ReceiveStatusRegisters();

      if (b->IsVerbose()) {
         std::cout << std::endl << "========== Board Info ==========" << std::endl;
         b->PrintVersion();
      }

      // load calibration data for this board
      b->LoadVoltageCalibration(b->GetDrsSampleFreqMhz(), drs_calib_path);
      b->LoadTimeCalibration(b->GetDrsSampleFreqMhz(), drs_calib_path);

      // create event storage for this board
      WD::wde.push_back(new WDEvent(b->GetSerialNumber()));

   } catch (std::runtime_error &e) {
      std::cout << std::endl;
      cm_msg(MERROR, "frontend_init", "%s", e.what());
      cm_msg(MERROR, "frontend_init", "Cannot initialize %s, aborting.", b->GetName().c_str());
      return FE_ERR_HW;
   }

   WD::wdb.push_back(b);

   // instantiate waveform processor
   WD::wp = new WP();
   WD::wp->SetAllCalib(true);
   WD::wp->SetWDBList(WD::wdb);
   WD::wp->SetRequestedBoard(WD::wdb);

   // set destination port after waveform processor has been initialized
   for (auto b: WD::wdb)
      b->SetDestinationPort(WD::wp->GetServerPort());

   // start DRS for first event
   for (auto b: WD::wdb)
      b->SetDaqSingle(true);

   return SUCCESS;
}

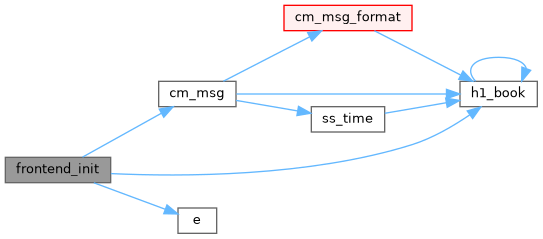

Here is the call graph for this function:

frontend_loop()

INT frontend_loop

(

void

)

Frontend loop.

If frontend_call_loop is true, this routine gets called when the frontend is idle or once between every event.

Returns

Midas status code

Definition at line 279 of file wdfe.cxx.

{
   /* if frontend_call_loop is true, this routine gets called when
      the frontend is idle or once between every event */
   return SUCCESS;
}

interrupt_configure()

INT interrupt_configure	(	INT	cmd,
		INT	source,
		POINTER_T	adr
	)

Interrupt configuration (not implemented)

Routine for interrupt configuration if equipment is set in EQ_INTERRUPT mode. Not implemented right now, returns SUCCESS.

Parameters

[in]	cmd	Command for interrupt events (see midas.h)
[in]	source	Equipment index number
[in]	adr	Interrupt routine (see mfe.c)

Returns

Midas status code

Definition at line 318 of file wdfe.cxx.

{
   switch (cmd) {
   case CMD_INTERRUPT_ENABLE:
      break;
   case CMD_INTERRUPT_DISABLE:
      break;
   case CMD_INTERRUPT_ATTACH:
      break;
   case CMD_INTERRUPT_DETACH:
      break;
   }
   return SUCCESS;
}

pause_run()

INT pause_run	(	INT	run_number,
		char *	error
	)

Pause Run.

Called every pause run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 265 of file wdfe.cxx.

{
   return SUCCESS;
}

poll_event()

INT poll_event	(	INT	source,
		INT	count,
		BOOL	test
	)

Polling routine for events.

Parameters

[in]	source	Event source (LAM/IRQ)
[in]	count	Loop count for event polling timeout
[in]	test	flag used to time the polling

Returns

1 if event is available, 0 if done polling (no event). If test equals TRUE, don't return.

Definition at line 296 of file wdfe.cxx.

{
   int i;
   bool flag;

   for (i = 0; i < count; i++) {
      /* poll hardware and set flag to TRUE if new event is available */
      flag = WD::wp->WaitNewEvent(10);

      if (flag)
         if (!test)
            return TRUE;
   }

   return 0;
}

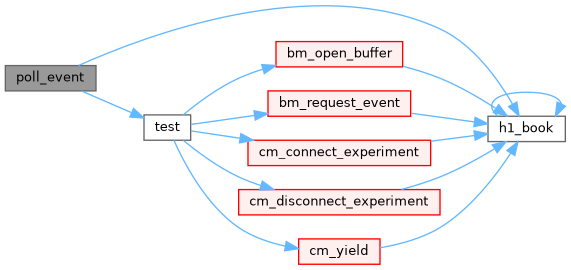

Here is the call graph for this function:

read_periodic_event()

INT read_periodic_event	(	char *	pevent,
		INT	off
	)

Definition at line 378 of file wdfe.cxx.

{
   DWORD *pdata;

   std::vector<unsigned long long> scaler;
   WD::wdb[0]->GetScalers(scaler, true);

   // init bank structure
   bk_init(pevent);

   // create SCLR bank
   bk_create(pevent, "SCLR", TID_DWORD, (void **)&pdata);

   for (int i = 0; i < scaler.size(); i++)
      *pdata++ = scaler[i];

   bk_close(pevent, pdata);

   return bk_size(pevent);
}

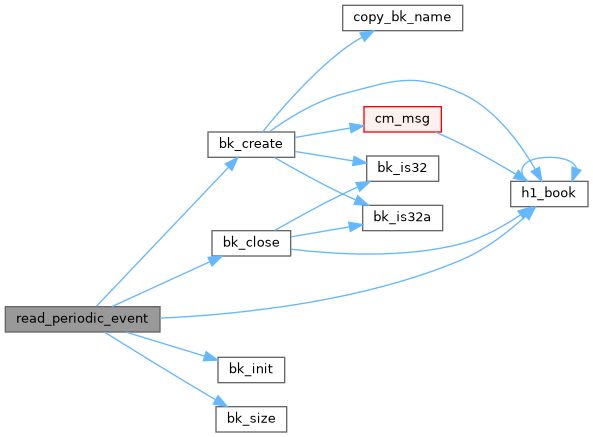

Here is the call graph for this function:

read_trigger_event()

INT read_trigger_event	(	char *	pevent,
		INT	off
	)

Definition at line 335 of file wdfe.cxx.

{
   float *pdata;
   WDEvent event(WD::wdb[0]->GetSerialNumber());

   // read current event
   bool bNewEvent = WD::wp->GetLastEvent(WD::wdb[0], 500, event);

   // start DRS for next event
   WD::wdb[0]->SetDaqSingle(true);

   if (!bNewEvent)
      return 0;

   // init bank structure
   bk_init32(pevent);

   // store time arrays for all channels on first event
   if (SERIAL_NUMBER(pevent) == 0) {
      bk_create(pevent, "DRST", TID_FLOAT, (void **) &pdata);
      for (int i = 0; i < 16; i++) {
         memcpy(pdata, event.mWfTDRS[i], sizeof(float) * 1024);
         pdata += 1024;
      }
      bk_close(pevent, pdata);
   }

   // create calibrated time array
   bk_create(pevent, "DRS0", TID_FLOAT, (void **) &pdata);

   // copy over 16 channels
   for (int i=0 ; i<16 ; i++) {
      memcpy(pdata, event.mWfUDRS[i], sizeof(float)*1024);
      pdata += 1024;
   }

   bk_close(pevent, pdata);

   return bk_size(pevent);
}

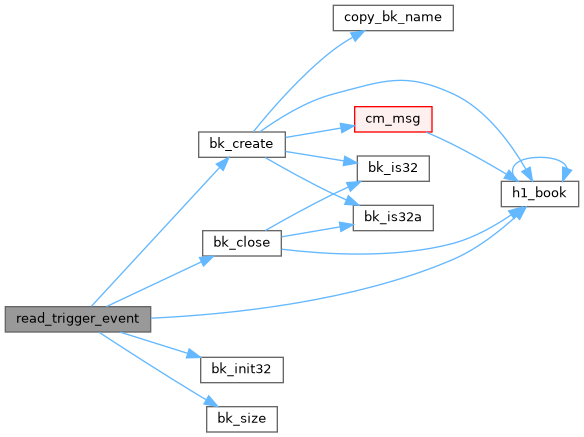

Here is the call graph for this function:

resume_run()

INT resume_run	(	INT	run_number,
		char *	error
	)

Resume Run.

Called every resume run transition.

Parameters

[in]	run_number	Number of the run being ended
[out]	error	Can be used to write a message string to midas.log

Returns

Midas status code

Definition at line 272 of file wdfe.cxx.

{
   return SUCCESS;
}

Variable Documentation

display_period

INT display_period = 3000

a frontend status page is displayed with this frequency in ms

Definition at line 33 of file wdfe.cxx.

equipment

EQUIPMENT equipment[]

Main structure for midas equipment.

Definition at line 65 of file wdfe.cxx.

                        {

   {"Trigger",               /* equipment name */
      {1, 0,                 /* event ID, trigger mask */
         "SYSTEM",           /* event buffer */
         EQ_POLLED,          /* equipment type */
         0,                  /* event source */
         "MIDAS",            /* format */
         TRUE,               /* enabled */
         RO_RUNNING,         /* read only when running */
         100,                /* poll for 100ms */
         0,                  /* stop run after this event limit */
         0,                  /* number of sub events */
         0,                  /* don't log history */
         "", "", "",},
      read_trigger_event,    /* readout routine */
   },

   {"Periodic",              /* equipment name */
      {2, 0,                 /* event ID, trigger mask */
         "SYSTEM",           /* event buffer */
         EQ_PERIODIC,        /* equipment type */
         0,                  /* event source */
         "MIDAS",            /* format */
         TRUE,               /* enabled */
         RO_RUNNING | RO_TRANSITIONS |   /* read when running and on transitions */
         RO_ODB,             /* and update ODB */
         1000,               /* read every sec */
         0,                  /* stop run after this event limit */
         0,                  /* number of sub events */
         TRUE,               /* log history */
         "", "", "",},
      read_periodic_event,   /* readout routine */
   },

   {""}
};

equipment_common_overwrite

BOOL equipment_common_overwrite = TRUE

Definition at line 63 of file wdfe.cxx.

event_buffer_size

INT event_buffer_size = 5 * max_event_size

buffer size to hold events

Definition at line 42 of file wdfe.cxx.

frontend_call_loop

BOOL frontend_call_loop = FALSE

frontend_loop is called periodically if this variable is TRUE

Definition at line 30 of file wdfe.cxx.

frontend_file_name

const char* frontend_file_name = __FILE__

The frontend file name, don't change it.

Definition at line 27 of file wdfe.cxx.

frontend_name

const char* frontend_name = "WD Frontend"

The frontend name (client name) as seen by other MIDAS clients.

Definition at line 25 of file wdfe.cxx.

max_event_size

INT max_event_size = 1024 * 1014

maximum event size produced by this frontend

Definition at line 36 of file wdfe.cxx.

max_event_size_frag

INT max_event_size_frag = 5 * max_event_size

maximum event size for fragmented events (EQ_FRAGMENTED)

Definition at line 39 of file wdfe.cxx.
