#include <stdio.h>
#include "midas.h"
#include "msystem.h"
#include "mcstd.h"

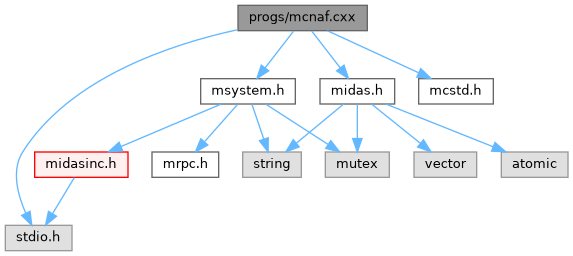

Include dependency graph for mcnaf.cxx:

Classes
struct	CAMAC

Macros
#define	D16 16

#define	D24 24

#define	LOOP 1

#define	QUIT 2

#define	HELP 3

#define	SKIP 4

#define	JOB 5

#define	CHECK 6

#define	READ 7

#define	MCSTD 77

#define	MAIN 78

#define	CAM_OFF 100

#define	CAMST CAM_OFF+30

#define	CAM16I CAM_OFF+29

#define	CAM24I CAM_OFF+28

#define	CAM16I_Q CAM_OFF+27

#define	CAM24I_Q CAM_OFF+26

#define	CAM16I_R CAM_OFF+25

#define	CAM24I_R CAM_OFF+24

#define	CAM16I_RQ CAM_OFF+23

#define	CAM24I_RQ CAM_OFF+22

#define	CAM16I_SA CAM_OFF+21

#define	CAM24I_SA CAM_OFF+20

#define	CAM16I_SN CAM_OFF+19

#define	CAM24I_SN CAM_OFF+18

#define	CAM16O CAM_OFF+17

#define	CAM24O CAM_OFF+16

#define	CAM16O_Q CAM_OFF+15

#define	CAM24O_Q CAM_OFF+14

#define	CAM16O_R CAM_OFF+13

#define	CAM24O_R CAM_OFF+12

#define	CAMC CAM_OFF+11

#define	CAMC_Q CAM_OFF+10

#define	CAMC_SA CAM_OFF+9

#define	CAMC_SN CAM_OFF+8

#define	CAM_LAM_ENABLE CAM_OFF+7

#define	CAM_LAM_READ CAM_OFF+6

#define	CAM_LAM_DISABLE CAM_OFF+5

#define	CAM_LAM_CLEAR CAM_OFF+4

#define	CAM_INHIBIT_CLEAR CAM_OFF+3

#define	CAM_INHIBIT_SET CAM_OFF+2

#define	CAM_CRATE_CLEAR CAM_OFF+1

#define	CAM_CRATE_ZINIT CAM_OFF+0

Functions
INT	cnafsub (BOOL, char *)

void	help_page (INT which)

INT	decode_line (CAMAC p, char str)

INT	read_job_file (FILE pF, INT action, CAMAC job, char name)

void	make_display_string (int from, CAMAC p, char saddr)

void	cc_services (CAMAC *p)

void	mcstd_func (CAMAC *PP)

int	main (int argc, char **argv)

Variables
char	MCStd [32][32]

CAMAC	Prompt [2]

char	job_name [128] = "cnaf.cnf"

HNDLE	hDB
	main ODB handle

HNDLE	hKey

FILE *	pF

BOOL	jobflag

char	addr [128]

Macro Definition Documentation

◆ CAM16I

#define CAM16I CAM_OFF+29

Definition at line 31 of file mcnaf.cxx.

◆ CAM16I_Q

#define CAM16I_Q CAM_OFF+27

Definition at line 33 of file mcnaf.cxx.

◆ CAM16I_R

#define CAM16I_R CAM_OFF+25

Definition at line 35 of file mcnaf.cxx.

◆ CAM16I_RQ

#define CAM16I_RQ CAM_OFF+23

Definition at line 37 of file mcnaf.cxx.

◆ CAM16I_SA

#define CAM16I_SA CAM_OFF+21

Definition at line 39 of file mcnaf.cxx.

◆ CAM16I_SN

#define CAM16I_SN CAM_OFF+19

Definition at line 41 of file mcnaf.cxx.

◆ CAM16O

#define CAM16O CAM_OFF+17

Definition at line 44 of file mcnaf.cxx.

◆ CAM16O_Q

#define CAM16O_Q CAM_OFF+15

Definition at line 46 of file mcnaf.cxx.

◆ CAM16O_R

#define CAM16O_R CAM_OFF+13

Definition at line 48 of file mcnaf.cxx.

◆ CAM24I

#define CAM24I CAM_OFF+28

Definition at line 32 of file mcnaf.cxx.

◆ CAM24I_Q

#define CAM24I_Q CAM_OFF+26

Definition at line 34 of file mcnaf.cxx.

◆ CAM24I_R

#define CAM24I_R CAM_OFF+24

Definition at line 36 of file mcnaf.cxx.

◆ CAM24I_RQ

#define CAM24I_RQ CAM_OFF+22

Definition at line 38 of file mcnaf.cxx.

◆ CAM24I_SA

#define CAM24I_SA CAM_OFF+20

Definition at line 40 of file mcnaf.cxx.

◆ CAM24I_SN

#define CAM24I_SN CAM_OFF+18

Definition at line 42 of file mcnaf.cxx.

◆ CAM24O

#define CAM24O CAM_OFF+16

Definition at line 45 of file mcnaf.cxx.

◆ CAM24O_Q

#define CAM24O_Q CAM_OFF+14

Definition at line 47 of file mcnaf.cxx.

◆ CAM24O_R

#define CAM24O_R CAM_OFF+12

Definition at line 49 of file mcnaf.cxx.

◆ CAM_CRATE_CLEAR

#define CAM_CRATE_CLEAR CAM_OFF+1

Definition at line 62 of file mcnaf.cxx.

◆ CAM_CRATE_ZINIT

#define CAM_CRATE_ZINIT CAM_OFF+0

Definition at line 63 of file mcnaf.cxx.

◆ CAM_INHIBIT_CLEAR

#define CAM_INHIBIT_CLEAR CAM_OFF+3

Definition at line 60 of file mcnaf.cxx.

◆ CAM_INHIBIT_SET

#define CAM_INHIBIT_SET CAM_OFF+2

Definition at line 61 of file mcnaf.cxx.

◆ CAM_LAM_CLEAR

#define CAM_LAM_CLEAR CAM_OFF+4

Definition at line 59 of file mcnaf.cxx.

◆ CAM_LAM_DISABLE

#define CAM_LAM_DISABLE CAM_OFF+5

Definition at line 58 of file mcnaf.cxx.

◆ CAM_LAM_ENABLE

#define CAM_LAM_ENABLE CAM_OFF+7

Definition at line 56 of file mcnaf.cxx.

◆ CAM_LAM_READ

#define CAM_LAM_READ CAM_OFF+6

Definition at line 57 of file mcnaf.cxx.

◆ CAM_OFF

#define CAM_OFF 100

Definition at line 29 of file mcnaf.cxx.

◆ CAMC

#define CAMC CAM_OFF+11

Definition at line 51 of file mcnaf.cxx.

◆ CAMC_Q

#define CAMC_Q CAM_OFF+10

Definition at line 52 of file mcnaf.cxx.

◆ CAMC_SA

#define CAMC_SA CAM_OFF+9

Definition at line 53 of file mcnaf.cxx.

◆ CAMC_SN

#define CAMC_SN CAM_OFF+8

Definition at line 54 of file mcnaf.cxx.

◆ CAMST

#define CAMST CAM_OFF+30

Definition at line 30 of file mcnaf.cxx.

◆ CHECK

#define CHECK 6

Definition at line 24 of file mcnaf.cxx.

◆ D16

#define D16 16

Definition at line 17 of file mcnaf.cxx.

◆ D24

#define D24 24

Definition at line 18 of file mcnaf.cxx.

◆ HELP

#define HELP 3

Definition at line 21 of file mcnaf.cxx.

◆ JOB

#define JOB 5

Definition at line 23 of file mcnaf.cxx.

◆ LOOP

#define LOOP 1

Definition at line 19 of file mcnaf.cxx.

◆ MAIN

#define MAIN 78

Definition at line 27 of file mcnaf.cxx.

◆ MCSTD

#define MCSTD 77

Definition at line 26 of file mcnaf.cxx.

◆ QUIT

#define QUIT 2

Definition at line 20 of file mcnaf.cxx.

◆ READ

#define READ 7

Definition at line 25 of file mcnaf.cxx.

◆ SKIP

#define SKIP 4

Definition at line 22 of file mcnaf.cxx.

Function Documentation

◆ cc_services()

void cc_services ( CAMAC * p )

Definition at line 116 of file mcnaf.cxx.

{
   if (p->n == 30) {
      if (p->a == 9 && p->f == 24)
         cam_inhibit_clear(p->c);
      else if (p->a == 9 && p->f == 26)
         cam_inhibit_set(p->c);
      else if (p->a >= 0 && p->a < 8 && p->f == 1)
         cam_lam_read(p->c, &p->d24);
      else if (p->a >= 13 && p->f == 17)
         cam_lam_enable(p->c, p->d24);
      else if (p->a >= 12 && p->f == 17)
         cam_lam_disable(p->c, p->d24);
      /*      else if (p->a>=13 && p->f==1)
         we don't support that function "read lam mask" */
   } else if (p->n == 28 && (p->a == 8 || p->a == 9)) {
      if (p->a == 8 && p->f == 26)
         cam_crate_zinit(p->c);
      else if (p->a == 9 && p->f == 26)
         cam_crate_clear(p->c);
   } else if (p->m == 24)       /* Actual 24 bits CAMAC operation */
      if (p->f < 16)
         cam24i_q(p->c, p->n, p->a, p->f, &p->d24, &p->x, &p->q);
      else
         cam24o_q(p->c, p->n, p->a, p->f, p->d24, &p->x, &p->q);
   else /* Actual 16 bits CAMAC operation */ if (p->f < 16)
      cam16i_q(p->c, p->n, p->a, p->f, &p->d16, &p->x, &p->q);
   else
      cam16o_q(p->c, p->n, p->a, p->f, p->d16, &p->x, &p->q);
}

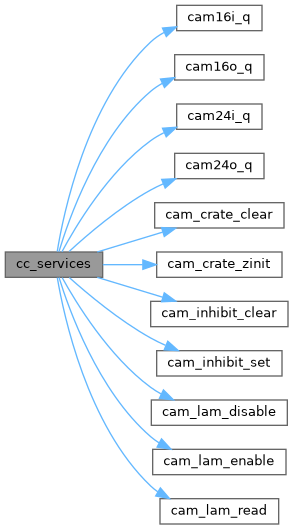

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cnafsub()

INT cnafsub	(	BOOL	cmd_mode,
		char *	cmd
	)

Definition at line 440 of file mcnaf.cxx.

{
  char str[128], line[128];
  INT status, j;
  CAMAC *P, *p = NULL, *job;

  /* Loop return label */
  if (jobflag) {
    jobflag = FALSE;
  }

  /* Load default CAMAC */
  P = Prompt;
  while (1) {
    if (!cmd_mode) {
      make_display_string(MAIN, P, addr);
      /* prompt */
      printf("mCNAF> [%s] :", addr);
      ss_gets(str, 128);
    } else {
      strcpy(str, cmd);
    }

    /* decode line */
    status = decode_line(P, str);
    if (status == QUIT)
      return status;
    else if (status == MCSTD) {
      mcstd_func(P);
      status = decode_line(P, str);
    } else if (status == HELP)
      help_page(MAIN);
    else if (status == JOB) {
      if (!cmd_mode) {
        /* interactive session, display default job name */
        printf("\nmCNAF> Job file name [%s]:", job_name);
        ss_gets(line, 128);
        if (strlen(line) == 0)
          strcpy(line, job_name);  // Use default
        else {
          strcpy(job_name, line);
        }
      } else {
        /* from command line, skip @ */
        strcpy(line, &str[1]);
      }
      /* Check if file exists */
      status = read_job_file(pF, CHECK, &job, line);
      if (status == JOB)
        status = read_job_file(pF, READ, &job, line);
    }

    if (status == LOOP || status == JOB) {
      for (j = 0; j < P->r; j++) {
        if (status == LOOP)
          p = P;
        if (status == JOB)
          p = job;
        while (p->m) {
          if (p->n == 28 || p->n == 29 || p->n == 30)
            cc_services(p);
          else if (p->m == 24) {    /* Actual 24 bits CAMAC operation */
            if (p->f < 8)
              cam24i_q(p->c, p->n, p->a, p->f, &p->d24, &p->x, &p->q);
            else if (p->f < 16)
              camc_q(p->c, p->n, p->a, p->f, &p->q);
            else if (p->f < 24)
              cam24o_q(p->c, p->n, p->a, p->f, p->d24, &p->x, &p->q);
            else
              camc_q(p->c, p->n, p->a, p->f, &p->q);
          }
          else {
            if (p->f < 16)  /* Actual 16 bits CAMAC operation */
              cam16i_q(p->c, p->n, p->a, p->f, &p->d16, &p->x, &p->q);
            else if (p->f < 24)
              cam16o_q(p->c, p->n, p->a, p->f, (WORD)p->d24, &p->x, &p->q);
            else
              camc_q(p->c, p->n, p->a, p->f, &p->q);
          }
          make_display_string(MAIN, p, addr);

          /* Result display */
          if (p->r > 1) {
            /* repeat mode */
            if (status == JOB) {
              if (!cmd_mode)
                printf("\nmCNAF> [%s]", addr);
              if (p->w != 0)
                ss_sleep(p->w);
            } else {
              if (!cmd_mode)
                printf("mCNAF> [%s] <-%03i\n", addr, j + 1);
              if (p->w != 0)
                ss_sleep(p->w);
              if (j > p->r - 1)
                break;
            }
          } else {
            /* single command */
            if (status == JOB) {
              if (!cmd_mode)
                printf("mCNAF> [%s]\n", addr);
              if (p->w != 0)
                ss_sleep(p->w);
            }
          }
          p++;
        }
      };
      if (status == JOB) {
        free(job);
        if (!cmd_mode)
          printf("\n");
      }
    }
    if (cmd_mode)
      break;
  }
  return status;
}

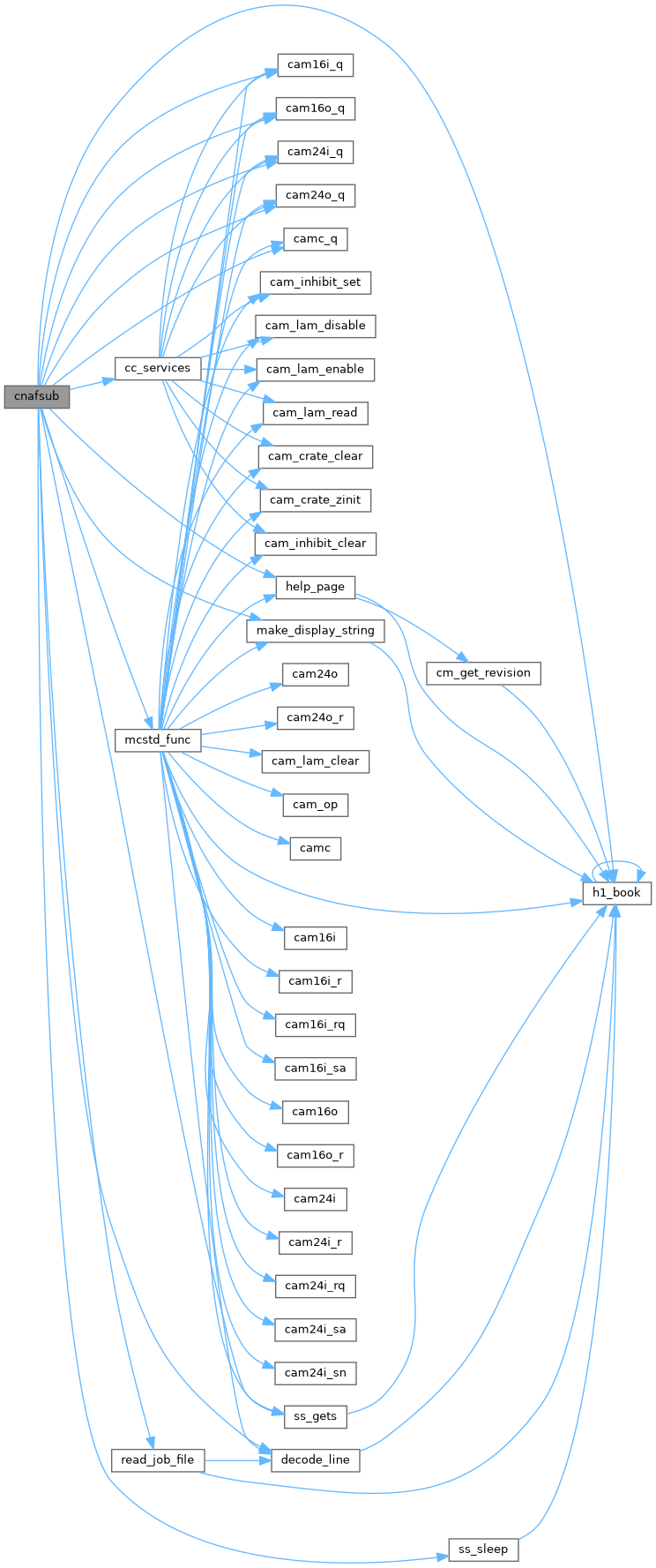

Here is the call graph for this function:

Here is the caller graph for this function:

◆ decode_line()

INT decode_line	(	CAMAC *	p,
		char *	str
	)

Definition at line 562 of file mcnaf.cxx.

{
   char empty[17] = { "                " };
   char *c, *cmd;
   char pp[128], *p, *s, *ps;
   DWORD tmp, i;
   BOOL ok = FALSE;

   p = pp;
   s = ss;
   memset(pp, 0, 128);

   /* convert to uppercase */
   c = ss;
   while (*c) {
      *c = toupper(*c);
      c++;
   }

   while (*s) {
      if (*s == 'G') {
         while (*s)
            *p++ = *s++;
         break;
      }
      if ((*s == 'B') || (*s == 'C') ||
          (*s == 'N') || (*s == 'A') ||
          (*s == 'F') || (*s == 'C') ||
          (*s == 'R') || (*s == 'W') ||
          (*s == 'G') || (*s == 'H') || (*s == 'E') || (*s == 'Q'))
         *p++ = ' ';
      else if ((*s == 'X') || (*s == 'D') || (*s == 'O')) {
         *p++ = ' ';
         *p++ = *s++;
         while (*s)
            *p++ = *s++;
         break;
      };
      *p++ = *s++;
   }
   *p++ = ' ';

   p = pp;

   if ((cmd = strpbrk(p, "P")))
      return MCSTD;
   if ((cmd = strpbrk(p, "G"))) {
      for (i = 0;; i++) {
         if (MCStd[i][0] == 0)
            break;
         if (strstr(p + 2, MCStd[i]) != NULL)
            return CAM_OFF + i;
      }
      return LOOP;
   }
   if ((cmd = strpbrk(p, "H")))
      return HELP;
   if ((cmd = strpbrk(p, "J@")))
      return JOB;
   if ((cmd = strpbrk(p, "X"))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      if (P->m == D24) {
         tmp = strtoul((cmd + 1), NULL, 16);
         if (tmp <= 0xffffff) {
            P->d24 = tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range 0x0:0xffffff\n");
      } else {
         tmp = strtoul((cmd + 1), NULL, 16);
         if (tmp <= 0xffff) {
            P->d16 = (WORD) tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range 0x0:0xffff\n");
      }
      strncpy(cmd, empty, strlen(cmd));
      *ps = ' ';
   }
   if ((cmd = strpbrk(p, "O"))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      if (P->m == D24) {
         tmp = strtoul((cmd + 1), NULL, 8);
         if (tmp <= 077777777) {
            P->d24 = tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range O0:O77777777\n");
      } else {
         tmp = strtoul((cmd + 1), NULL, 8);
         if (tmp <= 0177777) {
            P->d16 = (WORD) tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range O0:O177777\n");
      }
      strncpy(cmd, empty, strlen(cmd));
      *ps = ' ';
   }
   if ((cmd = strpbrk(p, "D"))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      if (P->m == D24) {
         tmp = strtoul((cmd + 1), NULL, 10);
         if (tmp <= 0xffffff) {
            P->d24 = tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range 0:16777215\n");
      } else {
         tmp = strtoul((cmd + 1), NULL, 10);
         if (tmp <= 0xffff) {
            P->d16 = (WORD) tmp;
            ok = TRUE;
         } else
            printf("mcnaf-E- Data out of range 0:65535\n");
      }
      strncpy(cmd, empty, strlen(cmd));
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'B'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 8) {
         P->b = tmp;
         ok = TRUE;
      } else
         printf("mcnaf-E- B out of range 0:7\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'C'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 8) {
         P->c = tmp;
         ok = TRUE;
      } else
         printf("mcnaf-E- C out of range 0:7\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'N'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 32) {
         P->n = tmp;
         ok = TRUE;
      } else
         printf("mcnaf-E- N out of range 0:31\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'A'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 16) {
         P->a = tmp;
         ok = TRUE;
      } else
         printf("mcnaf-E- A out of range 0:15\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'F'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 32) {
         P->f = tmp;
         ok = TRUE;
      } else
         printf("mcnaf-E- F out of range 0:31\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'R'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 1000) {
         if (tmp == 0)
            tmp = 1;
         P->r = tmp;
      } else
         printf("mcnaf-E- R out of range 1:1000\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'W'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp < 10001)
         P->w = tmp;
      else
         printf("mcnaf-E- W out of range 0:10000\n");
      *ps = ' ';
   }
   if ((cmd = strchr(p, 'M'))) {
      ps = strchr(cmd, ' ');
      *ps = 0;
      tmp = atoi((cmd + 1));
      if (tmp == D16 || tmp == D24)
         P->m = tmp;
      else
         printf("mcnaf-E- M out of range 16,24\n");
      *ps = ' ';
   }
   if (ok)
      return LOOP;
   if ((cmd = strpbrk(p, "QE")))
      return QUIT;
   return SKIP;
}

Here is the call graph for this function:

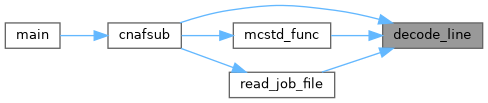

Here is the caller graph for this function:

◆ help_page()

void help_page ( INT which )

Definition at line 779 of file mcnaf.cxx.

{
   if (which == MAIN) {
      printf("\n*-v%s----------- H E L P   C N A F -------------------*\n", cm_get_revision());
      printf("          Interactive Midas CAMAC command\n");
      printf("          ===============================\n");
      printf(" Output : Data [dec/hex X=0/1 - Q=0/1 ]\n");
      printf(" Inputs : Bx :  Branch   [0 -  7]    Cx :  Crate    [0 -  7]\n");
      printf("          Nx :  Slot     [1 - 31]    Ax :  SubAdd.  [0 - 15]\n");
      printf("          Fx :  Function [0 - 31]    Mx :  Access mode [16,24]\n");
      printf("           H :  HELP on   CNAF       E/Q:  Exit/Quit from CNAF\n");
      printf("          Rx :  Repetition counter               [1 -   999]\n");
      printf("          Wx :  Delay between command (ms)       [0 - 10000]\n");
      printf("           P :  Switch to MCStd CAMAC operation\n");
      printf("           J :  Perform JOB (command list from file )\n");
      printf("                Same syntax as in interactive session\n");
      printf("           G :  PERFORM ACTION of predefine set-up\n");
      printf("           D :  Decimal     Data     [0 - max data_size]\n");
      printf("           O :  Octal       Data     [0 - max data_size]\n");
      printf("           X :  Hexadecimal Data     [0 - max data_size]\n");
      printf("\n");
      printf(">>>>>>>>>> Data has to be given LAST if needed in the command string <<<<<\n");
      printf("\n");
      printf(" The commands below are following the ESONE standard for a A2 controller\n");
      printf(" N30A9F24 : Crate clear inhibit    N30A9F26 : Crate set inhibit\n");
      printf(" N28A8F26 : Z crate                N28A9F26 : C crate\n");
      printf(" N30A13F17: CC Lam enable          N30A12F17: CC Lam disable\n");
      printf(" N30A0-7F1: CC read Lam\n");
      printf("\n");
      printf(" examples: ");
      printf(">mcnaf -cl\"triggerFE\" -h local -e myexpt\n");
      printf("      CNAF> [B0C1N30A00F00 [0/0x000000 Q0X0] R1W0M24] :n30a9f24\n");
      printf("      CNAF> [B0C1N06A00F24 [0/0x000000 Q1X1] R1W0M24] :n6f9a0\n");
   } else {
      printf("\n*-v%s----------- H E L P   C N A F -------------------*\n", cm_get_revision());
      printf("          Interactive MCStd CAMAC command\n");
      printf("The action taken is dependent on the driver implementation\n");
      printf("[Q/E]            : Exit this level\n");
      printf("[G] <function>   : Issue the given function on preset CAMAC address\n");
      printf("Possible functions are:\n");
      printf("cam16/24i        : 16/24bit input\n");
      printf("cam16/24i_q      : 16/24bit input with Q response\n");
      printf("cam16/24i_r      : 16/24bit input repeat until R reached (max 100)\n");
      printf("cam16/24i_rq     : 16/24bit input repeat until NoQ or R reached (max 100)\n");
      printf("cam16/24i_sa     : 16/24bit input scan R times over A\n");
      printf("cam16/24i_sn     : 16/24bit input scan R times over N\n");
      printf("cam16/24o        : 16/24bit output\n");
      printf("cam16/24o_q      : 16/24bit output with Q response\n");
      printf("cam16/24o_r      : 16/24bit output repeat R times\n");
      printf("camc             : 16bit command \n");
      printf("camc_q           : 16bit command with Q response\n");
      printf("camc_sa          : 16bit command scan R times over A\n");
      printf("camc_sn          : 16bit command scan R times over N\n");
      printf("cam_lam_enable   : Enable lam in Crate controller ONLY\n");
      printf("cam_lam_disable  : Disable lam in Crate controlled ONLY\n");
      printf("cam_lam_read     : Read lam from Crate controller\n");
      printf("cam_inhibit_clear: Reset Inhibit line in crate\n");
      printf("cam_inhibit_set  : Set Inhibit line in crate\n");
      printf("cam_crate_clear  : Generate a Clear cycle to the crate\n");
      printf("cam_crate_zinit  : Generate a Z cycle to the crate\n");
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 844 of file mcnaf.cxx.

{
   char host_name[HOST_NAME_LENGTH], exp_name[NAME_LENGTH], fe_name[256], rpc_server[256];
   char cmd[256];
   INT i, status;
   BOOL debug, cmd_mode = FALSE;

   /* set default */
   host_name[0] = '\0';
   exp_name[0] = '\0';
   fe_name[0] = '\0';
   rpc_server[0] = '\0';
   debug = FALSE;

   /* get parameters */
   cm_get_environment(host_name, sizeof(host_name), exp_name, sizeof(exp_name));

   /* parse command line parameters */
   for (i = 1; i < argc; i++) {
      if (argv[i][0] == '-' && argv[i][1] == 'd')
         debug = TRUE;
      else if (argv[i][0] == '-') {
         if (i + 1 >= argc || argv[i + 1][0] == '-')
            goto usage;
         if (strncmp(argv[i], "-e", 3) == 0)
            strcpy(exp_name, argv[++i]);
         else if (strncmp(argv[i], "-h", 3) == 0)
            strcpy(host_name, argv[++i]);
         else if (strncmp(argv[i], "-f", 3) == 0)
            strcpy(fe_name, argv[++i]);
         else if (strncmp(argv[i], "-s", 3) == 0)
            strcpy(rpc_server, argv[++i]);
         else if (argv[i][1] == 'c') {
            if (strlen(argv[i]) >= 256) {
               printf("error: command line too long (>256).\n");
               return 0;
            }
            strcpy(cmd, argv[++i]);
            cmd_mode = TRUE;
         } else {
          usage:
            printf("usage: mcnaf [-f Frontend] [-h Hostname] [-e Experiment] [-s RPC server]\n");
            printf("             [-c Command] [-c @CommandFile] \n\n");
            return 0;
         }
      }
   }

   if (debug)
      status = SUCCESS;

   if (rpc_server[0])
      status = cam_init_rpc("", "", "", "mcnaf", rpc_server);
   else
      status = cam_init_rpc(host_name, exp_name, fe_name, "mcnaf", "");
   if (status == SUCCESS) {
      status = cam_init();
      if (status == SUCCESS)
         status = cnafsub(cmd_mode, cmd);
   }
   cam_exit();
//  printf("status:%d\n", status);
   return status;
}

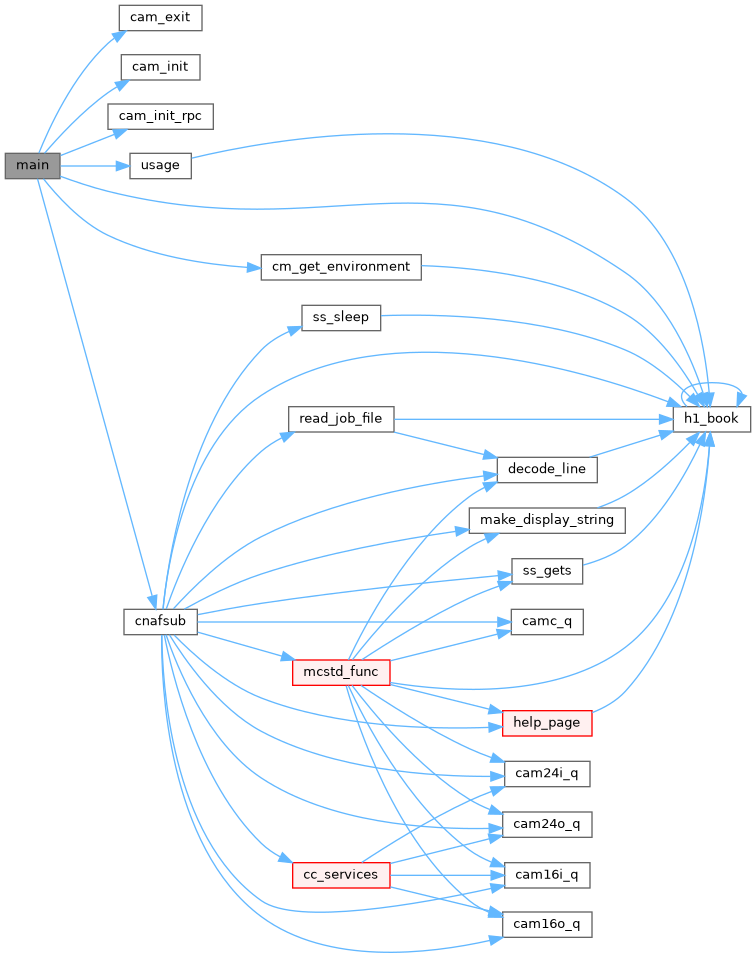

Here is the call graph for this function:

◆ make_display_string()

void make_display_string	(	int	from,
		CAMAC *	p,
		char *	saddr
	)

Definition at line 375 of file mcnaf.cxx.

{
   if (from == MAIN) {
      if (p->m == D24)
         sprintf(saddr, "B%01dC%01dN%02dA%02dF%02d [%d/0x%06x Q%01dX%01d] R%dW%dM%2d",
                 p->b, p->c, p->n, p->a, p->f, p->d24, p->d24, p->q, p->x, p->r, p->w,
                 p->m);
      else
         sprintf(saddr, "B%01dC%01dN%02dA%02dF%02d [%d/0x%04x Q%01dX%01d] R%dW%dM%2d",
                 p->b, p->c, p->n, p->a, p->f, p->d16, p->d16, p->q, p->x, p->r, p->w,
                 p->m);
   } else {
      sprintf(saddr, "B%01dC%01dN%02dA%02dF%02d [%d/0x%06x] R%d", p->b, p->c, p->n,
              p->a, p->f, p->d24, p->d24, p->r);
   }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mcstd_func()

void mcstd_func ( CAMAC * PP )

Definition at line 148 of file mcnaf.cxx.

{
   char paddr[128], pstr[128];
   int i, status, pstatus = 0;
   WORD dd16[100];
   WORD *pdd16;
   DWORD dd24[100];
   DWORD *pdd24;
   DWORD lam;
   CAMAC *p;

   /* Load default CAMAC */
   // PP = &Prompt[1];
   while (1) {
      make_display_string(MCSTD, PP, paddr);
      /* prompt */
      printf("MCStd> [%s] :", paddr);
      ss_gets(pstr, 128);

      /* decode line */
      status = decode_line(PP, pstr);
      p = PP;
      if (status == LOOP)
         status = pstatus;
      if (status != SKIP && status != HELP)
         pstatus = status;
      i = 0;
      pdd16 = dd16;
      pdd24 = dd24;
      switch (status) {
         /* system */
      case CAMST:
         printf("cam_op\n");
         cam_op();
         break;
      case CAM_LAM_ENABLE:
         cam_lam_enable(p->c, p->n);
         printf("cam_lam_enable:C%i-N%i\n", p->c, p->n);
         break;
      case CAM_LAM_DISABLE:
         cam_lam_disable(p->c, p->n);
         printf("cam_lam_disable:C%i-N%i\n", p->c, p->n);
         break;
      case CAM_LAM_READ:
         cam_lam_read(p->c, &lam);
         printf("cam_lam_read:C%i-> 0x%x\n", p->c, lam);
         break;
      case CAM_LAM_CLEAR:
         cam_lam_clear(p->c, p->n);
         printf("cam_lam_clear:C%i \n", p->c);
         break;
      case CAM_INHIBIT_SET:
         cam_inhibit_set(p->c);
         printf("cam_inhibit_set:C%i\n", p->c);
         break;
      case CAM_INHIBIT_CLEAR:
         cam_inhibit_clear(p->c);
         printf("cam_inhibit_clear:C%i\n", p->c);
         break;
      case CAM_CRATE_CLEAR:
         cam_crate_clear(p->c);
         printf("cam_crate_clear:C%i\n", p->c);
         break;
      case CAM_CRATE_ZINIT:
         cam_crate_zinit(p->c);
         printf("cam_crate_zinit:C%i\n", p->c);
         break;
         /* command */
      case CAMC:
         do {
            camc(p->c, p->n, p->a, p->f);
            printf("camc:[R%i]-C%i-N%i-A%i-F%i\n", ++i, p->c, p->n, p->a, p->f);
         } while (i < p->r);
         break;
      case CAMC_Q:
         do {
            camc_q(p->c, p->n, p->a, p->f, &p->q);
            printf("camc_q:[R%i]-C%i-N%i-A%i-F%i -Q:%i\n", ++i, p->c, p->n, p->a, p->f,
                   p->q);
         } while (i < p->r);
         break;
      case CAMC_SA:
         camc(p->c, p->n, p->a, p->f);
         printf("camc_sa:C%i-N%i-A%i-F%i\n", p->c, p->n, p->a, p->f);
         break;
      case CAMC_SN:
         camc(p->c, p->n, p->a, p->f);
         printf("camc_sn:C%i-N%i-A%i-F%i\n", p->c, p->n, p->a, p->f);
         break;
         /* output */
      case CAM16O:
         do {
            cam16o(p->c, p->n, p->a, p->f, p->d16);
            printf("cam16o:[R%i]-C%i-N%i-A%i-F%i <- 0x%x\n", ++i, p->c, p->n, p->a, p->f,
                   p->d16);
         } while (i < p->r);
         break;
      case CAM24O:
         do {
            cam24o(p->c, p->n, p->a, p->f, p->d24);
            printf("cam24o:[R%i]-C%i-N%i-A%i-F%i <- 0x%x\n", ++i, p->c, p->n, p->a, p->f,
                   p->d24);
         } while (i < p->r);
         break;
      case CAM16O_Q:
         do {
            cam16o_q(p->c, p->n, p->a, p->f, p->d16, &p->x, &p->q);
            printf("cam16o_q:[R%i]-C%i-N%i-A%i-F%i <- 0x%x X:%i-Q:%i\n", ++i, p->c, p->n,
                   p->a, p->f, p->d16, p->x, p->q);
         } while (i < p->r);
         break;
      case CAM24O_Q:
         do {
            cam24o_q(p->c, p->n, p->a, p->f, p->d24, &p->x, &p->q);
            printf("cam24o_q:[R%i]-C%i-N%i-A%i-F%i <- 0x%x X:%i-Q:%i\n", ++i, p->c, p->n,
                   p->a, p->f, p->d24, p->x, p->q);
         } while (i < p->r);
         break;
      case CAM16O_R:
         cam16o_r(p->c, p->n, p->a, p->f, pdd16, p->r);
         printf("cam16o_r:C%i-N%i-A%i-F%i <- 0x%x\n", p->c, p->n, p->a, p->f, p->d16);
         break;
      case CAM24O_R:
         cam24o_r(p->c, p->n, p->a, p->f, pdd24, p->r);
         printf("cam24o_r:C%i-N%i-A%i-F%i <- 0x%x\n", p->c, p->n, p->a, p->f, p->d24);
         break;
         /* inputs */
      case CAM16I:
         do {
            cam16i(p->c, p->n, p->a, p->f, &p->d16);
            printf("cam16i:[R%i]-C%i-N%i-A%i-F%i-> 0x%4.4x\n", ++i, p->c, p->n, p->a,
                   p->f, p->d16);
         } while (i < p->r);
         break;
      case CAM24I:
         do {
            cam24i(p->c, p->n, p->a, p->f, &p->d24);
            printf("cam24i:[R%i]-C%i-N%i-A%i-F%i-> 0x%6.6x\n", ++i, p->c, p->n, p->a,
                   p->f, p->d24);
         } while (i < p->r);
         break;
      case CAM16I_Q:
         do {
            cam16i_q(p->c, p->n, p->a, p->f, &p->d16, &p->x, &p->q);
            printf("cam16i_q:[R%i]-C%i-N%i-A%i-F%i-> 0x%4.4x X:%i-Q:%i\n", ++i, p->c,
                   p->n, p->a, p->f, p->d16, p->x, p->q);
         } while (i < p->r);
         break;
      case CAM24I_Q:
         do {
            cam24i_q(p->c, p->n, p->a, p->f, &p->d24, &p->x, &p->q);
            printf("cam24i_q:[R%i]-C%i-N%i-A%i-F%i-> 0x%6.6x X:%i-Q:%i\n", ++i, p->c,
                   p->n, p->a, p->f, p->d24, p->x, p->q);
         } while (i < p->r);
         break;
      case CAM16I_R:
         memset(pdd16, 0, sizeof(dd16));
         cam16i_r(p->c, p->n, p->a, p->f, &pdd16, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam16i_r:[R%i]-C%i-N%i-A%i-F%i-> 0x%4.4x\n", i + 1, p->c, p->n, p->a,
                   p->f, dd16[i]);
         break;
      case CAM24I_R:
         memset(pdd24, 0, sizeof(dd24));
         cam24i_r(p->c, p->n, p->a, p->f, &pdd24, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam24i_r:[R%i]-C%i-N%i-A%i-F%i-> 0x%6.6x\n", i + 1, p->c, p->n, p->a,
                   p->f, dd24[i]);
         break;
      case CAM16I_RQ:
         memset(pdd16, 0, sizeof(dd16));
         cam16i_rq(p->c, p->n, p->a, p->f, &pdd16, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam16i_rq:[R%i]-C%i-N%i-A%i-F%i-> 0x%4.4x\n", i + 1, p->c, p->n, p->a,
                   p->f, dd16[i]);
         break;
      case CAM24I_RQ:
         memset(pdd24, 0, sizeof(dd24));
         cam24i_rq(p->c, p->n, p->a, p->f, &pdd24, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam24i_rq:[R%i]-C%i-N%i-A%i-F%i-> 0x%6.6x\n", i + 1, p->c, p->n,
                   p->a, p->f, dd24[i]);
         break;
      case CAM16I_SA:
         memset(pdd16, 0, sizeof(dd16));
         cam16i_sa(p->c, p->n, p->a, p->f, &pdd16, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam16i_sa:[R%i]-C%i-N%i-A%i-F%i-> 0x%4.4x\n", i + 1, p->c, p->n,
                   p->a + i, p->f, dd16[i]);
         break;
      case CAM24I_SA:
         memset(pdd24, 0, sizeof(dd24));
         cam24i_sa(p->c, p->n, p->a, p->f, &pdd24, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam24i_sa:[R%i]-C%i-N%i-A%i-F%i-> 0x%6.6x\n", i + 1, p->c, p->n,
                   p->a + i, p->f, dd24[i]);
         break;
      case CAM16I_SN:
         memset(pdd16, 0, sizeof(dd16));
         cam16i_sa(p->c, p->n, p->a, p->f, &pdd16, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam16i_sn:[R%i]-C%i-N%i-A%i-F%i-> 0x%x\n", i + 1, p->c, p->n + i,
                   p->a, p->f, dd16[i]);
         break;
      case CAM24I_SN:
         memset(pdd24, 0, sizeof(dd24));
         cam24i_sn(p->c, p->n, p->a, p->f, &pdd24, p->r);
         for (i = 0; i < p->r; i++)
            printf("cam24i_sn:[R%i]-C%i-N%i-A%i-F%i-> 0x%x\n", i + 1, p->c, p->n + i,
                   p->a, p->f, dd24[i]);
         break;
      case QUIT:
         p->r = 1;
         return;
      case HELP:
         help_page(MCSTD);
         break;
      case SKIP:
         break;
      default:
         status = SKIP;
         break;
      }
   }
}

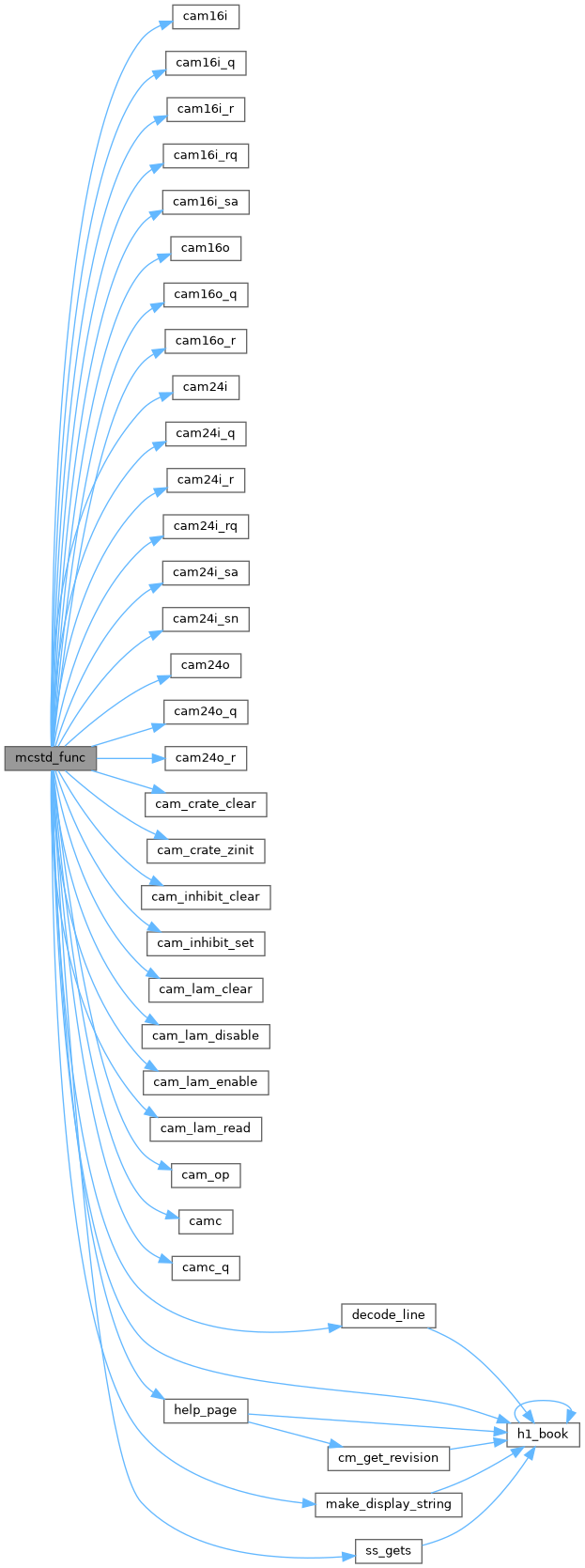

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read_job_file()

INT read_job_file	(	FILE *	pF,
		INT	action,
		CAMAC **	job,
		char *	name
	)

Definition at line 393 of file mcnaf.cxx.

{
   DWORD n;
   char line[128];
   CAMAC *pjob;

   if (action == CHECK) {
      if (*name == 0)
         sprintf(name, "%s", job_name);
      pF = fopen(name, "r");
      if (pF) {
         fclose(pF);
         return JOB;
      }
      printf("CNAF-I- File not found :%s\n", name);
      return SKIP;
   } else if (action == READ) {
      pF = fopen(name, "r");
      if (pF) {
         n = 0;
         /* count the total number of line */
         while (fgets(line, 128, pF))
            n++;
         /* allocate memory for full job */
         *job = (CAMAC*)malloc((n + 1) * sizeof(CAMAC));
         pjob = *job;
         /* preset the full job with 0 */
         memset((char *) pjob, 0, (n + 1) * sizeof(CAMAC));
         /* preset the first entry with the predefined CAMAC access */
         memcpy((char *) pjob, (char *) Prompt, sizeof(CAMAC));
         rewind(pF);
         while (fgets(line, 128, pF)) {
            if (pjob->m == 0) {
               /* load previous command before overwriting */
               memcpy((char *) pjob, (char *) (pjob - 1), sizeof(CAMAC));
            }
            decode_line(pjob++, line);
         }
         fclose(pF);
         return JOB;
      }
   } else
      printf("CNAF-I- Cmd not found :%s\n", name);
   return SKIP;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ addr

char addr[128]

Definition at line 104 of file mcnaf.cxx.

◆ hDB

HNDLE hDB

main ODB handle

Definition at line 101 of file mcnaf.cxx.

◆ hKey

HNDLE hKey

Definition at line 101 of file mcnaf.cxx.

◆ job_name

char job_name[128] = "cnaf.cnf"

Definition at line 99 of file mcnaf.cxx.

◆ jobflag

BOOL jobflag

Definition at line 103 of file mcnaf.cxx.

◆ MCStd

char MCStd[32][32]

Initial value:

= {
   "CAM_CRATE_ZINIT", "CAM_CRATE_CLEAR", "CAM_INHIBIT_SET", "CAM_INHIBIT_CLEAR",
   "CAM_LAM_CLEAR", "CAM_LAM_DISABLE", "CAM_LAM_READ", "CAM_LAM_ENABLE",
   "CAMC_SN", "CAMC_SA", "CAMC_Q", "CAMC",
   "CAM24O_R", "CAM16O_R", "CAM24O_Q", "CAM16O_Q", "CAM24O", "CAM16O",
   "CAM24I_SN", "CAM16I_SN", "CAM24I_SA", "CAM16I_SA",
   "CAM24I_RQ", "CAM16I_RQ", "CAM24I_R", "CAM16I_R",
   "CAM24I_Q", "CAM16I_Q", "CAM24I", "CAM16I", "CAMST", ""
}

Definition at line 66 of file mcnaf.cxx.

                     {
   "CAM_CRATE_ZINIT", "CAM_CRATE_CLEAR", "CAM_INHIBIT_SET", "CAM_INHIBIT_CLEAR",
   "CAM_LAM_CLEAR", "CAM_LAM_DISABLE", "CAM_LAM_READ", "CAM_LAM_ENABLE",
   "CAMC_SN", "CAMC_SA", "CAMC_Q", "CAMC",
   "CAM24O_R", "CAM16O_R", "CAM24O_Q", "CAM16O_Q", "CAM24O", "CAM16O",
   "CAM24I_SN", "CAM16I_SN", "CAM24I_SA", "CAM16I_SA",
   "CAM24I_RQ", "CAM16I_RQ", "CAM24I_R", "CAM16I_R",
   "CAM24I_Q", "CAM16I_Q", "CAM24I", "CAM16I", "CAMST", ""
};

◆ pF

FILE* pF

Definition at line 102 of file mcnaf.cxx.

◆ Prompt

CAMAC Prompt[2]

Initial value:

= { {24, 0, 0, 1, 2, 0, 0, 0, 1, 0, 0, 0},
{0}
}

Definition at line 94 of file mcnaf.cxx.

                  { {24, 0, 0, 1, 2, 0, 0, 0, 1, 0, 0, 0},
{0}
};

Classes

Macros

Functions

Variables

Macro Definition Documentation

◆ CAM16I

◆ CAM16I_Q

◆ CAM16I_R

◆ CAM16I_RQ

◆ CAM16I_SA

◆ CAM16I_SN

◆ CAM16O

◆ CAM16O_Q

◆ CAM16O_R

◆ CAM24I

◆ CAM24I_Q

◆ CAM24I_R

◆ CAM24I_RQ

◆ CAM24I_SA

◆ CAM24I_SN

◆ CAM24O

◆ CAM24O_Q

◆ CAM24O_R

◆ CAM_CRATE_CLEAR

◆ CAM_CRATE_ZINIT

◆ CAM_INHIBIT_CLEAR

◆ CAM_INHIBIT_SET

◆ CAM_LAM_CLEAR

◆ CAM_LAM_DISABLE

◆ CAM_LAM_ENABLE

◆ CAM_LAM_READ

◆ CAM_OFF

◆ CAMC

◆ CAMC_Q

◆ CAMC_SA

◆ CAMC_SN

◆ CAMST

◆ CHECK

◆ D16

◆ D24

◆ HELP

◆ JOB

◆ LOOP

◆ MAIN

◆ MCSTD

◆ QUIT

◆ READ

◆ SKIP

Function Documentation

◆ cc_services()

◆ cnafsub()

◆ decode_line()

◆ help_page()

◆ main()

◆ make_display_string()

◆ mcstd_func()

◆ read_job_file()

Variable Documentation

◆ addr

◆ hDB

◆ hKey

◆ job_name

◆ jobflag

◆ MCStd

◆ pF

◆ Prompt
